A used slitter folder that looks fine on the shop floor can still hide six-figure surprises once it's running production. The blades look sharp, the frame looks solid, and the seller swears it "just needs a good cleaning." Then week two hits, and you're chasing fold angle inconsistencies you can't explain.

This article is for two kinds of buyers: those evaluating a used slitter folder before they sign a purchase order and plant managers deciding whether to retrofit an aging machine instead of replacing it outright. Either way, the goal is the same: know exactly what you're buying (or keeping) before you commit real money to it.

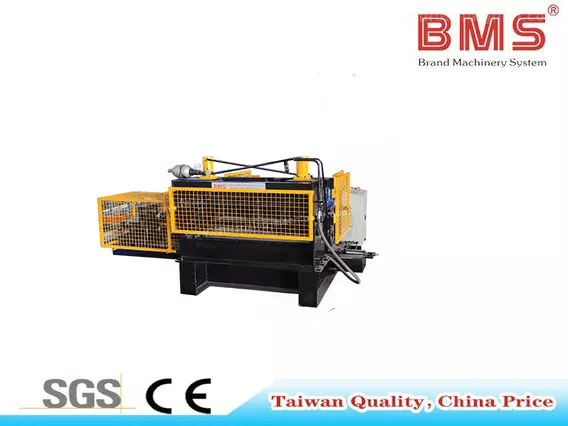

What Is a Slitter Folder, and Why Condition Assessment Matters

The slitter folder performs two functions at once, namely cutting the coil into strips and folding the strips in order to make them ready for forming into duct panels and sheets. This makes this machine efficient, although less forgiving than single-function equipment.

The trouble here is that the tolerances of slitting and folding operations accumulate. The slightly dull blade produces the strip of inaccurate width, while the improperly aligned folding station bends this strip incorrectly. None of these problems will show themselves as the maintenance issues directly but will manifest as the defects of the finished goods after the material was cut.

This is why a simple walk-around inspection is not enough in this case, because there is a big difference between operating the machine and maintaining the machine's tolerances within the limits.

Before You Inspect: What to Get From the Seller First

Get these items before you show up on-site. They tell you what to prioritize once you're standing in front of the machine, and they flag sellers who can't (or won't) produce basic records.

• Maintenance and service logs: the information that's not in the logs is probably more informative than the information that is.

• Original spec sheet: the operating range of the gauges, maximum width of the material that can be handled, and acceptable fold angles.

• Production history: number of hours run, type of material generally used, and whether it was run as one-shift or multi-shift production.

• Video of the machine running under load: idle video is basically useless for seeing how the machine works in a production setting.

If a seller can only offer one or two of these, it's not automatically a dealbreaker, but it does mean your on-site inspection needs to work harder.

The Used Slitter Folder Inspection Checklist

1. Slitting Section

• Blade wear and edge sharpness: dull or damaged blades cause burrs and ragged edges well before the blade fails.

• Arbor alignment and runout: even minor runout becomes large discrepancies in strip width downline.

• Shim condition and spacing accuracy: damaged or incorrectly placed shims may be one of the most frequent and cheapest to ignore sources of drift.

• Signs of material drift on test cuts: test a piece of strip and take measurements from several places, not only one end.

2. Roll Forming Stations

• Roll wear patterns: irregular wear on rolls almost always indicates an alignment problem earlier in the system.

• Shaft straightness and bearing play: test manually whenever possible; excess play is often exhibited through vibration in the finished product.

• Drive train condition: check gears and chains for stretching, pitting, or irregular wear.

• Lubrication residue and heat discoloration: both are strong indicators of a station that's been running hot or dry.

3. Folding Station

• Fold angle consistency:  take multiple test samples, rather than only one, and compare each with the specification sheet.

• Die wear and clearance: die wear is a major cause of inconsistent folding angles, and fixing it is not an expensive problem.

• Actuator condition: check hydraulic cylinder seals for any leaks and that the system retains pressure while under constant load.

• Backlash in the folding mechanism: backlash adds up with all other tolerances in the system.

4. Drive System and Controls

• Motor condition and amperage draw: run tests while the motor is under load and not idling in order to get an accurate measurement.

• PLC and HMI functionality: find out whether the control system is original equipment or has been retrofitted already.

• Spare parts availability: this plays an important role when the machine uses an old controller because an error in the controls with unavailable components leads to prolonged downtime.

• Panel and wiring condition: A neat and well-organized control panel usually is an indicator of good maintenance of the entire machine.

5. Frame and Structural Integrity

• Base leveling and vibration under load: in case of vibration issues, they are usually structural, not aesthetic.

• Weld integrity at load-bearing points: pay attention to any weld located at the point of repeated mechanical stress.

• Corrosion: this matters even more for the machines that were working in humid or coastal environments where corrosion can be concealed by a new paint job.

6. Run a Live Test, Not Just a Static Inspection

A static walk-around tells you what the machine looks like. A live test tells you what it actually does. Run real material at production speed, then measure the output against the original spec sheet from step one. This single step catches more real problems than every other item on this checklist combined.

Red Flags That Should Change Your Offer

• Inconsistent fold angles across multiple test pieces: this means that there is a wear of the die or a larger alignment problem, not just a coincidence.

• A control system with no available spare parts or software support: this is one of the most expensive legacy problems, as it may stop working entirely and leave you without any backup options.

• Evidence of cosmetic-only repairs: painting over the weld or replacement with mismatching parts may indicate a cosmetic fix instead of resolving the root cause.

• Missing or altered nameplate and serial data: this makes it impossible to check the history of the machine.

Retrofit vs. Replace: How to Make the Call

Once the inspection is done, you're left with a decision: fix what you have or start fresh. Here's how to think through it.

When a Retrofit Makes Sense

Retrofitting will make much more sense than rebuilding for those machines that have a good frame and drivetrain but whose controls and/or tooling are outdated. Also, it makes sense if your production rate is too low to justify the purchase of the brand-new machine or if the retrofit price will be noticeably lower than the price of a new one.

What a Slitter Folder Retrofit Typically Involves

• Control system upgrade: replacing the PLC or HMI or integrating servo control where the original design used older mechanical or hydraulic systems.

• Roll and die work: reground or replaced rolls and dies to restore original tolerances.

• Drive train replacement: new motors and gearboxes where wear has gone past the point of simple repair.

• Safety system updates: bringing an older machine up to current safety standards, which is often required regardless of anything else.

When Replacement Is the Better Investment

Replacement normally prevails in cases where there are problems with the structural integrity of the machine, because such issues can be costly to address and are often unfeasible to solve. The idea of replacement also comes in handy when the cost of the retrofitting process reaches 60 to 70 percent of the cost of a brand-new machine.

If replacement turns out to be the right call, it's worth comparing current metal slitting machines and cut-to-length line machines against your retrofit estimate before you decide either way.

What to Consider Before You Buy or Retrofit

Buying a used slitter folder can lower equipment costs, but its value depends on reliable performance and affordable retrofit requirements. Before purchasing or upgrading a machine, evaluate these six areas.

1. Runtime and Mechanical Condition

Consider the total running time of the slitting and folding units, but do not depend only on their working hours. Examine blades, shafts, rollers, bearings, folding tools, and drives for wear. Maintenance history could give some insight into the regularity of maintenance.

Running time cannot serve as an indicator of the condition of the equipment. On the contrary, the equipment with greater running time can still work fine, provided it is maintained properly. Vibration, improper folding, bad slitting, and a high degree of wear could be indicative of necessary refurbishment.

2. Control System Support

Establish what kind of PLC, HMI, drives, sensors, and other software the machine has. Check out if there is any support for the systems from the manufacturer, a professional integrator, or some other organization. Consider the availability of replacement parts.

If the controls are obsolete, then plan to replace them at the expense of your total investment budget. The controls replacement will make your equipment more reliable and maintainable.

3. Loaded Performance Testing

Test the machine while it is working on the material, not just while demonstrating itself without load. Ask for video materials of testing or organize a personal testing of the machine under conditions that resemble yours.

Check whether slitting, folding, material handling, acceleration, and deceleration are done properly, and if the result looks satisfactory. A test with load may disclose some problems related to the machine's mechanics, electronics, or even incorrect settings.

4. Parts Availability and Retrofit Costs

The buying price doesn’t reflect the total cost of the machine. Determine the elements that will need replacing or refurbishment—bearings, rollers, knives, folding mechanism, drive system, and obsolescent electronics.

Find out the current costs, availability, and delivery terms. Long delays with supplying important elements will prevent you from installing and working with the machine. Count the engineering and other costs of the machine compared to the new one.

5. Safety and Compliance

Make sure that all guarding, emergency stops, interlocks, electrical systems, and other safety elements comply with the demands made by your plant and regulations. Old equipment may need some retrofit in order to make it operable. Specify these changes in your retrofit plan and account for them prior to the purchase.

6. Assess Total Machine Value

Consider all these expenses when making the decision, including initial price, maintenance and repairs, parts replacement, control modification, and safety changes. The equipment with good mechanics and reasonable retrofit costs may prove to be valuable for you. However, obsolescence of the parts used, high level of wear, and high costs of retrofitting close to the cost of new equipment may make it non-profitable to purchase.

Conclusion

The difference between a good and a bad used-machine purchase almost always comes down to inspection discipline. Work through the checklist, run the live test, and don't skip the questions that feel uncomfortable to ask a seller.

If you're weighing a used slitter folder purchase or trying to decide between a retrofit and a new line, contact BMS Machinery for an inspection consultation or a retrofit quote before you commit.

FAQs

How much does it cost to retrofit a used slitter folder machine?

The cost to retrofit a used industrial slitter folder machine generally ranges from $10,000 to over $100,000, depending entirely on the scope of the project, machine size, and whether you are upgrading software or heavy mechanical hardware.

How long does a typical slitter folder retrofit take?

A typical industrial slitter folder retrofit requires 2 to 5 days of on-site installation and commissioning, depending on the complexity of the machine and the scope of the upgrade. However, the end-to-end project timeline—including engineering and manufacturing—takes 6 to 12 weeks from contract signing to completion.

Can any used slitter folder be retrofitted, or are some too far gone?

Not every used slitter folder can be retrofitted; some units are genuinely too far gone or financially unviable to save. While modern industrial retrofits can replace obsolete electronics, rewire controls, and replace missing subsystems, a successful retrofit depends entirely on the integrity of the machine's foundation.

What's the average usable lifespan of a slitter folder machine with proper maintenance?

With rigorous, proactive maintenance, a high-quality sheet metal slitter folder machine has an average usable lifespan of 15 to 25 years (or between 20,000 and 40,000 operational hours). Heavy-duty, industrial-tier models from premium manufacturers can often exceed 30 years of reliable service. The longevity of a slitter folder relies heavily on the regular replacement of its consumable parts and the proper calibration of its major structural systems.

Should I have a third party inspect a used machine before I buy it?

Yes, you should always have a third-party expert inspect a used machine before you buy it. This will help you identify hidden damage, save money, and avoid costly repairs.
