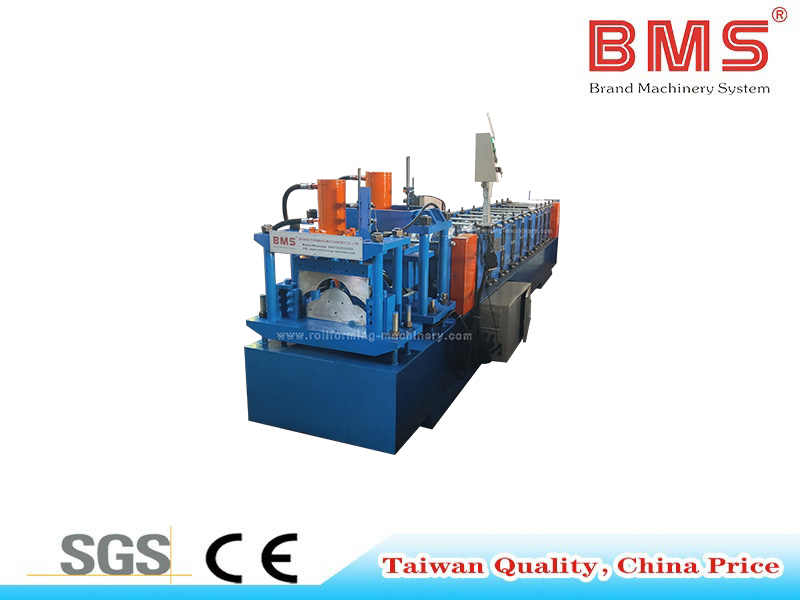

Product Description
The Metal Roof Ridge Cap Roll Forming Machine (Philippines Model) is an industrial-grade manufacturing equipment engineered for the precise and highly efficient production of metal roof ridge caps. Designed specifically to meet the rigorous demands of modern roofing material production, this machine offers a reliable, automated process that seamlessly transforms galvanized coils and PPGI into perfectly shaped ridge caps. By integrating a robust mechanical structure with an intelligent control system, it helps manufacturers significantly reduce manual labor, minimize material waste, and maintain strict dimensional consistency across high-volume production runs.
Whether you are upgrading an existing manufacturing facility or establishing a new production line, this equipment delivers exceptional operational stability. Its heavy-duty H400 body frame and precision-machined components ensure long-term durability, lowering maintenance costs and reducing unexpected downtime. Tailored for standard material thicknesses ranging from 0.3mm to 0.8mm, it provides the versatility required to handle various project specifications efficiently.
Machine Profile & Technical Parameters
Understanding the core specifications of your roll forming equipment is crucial for ensuring it aligns with your production capacity and material requirements. The table below details the main parameters of the machine, including its 12-step forming stations, 5.5 KW main motor power, and high-strength Cr12 Mov rollers. With an applicable yield strength of 245-450 Mpa, the machine effortlessly handles standard roofing materials without stressing the motor. These technical advantages guarantee a smooth forming process and a reliable production speed of 18-20 meters per minute, optimizing your overall manufacturing efficiency.
| No. | Main Parameters | Roll Forming Mill Parameters |
| 1. | Material Thickness | 0.3-0.8mm | Forming Stations | 12-step |
| 2. | Feeding Width | 457mm | Body Frame | H400 |
| 3. | Application Material | Galvanized Coil, PPGI | Reducer | R series |
| 4. | Electrical Standard | 220V/60Hz/3ph | Shaft Diameter | 45# Steel, φ70mm |
| 5. | Manual Decoiler Diameter | 508±30 mm | Main Motor Power | 5.5 KW |
| 6. | Yield Strength | 245-450Mpa | Screw Bolts | Grade 8.8 |
| 7. | Forming Speed | 18-20m/min | Effective Width | As Customer Design |
| 8. | Control System | PLC Control System | Roller | Cr12 Mov, CNC Lathes, Hear Treatment, HRC58-62 |
| 9. | Hydraulic Motor | 5.5KW | Machine Color | Blue+Black+Orange |
| 10. | Testing Material | BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing |
Automated Work Flow
To maximize production efficiency and ensure operational safety, this ridge cap roll forming machine features a streamlined, fully automated workflow. The continuous process minimizes the need for manual intervention between stages, resulting in higher throughput and consistent profile accuracy. The integrated PLC Control System acts as the brain of the operation, allowing operators to easily set production lengths and batch quantities, which eliminates human error and ensures uniformity.
Manual Decoiler (3Tons) → Feeding Guide Device → Main Roll Forming Mill → Hydraulic Post Cutter → PLC Control System → Exit Rack
Core Machine Components Display
The reliability and lifespan of a roll forming machine depend heavily on the quality of its individual components. We utilize premium materials and advanced machining techniques to manufacture each part, ensuring they withstand continuous industrial use and deliver precise shaping capabilities.

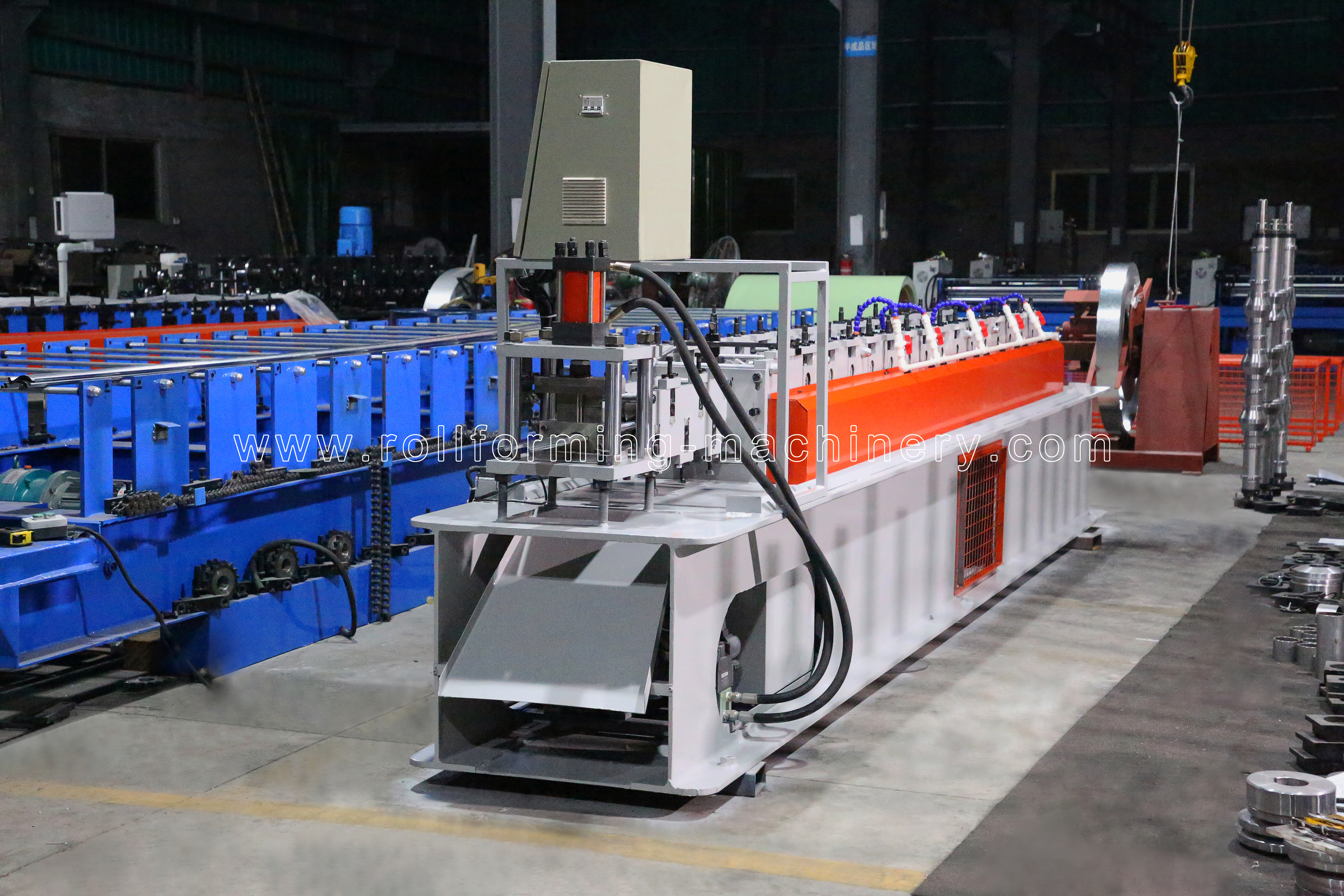

Feeding Guide Device

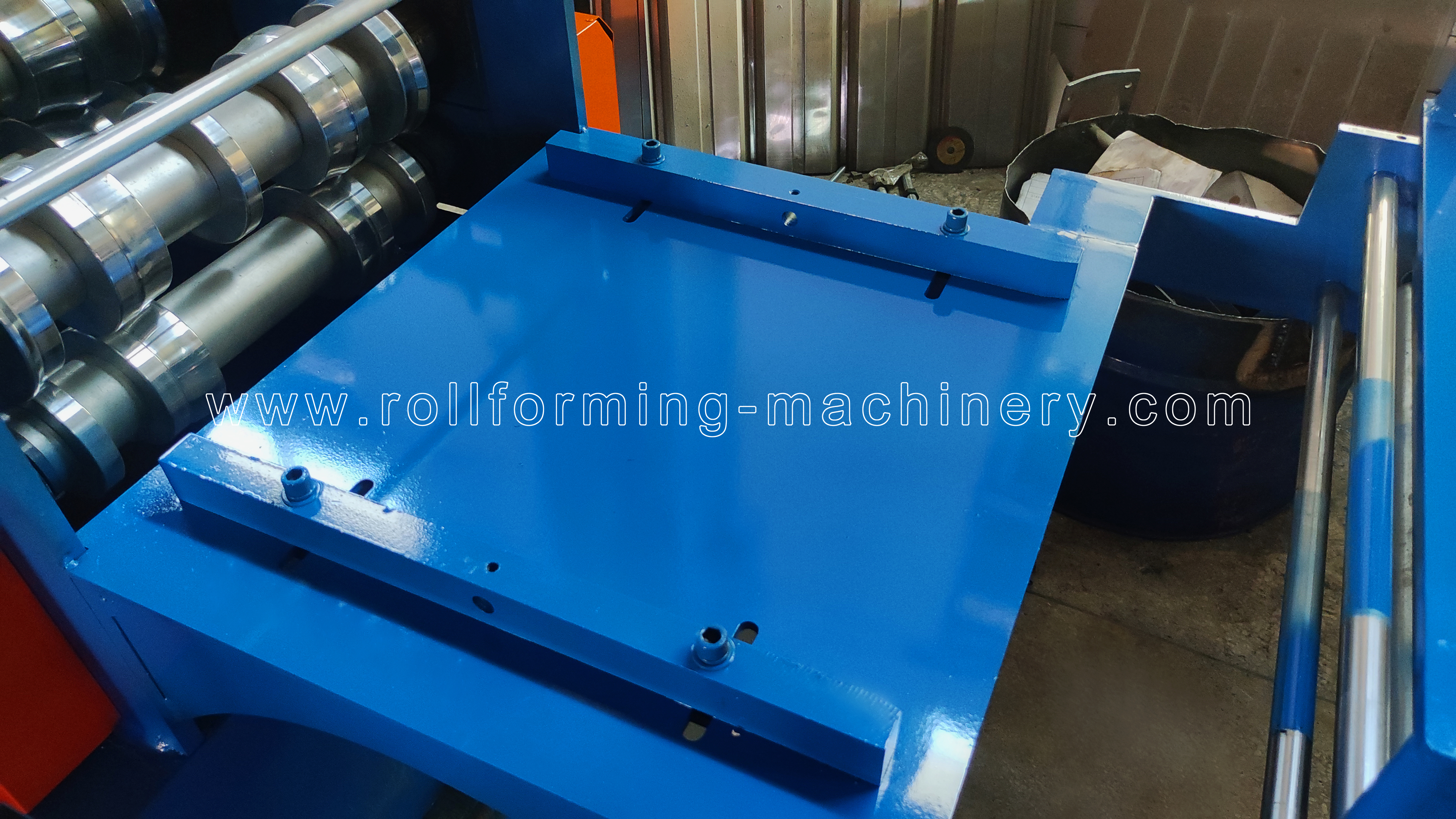

This component ensures that the galvanized or PPGI coils are accurately fed into the forming mill. Proper alignment at this initial stage is critical to prevent material deviation, ensuring the final ridge caps have straight, clean edges without any distortion during the high-speed roll forming process.

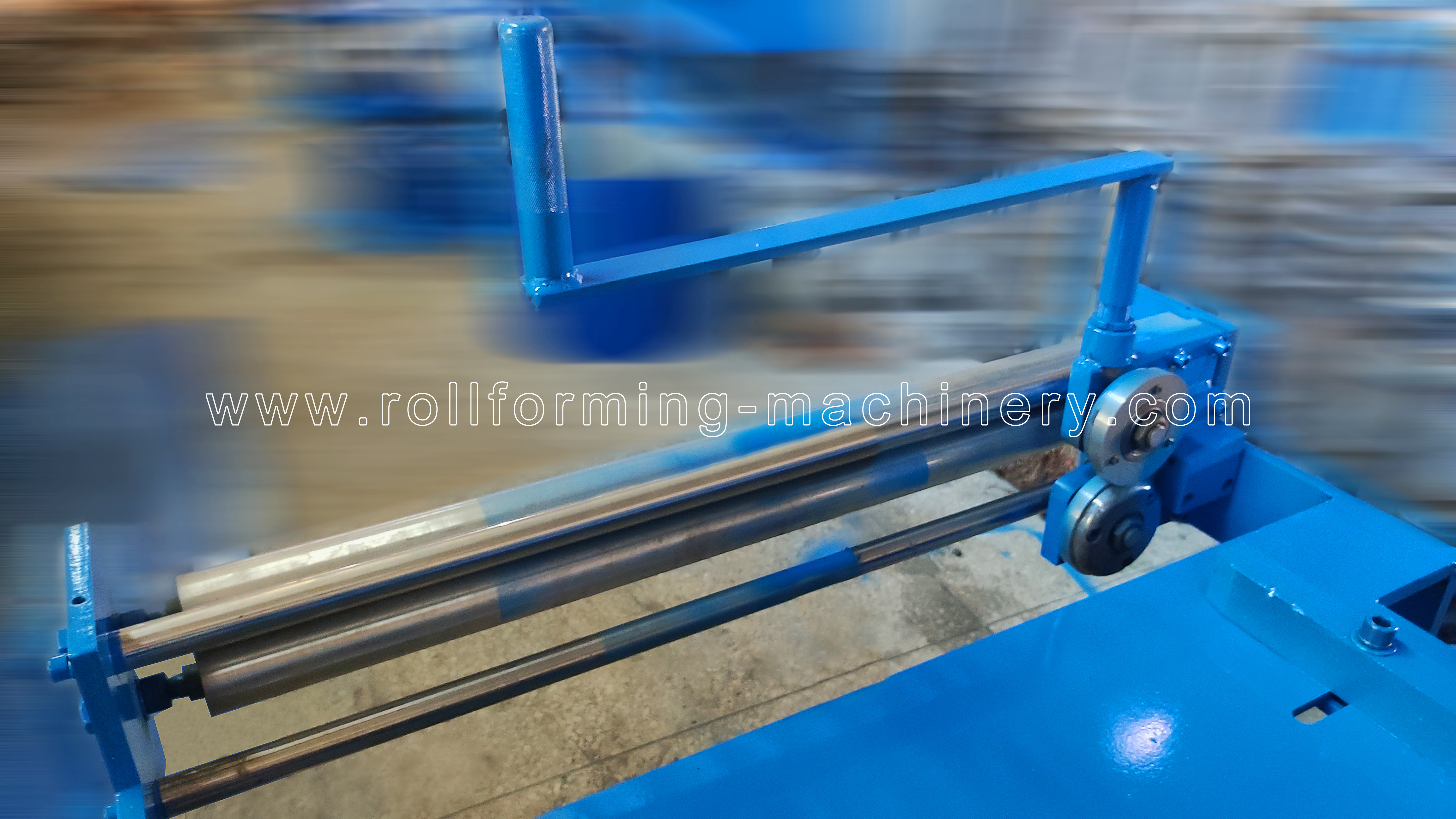

Precision Rollers & Manual Pre-cutter

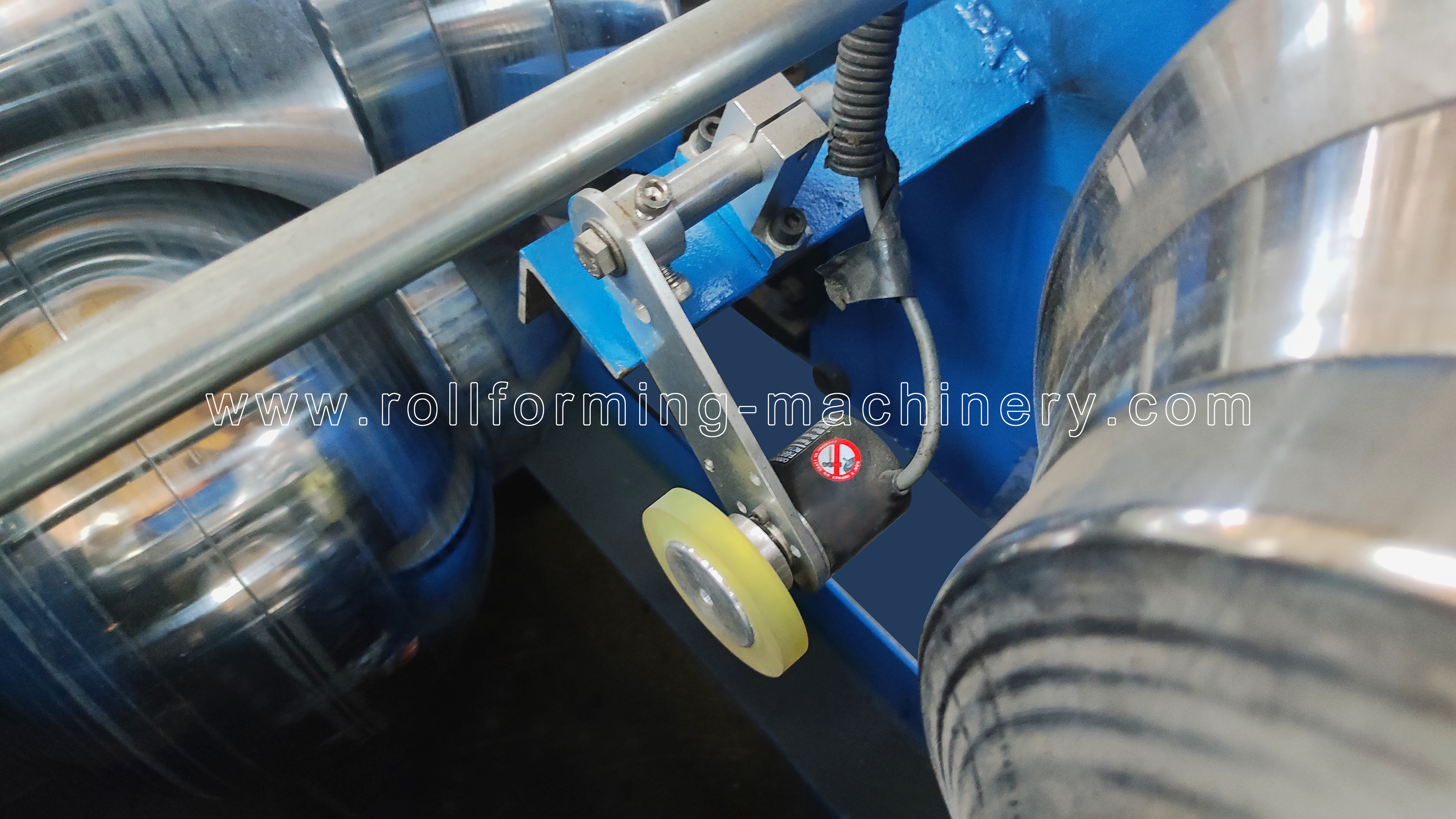

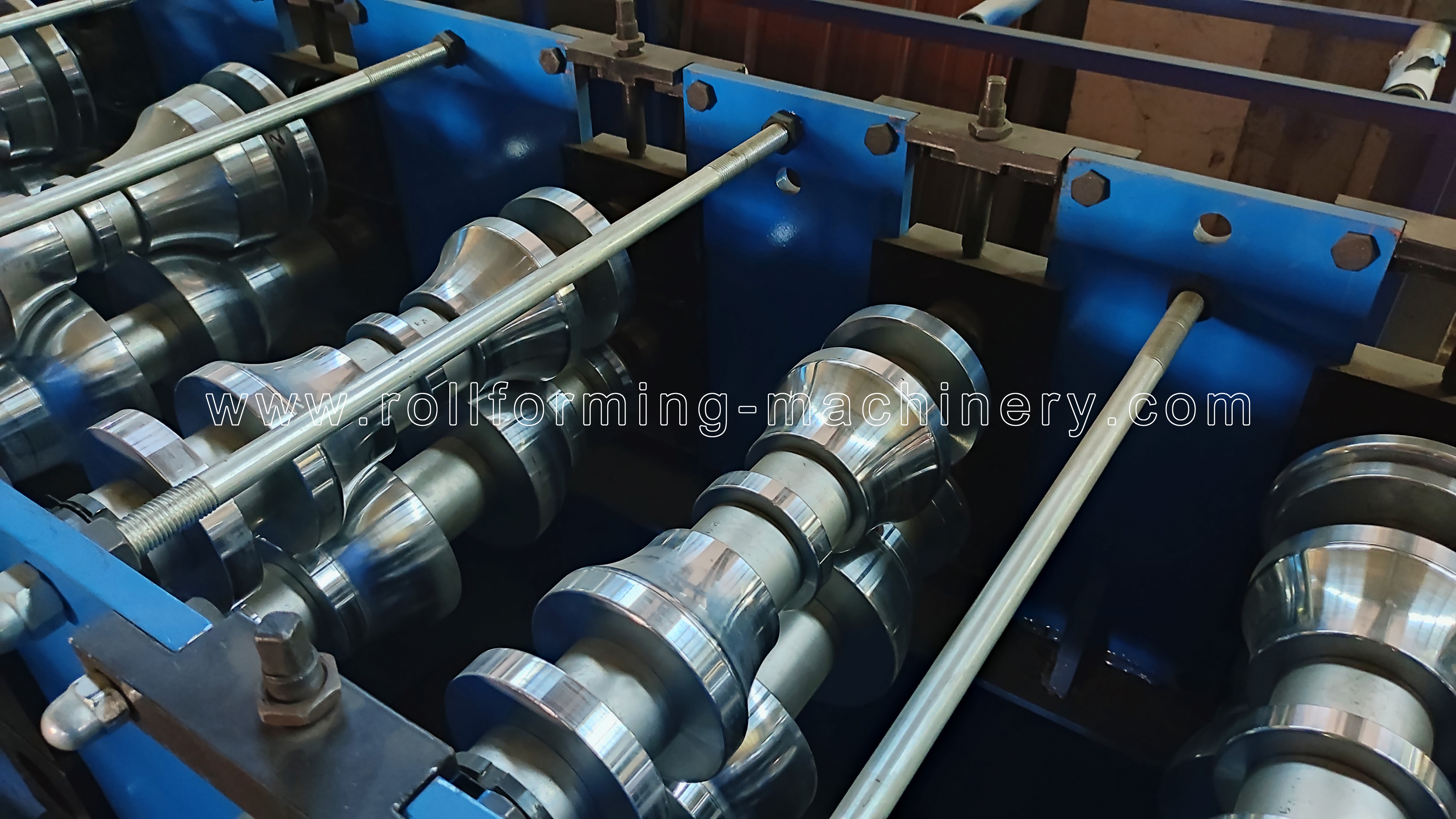

The rollers are the core shaping elements of the machine. Crafted from high-grade Cr12 Mov steel and processed through CNC lathes and heat treatment (HRC58-62), they offer superior wear resistance, extending the machine's service life significantly. The manual pre-cutter provides additional operational flexibility during the initial material setup or for handling specific custom cutting requirements before the automated cycle begins.
Produced Products Overview

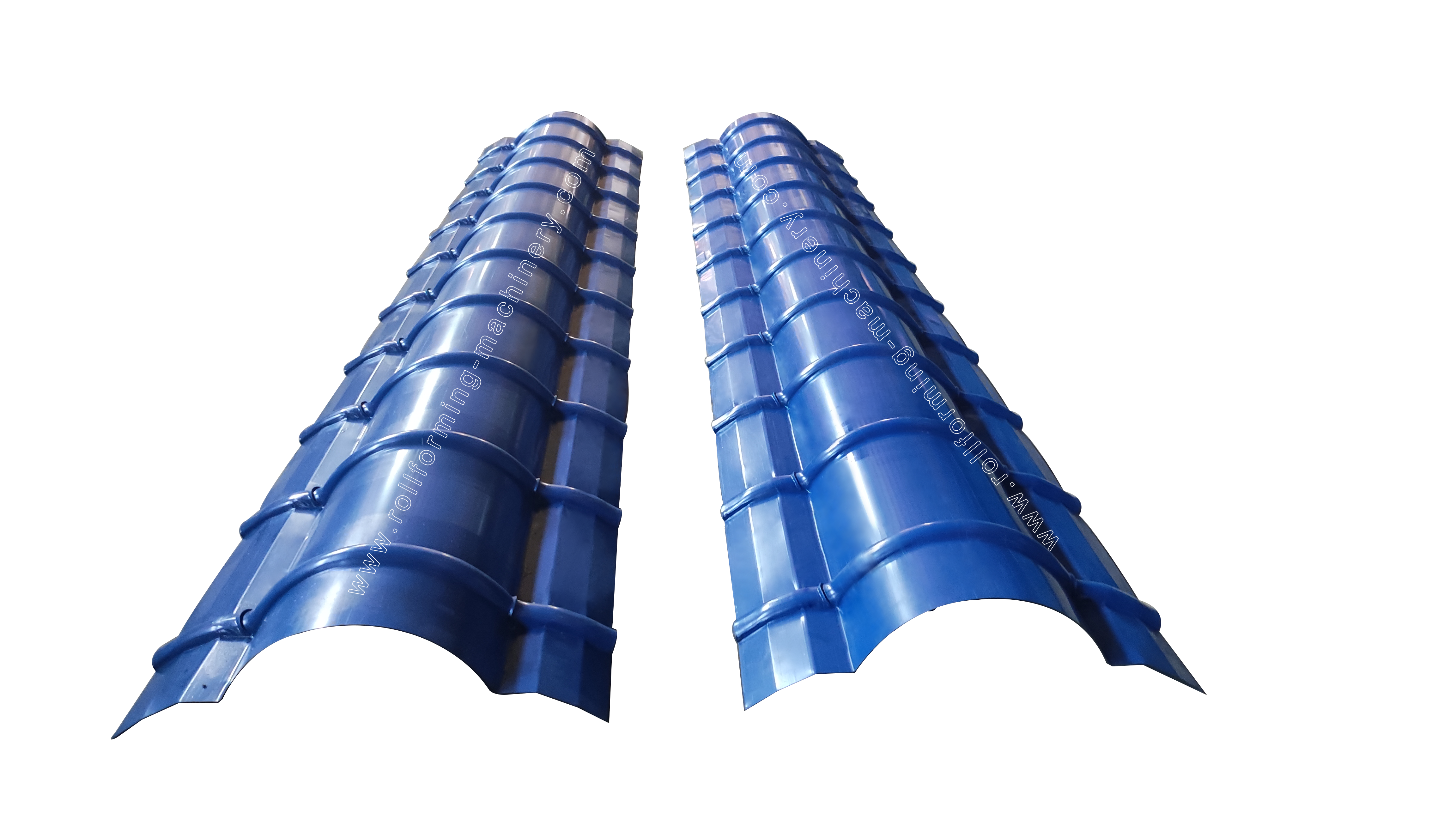

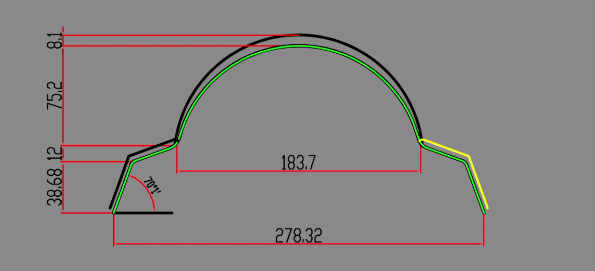

The machine is specifically calibrated to output high-quality metal roof ridge caps with precise dimensions and uniform aesthetics. The finished products feature excellent structural integrity and consistent profiles, ensuring they meet the strict quality standards required for seamless integration into large-scale roofing projects.
Application Case
The profiles produced by our advanced roll forming equipment are widely utilized across various industrial and commercial construction projects. By ensuring precise dimensions and excellent structural integrity, these machines deliver reliable metal components that meet the demanding requirements of modern building environments.
Equipment and Finished Product Quality
Our machinery is engineered for high-efficiency production, yielding profiles with smooth finishes and accurate measurements. Whether operating the Metal Roof Ridge Cap equipment or the associated Shutter Door Roll Forming Machine, the output consistently meets strict industry standards. The Finished Product demonstrates superior durability, weather resistance, and structural stability, which helps buyers reduce maintenance costs and ensure long-term performance in diverse applications.
Real-World Application Scenarios
The practical Application Case below highlights how these precisely formed metal profiles are integrated into actual building structures. The components provide seamless installation and a professional aesthetic finish suitable for warehouses, manufacturing plants, and commercial facilities. By choosing equipment that delivers consistent profile quality, construction teams can improve installation efficiency and ensure the overall safety of the roofing or access systems.
