Double Layer Roll Forming Machine for Trimrib Roofing and Corrugate

Product Description

This industrial-grade Double Layer Roll Forming Machine is expertly engineered for the highly efficient, simultaneous manufacturing of both Trimrib roofing panels and corrugated metal sheets. Designed specifically to cater to the versatile demands of the modern construction and roofing industries, this dual-level equipment integrates two distinct profile forming systems onto a single robust machine base. By adopting this dual-layer design, manufacturers can effectively eliminate the need to purchase two separate machines, thereby significantly reducing capital investment while maximizing valuable factory floor space.

A defining highlight of this specific production line is the integration of an advanced Tilt Stacker. Recognized as a highly popular and preferred model in the New Zealand market, the tilt stacking mechanism provides a revolutionary approach to material handling. Unlike traditional run-out tables that require manual lifting and sorting, the tilt stacker automatically receives, aligns, and stacks the finished roofing panels. This automated process not only saves substantial workspace at the end of the production line but also minimizes manual labor, reduces the risk of operational injuries, and protects the surface finish of the metal sheets from handling scratches.

Built with high-grade materials and precision-machined components, the main roll forming mill guarantees exceptional long-term operational stability. The machine effortlessly processes galvanized sheets and cold-rolled steel with thicknesses ranging from 0.4mm to 0.9mm. With a processing speed of up to 20 meters per minute and an intuitive PLC control system, this equipment ensures high-yield production, consistent profile accuracy, and minimal material waste. It is the ultimate solution for roofing material suppliers aiming to enhance their manufacturing efficiency and deliver superior quality products for commercial, industrial, and residential building projects.

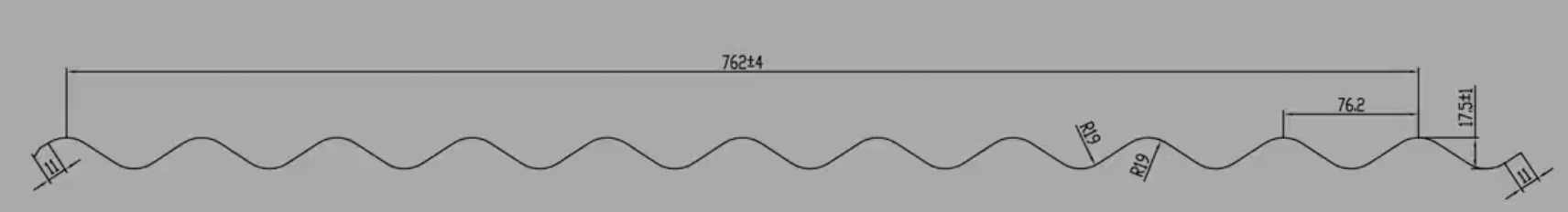

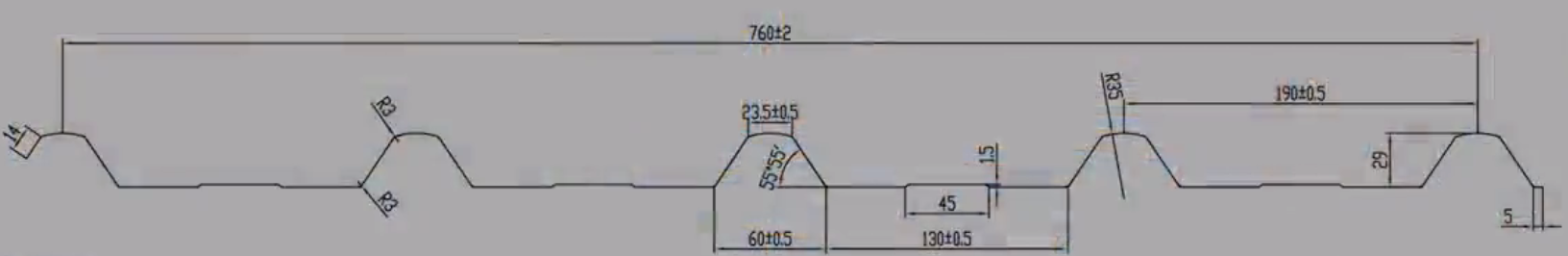

Profile Drawings

Complete Work Flow

To ensure seamless operation and consistent output quality, the entire roll forming line is designed with a logical and highly automated workflow. Each component is synchronized through the central PLC control system to maintain a continuous production rhythm. The standard operational sequence is as follows:

Manual Decoiler (5Tons) → Leveling Device/Punching Device → Main Roll Forming Mill → Hydraulic Post Cutting Device → PLC Control System → Hydraulic Station → Exit Rack*2 (or Automatic Tilt Stacker)

Machine Components Display

The reliability and efficiency of our double layer roll forming machine stem from its premium core components. Each part is meticulously designed to withstand rigorous daily production while maintaining high precision.

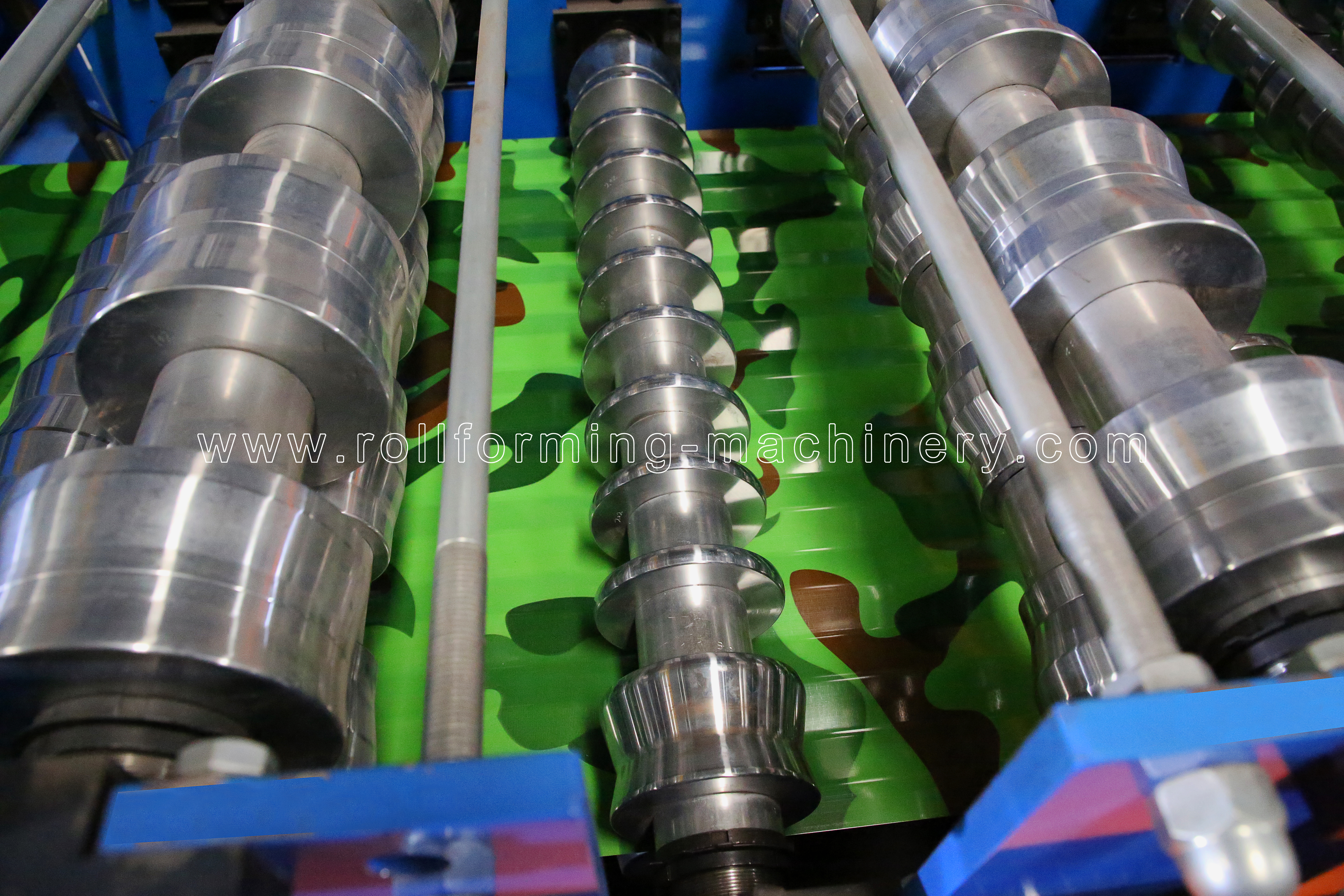

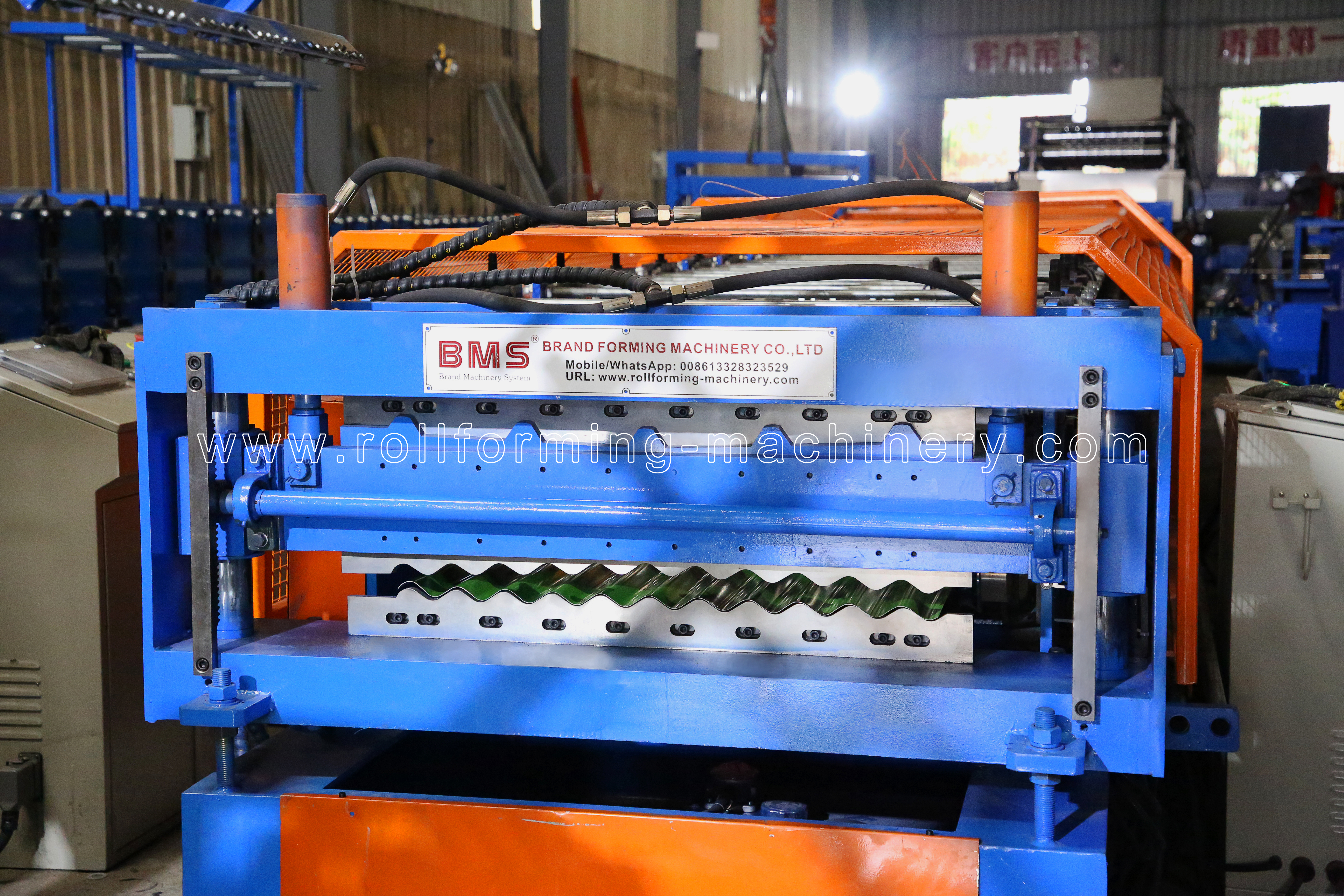

Main Roll Forming Mill

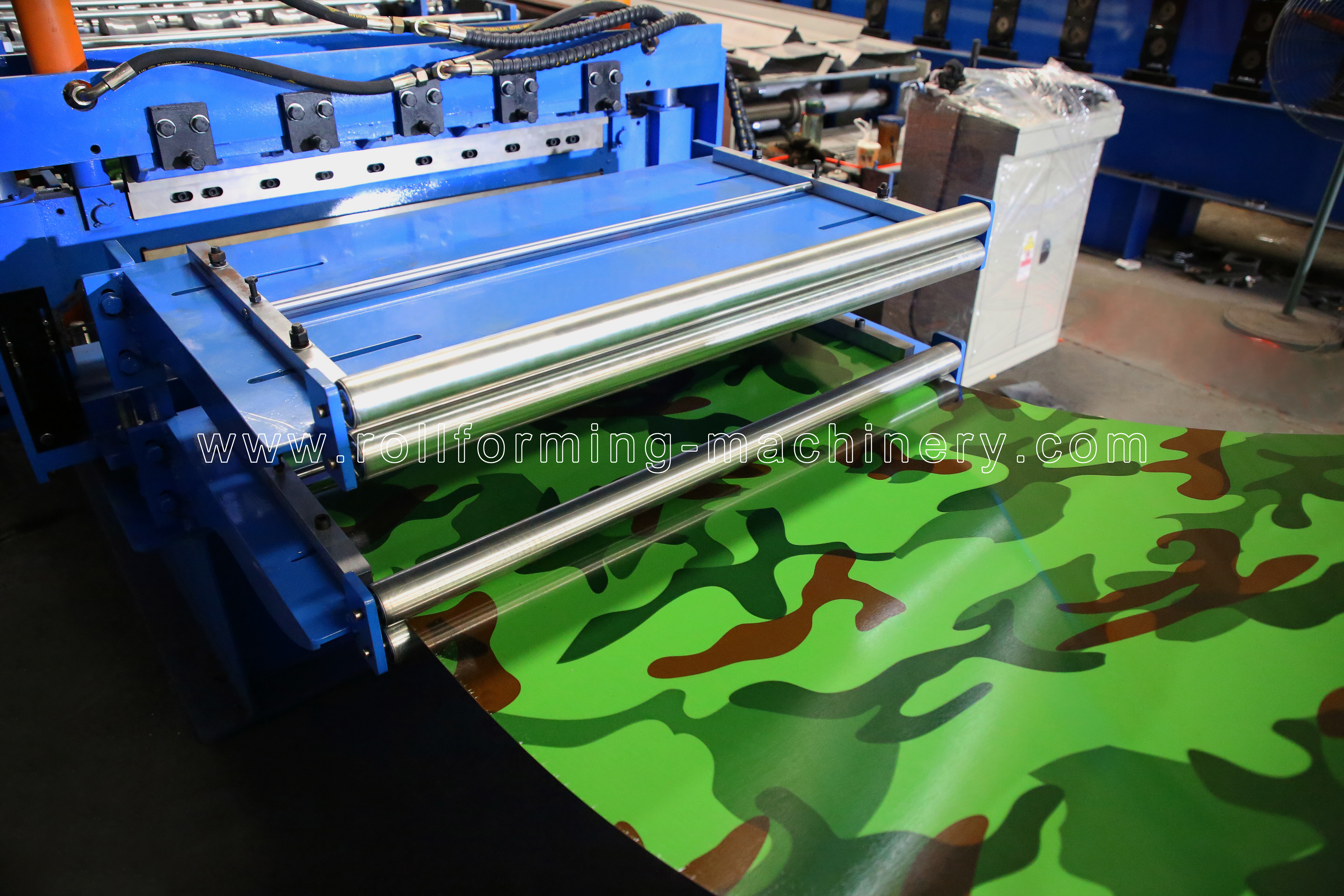

Feeding Device

Automatic Tilt Stacker

Hydraulic Post Cutter

Featured Advantage: Equipped with a Tilt Stacker to Save Space. This is a highly popular model in the New Zealand market, designed to automatically organize finished sheets, reducing labor intensity and preventing surface scratches.

Machine Produced Products

The double layer roll forming machine delivers precise, aesthetically pleasing, and structurally sound roofing profiles. These finished products ensure perfect overlapping, excellent weather resistance, and are ready for immediate deployment in various building applications.

Application Case

Designed for efficiency and precision, our equipment ensures that every metal profile meets strict industry standards. Below is a visual representation of the equipment, the resulting profiles, and their practical implementation in real-world construction projects.

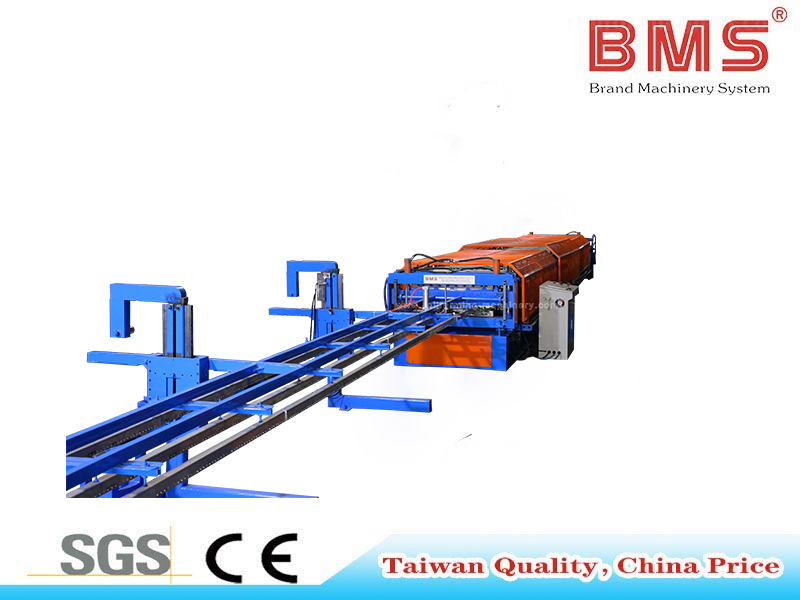

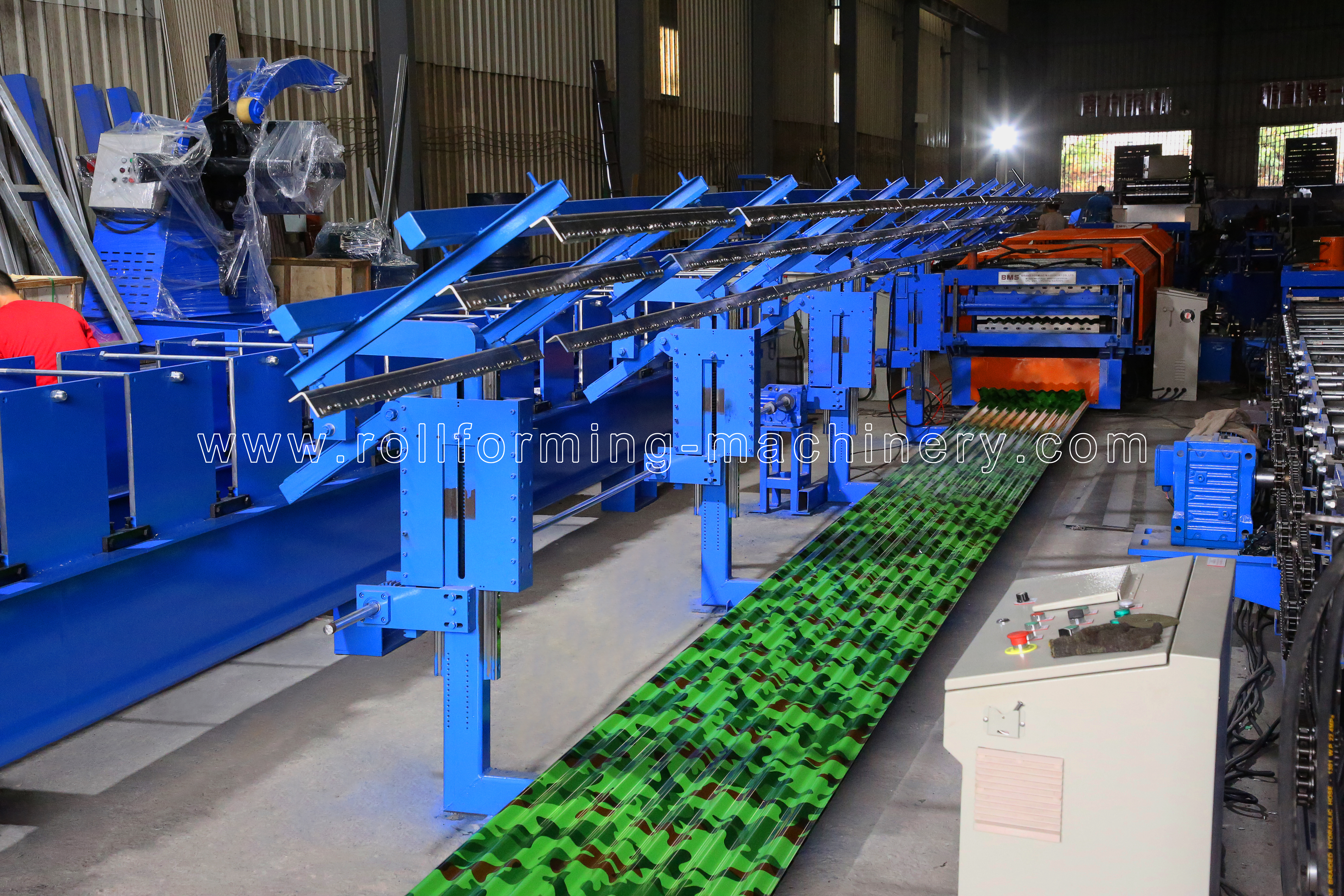

Double Layer Roll Forming Machine

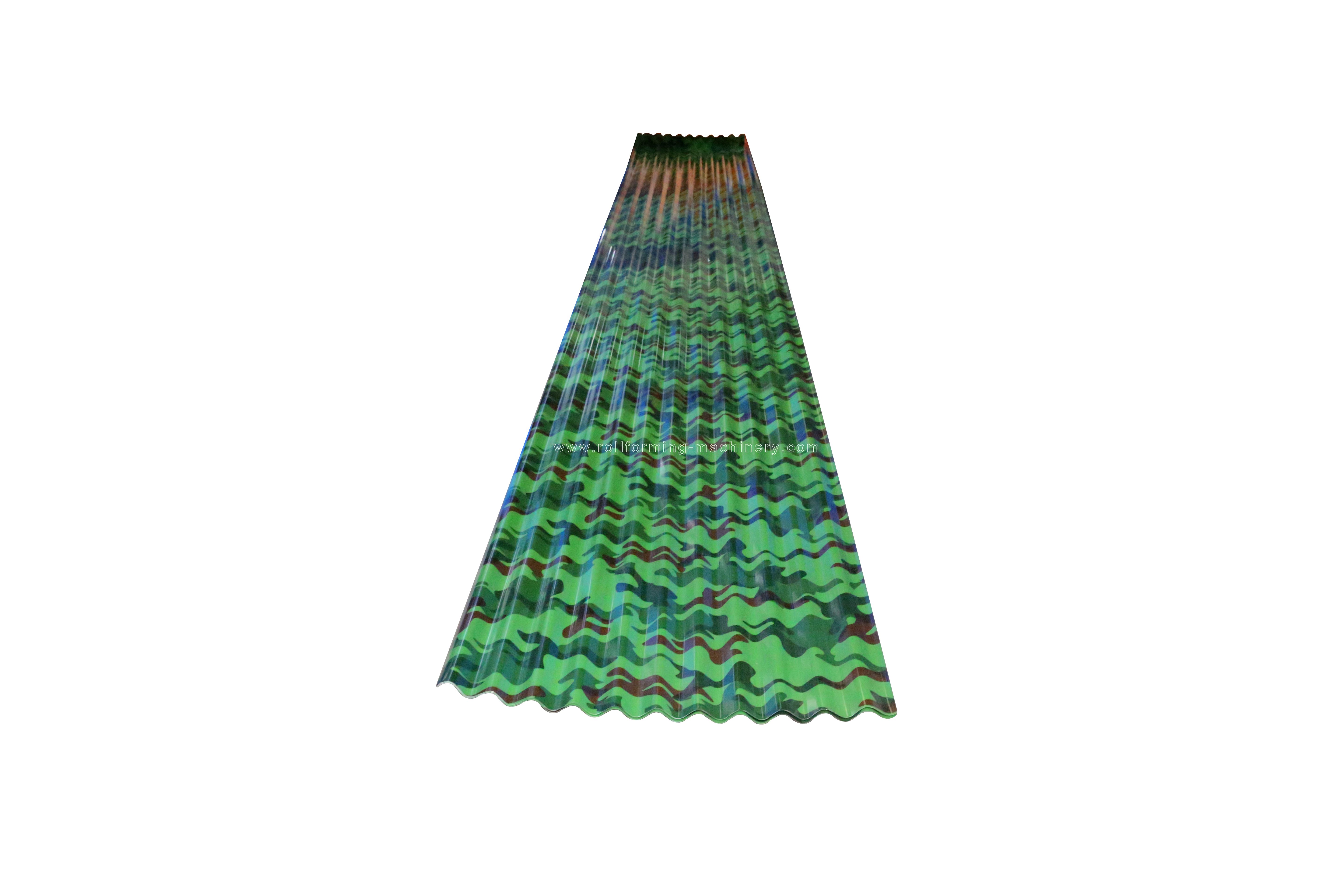

Finished Product

The Finished Product generated by our Double Layer Roll Forming Machine demonstrates exceptional precision and consistency. Whether producing Trimrib roofing or corrugated sheets, the output maintains uniform thickness, accurate profile dimensions, and a scratch-free surface. These high-quality metal profiles are engineered to provide reliable weather resistance and structural integrity, lowering the risk of material rejection and ensuring client satisfaction.

Application case

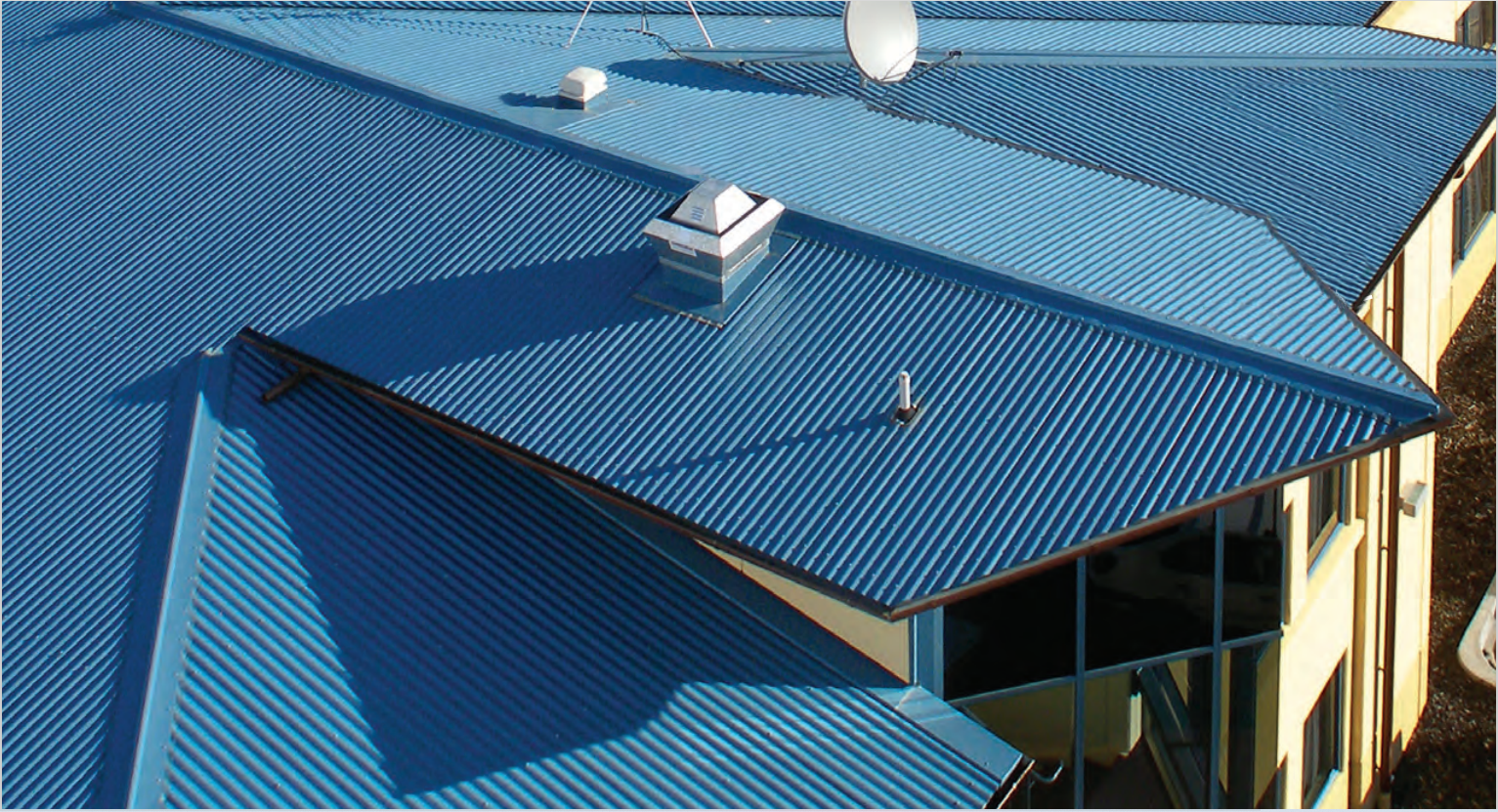

Industrial & Commercial Buildings: The Trimrib and corrugated sheets produced by our equipment provide excellent load-bearing capacity and efficient water drainage. They are highly suitable for large-scale industrial plants, warehouses, and commercial facility roofing systems, facilitating quick installation and reducing labor costs.

Application case

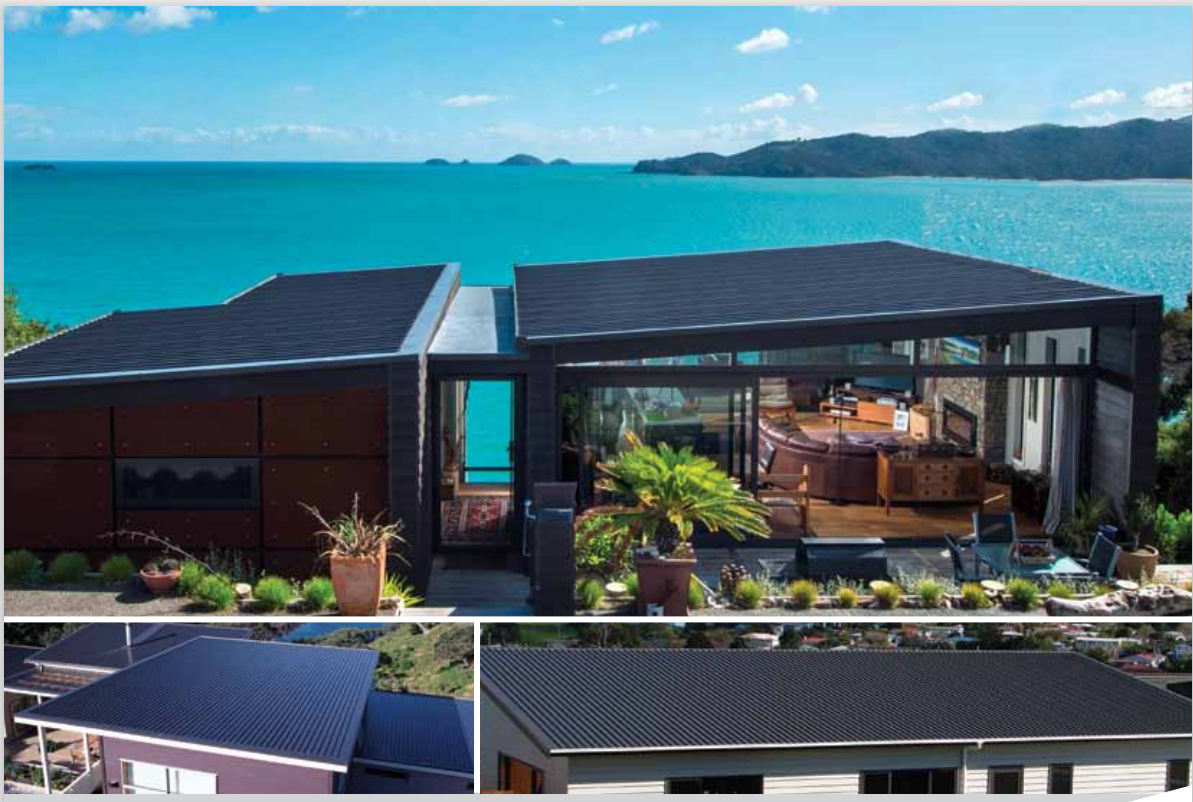

Residential & Public Infrastructure: Featuring an aesthetically pleasing appearance and long-lasting durability, these precise metal panels are widely utilized in residential roofing, public infrastructure, and architectural cladding projects. Their seamless overlap ensures superior waterproofing performance.

By investing in this roll forming solution, manufacturers can supply premium roofing materials that deliver long-term performance in the field. The reliable output directly translates to reduced material waste and enhanced project efficiency, helping you meet the diverse demands of modern construction projects confidently.

Video Show

Machine Operation & Production Video

Watch the dynamic operation and production process of the Double Layer Roll Forming Machine for Trimrib Roofing and Corrugate. The following videos demonstrate the stable running state, material feeding, and efficient profile forming capabilities, providing a clear reference to help you evaluate the machine's performance and suitability for your specific project requirements.
