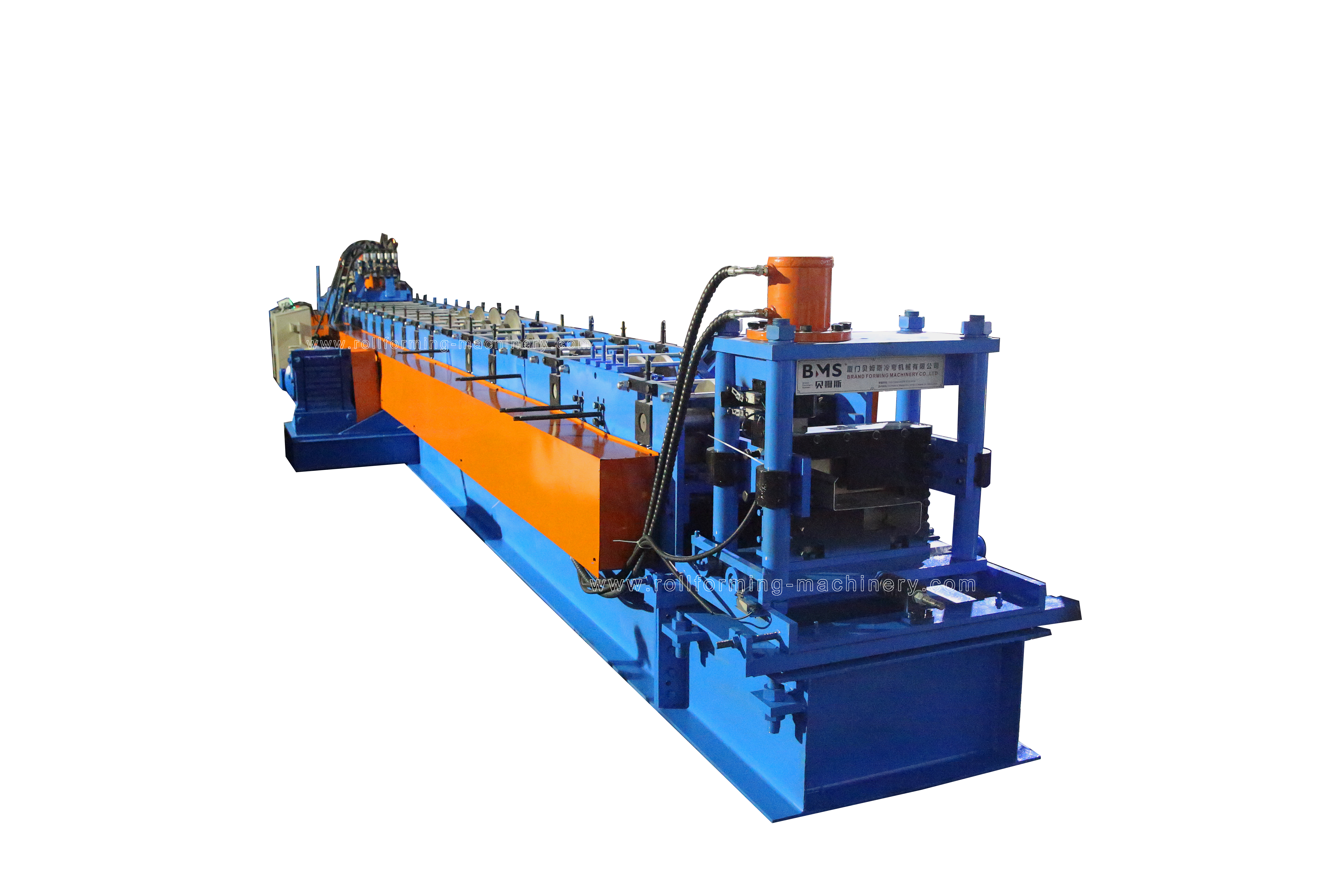

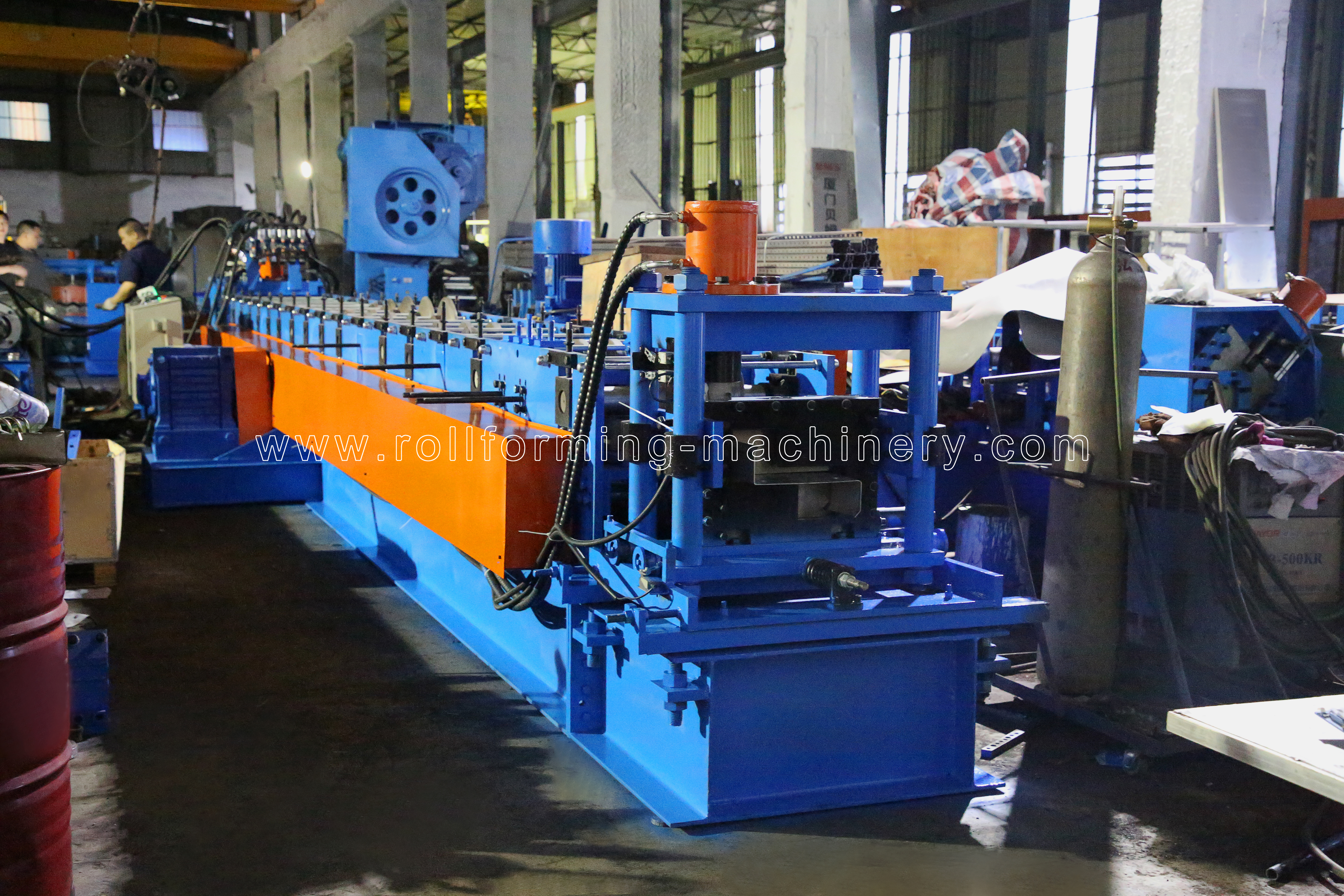

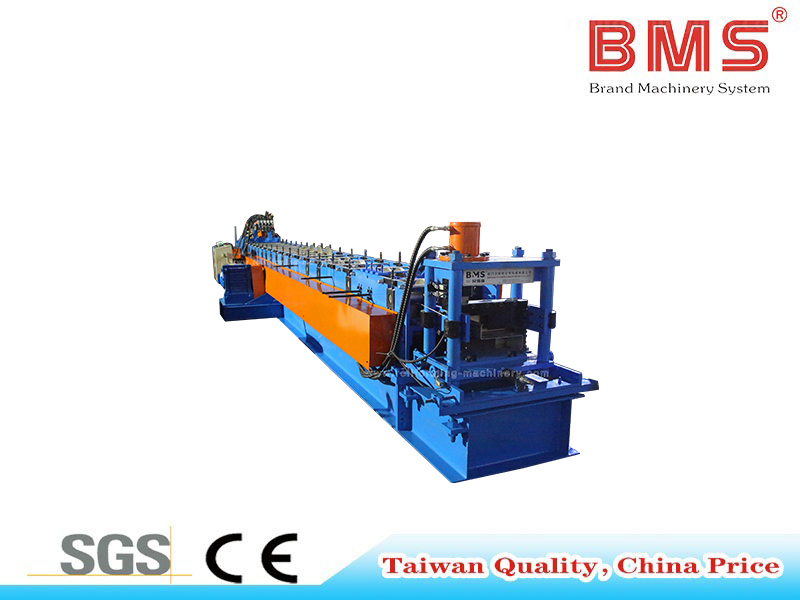

High Quality Z Purlin Roll Forming Machine for Stainless Steel

A Wide Variety Of Roll Forming Line With World-Class Profile Bending Quality Standards. Need Help Choosing The Right Roll Forming Machine? Contact our experts for free consult. Hight Quality Low Price.

Availability:

Quantity:



Inquire Add to Basket

Brand:
BMS

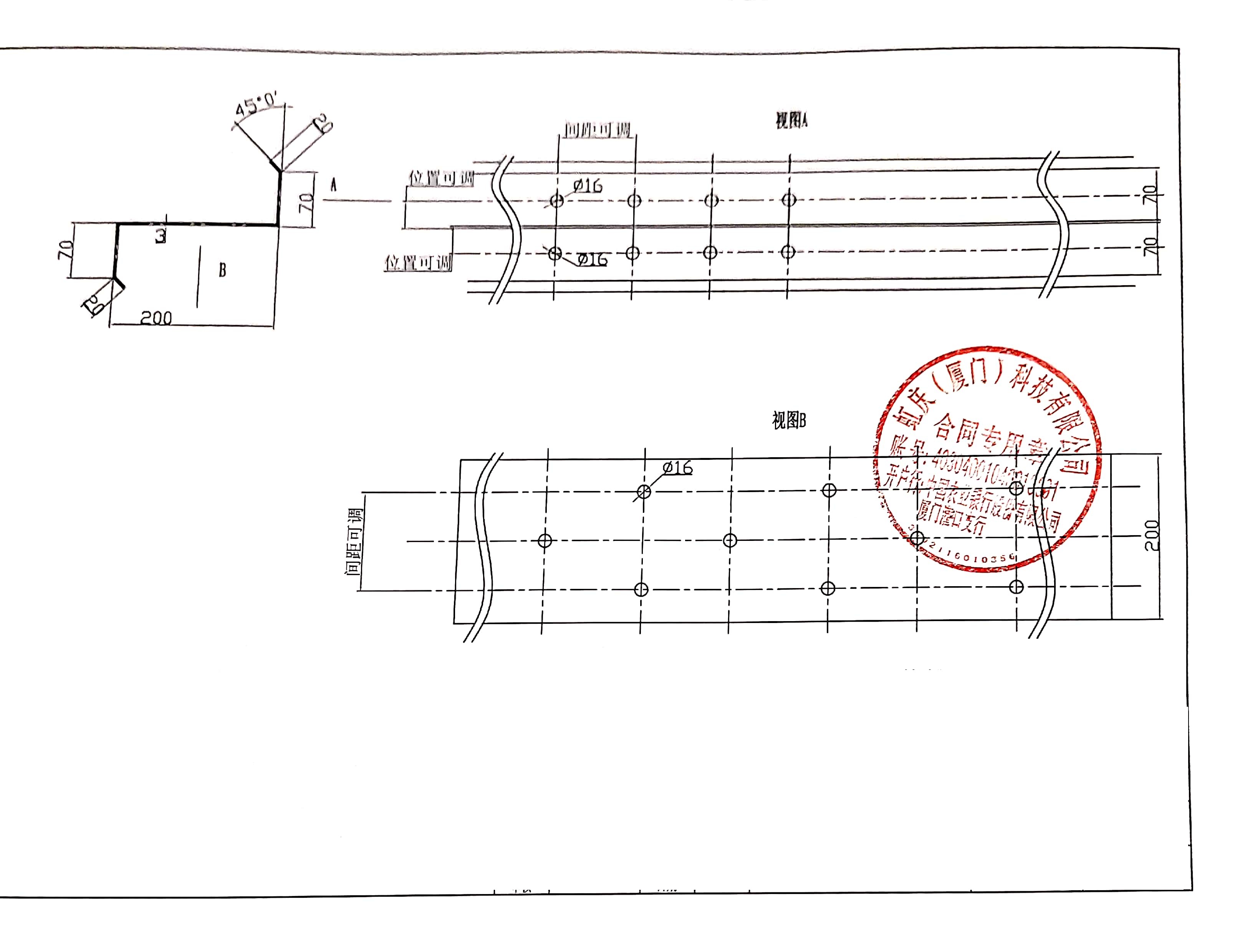

Profile

Quick Details

No.	Main Parameters		Roll Forming Mill Parameters

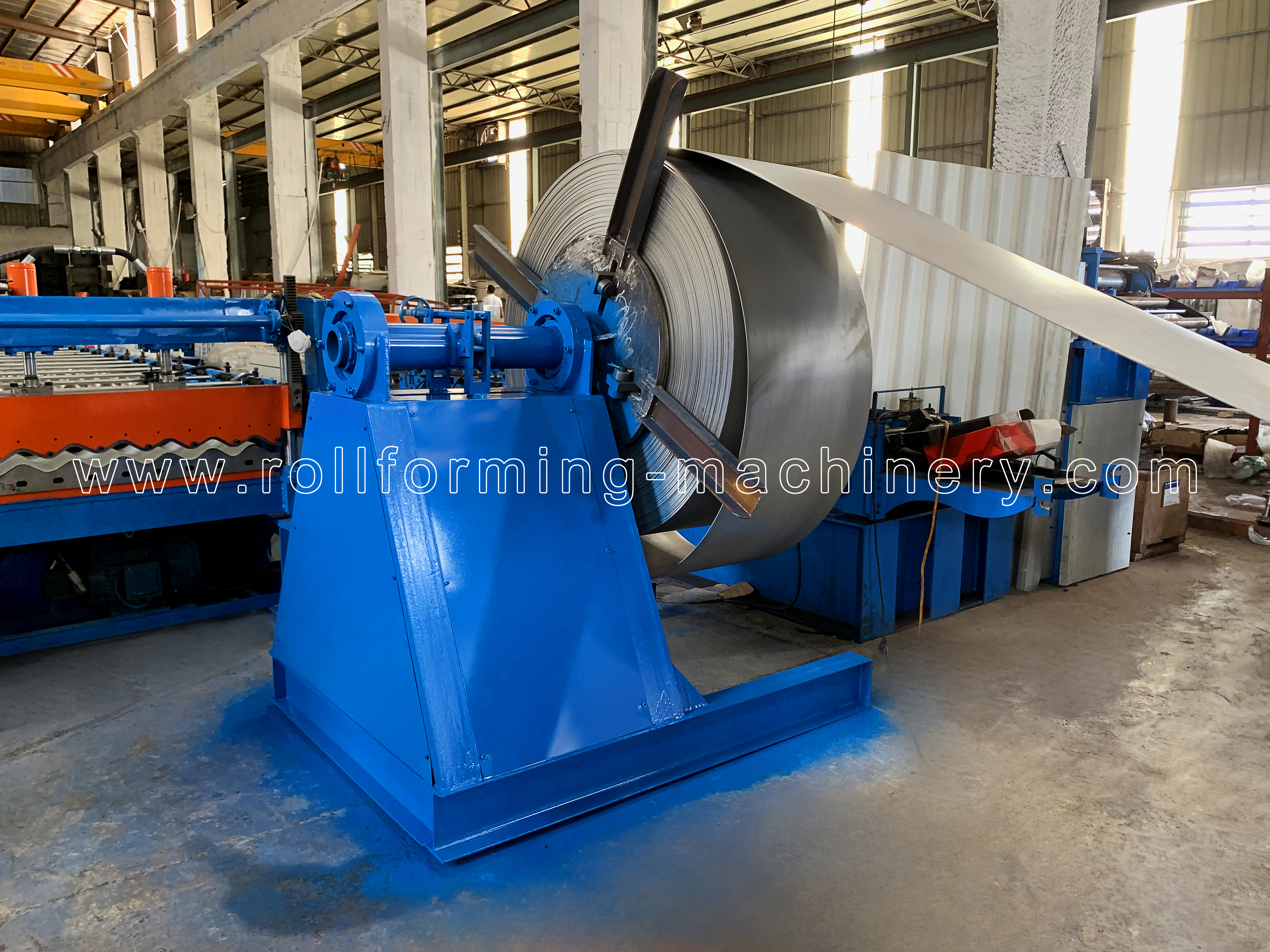

1.	Decoiler	Manual/Hydraulic for Options	Forming Stations	15-step
2.	Cutter Material	Cr12MOV	Base	H450
3.	Material Thickness	1.5-3.0mm	Side Wall Thickness	Q235 t25mm
4.	Drive Way	Chain transmission	Shafts	45#,φ75mm
5.	Application Material	201 Stainless Steel	Main Motor Power	22 KW
6.	Yield Strength	275MPa	Screw Bolts	Grade 8.8
7.	Forming Speed	20m/min（Without Punching & Cutting Speed)	Tie Rod	ф22 Galvanized

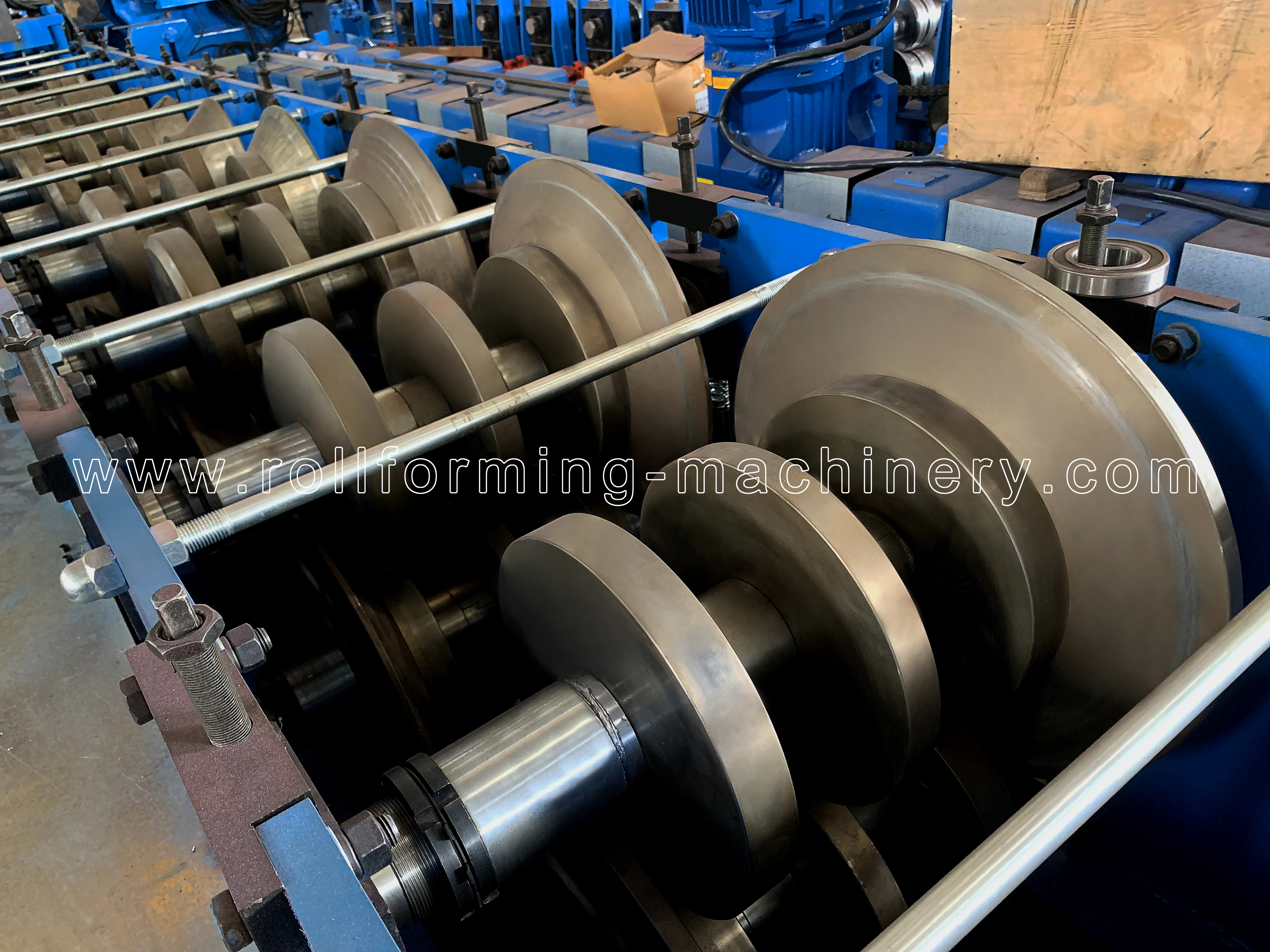

8.	Effective Size	As Customer Design	Roller	Cr12 steel, precision machined, hard Chrome Coated

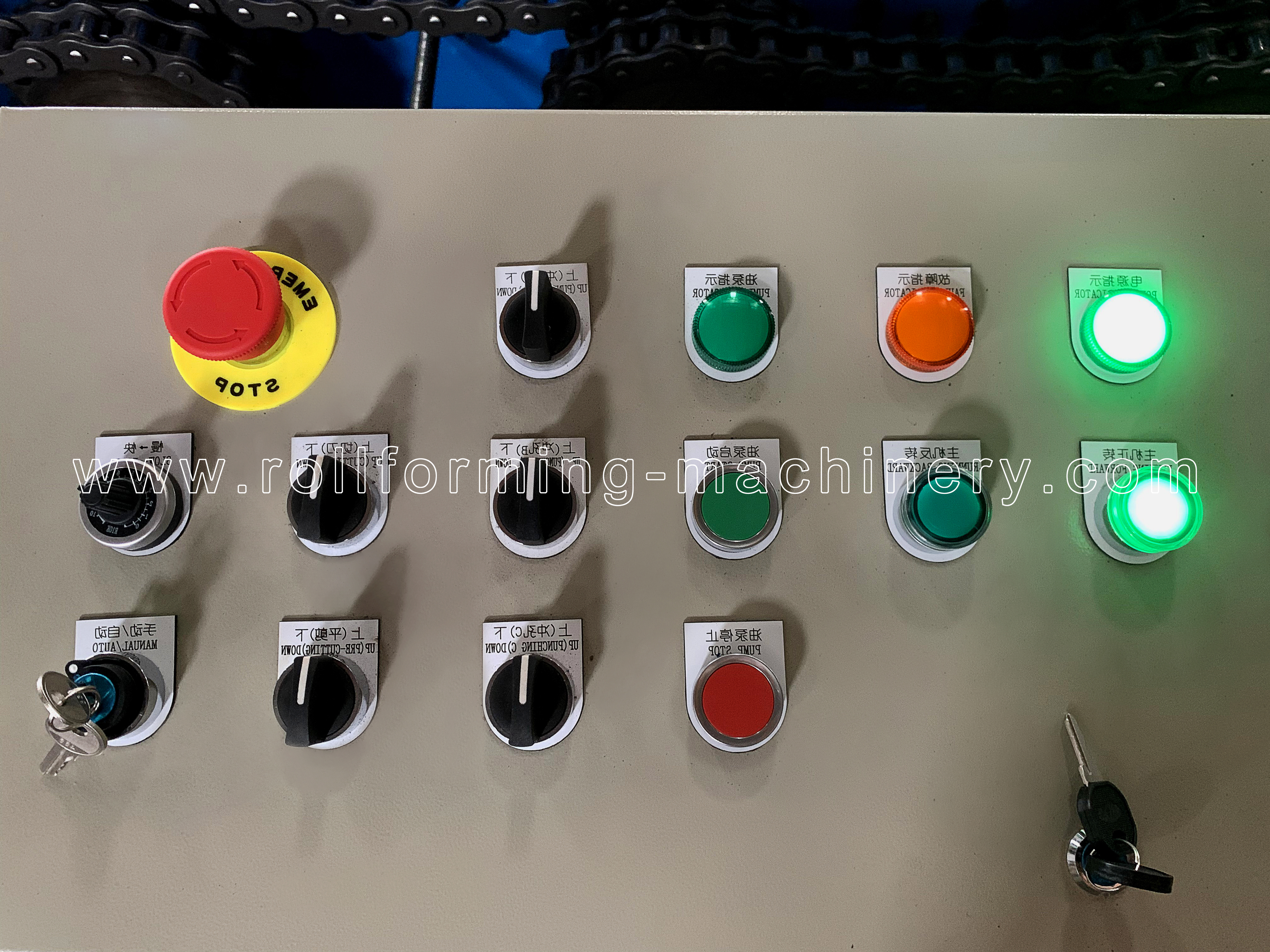

9.	Control System	PLC Control System	Processing Mode	CNC lathes, Hear Treatment, hard Chrome Coated, with thickness 0.04mm
10.	Testing Material	BMS Will Provide The Size of Feeding Material to Purchase That 2 Weeks Before Machine Testing
