If you manufacture ground support products, the performance of your split-set friction stabilizers depends on two things: production efficiency and consistent quality. Your roll-forming line needs to produce high volumes without compromising the dimensions and specifications each bolt must meet.

This guide explains how a split-set friction stabilizer bolt-making machine forms slotted tubes, the key factors that affect production output, and the quality checks needed from raw steel coil to finished bolt.

What Is a Split-Set Friction Stabilizer, and Why Manufacturing Precision Matters

The split set is a tubular product with a slotted surface and a tapering head. There is no grout, no resin, and no mechanical anchor plate holding it in position. The bolt stays put due to its being larger than the hole through which it's driven, and so compression in the slot causes radial friction.

Those are all the mechanics there are to the process. So that means that the OD of the tube, the slot width, and the wall uniformity are more than simple specifications on a blueprint; they are the whole reason why the bolt works.

Here's the part that should get every plant manager's attention:

• Undersized tubes: don't generate enough radial pressure, and pull-out resistance drops

• Oversized tubes: resist insertion, increase installation force, and can jam or deform on the way into the hole

• Inconsistent slot gaps: create weak points along the bolt's length where holding capacity varies

None of the above can be dismissed as a mere manufacturing detail. That's a clear connection between your roll-forming precision and the safety of the ceiling in an underground mine. That's also why anyone buying this equipment is interested in the roll-forming technology behind it.

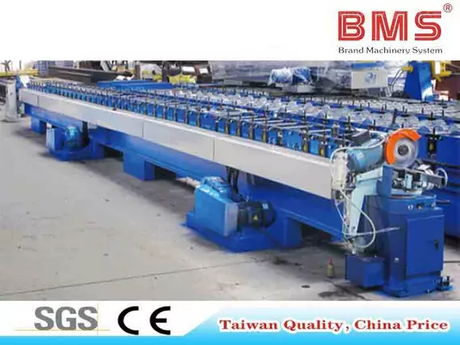

How a Split Set Bolt Making Machine Works: The Production Flow

The production line for a split-set friction stabilizer is a variation on the same cold roll forming process used across the metal forming industry, adapted specifically for a slotted, tapered tube. If you've looked at any tube roll forming machine before, the basic architecture will look familiar: a coil of steel strip gets progressively shaped into a tubular profile as it passes through a series of forming stands.

The typical line runs through these stages:

• Decoiling: the steel strip is fed from the coil in controlled tension

• Straightening: the strip is straightened prior to entry into the roll forming stations, because any camber will show up as a bow in the finished tube

• Progressive roll forming:  using several sets of rolls, the strip is curled in stages to form a cylindrical piece with a continuous longitudinal slot

• Taper and point forming: the leading end of the tube is formed such that it can be inserted into the drilled hole

• Cut-to-length: the continuous tube is cut to the desired bolt length

• End finishing:  rings, plates, or special end forms are added according to bolt specifications

Why the Slot-Forming Stage Is the Critical Station

All stations of the process are important, but it is the slot gap control where output and quality really meet. If your rolls are not in good shape or not adjusted at this station, you will produce either tubes that will not even pass the diameter test or, even worse, tubes that look fine for a visual inspection but will underperform when driven into rock.

A well-maintained line with tight roller tolerances is what lets you run at speed without sacrificing anchorage performance. This is the same principle that governs precision-critical cold roll forming machine setups across other structural steel products: the forming stage sets the ceiling for both throughput and quality, and you can't buy your way around a poorly maintained roller stack.

Output: What Determines How Many Bolts a Machine Can Produce

Buyers always want a single figure, "bolts per hour." The honest response to this is that output levels depend on multiple factors operating in conjunction, and the only way to get disappointed in the shop is by giving a single output figure.

The Core Variables

• Material grade and thickness: higher hardness and thicker steel sheets take longer to form and impose more strain on the rollers, limiting your achievable line speed

• Target bolt diameter and length: smaller bolts will make you cut more bolts per minute, but at the expense of handling and packing them after each cycle

• Number of forming stations: more forming stands provide more gentle and precise forming, but each stand will add time to both setup and changeover operations

• Coil size: bigger coils will reduce the frequency of stopping the line due to coil replacement, which has a more significant impact on your productivity than one might think

• Operator skill and changeover time: changeover of bolt diameter requires changing rollers and guides and is directly proportional to your achievable daily count

The Output vs. Quality Trade-Off

This is where a lot of manufacturing processes go wrong. Line speed and actual product being manufactured are not the same thing.

Increasing the line speed beyond what your tension control, roller calibration, and taper forming process can handle does not result in increased bolt manufacturing; it only results in increased waste and increased scrapped batches. A slightly slower line that holds tight tolerances will often manufacture more product than a faster one.

Think of "effective output" as good bolts per hour, not raw meters of strip per minute. That single reframe changes how you should be evaluating any machine, whether it's your own line or one you're sourcing from a supplier. A well-specified cut-to-length line paired with a properly calibrated slitting and decoiling setup matters just as much to your real throughput as the forming stands themselves.

Factors That Move Your Output Number

Quality Control: Building a QC Program for Split Set Bolt Production

The figures are important only if the bolts manufactured on the shop floor perform their intended function. Quality control should be carried out even before the raw materials enter the rollers and through the tubing process.

Incoming Material QC

This is where most quality problems get prevented, not caught. Before a coil goes anywhere near the line, it needs:

• Mill certificate verification: verifying that the yield strength, tensile strength, and elongation correspond to the requested grade.

• Surface inspection:  verifying the presence of rust, scaling, or uneven coil thickness across its width.

• Dimensional check: ensuring that the strip width and gauge match the calibration of the forming machine.

Feeding an out-of-spec coil into a correctly calibrated line still produces out-of-spec bolts. That's an easy failure to prevent and an expensive one to catch downstream.

In-Process Dimensional Checks

While the line is running, someone (or something) needs to be watching:

• Outer diameter: determined at certain intervals or continuously with a laser/optical gauge if such equipment is available.

• Slot gap and overlap: the single most important dimension tied to friction performance

• Wall thickness: verified for consistency across the length of the tube.

• Straightness: due to the fact that bending of the tube complicates the insertion process.

• Taper angle and point length: checked to verify compliance with specifications because of increased insertion force during poor point forming.

Mechanical Performance Testing

Dimensions tell you the tube is the right shape. Performance testing tells you it'll actually do its job.

• Radial load testing: simulating borehole insertion to confirm anchorage and holding capacity, the single most important test for this product.

• Tensile and yield testing: conducted on production run coupons, not only incoming material.

• Insertion force testing: confirming compatibility with standard rock bolting rigs used on-site.

• Slot spring-back testing: proving that the tube will return to its normal diameter when compressed, as this is how the friction anchor works in the first place.

Coating and Corrosion QC

If your line includes a galvanizing or coating stage, add:

• Coating thickness verification: using a magnetic or eddy-current gauge

• Salt spray testing: run on a regular sampling cadence, not just at certification time

• Adhesion testing: to confirm the coating won't flake or peel during handling and installation

Batch Traceability and Documentation

And here lies the difference between a hobbyist operation and a supplier that mine sites would trust their business with. All batches need to be traceable to the coil heat number, with length, end-form, and diameter test data entered against each batch number.

Getting your quality control documents to line up with known quality management standards, the the ISO 9001 Quality Management System being the most widely used standard of reference, isn't about filling forms for form's sake. It is how a procurement department can certify your products without visiting a mine site.

Common Production Defects and How QC Catches Them

Even a well-run line produces the occasional defect. Knowing what causes each one means your QC team can trace a problem back to its source instead of just rejecting the batch and moving on.

How to Evaluate a Split-Set Bolt-Making Machine Before Buying

Selecting a split-set friction stabilizer bolt-making machine requires more than comparing rated production speeds. Evaluate the following factors to determine whether the line can deliver consistent output, quality, and long-term operating efficiency:

• Verified production capacity: Test actual production against theoretical production capacity under the conditions of operation to see if the machine can produce the amount you need.

• Integrated quality inspection: Verify that an adequate in-line quality assurance system is available for identifying and eliminating dimensional and forming problems during production.

• Changeover efficiency: Determine the time required to change bolts of different diameters or lengths or to switch dies.

• Tooling availability and service life: Verify die and roller specifications and service life and make sure replacement parts are readily available to control maintenance cost and prevent downtime.

• Quality and traceability documentation: Request samples, quality assurance reports, and other documentation for verifying dimensional consistency of production.

Conclusion

Output and quality control aren't two separate conversations on a split-set bolt-making machine; they're the same conversation looked at from two angles. The forming stand tolerances, roller condition, and inspection technology that determine how fast you can run the line are the exact same factors that determine whether the bolts coming off it will hold rock.

If you're weighing new production equipment or looking to tighten up QC on an existing line, it helps to talk through your specific tonnage, bolt spec, and output targets with someone who works with roll forming technology daily. You can reach the BMS team through the contact page or take a look at the broader roll forming machine range to see how the same forming, slitting, and cutting technology applies across different tube and profile products.

FAQs

What output can a split-set friction stabilizer bolt-making machine typically achieve?

A contemporary automated split-set friction stabilizer bolt forming machine has an output rate of between 5 and 10 items per minute (that is, about 300 to 600 bolts per hour), which varies depending on the degree of automation and the length of the bolt.

What is the most important QC test for friction stabilizer bolts?

The most important quality control (QC) test for friction stabilizer bolts (split sets included) is the pull-out test in situ, which involves testing the actual friction anchoring capability of the bolt to the borehole wall.

How does slot gap tolerance affect bolt performance underground?

Slot gap tolerance is used in underground mine and tunneling works in relation to the deviation from the specifications in terms of the size of a slot or clearance hole drilled into a steel surface support item (such as a dome plate, mesh strap, or steel channel) compared to that of the rock bolt shank.

Can one machine produce multiple split set sizes?

A single split-set friction stabilizer bolt manufacturing machine cannot form different split-set diameters without altering some components of the machine.
