8M Long Folder Slitter
The 8M Long Folder Slitter represents a monumental leap in metal forming capacity, engineered specifically for heavy-duty architectural profiling and industrial metalwork. Standing beside this massive 8000mm structure, the sheer scale and the solid, cold touch of the fully welded high-tensile steel frame convey immediate operational reliability. This equipment is meticulously designed to handle extensive metal sheets with absolute precision, transforming raw coils into complex structural profiles without hesitation. By integrating advanced servo-driven mechanics with an intuitive control interface, it bridges the gap between raw mechanical power and refined digital execution. Whether your facility is processing thick mild steel or delicate aluminum, the deep, steady hum of the hydraulic systems assures operators that every fold and cut will meet the strict dimensional tolerances required for demanding construction projects.
Features :
1. Intelligent CNC & Profile Management
Equipped with Schneider PLC control system for Simple operation. BMS Slitter and Folders are internationally famous for their ease of use. All high end advanced features can be used by even inexperienced operators. Thanks to BMS's clever 3D interface supported by Schneider Electric. This intelligent setup allows for rapid programming and recipe storage of complex profiles. Operators can visualize the bending sequence on the vibrant touchscreen before the machine even moves, virtually eliminating material waste. The tactile feedback of the industrial interface and the immediate digital response make complex programming highly accessible, ensuring error-free production runs even during high-pressure shifts.
2. Drive Precision & Energy Efficiency
High powered slitter. High tensile aircraft slitter head and powerful chain drive provide reliable slitting capacity up to 2.0mm (14ga) Heavy duty track construction and all new V-wheel track design eliminate regular track maintenance. Beyond raw shearing power, the advanced servo control technology works in perfect harmony with the 15KW hydraulic pump station. This synergy not only delivers immense force but also optimizes overall energy consumption. You can hear the steady, low-frequency hum of the servo motors adjusting dynamically to the material resistance, ensuring precision while keeping operational overheads strictly in check.
3. Durability & Low Maintenance
Robust Construction. Fully welded high tensile steel plate. 32mm thick at the arm pivots. No BMS folder has EVER suffered from structural failure. The structure is zinc primed and powder coated for higher quality finish. Running a hand along the frame reveals the smooth, resilient texture of the industrial powder coat, which actively protects against corrosion in harsh factory environments. The heavy-duty, maintenance-free V-wheel track design drastically reduces long-term downtime, keeping your production lines moving without the constant need for lubrication or mechanical adjustments.
4. Complex Profile Bending Capability
Replaceable Clamp Inserts with customized radius. The tip of the folding clamp has replaceable hardened inserts that can readily be replaced should they become damaged. Furthermore, the radius on the inserts can be customized to suit a wide range of materials and applications. This means you can achieve multi-angle, circular, and conical bends without the tedious process of swapping out specialized molds. The hardened steel inserts grip the metal firmly, leaving no marks or scratches, ensuring the final architectural pieces maintain their pristine visual appeal.
5. Operational Safety & Ergonomics
Operator well-being is heavily prioritized in the design of this massive folder. Equipped with a highly responsive safety foot pedal and a spacious rear gauge operating area, it provides comprehensive physical protection for the workforce. Handling 8-meter long metal sheets is traditionally exhausting, but the ergonomic layout significantly reduces the physical strain of material handling, accelerating production cycles for bulk orders while minimizing manual fatigue.
General Parameters
Understanding the exact capabilities of your equipment is crucial for planning production schedules and material procurement. The specifications below outline the precise operational limits and power requirements of this machine. Every component has been selected to ensure consistent performance across various metal types, from the rigid resistance of stainless steel to the malleable nature of aluminum. The 17KW total power consumption is carefully distributed to maximize pressing and bending efficiency, ensuring that the machine operates smoothly even under peak load conditions.
- 1）For mild steel sheet(0.4-2mm); stainless steel(0.4-1.5mm), Aluminum(0.4-3mm)
- 2）Driven by Servo motor, pump motor: 1.5KW
- 3）Working length: 8000mm
- 4）Pressing power：pump motor for hydraulic station 15KW
- 5) Bending range：0-125 degree
- 6) Total power：17KW
Slitting Device
The cutting mechanism is the heart of the material separation process. When the slitting wheel engages, it slices through thick metal sheets with a crisp, continuous shearing sound, leaving a clean, burr-free edge that requires no secondary finishing. The use of premium tool steel for the blade ensures exceptional wear resistance and hardness, capable of enduring thousands of linear meters of cutting before requiring maintenance. This precision directly translates to faster downstream assembly for your clients.
| 1）Type Of Blade | Slitting wheel |
| 2）Diameter | φ80 |
| 3）Material | Cr12MoV |

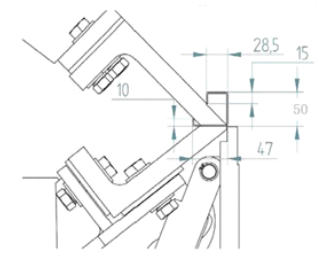

Min. folding dimension as below
Machine Components Display
A close inspection of the internal mechanics reveals the true engineering pedigree of this folder slitter. The machine base arm is cast and machined to exact tolerances, providing an immovable foundation that absorbs the immense kinetic energy generated during the 8-meter folding process. The clamp system operates with a reassuring, heavy mechanical lock, securing the sheet metal evenly across its entire length to prevent any material slippage. The distinct scent of industrial lubricants and the cold, unyielding touch of the hardened steel components reflect a build philosophy focused entirely on longevity and relentless performance in demanding heavy-industry environments.

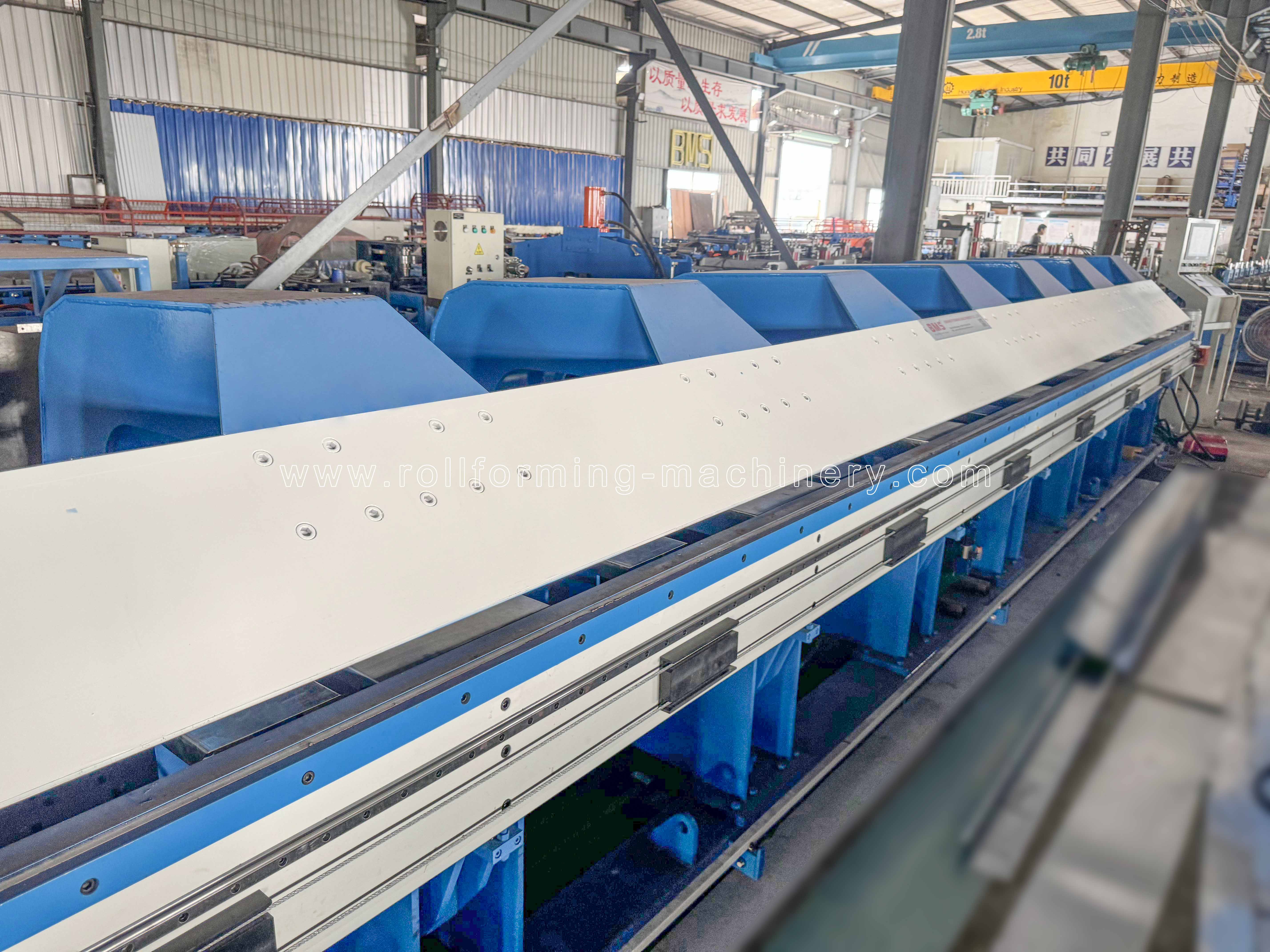

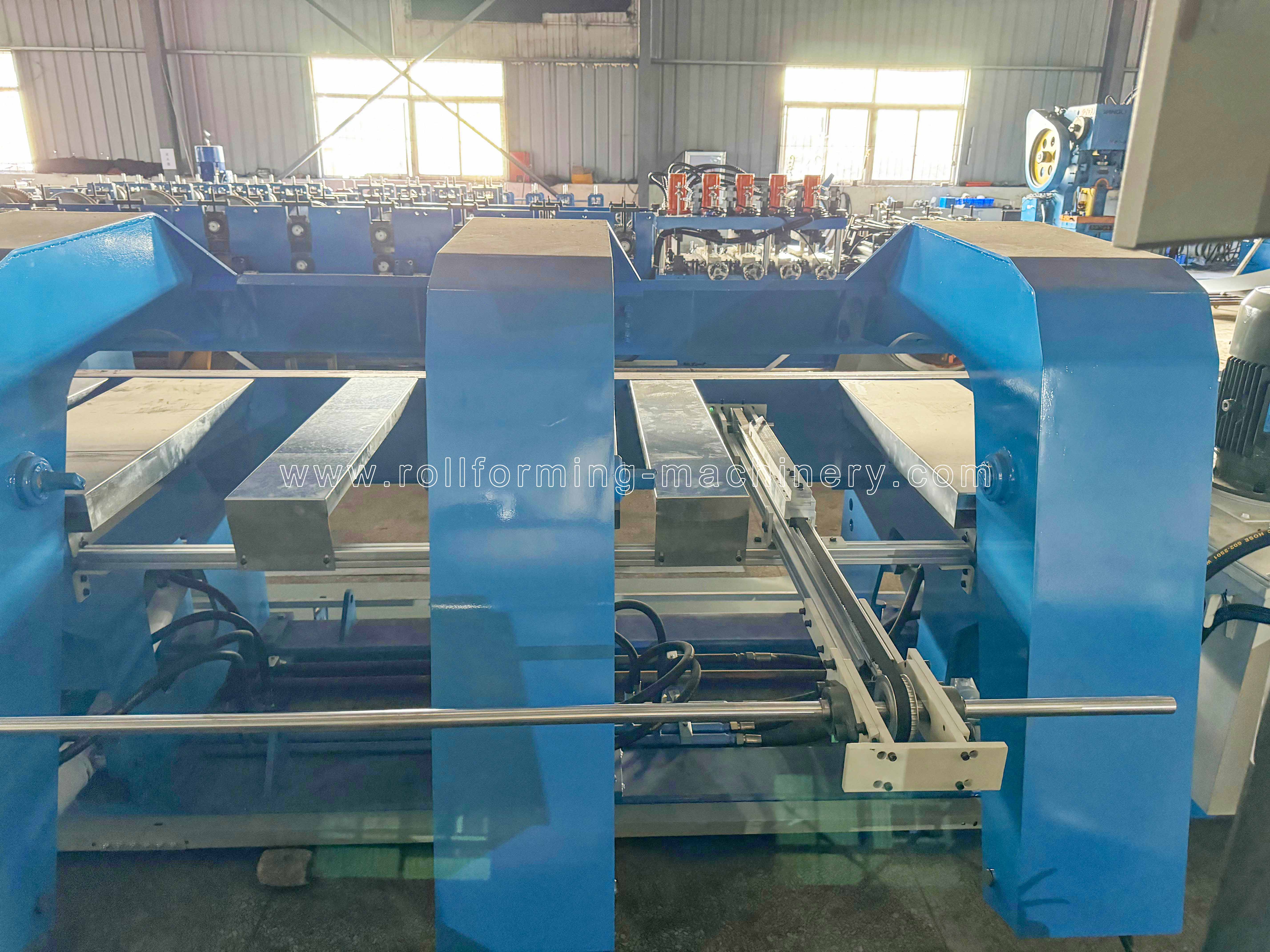

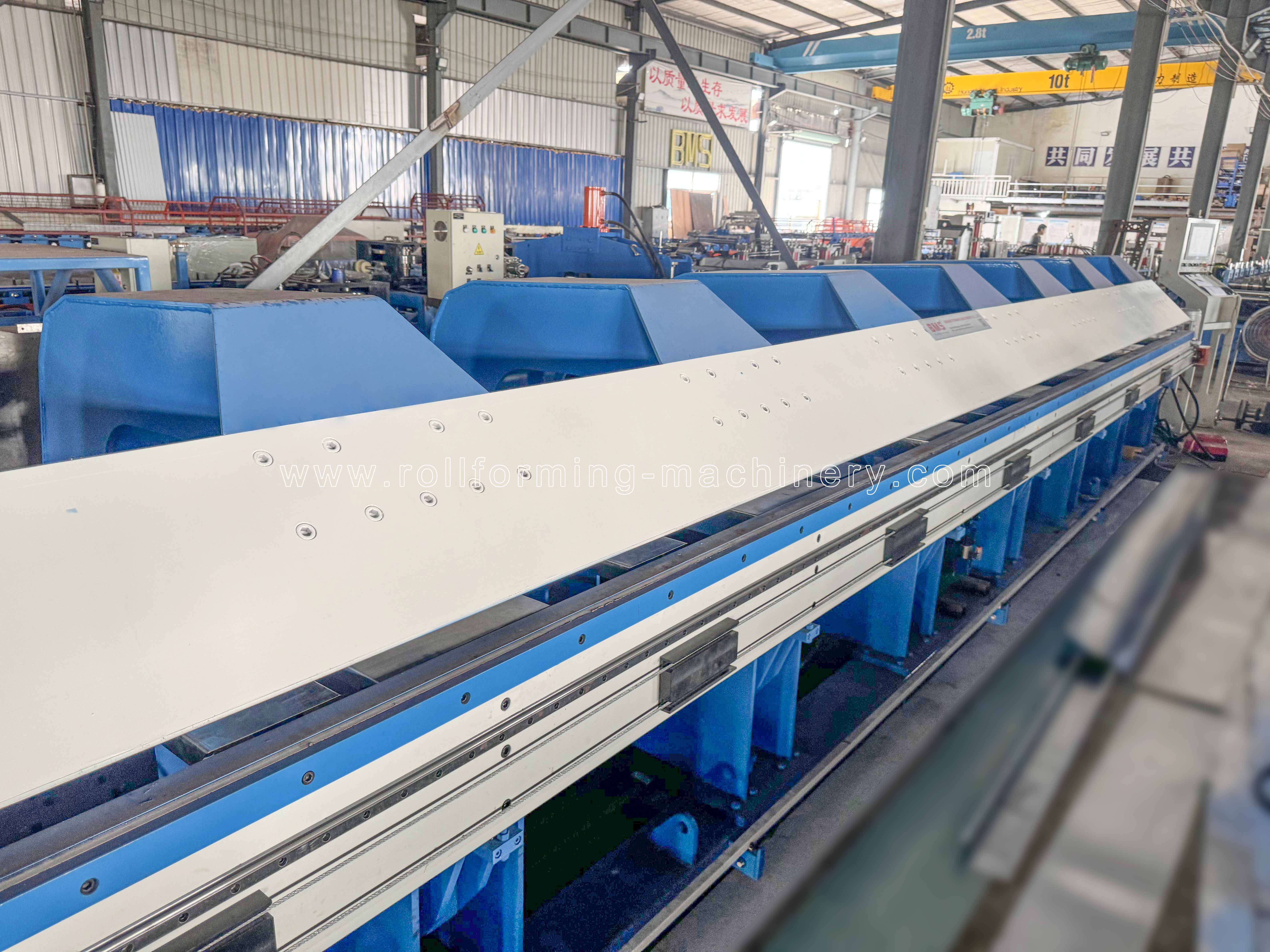

Machine Base Arm Clamp System

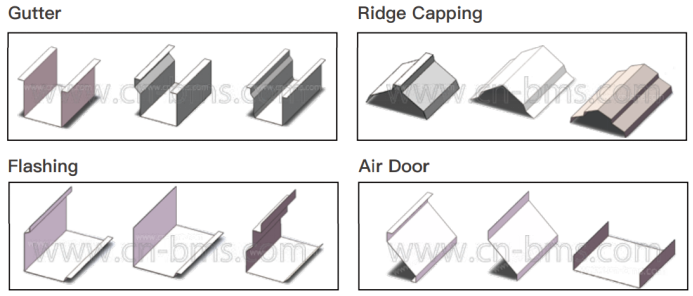

Machine Produced Products
The true value of this machinery is realized in its output. Capable of creating intricate geometries without tool changes, the finished profiles exhibit sharp, precise angles and smooth, sweeping arcs that fit perfectly into complex architectural assemblies. Whether producing long-span roofing panels, custom flashing, or structural cladding, the metal emerges with its surface finish completely intact, free from the scuffs or stress marks often left by inferior clamping systems. This level of consistency accelerates the final construction phase, as every piece aligns perfectly on the job site.
