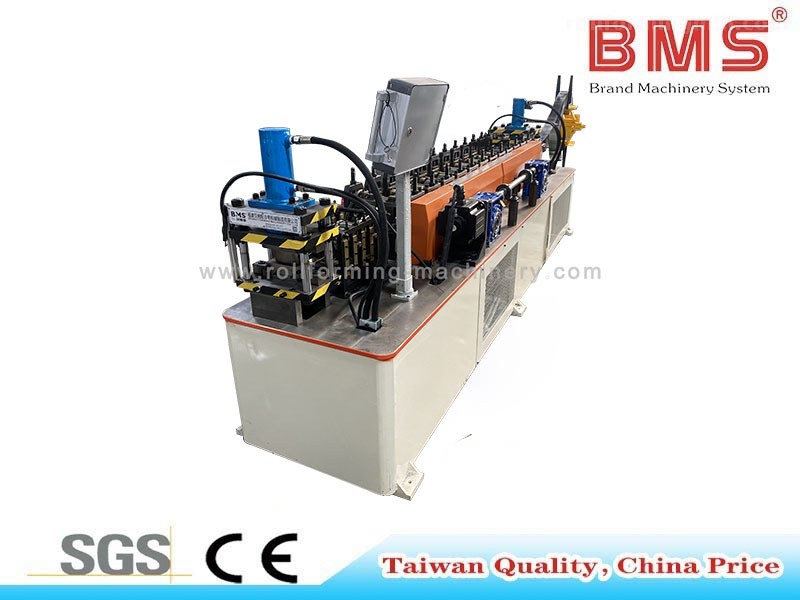

Shelving Horizontal Bracing Roll Forming Machine

Shelving Horizontal Bracing Roll Forming Machine

The production of horizontal bracing components is a critical step in establishing safe, rigid, and heavy-duty warehousing systems. Our specialized roll forming equipment is engineered to seamlessly integrate into your broader logistics and storage manufacturing solutions. By transforming raw galvanized steel coils into precisely shaped structural supports, this equipment ensures that every warehouse rack assembled can withstand immense load capacities. We understand that industrial procurement demands reliability and exact tolerances; therefore, our system is built to deliver consistent, repeatable results that align perfectly with complex facility engineering requirements.

I. Core Advantages & Machine Features

• Integrated online punching function for convenient installation: The rhythmic, powerful operation of the hydraulic punching unit creates clean, burr-free holes directly on the continuous production line. This eliminates the need for secondary processing, significantly accelerating your output rate and ensuring that every horizontal brace aligns perfectly during final warehouse rack assembly.

• The rollers are quenched after fine mechining with Cr12Mov (=D2=SKD11) mold steel, and heat treatment HRC 58-62, for long working lire more than 1o years: When you touch the gleaming, precision-machined surface of these rollers, you feel the industrial-grade durability. This rigorous thermal processing guarantees exceptional wear resistance against continuous metal friction, translating to drastically reduced maintenance costs and an outstanding return on investment over a decade of heavy use.

• Taiwan engineering design, Servo motor+ Gear driving for high accuracy forming, machine service life more than twice that of other lndian and Chinese cheap machines: Listen to the smooth, low-vibration hum of the gear transmission. This advanced drive system ensures that the metal sheet advances with absolute stability, preventing material slippage and maintaining strict dimensional integrity across thousands of meters of production.

• Hot Sales in Philippines and Indonesia: The equipment has proven its steadfast reliability in demanding, high-humidity tropical climates. Its robust electrical enclosures and rust-resistant components ensure uninterrupted operation, making it a trusted asset for facility expansions across Southeast Asia.

• Exclusive Customization & Engineering Services: Beyond standard specifications, we provide one-on-one engineering consultations. We can adapt the roller profiles and punching dies to match your proprietary profile drawings, exact tolerance requirements, and specific project budgets, ensuring the final machine fits your unique production ecosystem perfectly.

II. Technical Specifications & Flexible Configurations

Flexible Optional Configurations

To accommodate varying production capacities and capital expenditure plans, we offer highly adaptable configuration options. Facilities aiming for maximum automation can opt for hydraulic decoilers and premium gear-box transmissions, ensuring heavy galvanized steel coils are handled with minimal manual intervention. Alternatively, for operations prioritizing initial cost-efficiency without sacrificing the core forming precision, manual decoilers and heavy-duty chain drives provide an exceptionally reliable solution. You also have the flexibility to select electrical control components from leading international brands like Schneider, Siemens, or Delta, ensuring seamless integration with your existing factory maintenance protocols.

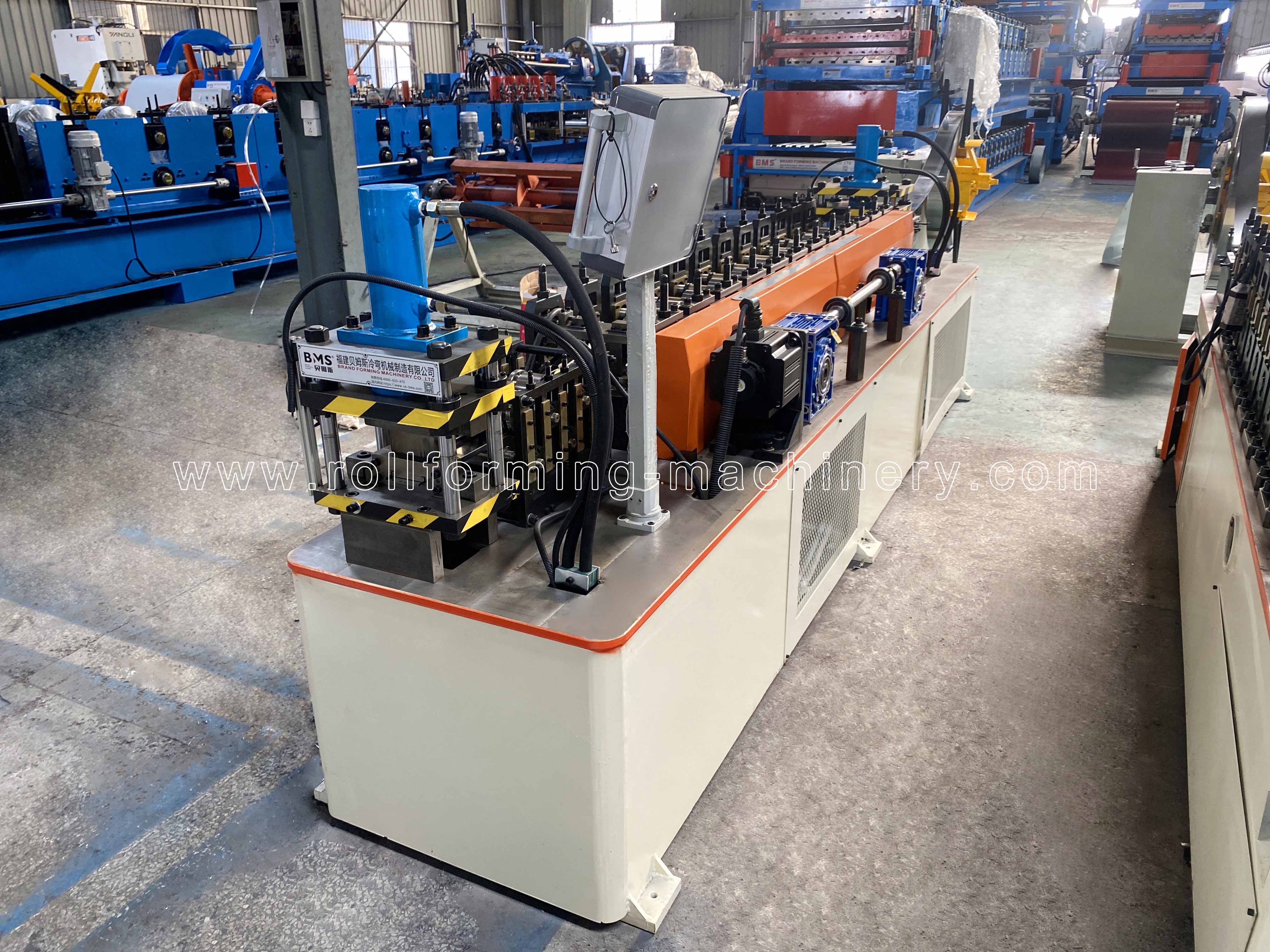

III. Machine Components Display & Automated Workflow

Witness the synchronized efficiency of a fully automated production line. The process begins at the feeding guide device, which meticulously aligns the incoming GI sheet. This critical first step prevents material drift, ensuring the steel enters the punching and forming stations perfectly straight, which is vital for maintaining the structural integrity of the final shelving brackets.

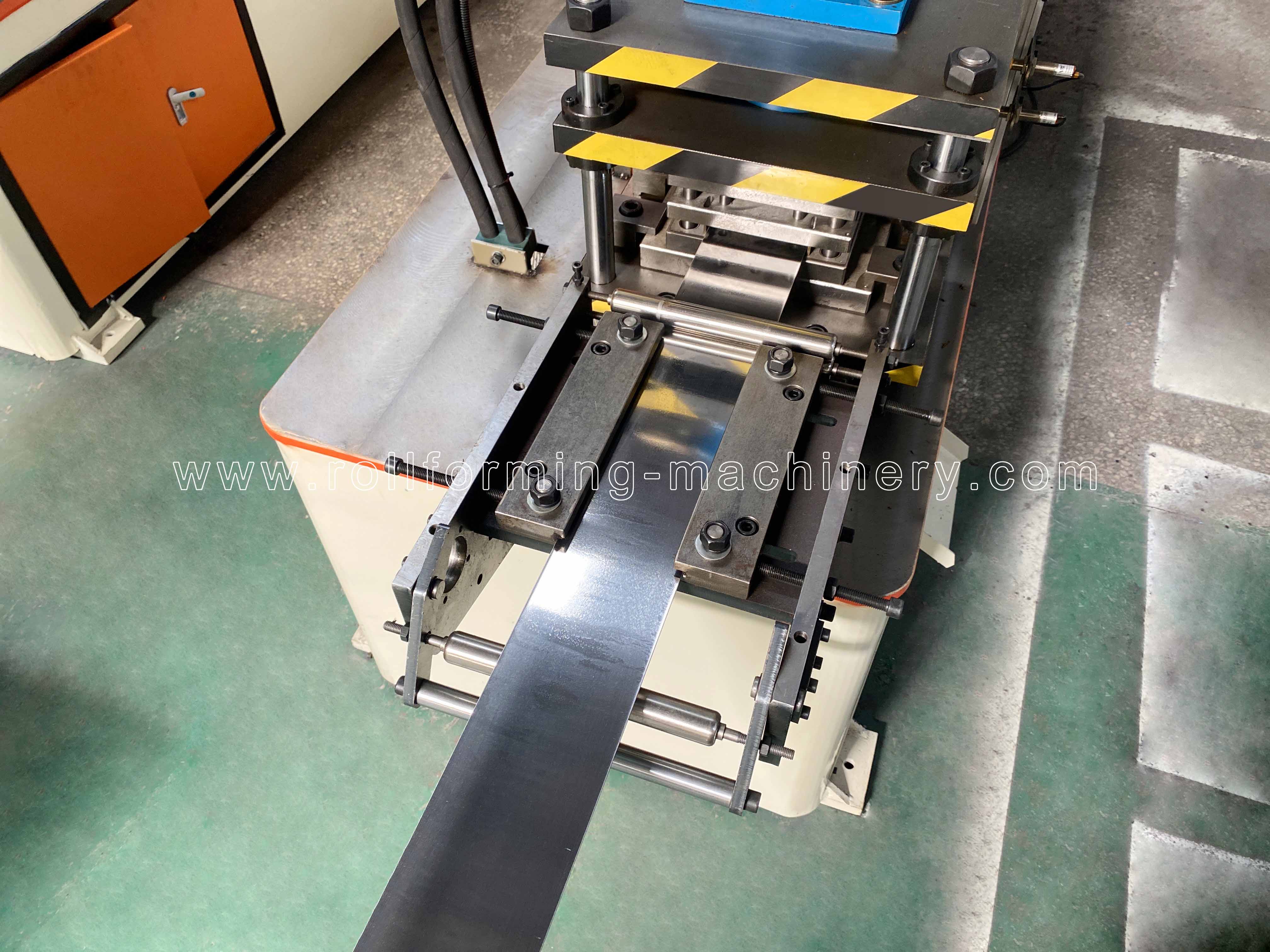

Feeding Guide Device

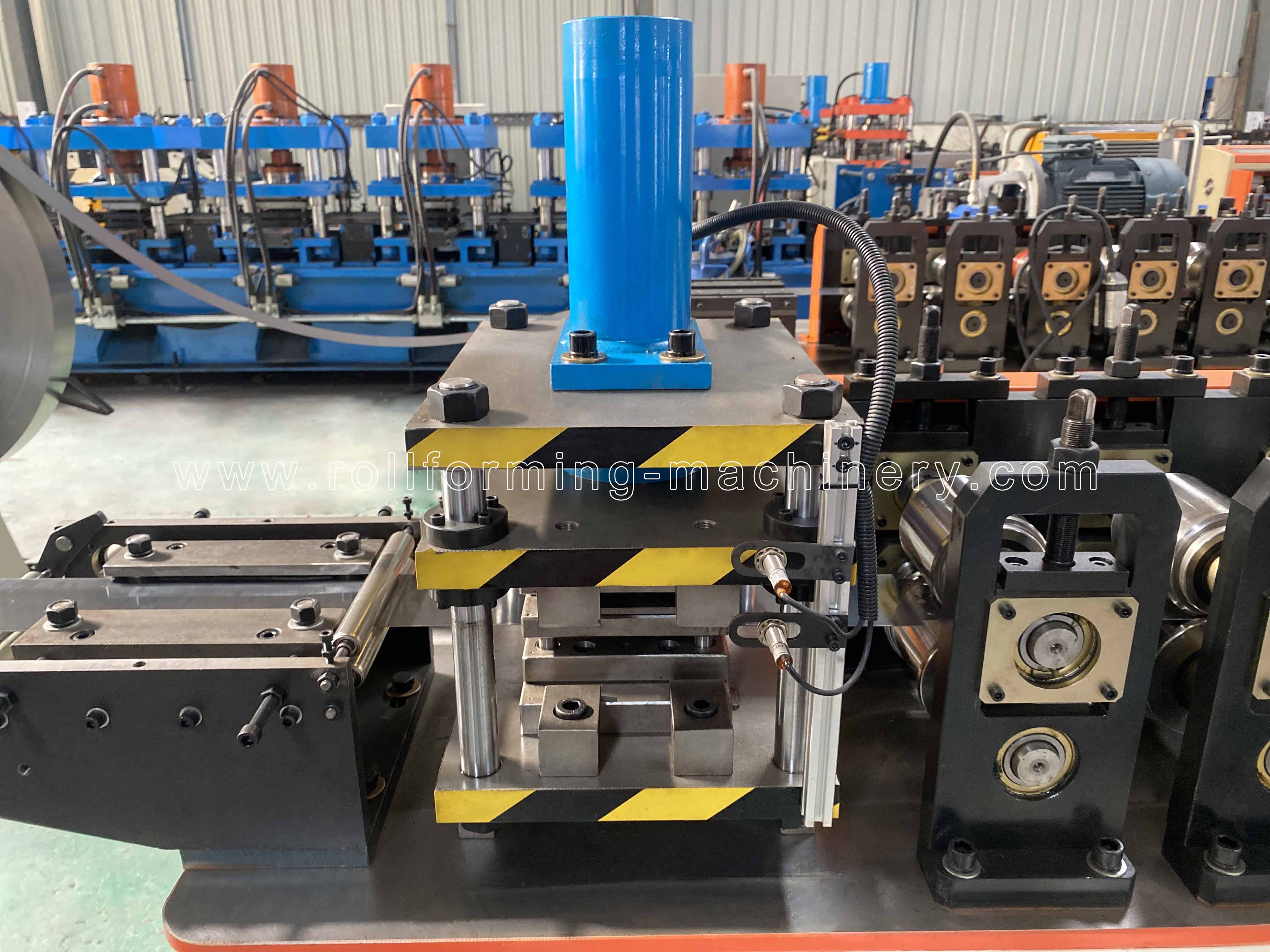

Punching Device

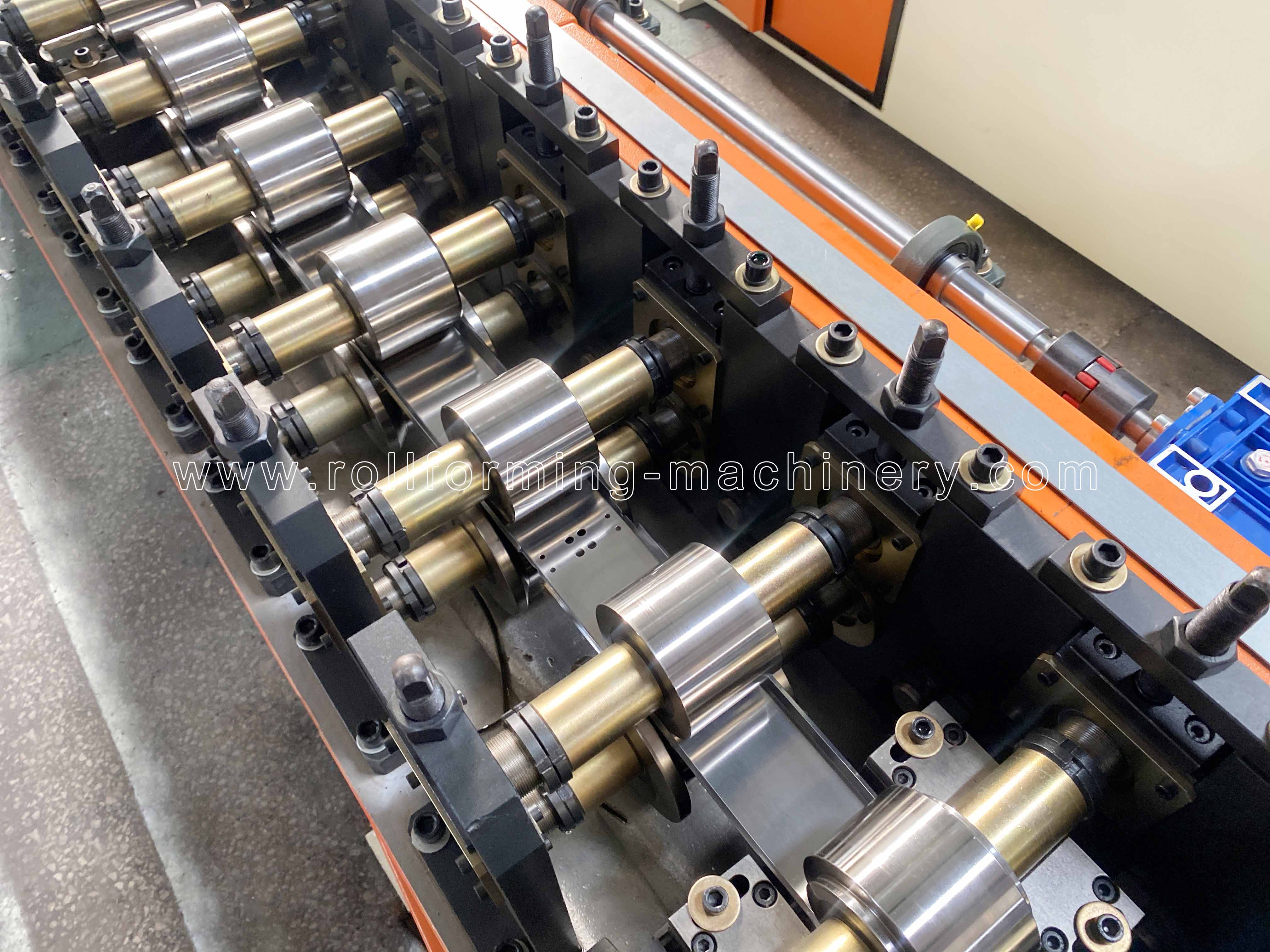

Following the precise online punching, the material enters the heart of the system: the 12-step main roll forming machine. Here, the Cr12Mov rollers progressively shape the steel with immense force, yet operate with controlled fluidity. Finally, the post-cutter, utilizing SKD11 steel blades, shears the formed profile to exact lengths with a cutting tolerance of ≤±1mm, leaving a clean edge ready for immediate assembly.

Main Roll Forming Machine

Post Cutter

IV. Finished Profiles & Warehouse Shelving Applications

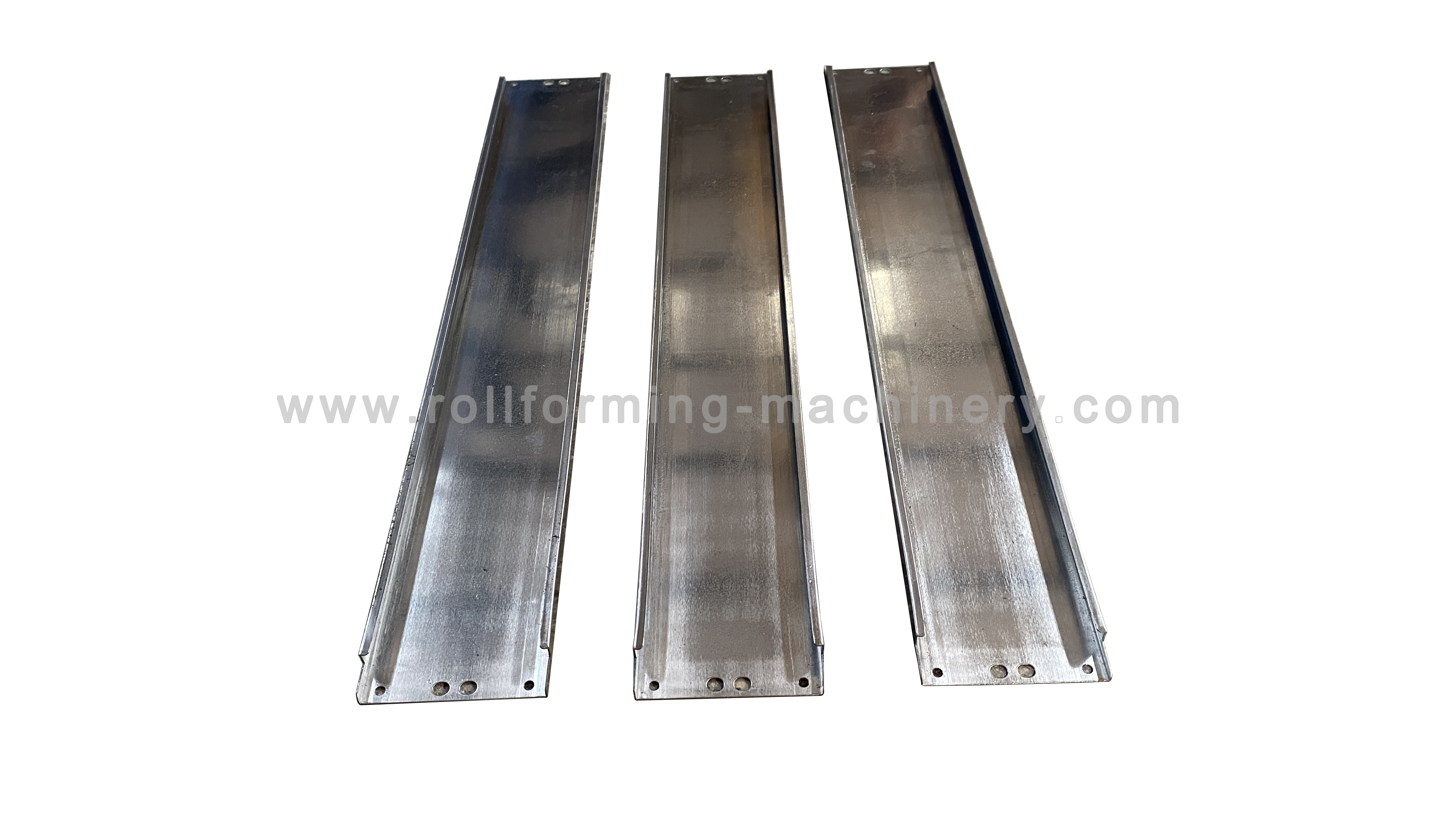

The ultimate value of this equipment lies in the structural integrity of the horizontal braces it produces. Designed to process Galvanized Steel Sheet (GI) with a thickness of 0.6-1.0mm and a yield strength of 235-345MPa, the output profiles exhibit exceptional load-bearing characteristics. These braces form the horizontal framework of heavy-duty pallet racks, ensuring lateral stability and preventing structural torsion under massive warehouse loads. The strict ≤±1mm cutting tolerance guarantees that installation crews on the facility floor experience zero alignment issues, drastically reducing assembly time and labor costs.

V. Frequently Asked Questions (FAQ) & Selection Guide

How does this machine integrate into a broader warehouse racking production line?

This horizontal bracing roll former is engineered to work in tandem with upright rack roll forming machines and step beam production lines. By standardizing the PLC control systems (utilizing globally recognized brands like Siemens or Schneider) and maintaining a consistent working speed of 15-20m/min, it synchronizes perfectly with your overall factory output, ensuring no bottlenecks occur in your storage systems manufacturing process.

What is the difference between standard and customized bracing roll formers?

While our standard machines handle typical C-channel or tubular brace designs efficiently, our customized solutions are tailored to proprietary locking mechanisms or unique cross-sectional geometries. If your logistics solution requires specific hole patterns for boltless assembly or reinforced ribs for seismic zones, our engineering team modifies the 12-step roller stations and punching dies to match those exact requirements without compromising the structural integrity of the GI material.

How do we ensure the machine meets our specific profile drawings and budget?

The procurement process begins with a detailed technical review of your profile drawings. We analyze the required yield strength (235-345MPa) and material thickness (0.6-1.0mm) to determine the necessary shaft diameter (ф40mm) and motor power (4KW main, 5.5KW pump). Based on your capital allocation, we then propose the optimal balance of automation—such as choosing between a manual or hydraulic decoiler—ensuring you achieve the highest possible production efficiency within your specified financial parameters.
