High Accuracy Automatic Cut To Length And Slitting Line Machine (Taiwan Type)

The cut-to-length line is generally used for uncoiling, straightening, measuring, cross-cutting and stacking of various materials such as cold-rolled or PPGI and other coated metals.

Availability:

Quantity:



Inquire Add to Basket

Brand:
BMS

Product Description

High Accuracy Automatic Cut To Length Line Machine（0.5～2.0mm*1250mm）

Work follow

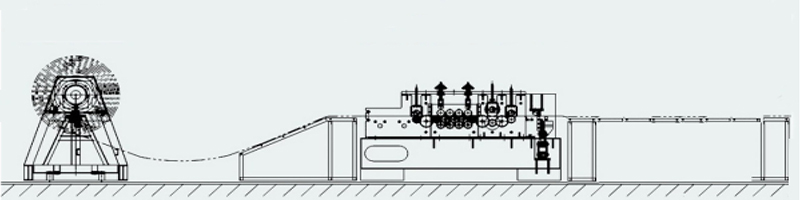

Decoiler→Feeding Guide Device→Leveling Device→Slitting Device→Hydraulic Post Cutting →Run Out Table

20190827101849_94174

Machine Components

No.	Main Parameters		Roll Forming Mill Parameters
1.	Material Thickness	0.5-2.0mm	Forming Stations	14-step
2.	Feeding Width	400,650,800,1000,1250mm	Base	H400, Rectangular Tube
3.	Application Material	Galvanized Coil，PPGI	Side Wall Thickness	Q235 t 22mm
4.	Electrical Standard	415v/3ph/50Hz	Shaft Diameter	Cr40# Steel, φ60mm
5.	Manual Decoiler Diameter	420-φ520mm	Main Motor Power	18.5 KW
6.	Yield Strength	235-345Mpa	Screw Bolts	Grade 8.8
7.	Forming Speed	0-100m/min	Effective Width	As Customer Design
8.	Control System	PLC Control System	Roller	Cr12mov, CNC Lathes, Hear Treatment, HRC58-62
9.	Servo Motor	4.4KW/2.9KW	Machine Color	Blue+Black+Orange
10.	Testing Material	BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing
