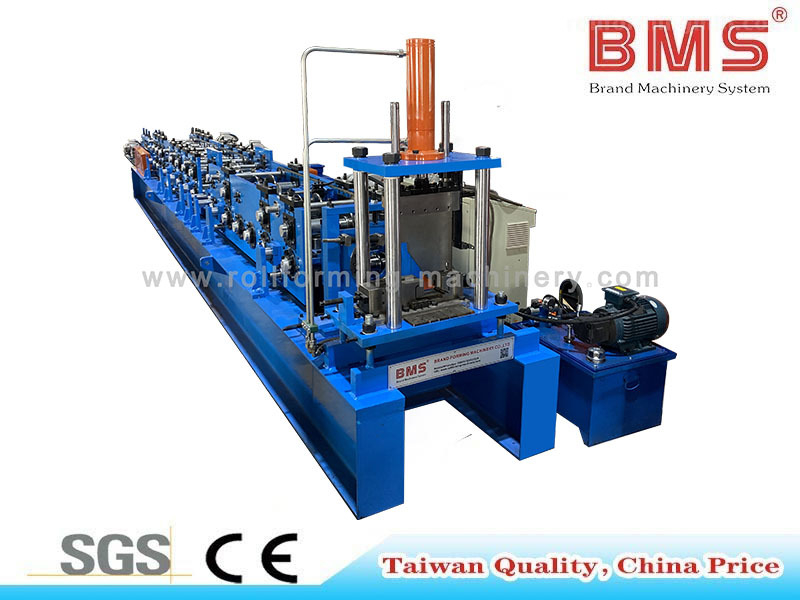

Shelf Load Beam Roll Forming Machine

C80-160
Availability:
Quantity:
Inquire Add to Basket

  • C80-160

  • BMS


Shelf Load Beam Roll Forming Machine


I. Machine Description


Material Applicable material Galvanized Steel(GI),Cold Roll Steel(CRC)
Material thickness 1.5-2.0mm
With yield strength G340-550Mpa
 Machine Base Frame H450 type steel
Roller Material GCr15 Steel(=EN31 Steel)
Roller station 18-steps
Shaft diameter ф80mm
Working speed About 20m/min
 Cutter Cutting tolerance ≤±1mm
Material Cr12MoV(= SKD11 Steel)
Power Main motor 11KW
Pump motor for cutter 5.5KW
Voltage 220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System Inverter:   Schneider Electric/Siemens/DELTA (Taiwan brand)
Touch Screen:       Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
Encoder OMRON (Japan brand) or KOYO (Japan brand)


II. Machine Components Display

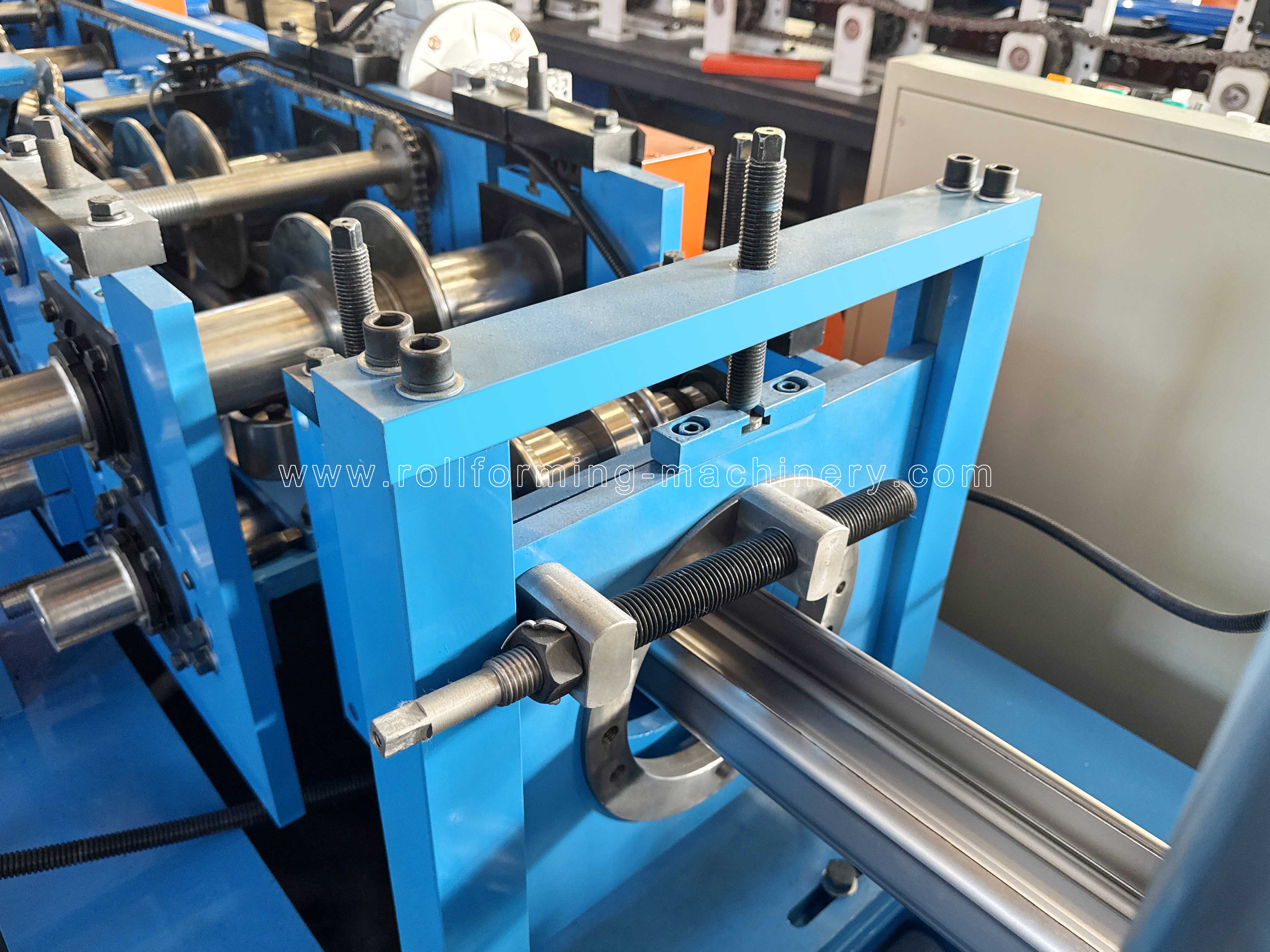

Leveling Device

Leveling Device

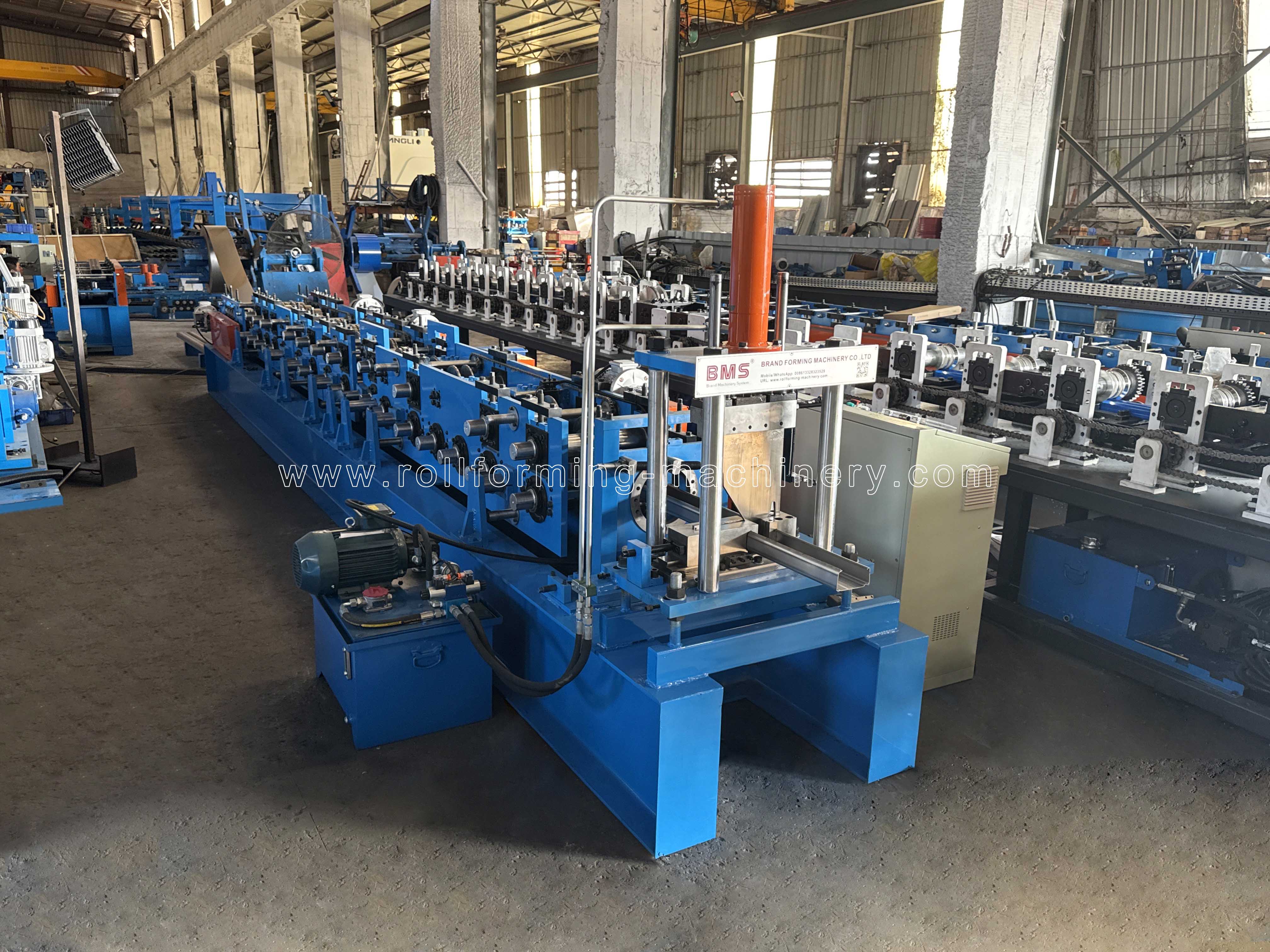

ROLL FORMING MILL

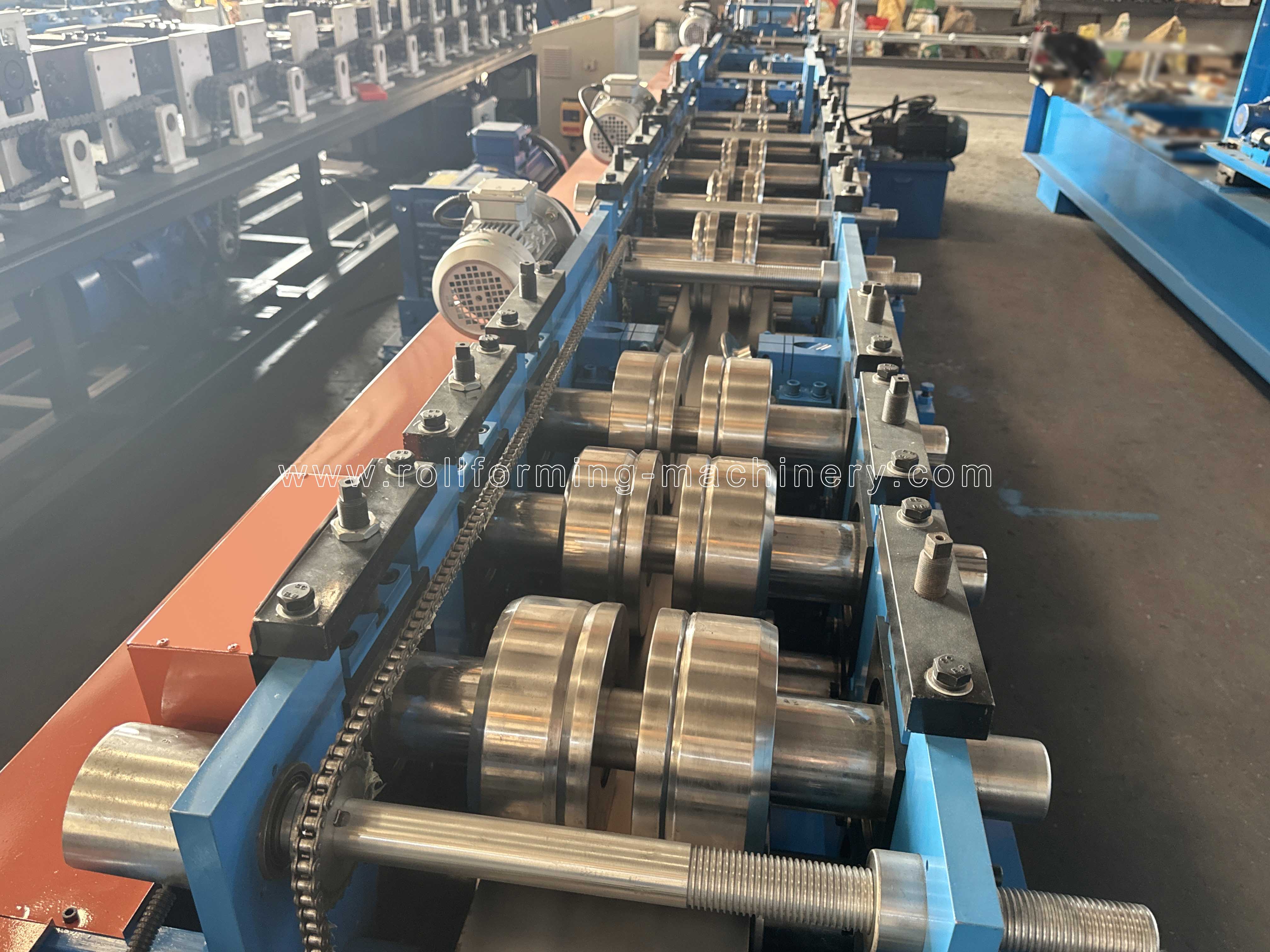

Main Roll Forming Mill



post cutter

POST CUTTER

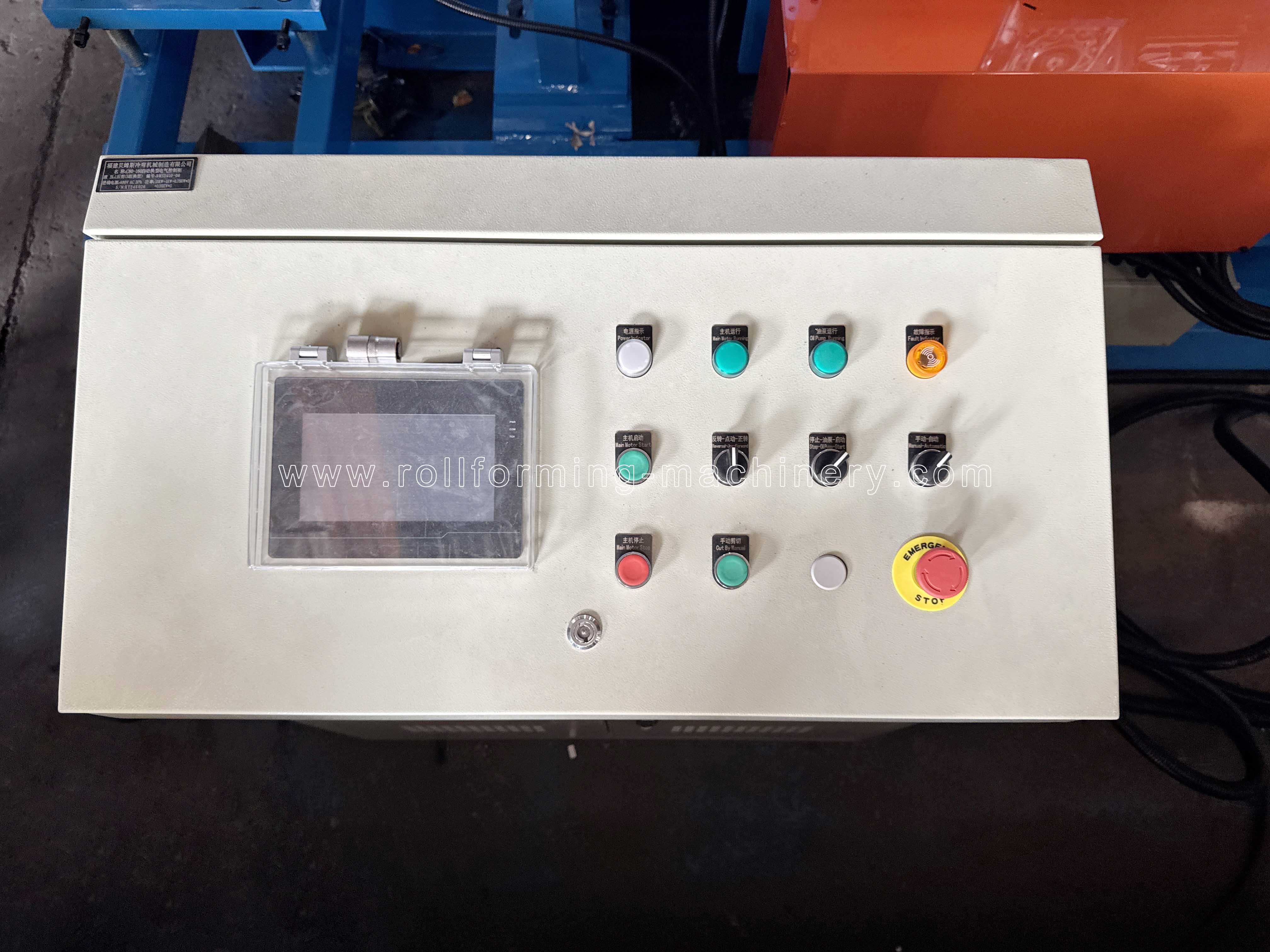

PLC CONTROL cabinet

PLC Control Cabine

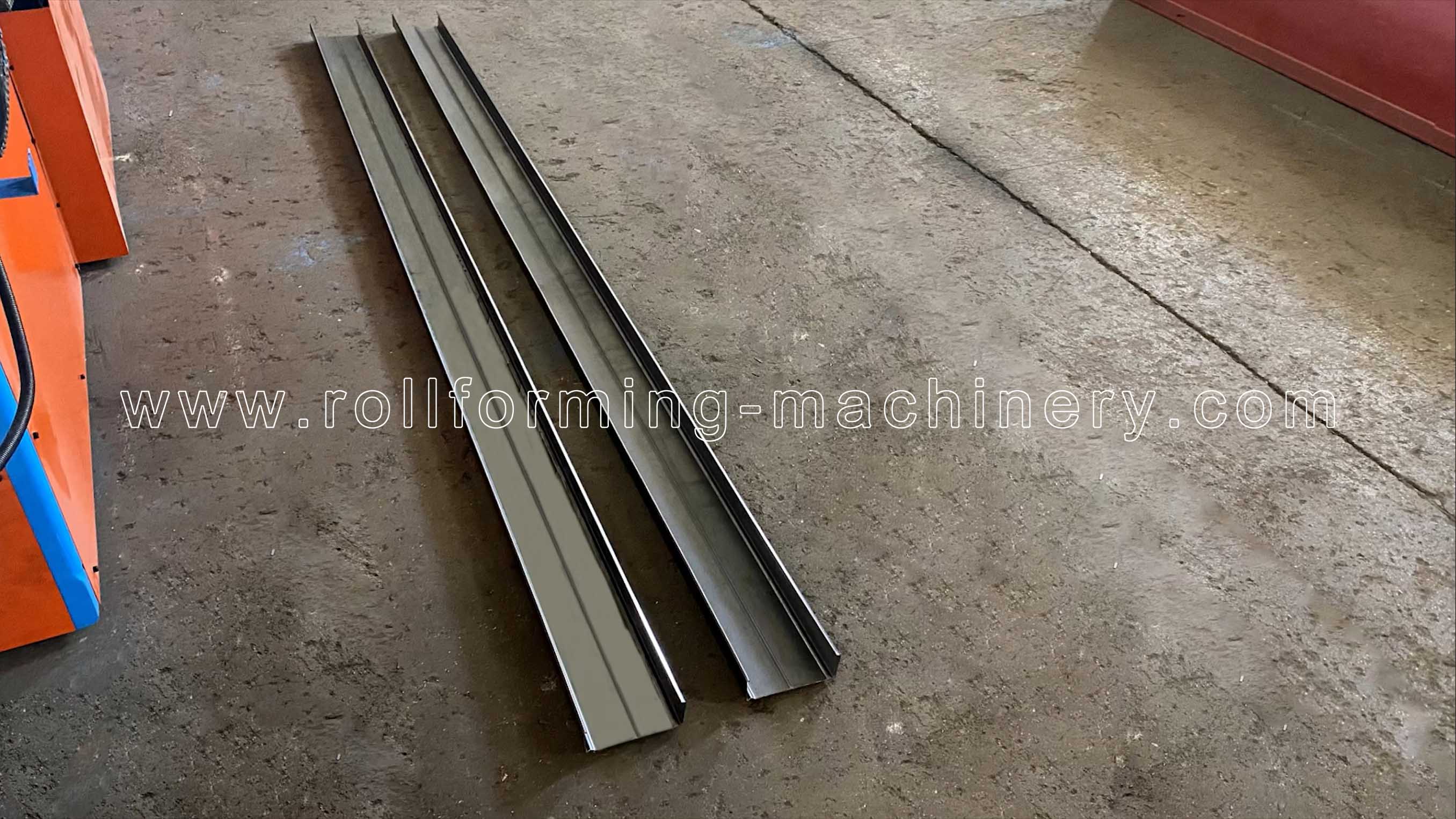

Machine Produced Products

shelf load beam roll forming machineproduct show


key parts suppliers
