Electromagnetic sheet metal bending uses controlled magnetic pulses to form metal without direct contact between the tooling and workpiece. Unlike conventional press brakes, it doesn't rely on a fixed mechanical clamping system to hold the workpiece.

This article explains how the technology works, its key components, advantages, limitations, and how it compares with conventional forming methods. This will help you determine whether it fits your production needs.

What Is Electromagnetic Sheet Metal Bending?

At its core, electromagnetic sheet metal bending uses a burst of magnetic force to shape metal, with no punch, no die, and no physical contact between the tool and the workpiece. A coil generates a rapid magnetic field near the sheet metal, and that field induces a force strong enough to bend or shape the material into a target form.

Instead of securing the sheet with a conventional mechanical clamp, the machine uses an electromagnetic clamping system. Once the sheet is positioned correctly, the magnetic force holds it against the machine's working surface while the operator lifts or rotates the bending beam to create the required bend.

How Does an Electromagnetic Bending Machine Work?

The operating principle is relatively simple.

The machine creates an electromagnetic clamping force that holds the sheet securely while the bending beam applies mechanical force to form the metal.

The basic process is:

1. Position the sheet on the machine's working surface.

2. Place the clamping bar over the area to be bent.

3. Activate the electromagnetic clamp to hold the workpiece securely.

4. Adjust the bending angle according to the required profile.

5. Raise the bending beam to form the sheet.

6. Release the magnetic clamp and remove the finished part.

The electromagnetic system performs the clamping, while the actual bending is produced through mechanical movement of the bending beam.

This distinction is important. An electromagnetic sheet metal brake is not the same as high-speed electromagnetic forming, where electrical pulses and induced currents are used to deform conductive metals.

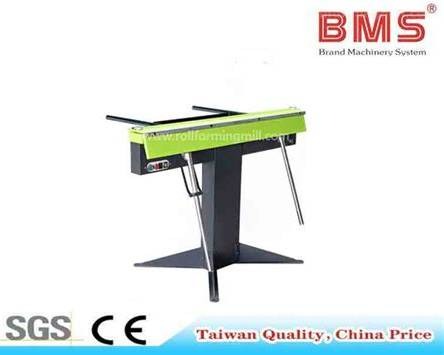

Core Components of an Electromagnetic Sheet Metal Bending Machine

1. Electromagnetic Clamping System

The electromagnetic clamping mechanism defines the functionality of the machine. Once activated, the electromagnet produces a holding force to clamp the sheet to the machine table. This means that there is no need for mechanical clamps throughout the sheet.

The clamping force should be adequate depending on the material and process of bending. Positioning is equally crucial since the sheet has to remain stable as the bend is formed.

2. Bending Beam

The bending beam is used to apply the required force to bend the sheet. After the electromagnetic clamp holds the sheet, the bending beam is raised to create a certain angle.

The position of the bending beam creates the bend, which is why precision is necessary when making repetitive products.

3. Clamping Bar

The clamping bar is mounted above the sheet and cooperates with the electromagnetic mechanism to hold the sheet during bending.

An advantage of this type of setup is the greater flexibility while creating certain geometries such as boxes and other products that would not have been possible to make using fixed mechanical clamps.

4. Control and Operating Mechanism

The operator controls the electromagnetic clamping and bending operation manually on the electromagnetic sheet metal bending machine. The machine is designed for straightforward operation rather than the complex programming associated with fully automated production lines.

Step-by-Step: How the Bending Process Works

Step 1: Position the Sheet

Set the sheet metal on the table of the machine. Position the bend line at the right position in the machine, as positioning accurately at this stage ensures the end result is made according to its required specifications.

Step 2: Position the Clamping Bar

Position the clamping bar on the sheet over the bend line intended to be formed. Ensure that the sheet metal is correctly positioned prior to engaging the magnetic clamping system.

Step 3: Activate the Electromagnetic Clamp

Activate the electromagnetic clamping system. The sheet is magnetically held in place, preventing it from moving while undergoing the bending process.

Step 4: Bend the Sheet

Raise the bending beam to the necessary degree of bending. The bending beam provides the mechanical force required to bend the sheet against the edge of the clamping bar.

Step 5: Check the Bend

Once the desired angle is achieved, examine the completed bend for accuracy of dimensions. In production work, the same process may be continued for additional components.

Step 6: Release and Remove the Part

Deactivate the electromagnetic clamping system and remove the bent piece. When producing complex bends, the flexibility of the magnetic clamping system may assist in forming additional bends without the component being restrained by the tooling.

Advantages of Electromagnetic Sheet Metal Bending Machines

1. Flexible Clamping

Flexibility in electromagnetic clamping can be beneficial when creating various sheet forms. It becomes more effective while manufacturing boxes, cabinets, covers, etc., where a regular clamping mechanism makes some bends not easily accessible.

2. Suitable for Different Sheet Metal Materials

The electromagnetic sheet metal bending machine has been designed to bend several types of sheets: aluminum, copper, coated plate, stainless steel, and iron. But anyway, you should make sure that your actual material and its thickness comply with the machine's specifications before buying it.

3. Compact Solution for Sheet Metal Work

Workshops requiring installation of a bending machine without constructing a large production line can benefit from using an electromagnetic brake.

Limitations and Considerations of an Electromagnetic Sheet Metal Bending Machine

Material and Thickness Limits

Each machine has an inherent working capability. The BMS model discussed here works on materials with thicknesses not exceeding 1.6 mm and widths not exceeding 1250 mm. In case your process involves materials of higher thickness or width, it becomes necessary to consider a different type of bending process.

Manual Operation

In an electromagnetic sheet metal bending machine, manual control is employed. Although it works very well for workshops with varied processes and parts, automation in the case of mass production may be required to use a different machine layout.

Not a Replacement for Roll Forming

Electromagnetic bending process and roll forming deal with different production issues. The former makes use of individual sheets or parts through separate bending processes. The latter utilizes a continuous feeding of sheet or strip material through different forming stations.

For long runs of identical profiles, roll forming is generally the more appropriate production method. BMS offers a wide range of roll forming machines, including equipment for roofing panels, purlins, decking, studs and tracks, gutters, tubes, and other profiles.

Industries and Applications

Electromagnetic bending has found real traction in a handful of industries where its specific strengths line up with production needs:

Automotive

• EV battery trays and enclosures: Electromagnetic bending helps in shaping lightweight aluminum parts without causing cracking and surface damage.

• Structural components: Electromagnetic bending can produce precise bending of lightweight alloy parts that are used in manufacturing vehicle structure and body parts.

• Battery cooling components: Precise bending of conductive metal parts can be done to ensure accurate measurements and dimensions.

Why it is used: There is an increasing need for reduction of weight in automobiles without compromising structural stability. Electromagnetic forming is effective when forming aluminum and other conductive alloys with reduced surface damage.

Aerospace

• Aircraft panels: Large or lightweight alloy panels can be shaped where accurate dimensioning and surface finish are very crucial.

• Structural components: The aluminum and other conductive alloys can be formed without entirely depending on conventional die forming.

• Lightweight aerospace parts: The process is useful in shaping lightweight aerospace parts with intact material structure.

Why it is used: Aerospace parts are known for being lightweight in nature but require high-quality standards. Contact-free forming can reduce tool marks, localized damage, and cracking while maintaining precise geometry.

Electronics

• Electrical enclosures: Bending using electromagnetic forces can form clean bends on aluminum enclosures and housing parts.

• Control cabinets and equipment housings: Accuracy in forming ensures proper sizing to allow tight fits with other assemblies.

• Heat-management components: Forming conductive metal materials used for housings and heat dissipation components maintains a good surface finish.

Why it is used: Manufacturers of electronic components frequently require high-quality parts without any damage in appearance. Contactless forming minimizes scratching and scarring caused by normal tooling.

Renewable Energy and Energy Storage

• EV battery housings: Aluminum battery components can be formed accurately while minimizing damage to the material surface.

• Energy-storage enclosures: Conductive sheet metals used in battery and power-storage systems can benefit from controlled forming.

• Electrical connectors and busbar-related components: Electromagnetic forming can be useful for conductive components requiring precise geometry.

• Solar and power-system components: Certain lightweight metal housings and structural parts can benefit from the process.

Why it is used: The growth of EVs and energy storage has increased demand for lightweight, conductive metal components. Electromagnetic forming can provide the dimensional consistency and surface quality needed for these applications.

HVAC and Appliance Manufacturing

• Air-conditioning components: Aluminium and other conductive materials of sheet metal may be bent with reliable dimensions.

• Appliance housings and panels: The non-contact technology will allow for keeping clean surfaces of cosmetic components.

• Heat exchangers and related components: Conductive metals can be bent when precise dimensions are required for assembly.

• Refrigeration equipment: Enclosures and light parts can be bent repeatedly without leaving marks on their surfaces.

Why it is used: HVAC appliance producers usually need repeatability, clean surfaces, and productivity. Electromagnetic bending technology allows this.

These applications share one characteristic: they require sheet metal to be formed into specific shapes rather than continuously rolled into a long profile. For roofing production, where individual trims and accessories may need bending after the main roof panel is formed, BMS also offers dedicated metal sheet bending machines.

What to Look for When Choosing an Electromagnetic Sheet Metal Bending Machine

• Checking maximum sheet thickness capacity: Match the machine to the thickest expected material rather than just average sheet thickness (e.g., up to 1.6 mm for the BMS 1250B).

• Checking maximum bending length: Verify that the machine's overall working width accommodates all required sheet dimensions (e.g., 1250 mm length capacity).

• Evaluating material compatibility: Confirm manufacturer specifications for every metal used in production, including aluminum, stainless steel, copper, coated plate, or iron.

• Assessing production volume requirements: Choose manual electromagnetic brakes for varied, low-volume workshop runs, or dedicated roll forming lines for continuous high-volume output.

• Matching applications to operational needs: Select equipment based on the specific end-product demands, such as cabinets, ventilation ducts, aircraft panels, or agricultural products.

Conclusion

Electromagnetic sheet metal bending isn’t a replacement for roll forming or press braking. It’s a specialized solution for conductive alloys, delicate surfaces, and applications where conventional forming may cause cracking or marking. For long, high-volume profiles, roll forming is often the better choice.

Not sure which process fits your production needs? Contact us at BMS Group to evaluate your materials, part geometry, and production volume and find the right forming solution.

FAQs

What are the types of sheet metal bending machines?

Sheet metal bending machines are industrial tools used to deform flat metal sheets into precise angles, curves, or profiles.

How much does an electromagnetic bending machine cost?

The electromagnetic bending machine (also referred to as a magnetic sheet metal brake) can cost anywhere between $600 and $4,000, mainly depending on the bending length of the machine and how much clamping force it has, as well as whether you buy it directly from wholesalers or distributors.

Is an electromagnetic sheet metal bending machine better than a mechanical bending machine?

An electromagnetic sheet metal bending machine is better for versatility and avoiding bend marks, while a mechanical bending machine is better for heavy-duty, high-speed production.

Is electromagnetic sheet metal bending safe for operators?

Yes, it is safe to use an electromagnetic bending machine, provided the operators abide by basic workshop safety rules and do not suffer from certain medical conditions. The fact that it uses an electromagnet rather than clamping fingers makes it safer.

What metals can be formed with electromagnetic sheet metal bending machines?

Electromagnetic sheet metal bending machines can form both magnetic and non-magnetic metals like steel, galvanized steel, stainless steel, aluminum, brass, and copper.
