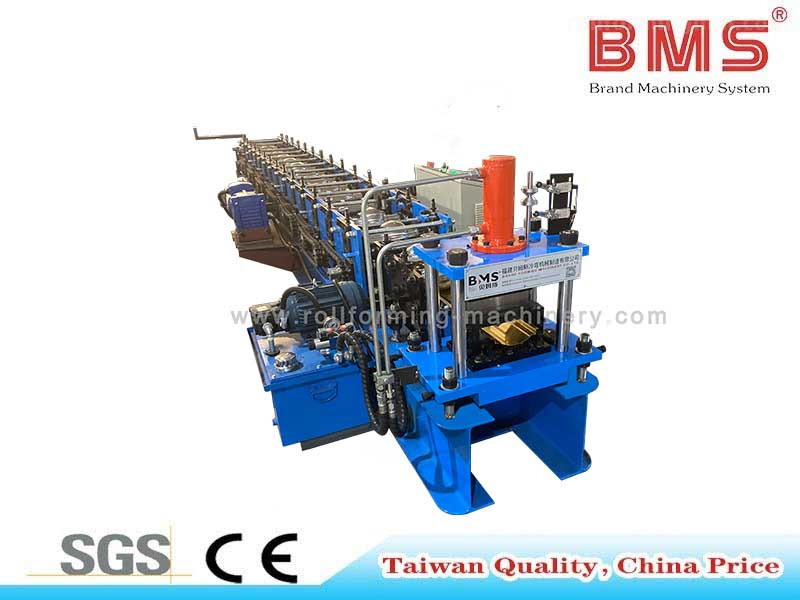

Copper Roof Tile Roll Forming Machine

Copper Roof Tile Roll Forming Machine

I. Machine Features & Operational Efficiency

Engineered for continuous, heavy-duty manufacturing, this copper roof tile roll forming machine integrates advanced mechanical design with intelligent control systems. It perfectly accommodates various thicknesses of copper coils and other metal substrates, ensuring versatile production capabilities for diverse architectural projects. The continuous forming and flying saw cutting mechanisms work in unison to drastically elevate daily throughput while maintaining strict dimensional tolerances across every production batch.

1. Equipped with manual front plain shear, with reminder function of cutting the last piece of material from production settings (to avoid waste of material), it is convenient for customers to change materials and save operation time. This smart integration minimizes scrap rates and allows operators to transition between different coil batches smoothly, optimizing the entire shift's productivity and reducing overall material expenditure.

2. The machine produced antique-style copper roof tiles with following advantages: Exceptional longevity(50 years or more), Resists corrosion, extreme weather conditions& fire, Beautiful appearance, Sustainable(recyclable) and Energy-efficient(Copper reflects sunlight and helps keep your home cooler). These architectural elements provide a premium, visually striking finish that naturally patinas over time, adding significant value and structural security to premium residential and commercial buildings.

   3. Hard-Chromed Tooling for long working life more than 10years. The forming rollers are crafted from premium-grade steel, undergoing rigorous CNC precision machining before receiving a specialized hard-chrome surface treatment. This meticulous craftsmanship ensures exceptional wear resistance, preventing surface degradation and maintaining the smooth, flawless finish of the copper tiles throughout a decade of rigorous daily operation.

III. Machine Components Display

Every module within the production line is designed for maximum stability and precision. From the initial coil feeding to the final profile shaping, the equipment utilizes an intelligent PLC control system. This automation allows for exact length measurement and one-touch operation, significantly reducing manual labor requirements while ensuring that every single tile meets strict architectural specifications.

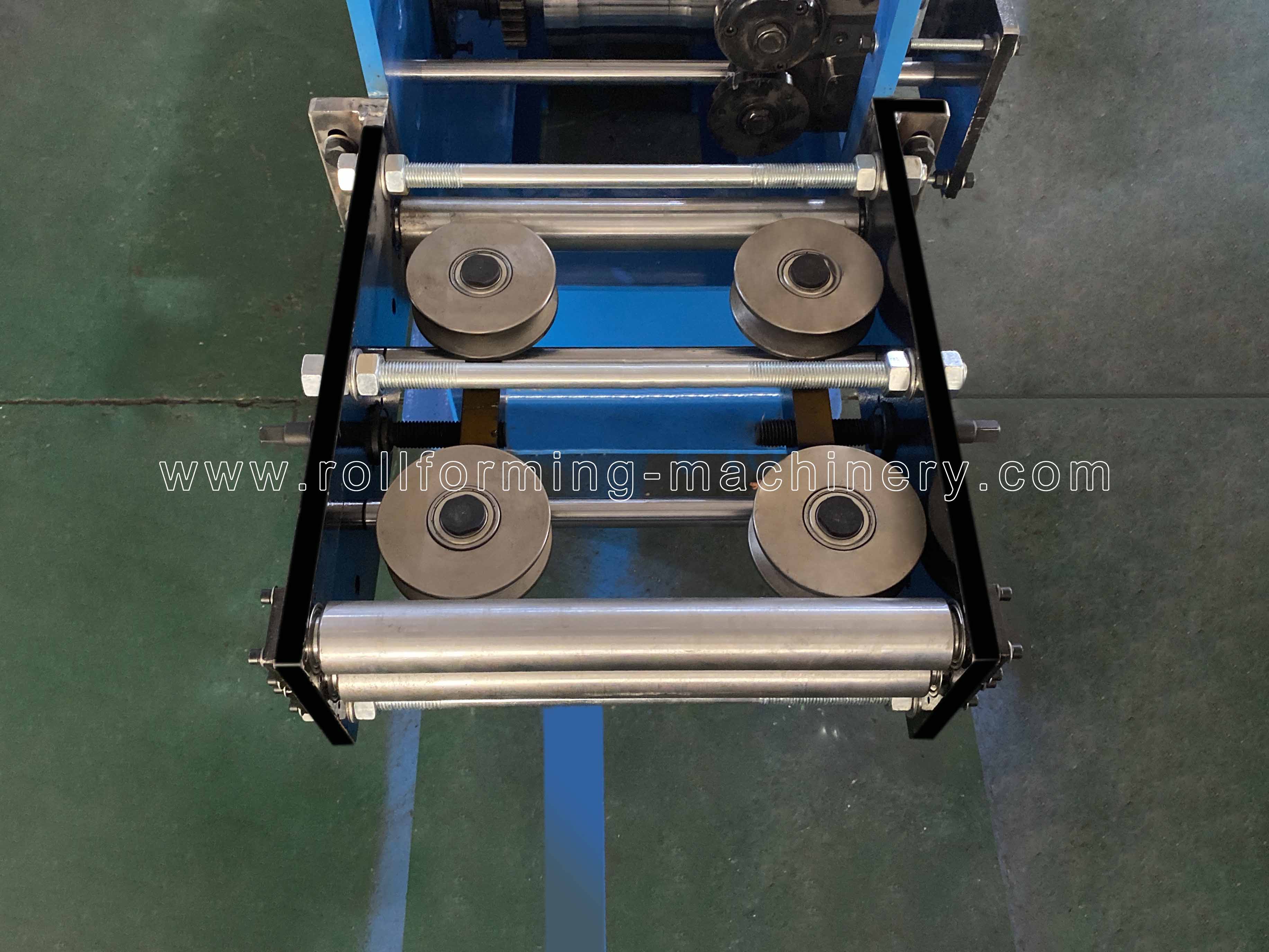

Feeding Device

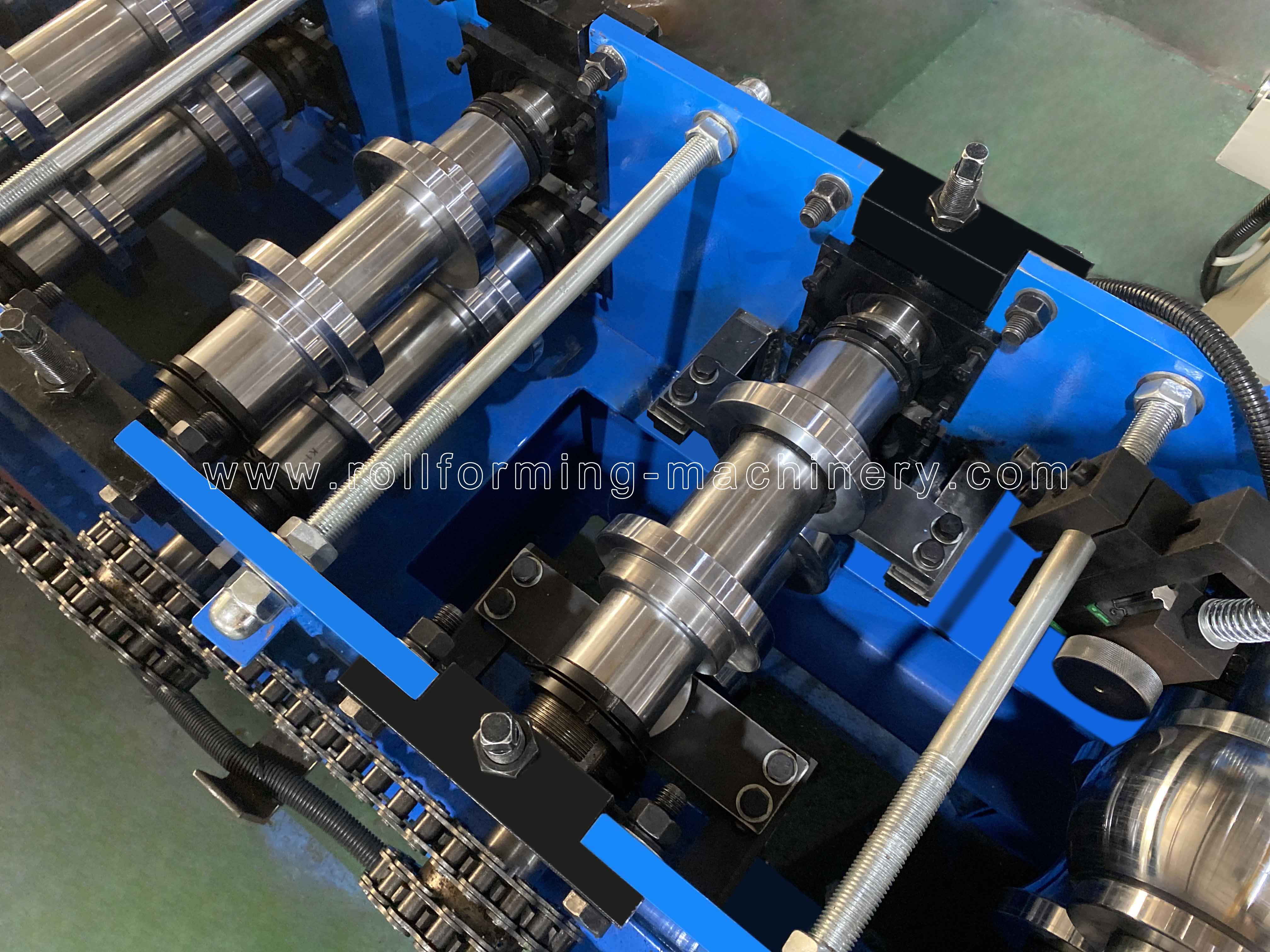

Main Roll Forming Mill

The heavy-duty steel chassis absorbs operational vibrations, resulting in a steady, rhythmic hum as the raw material is systematically guided through the precision-machined roller stations. The punching and cutting devices are synchronized perfectly with the main mill, executing clean, burr-free cuts that guarantee tight overlapping joints during the final roof installation.

Punching Device

Main Roll Forming Mill

Machine Produced Products & Applications

The output generated by this equipment meets the rigorous demands of modern architectural design. Each antique-style copper roof tile exhibits flawless contours, consistent thickness, and precise interlocking edges. This dimensional accuracy is crucial for ensuring superior waterproof performance and structural integrity against severe weather events. The tactile feel of the finished copper tile is smooth yet substantial, reflecting the premium nature of the raw material and the precision of the roll forming process.

To guarantee uninterrupted performance and minimal maintenance, our machines are built using components from globally recognized brands. This strategic sourcing enhances the overall reliability of the electrical and hydraulic systems, ensuring that your production facility maintains optimal uptime even during peak manufacturing seasons.

Complete Production Line Customization

Understanding that every manufacturing facility has unique spatial and output requirements, we offer comprehensive customization for the entire copper roof tile production line. From initial decoiling to automated stacking, the system can be tailored to fit specific operational workflows. Our engineering team collaborates closely with facility managers to design layouts that maximize floor space and streamline material handling.

Advanced Automation Integration

By incorporating intelligent PLC frameworks, the entire sequence—feeding, roll forming, punching, and cutting—operates as a cohesive unit. This level of automation not only reduces the dependency on manual labor but also mitigates the risk of human error. Operators can monitor real-time production metrics, adjust cutting lengths on the fly, and manage batch orders through an intuitive touchscreen interface, ensuring that the final products perfectly match the required architectural dimensions.

Consistent Output and Global Component Sourcing

The true value of this machinery lies in its ability to deliver identical, structurally sound copper tiles batch after batch. The precise interlocking mechanisms formed during the rolling process ensure that the final architectural application is entirely weatherproof and visually stunning. To support this relentless performance, all critical electrical and hydraulic components are sourced from trusted international suppliers, guaranteeing long-term durability and simplified maintenance protocols for your investment.
