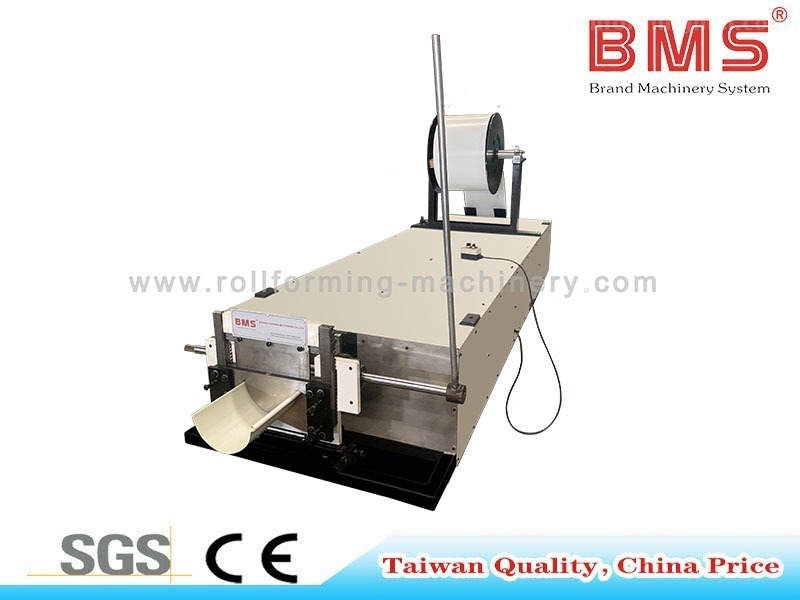

Portable Gutter Roll Forming Machine

（gutter width 144mm and height 90mm）

Availability:

Quantity:



Inquire Add to Basket

Brand:
BMS

Product Description

Portable Gutter Roll Forming Machine

I. Machine Features

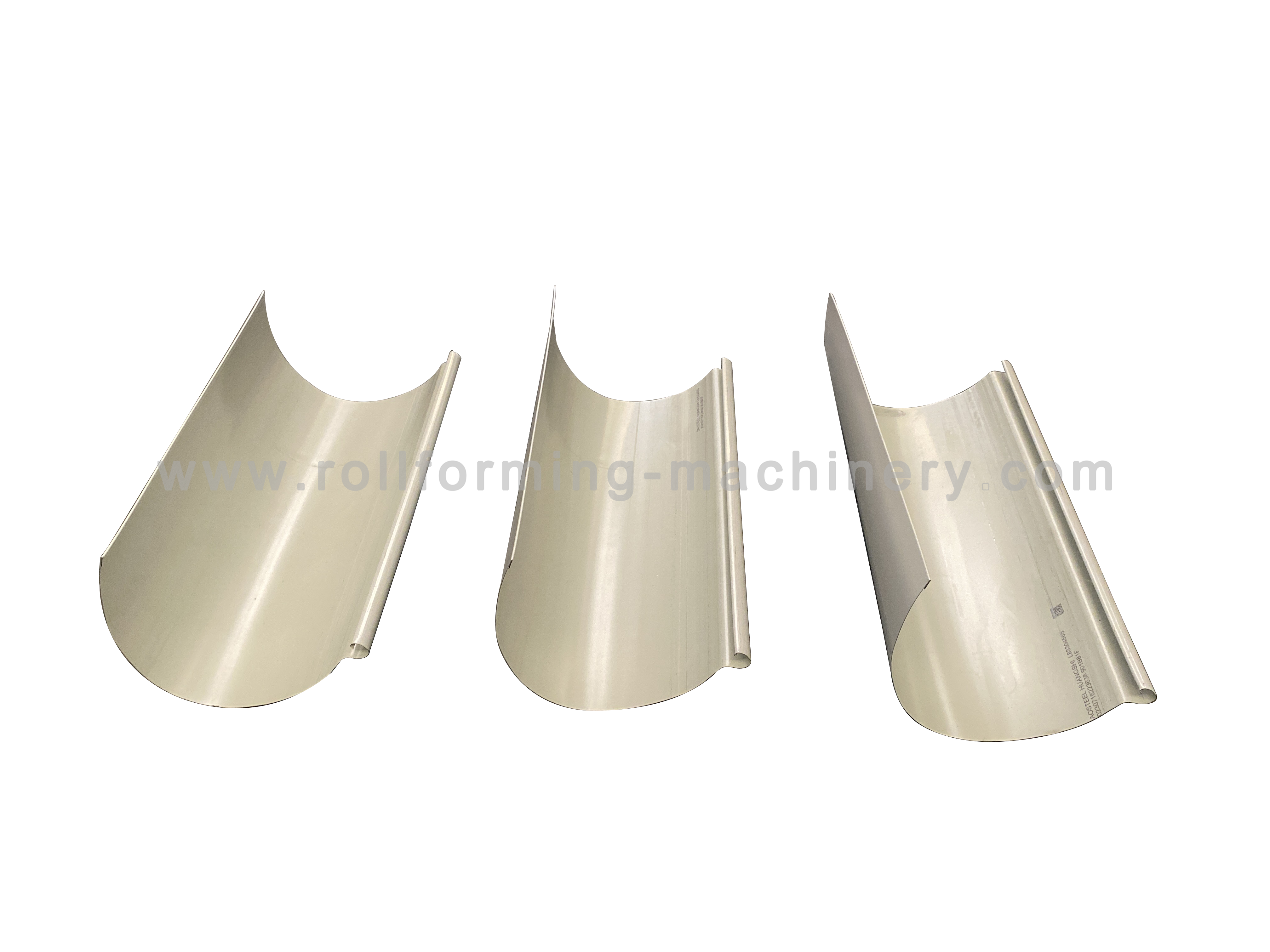

1. It is portable for onsite roll forming and have a host of features that make them state-of-the-art,capable of producing 6",7" or 8", residential and light commercial grade, K-Style, Half round or box style gutter from steel aluminum or copper.

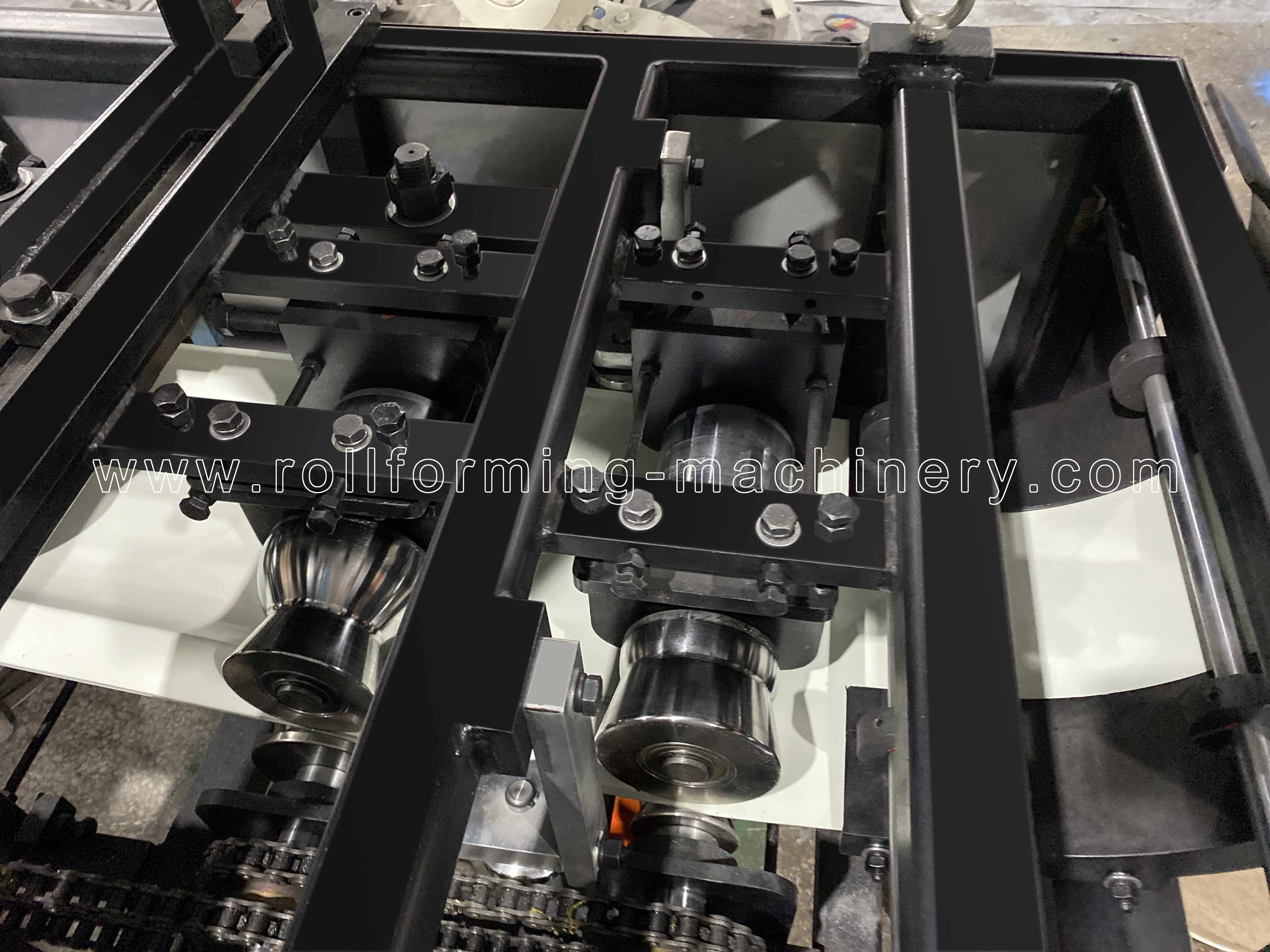

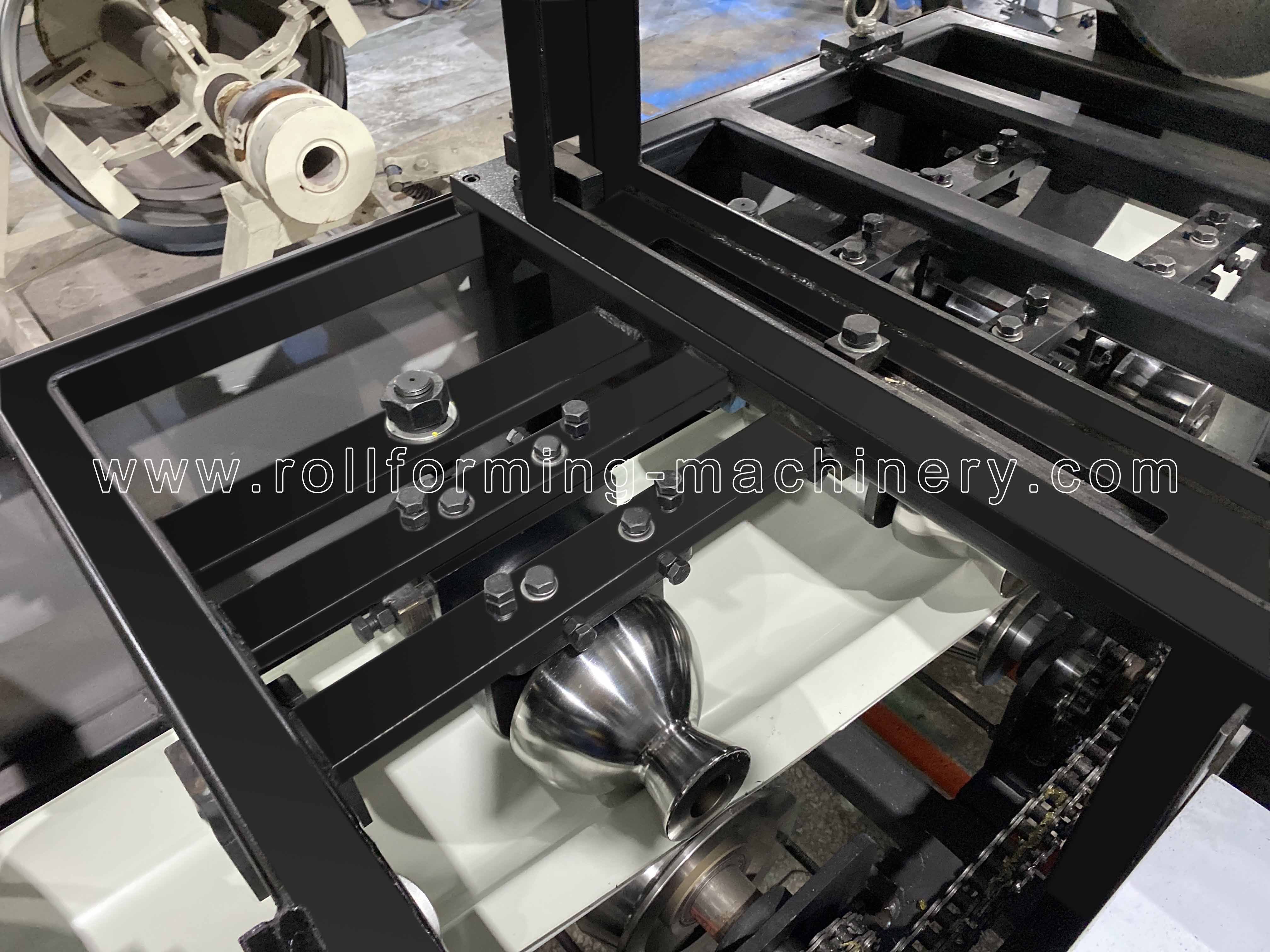

2. The machine 's Rollers hardened and hard chrome plated to eliminate the excessive pressure common with conventional driven forming rollers.

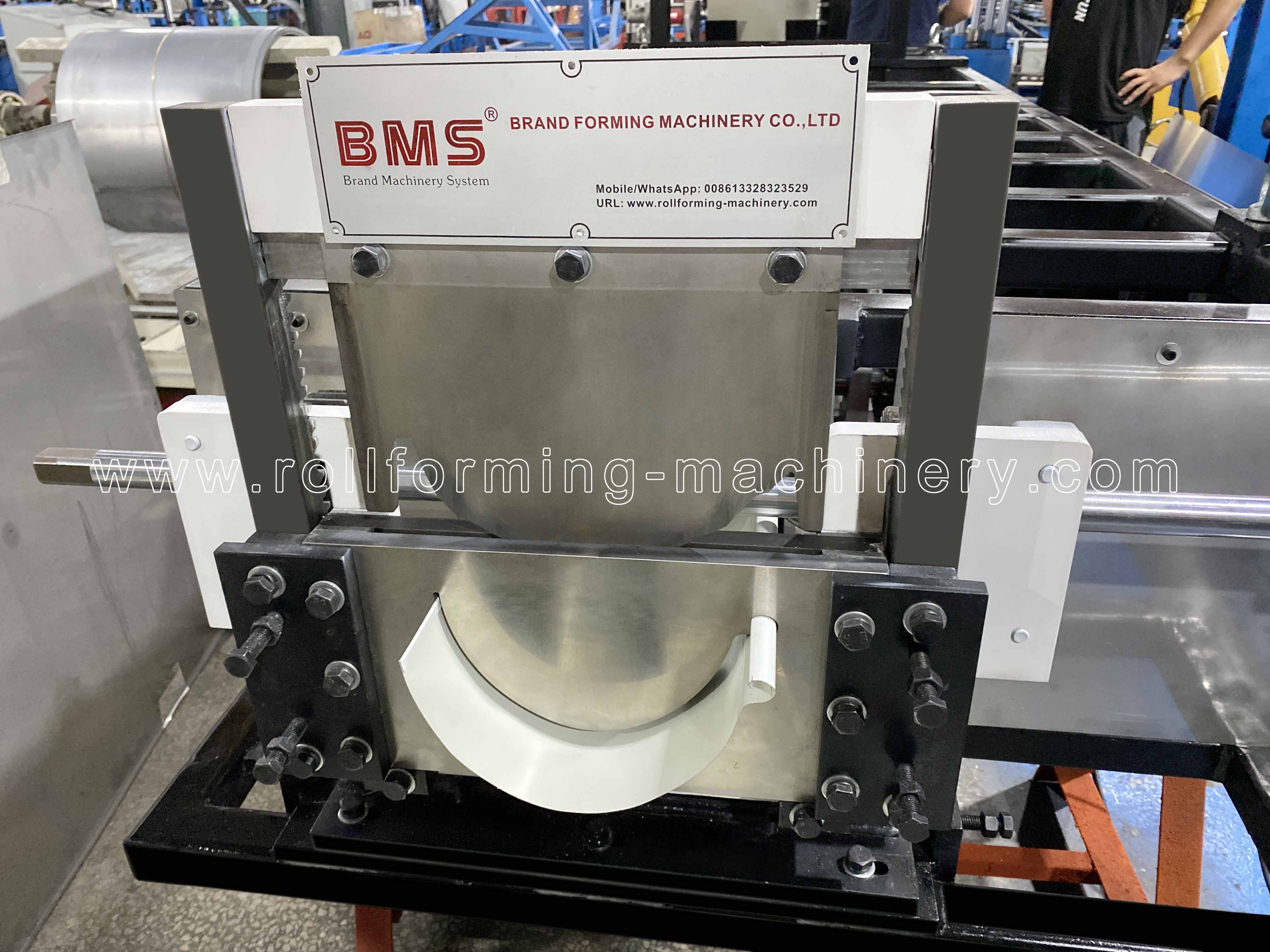

3. Equipped with Easy cut shear

II. Machine Description

Material	Applicable material	GI(Galvanized Steel Sheet)/PPGL/ Aluminum
	Material thickness	0.3-0.6mm
	With yield strength	235-345MPa
Machine	Base Frame	H450 type steel
	Roller Material	Portable
	Roller station	7-steps
	Shaft diameter	ф40mm
	Working speed	About 10-15m/min
Cutter	Cutting tolerance	≤±1mm
Cutter	Material	Cr12MoV(= SKD11 Steel)
Power	Main motor	3KW
	Pump motor for cutter	/
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System	Inverter:	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch Screen:	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
