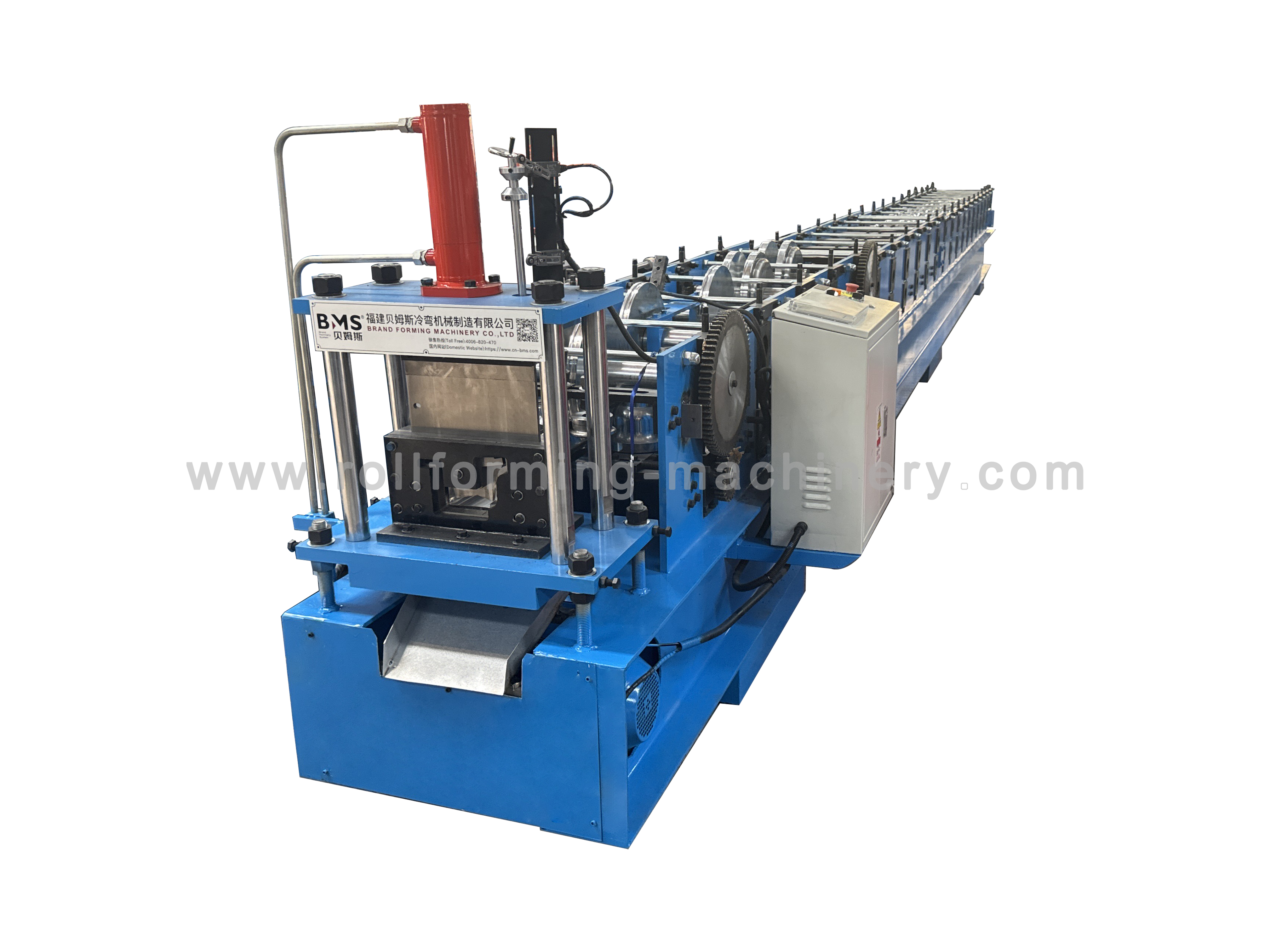

Spanish Gutter Roll Forming Machine for YX132-172 Profile

YX132-172

Availability:

Quantity:



Inquire Add to Basket

Model:
YX132-172
Brand:
BMS

Product Description

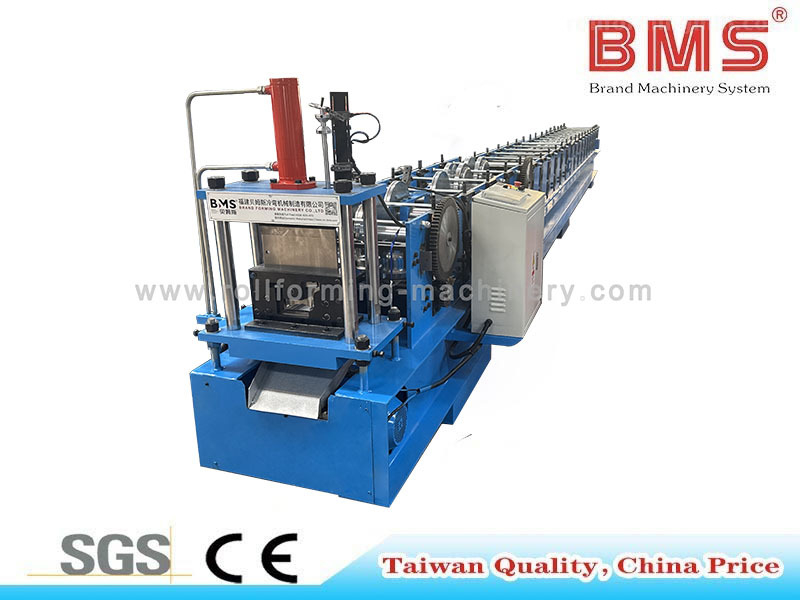

Spanish Gutter Roll Forming Machine

I. Machine Features

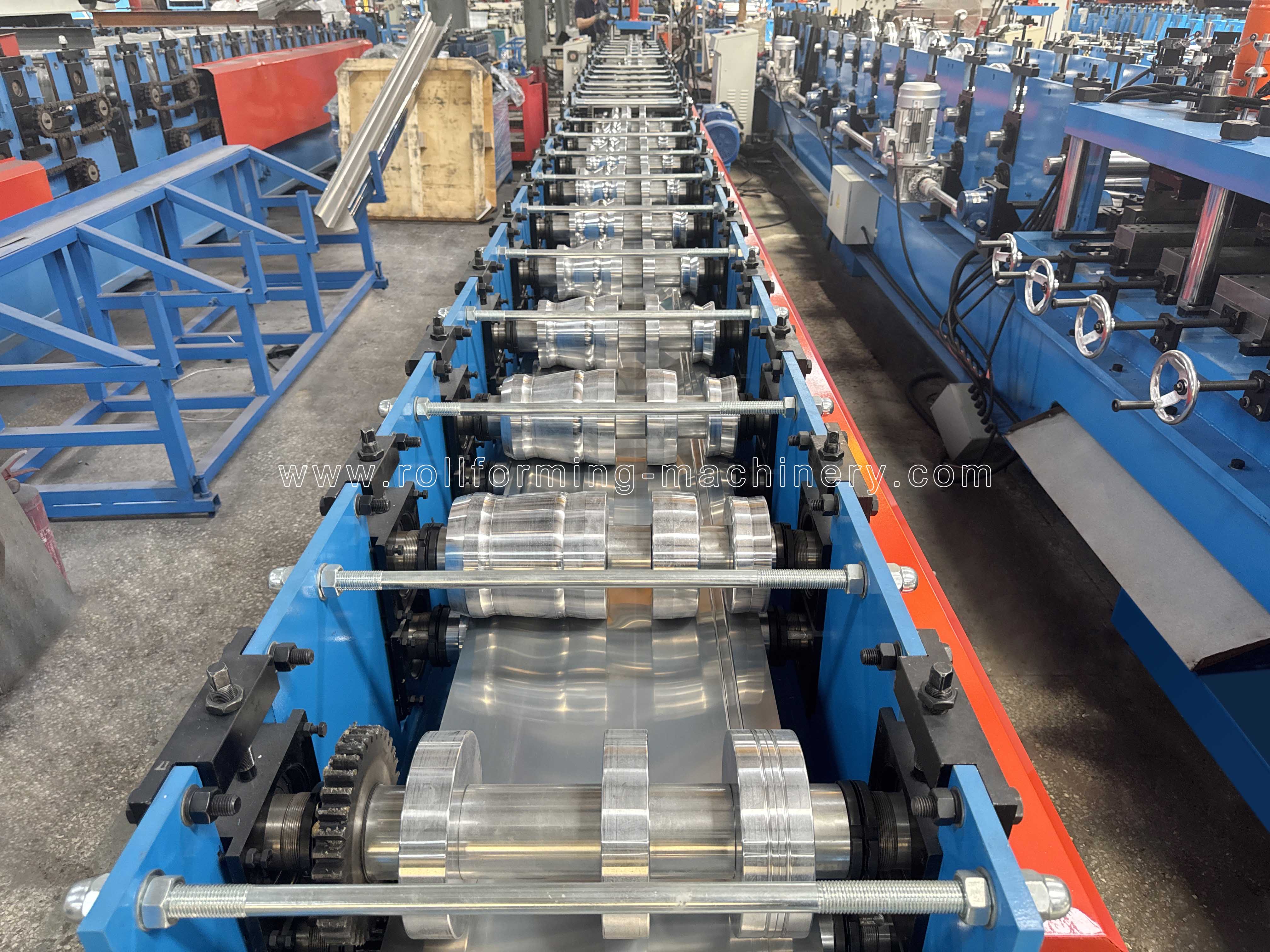

1. The machine's rollers hardened and hard chrome plated to eliminate the excessive pressure common with conventional driven forming rollers

2. Body frame made from 450# H type steel by welding, and rust removal, grinding, leveling, and stress relief are carried out to ensure stable and stress relief treatment to ensure stable and reliable sheet output during operation, preventing any potential accuracy degradation caused by internal stresses.

II. Machine Description

Material	Applicable material	201 stainless steel
	Material thickness	0.5-0.8mm
	With yield strength	260-310MPa
Machine	Base Frame	H450 type steel
	Roller Material	GCr15 Steel(=EN31 Steel)
	Roller station	21-steps
	Shaft diameter	ф65mm
	Working speed	About 10-15m/min
Cutter	Cutting tolerance	≤±1mm
Cutter	Material	Cr12MoV(= SKD11 Steel)
Power	Main motor	7.5KW
	Pump motor for cutter	4KW
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed

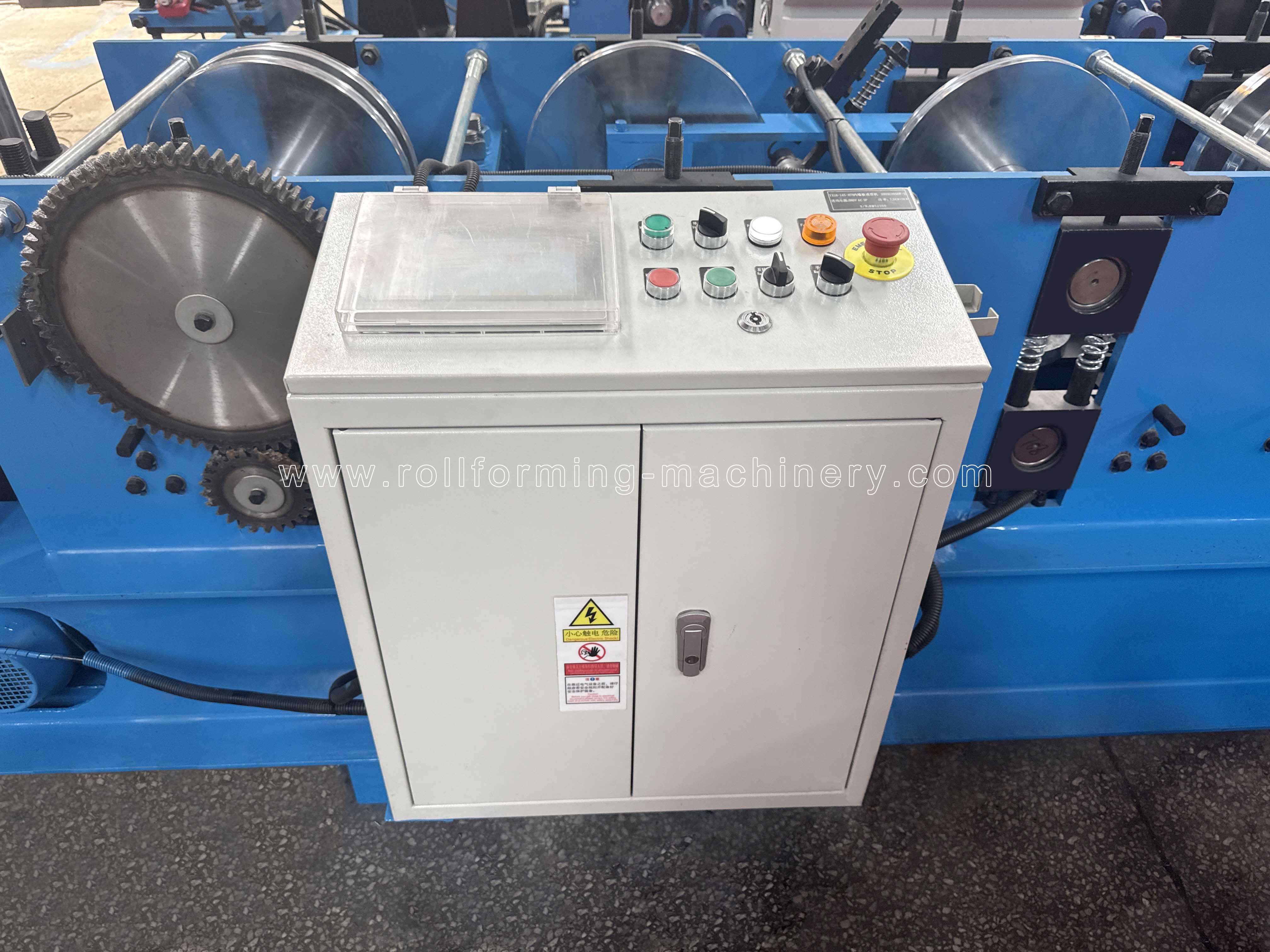

PLC Control System	Inverter:	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch Screen:	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
