Automatic Metal Siding Linear Panel Machine for Building Material

Product Overview & Quick Details

Investing in the Automatic Metal Siding Linear Panel Machine transforms your production capabilities by bringing manufacturing in-house. This strategic move eliminates costly intermediary markups and significantly reduces the exorbitant fees associated with transporting finished, bulky siding materials. By lowering the overall cost per square meter of your building materials, this equipment ensures a rapid return on investment. Designed for construction professionals and independent fabricators, the system provides an unparalleled level of operational independence. You will immediately notice the solid, industrial-grade construction of the machinery, engineered to withstand continuous daily operation while maintaining exact tolerances. Whether you are scaling up your architectural cladding offerings or streamlining site-specific panel generation, this machine delivers consistent, reliable performance that directly enhances your project margins and competitive edge in the construction market.

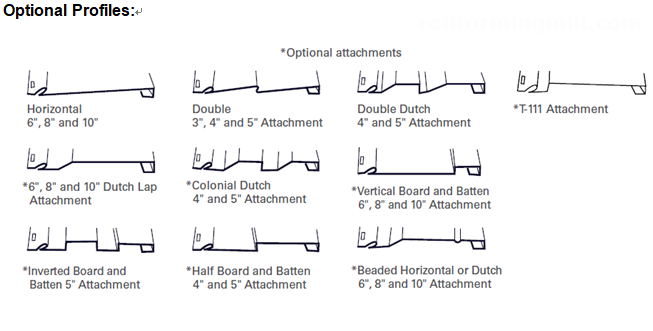

Profile & Engineering Standards

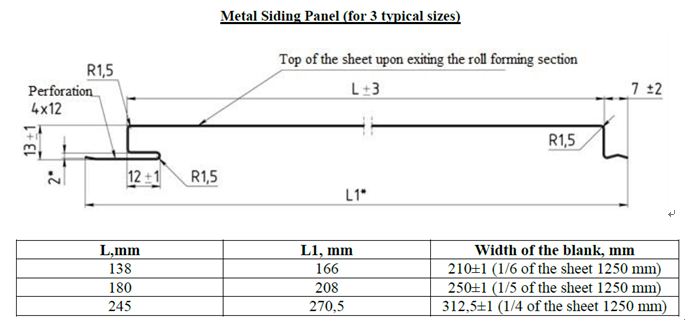

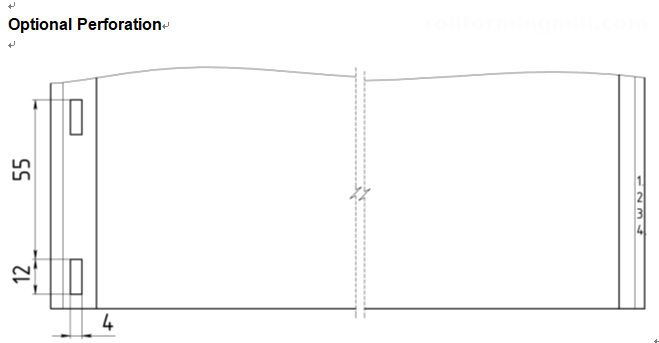

Understanding the precise geometry of your metal siding is crucial for seamless architectural integration. The profile drawings below illustrate the exacting standards this linear panel machine achieves. Every curve, interlock, and flat surface is formed with meticulous attention to detail, ensuring that the final cladding fits together perfectly on the job site. We provide comprehensive engineering standards and rigorous raw material testing guidelines to guarantee that your output meets or exceeds stringent building codes. When you run your fingers along the edge of a finished panel, you will feel the smooth, consistent finish devoid of distortions. This level of quality control not only elevates the aesthetic appeal of the building exterior but also fortifies the structural integrity against harsh weather conditions, offering peace of mind for high-end residential and commercial applications.

Automated Work Flow

Efficiency and waste reduction are at the heart of this machine's automated workflow. The process begins smoothly at the Decoiler, transitioning seamlessly through the Feeding Guide Device into the Main Roll Forming Mill. Here, the metal is gradually shaped across multiple steps before reaching the Hydraulic Cutter, powered by a robust Hydraulic System and governed by an intelligent PLC System, finally resting on the double Exit Racks. This highly synchronized sequence, driven by precision engineering, ensures that every panel is cut to the exact required length. By producing materials on demand, you effectively eliminate the common installation errors and costly material waste typically encountered with pre-cut panels. The rhythmic, steady hum of the forming rollers and the crisp, clean snap of the hydraulic shear reflect a manufacturing process optimized for maximum yield and minimal downtime.

Decoiler→ Feeding Guide Device → Main Roll Forming Mill → Hydraulic Cutter→ Hydraulic System → PLC System → Exit Rack*2

Machine Components Display

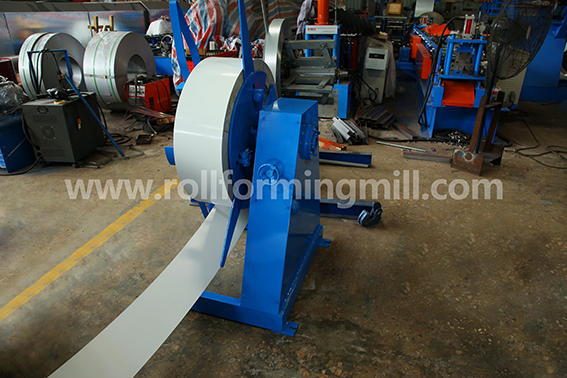

1) Decoiler:

• Manual Decoiler: one set
• Un-powered, manually control steel coil inner bore shrinkage and stop
• Max. feeding width: 500mm, coil ID range 470mm±30mm
• Capacity: Max. 3Ton

The manual decoiler serves as the reliable starting point for your continuous production line. Designed as an un-powered unit, it allows operators to manually control the steel coil inner bore shrinkage and securely stop the feed when necessary. To ensure your team maximizes this component's potential, we provide comprehensive operation training and daily maintenance guides. This proactive support dramatically reduces manual handling times and eliminates unexpected downtime risks, keeping your production schedule on track. Operators will appreciate the straightforward mechanical feedback when locking the coil into place, ensuring a stable, centered feed that prevents material wandering during the crucial initial stages of roll forming.

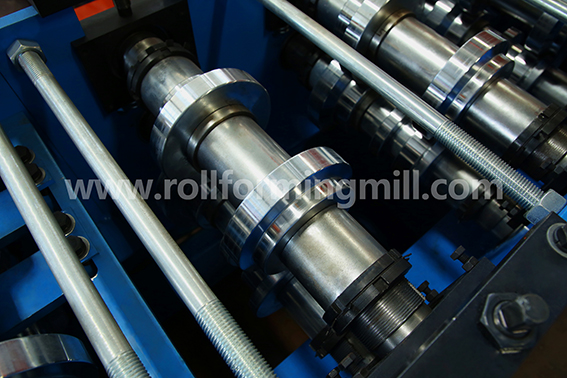

2) Roll Forming Mill

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm;
Shafts manufactured from 45# steel, Shaft Diameter: φ70mm
Gear & Chain drive about 16-step to form.
Forming Speed: 12-15m/min;
Main Motor: 5.5KW; Chain: ZIQIANG
All the screw bolts with grade 8.8 (Cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.

The core of this equipment's extreme durability lies in the main roll forming mill. Constructed with a heavy-duty H450 type steel welded body frame and Q235 t18mm side walls, it offers an unyielding foundation. The forming process is driven by robust 45# steel shafts with a substantial φ70mm diameter, progressing through a 16-step gear and chain drive system. Operating at a swift 12-15m/min, powered by a 5.5KW main motor and reliable ZIQIANG chains, it handles high-volume demands effortlessly. We exclusively utilize grade 8.8 high-strength screw bolts to firmly secure the entire structure. This uncompromising approach to material selection guarantees exceptional stability and an extended lifecycle, even under continuous, high-load manufacturing conditions.

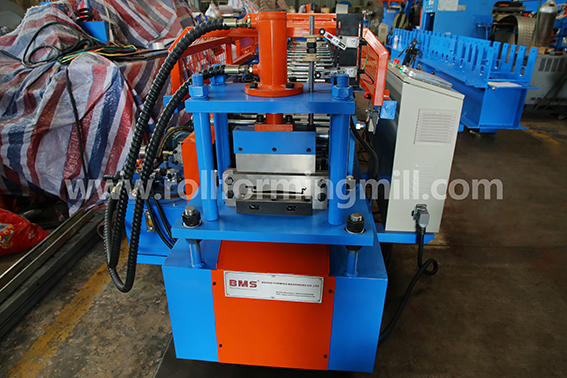

3) Hydraulic Cutter

Post To Cut, Stop To Cutting, Two Pieces Type Of Cutting Blade Design
Hydraulic Motor: 4KW, Cutting Pressure: 0-16Mpa
Cutting Tool Material: Cr12MoV (= SKD11 Steel)
With At Least One Million Times Of Cutting Life, Heat Treatment HRC58-62

Precision finishing is achieved through the advanced hydraulic post-cutter, featuring a sophisticated two-piece cutting blade design that stops the line momentarily for a flawless shear. Driven by a dedicated 4KW hydraulic motor delivering 0-16Mpa of cutting pressure, it slices through metal with effortless authority. The cutting tool itself is forged from premium Cr12MoV, heat-treated to a hardness of HRC58-62. This exceptional metallurgy guarantees at least one million cutting cycles, maintaining a razor-sharp edge that leaves the panel ends completely burr-free. The distinct, powerful sound of the hydraulic shear engaging is a testament to its industrial-grade force, ensuring every panel is installation-ready straight off the exit rack.

Product Application Case

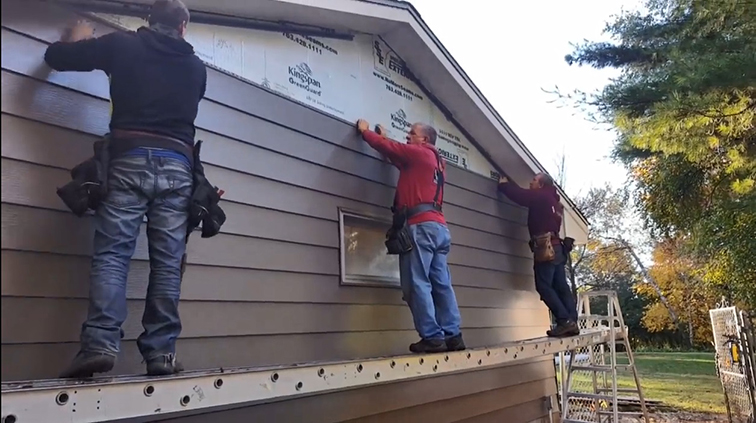

The versatility of the panels produced by this linear panel machine opens up a vast array of business expansion opportunities. These precise metal siding profiles are perfectly suited for cladding modern residential homes, expansive commercial complexes, and rugged industrial facilities. By having the capability to produce custom-length panels on demand, construction contractors can flexibly take on projects of varying scales without worrying about supply chain delays. The sleek, weather-resistant finish of the siding provides architects and builders with a premium exterior solution that enhances both energy efficiency and visual appeal. Whether upgrading a local retail storefront or sealing a massive warehouse, this machine empowers your operation to deliver top-tier building materials directly to the site.

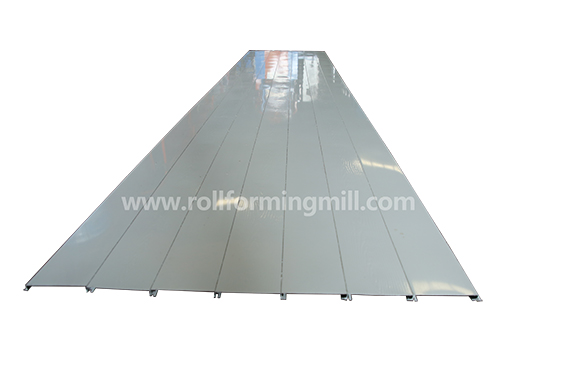

Machine Produced Products & Detail Showcase

The final output is a testament to the machine's superior engineering—crisp, clean, and structurally sound metal siding panels. Every piece reflects the high standards required in today's competitive construction materials market. With consistent surface integrity and precise interlocking edges, these panels ensure a watertight, visually stunning facade for any building. As you review the detailed product showcases and machinery close-ups below, notice the robust build quality and refined finishing touches that make this equipment a lasting asset for your production facility. Our commitment to your success extends beyond the machine itself, providing the operational confidence needed to dominate your local cladding market.
