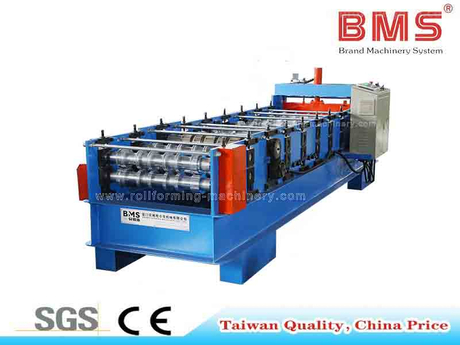

A drywall profile machine shapes and cuts metal coils. It uses strong rollers to make exact profiles. You put the coil into the machine. Each station bends the metal step by step. The rollers are made from tough steel or chromium. This makes them last a long time. Advanced cutters, like flying saws or hydraulic shears, cut the profiles to the right length. The machine keeps moving while it cuts. These machines help you make drywall framing parts quickly and accurately. If you know how the machine works, you can do better drywall jobs.

Here’s a quick look at how the main parts work together:

Key Takeaways

• Drywall profile machines bend and cut metal coils into exact shapes. This makes drywall work faster and more accurate.

• Knowing the machine parts, like rollers and cutting tools, helps you get better results. It also helps you waste less material.

• Keeping the machine clean and oiled helps it last longer. It also makes sure the machine works well.

• Using a drywall profile machine saves time and money. You can finish more jobs quickly.

• The machine can make custom shapes easily. This makes it useful for many drywall jobs.

Drywall Profile Machine Components

A drywall profile roll forming machine is more than just a big tool. Each part works together to shape and cut metal for drywall jobs. Let’s look at the main features of these machines so you can see how they work.

Frame and Structure

The frame holds the drywall profile roll forming machine steady. You need a strong frame so the machine does not shake. Most frames are made from cast iron or H beam welding steel. This helps the machine carry the heavy rollers and shafts. Here is a table that shows why the frame matters:

Rollers and Feeding System

You start by putting a metal coil into the drywall profile roll forming machine. The decoiler, which can be manual or hydraulic, unwinds the coil. A leveling device makes the metal flat before it moves ahead. The servo feeding system pushes the metal into the rollers. The rollers bend the metal into the shape you want. Each station bends the metal a little more until you get the final profile. The machine can make many shapes, and you can add new rollers for special jobs.

• Manual or hydraulic decoiler unwinds the coil.

• Leveling device makes the metal flat.

• Servo feeding system controls the speed of the metal.

• Rollers bend the metal into the right shape.

Cutting Technology

Once the metal is shaped, it needs to be cut to the right size. The drywall profile roll forming machine uses a flying cutting system. This means the machine keeps moving while it cuts, so you save time. Some machines use hydraulic shears, while others use CNC or laser cutting. These cutters make sure every cut is clean and exact. If you need holes or notches, a hydraulic punching unit can do that too.

Control Panel

You run the drywall profile roll forming machine from the control panel. The panel lets you pick the profile size, cutting length, and where to punch holes. You type in what you need, and the machine does the rest. The machine can switch between different profiles easily. Automation helps you avoid mistakes and keeps things running well. You get more profiles with less work and lower costs.

Tip: Some drywall profile roll forming machines can make up to 120 meters of profile each minute. That means you can make a lot of framing fast!

If you want to make more profiles and save money, you need to know these parts. Roll forming machines are fast, accurate, and only need one person to run them. You get more profiles, better quality, and less waste. That is why many builders use drywall profile machines for every drywall job.

Operation Process

Have you ever wondered how a drywall profile roll forming machine changes metal coils into finished profiles? Let’s look at each step so you can see how the machine makes work faster and easier.

Loading Metal Coils

First, you put a metal coil onto the passive decoiler. The decoiler unwinds the coil and sends it into the machine. Safety is important here. You should wear gloves, safety glasses, boots, and protective clothes. Training helps you handle coils safely. Machines like forklifts or cranes help move coils. These tools make loading safer and easier. You must follow clear steps for loading and unloading. Check lifting equipment often to keep everyone safe.

Tip: Always check how to handle coils before you start. This keeps your team safe and your machine working well.

Shaping with Rollers

After loading, the straightener flattens the metal strip. The servo feeder moves the metal forward at a steady speed. The machine uses roller stations to shape the metal. Each station bends the metal a bit more. Forming dies at each station help you get the right shape. You can make studs, tracks, channels, or custom shapes. The rollers work quickly and keep the shape the same. This is a big advantage of modern drywall profile roll forming machines.

• The machine bends the metal step by step.

• You can change the rollers for different shapes.

• The process keeps production fast and reduces waste.

Precision Cutting

When the metal is shaped, it needs to be cut to the right size. The machine uses advanced cutting tools. Laser and CNC cutters make clean and accurate cuts. These methods help every profile stay the same size. You can add punching, slotting, or notching for extra features. The flying cutting system lets the machine cut without stopping. This saves time and helps you work faster.

Note: Precision cutting means less waste and lower cost. You get profiles that fit perfectly every time.

Output of Finished Profiles

After cutting, you get a stack of profiles ready for drywall work. Quality checks make sure every profile meets standards. You check the size, surface, and strength. Watching the process helps you find problems early. This keeps your profiles strong and reliable.

You may face problems like spring-back, machine wear, and downtime. You fix these with smart design, regular care, and planned maintenance. The machine helps you make profiles faster, better, and cheaper. You get profiles that work well for drywall and interior jobs. If you want to work faster and save money, knowing this process is important.

If you use a drywall robot for installation, you’ll see how consistent profiles make the job easier.

Profiles Produced and Their Uses

When you use a drywall profile roll forming machine, you can make many types of profiles for drywall jobs. Each profile has its own purpose. Let’s see which profiles are most common and how they help you build strong walls and ceilings.

Studs and Tracks

Studs and tracks are used in almost every drywall project. The drywall profile roll forming machine shapes these from steel coils. Rollers turn the metal into C-studs and U-tracks. These profiles give your wall framing strength and shape. Studs are for vertical support. Tracks are for the top and bottom plates.

Here’s a quick look at their features:

• Lightweight and easy to carry

• Strong and does not burn

• The drywall profile roll forming machine makes them fast

You get the same quality every time and finish jobs quicker.

Channels and Angles

The drywall profile roll forming machine also makes channels and angles. These profiles help with ceilings, corners, and special framing. Furring channels hold up ceiling boards. Wall angles protect corners and edges. Resilient channels help block sound.

You can trust the machine to make these profiles quickly and accurately. The drywall profile roll forming machine keeps your work fast and neat.

Custom Profiles

Sometimes, you need a special profile for a unique job. The drywall profile roll forming machine can make custom shapes. You can change the machine for different shapes, materials, and thicknesses. Modular stations let you add punching, notching, or embossing. You can use galvanized steel, stainless steel, or aluminum. The machine works with thicknesses from 0.5mm up to 6.0mm.

Tip: Custom profiles help you follow special building rules or design needs without spending too much. This is a big advantage of modern drywall profile roll forming machines.

With the right machine, you can do any drywall job, from simple walls to tricky ceilings. You get the profiles you need, when you need them, and keep your work moving.

Benefits for Drywall Construction

When you use a drywall profile machine, you get many benefits for drywall and inside building jobs. Let’s see how these machines help you work faster, smarter, and save money.

Efficiency and Speed

You want to finish jobs fast and keep your team busy. A drywall profile machine helps you do this. The machine works quickly and does not stop for long. It keeps making profiles without many breaks. The machine sets itself up for each profile. You do not need to change settings by hand. This saves time and makes work easier.

Here’s how the machine helps you work better:

You get more profiles in less time. Your team can start new jobs quickly. The machine helps you keep up when work gets busy.

Quality and Precision

You want every profile to fit right the first time. The drywall profile machine helps you do that. The rollers and blades are made from strong steel. This makes each profile straight and strong. The machine cuts very carefully. You do not have to fix mistakes. All the profiles look the same, so you do not have problems during installation.

See what makes the machine so good:

You do not waste time fixing errors. Your projects stay on track.

Cost Savings

Saving money is important for every job. Using roll forming machines helps you save in many ways. One person can run the machine, so you need less workers. The machine uses almost all the material, so you waste less. Fewer mistakes mean you do not spend money fixing errors.

Here is how the machine helps you save money:

• You finish jobs faster, so you can do more work.

• You pay less for labor because the machine does most tasks.

• You use less material, so your costs go down.

• You get better quality, so you do not pay for rework.

The drywall profile machine helps you finish on time, keep quality high, and save money. You can trust it to make drywall and inside building jobs easier and cheaper.

Tip: Companies using automated roll forming can lower costs by 20% and cut scrap by up to 25%. This helps your budget and is better for the environment.

You now know how a drywall profile machine turns steel coils into strong profiles for drywall. The machine uses smart steps and advanced tools to shape, punch, and cut metal. Here’s a quick look at the main steps:

When you understand how the machine works, you can work faster and get better results. Many builders switched to these machines and saw projects finish sooner with less cost. You can trust the drywall profile machine to help you build strong and reliable walls every time.

• You finish jobs faster.

• You save money on labor.

• You get top quality with every profile.

Knowing your machine means you get the most out of every drywall project.

FAQ

How do you maintain a drywall profile machine?

You should clean the rollers and check for loose bolts often. Lubricate moving parts to keep everything running smoothly. Regular care helps your machine last longer and work better.

Can you use a drywall robot with these profiles?

Yes, you can use a drywall robot to install profiles made by the machine. The robot works best with straight, consistent profiles. This makes your installation faster and easier.

What profiles do you need for drywall finishing?

You need studs, tracks, and sometimes channels for drywall finishing. These profiles help you build strong frames and smooth surfaces. The machine makes all these shapes quickly.

Is it hard to change the profile shape?

No, you can switch shapes by changing the roller sets. The control panel lets you pick the new size. You do not need special skills to do this.

How fast can the machine make profiles?

Some machines can make up to 120 meters of profile each minute. You can finish big drywall jobs much faster with this speed.
