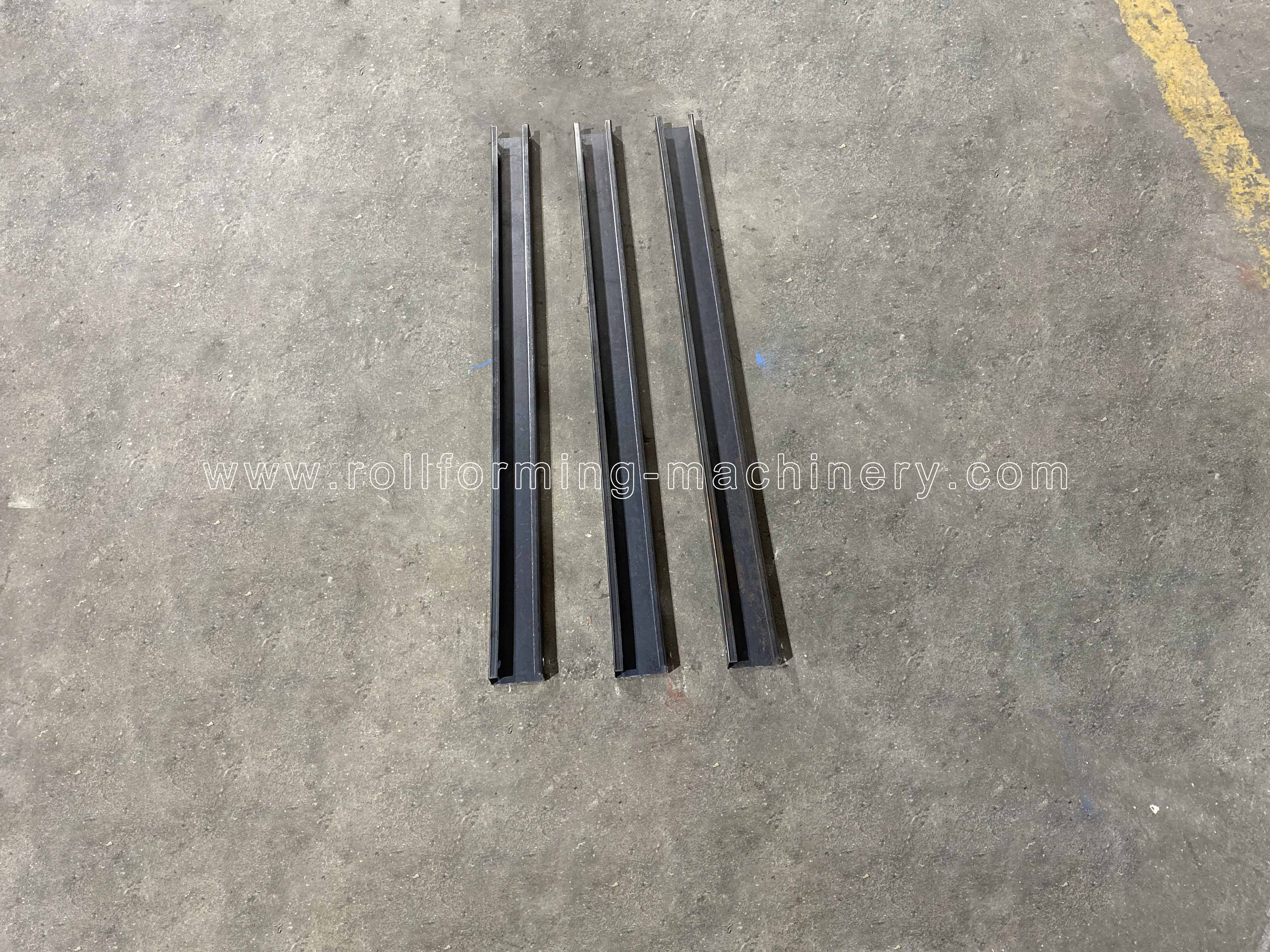

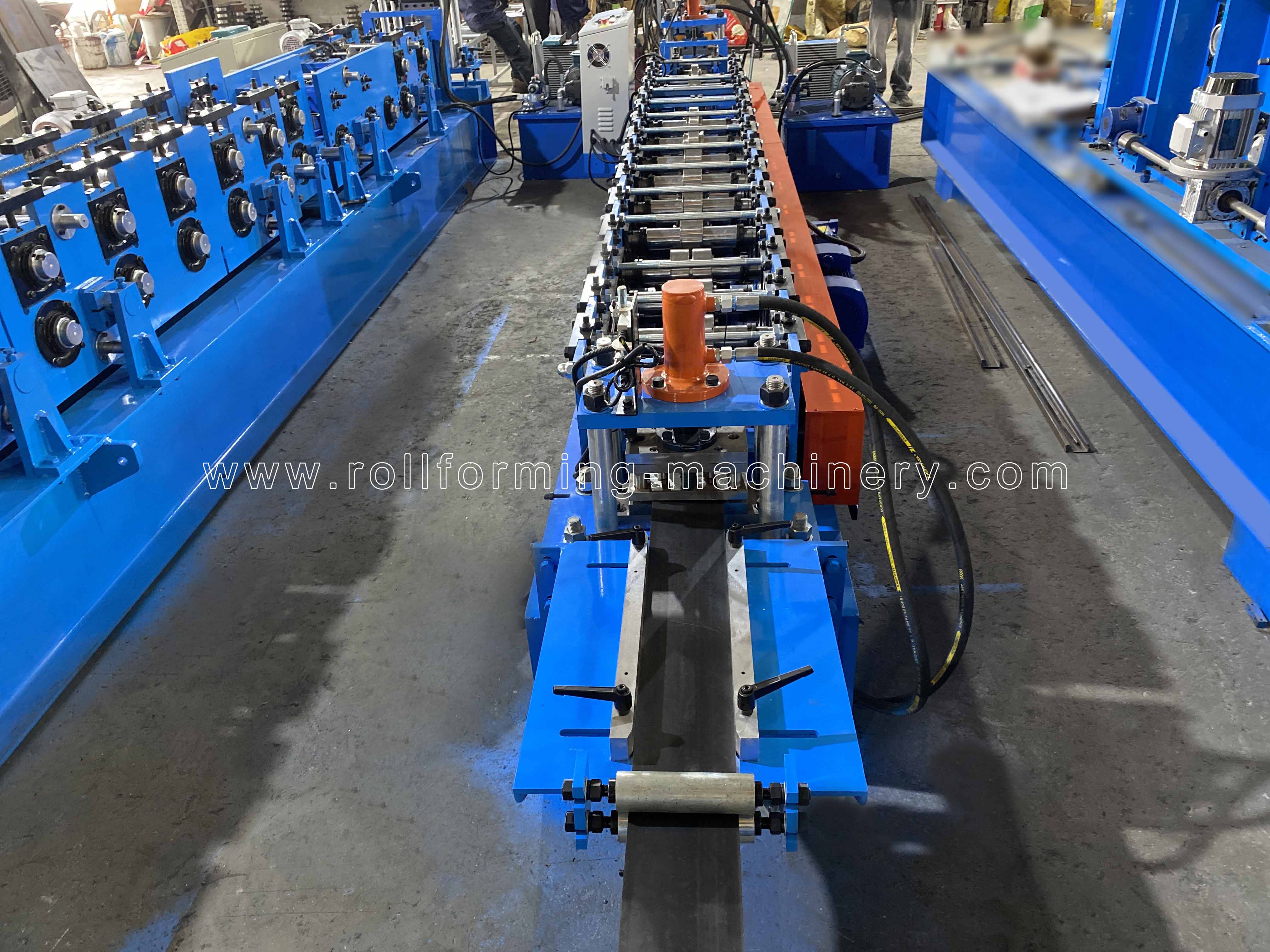

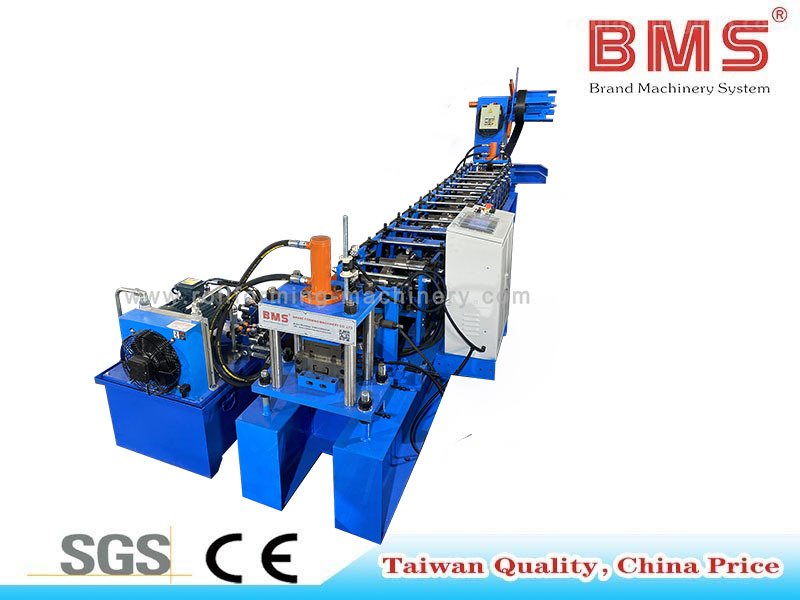

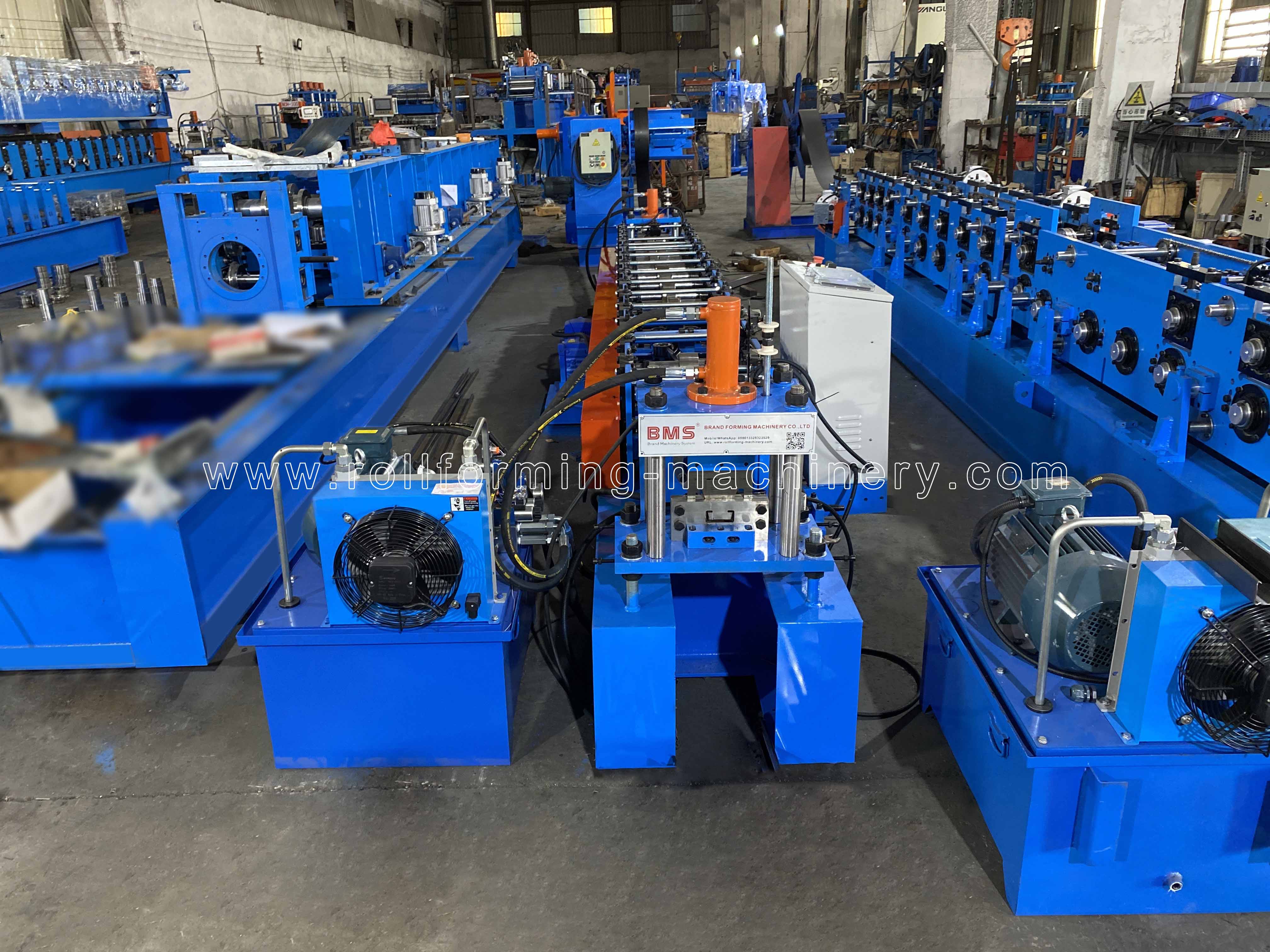

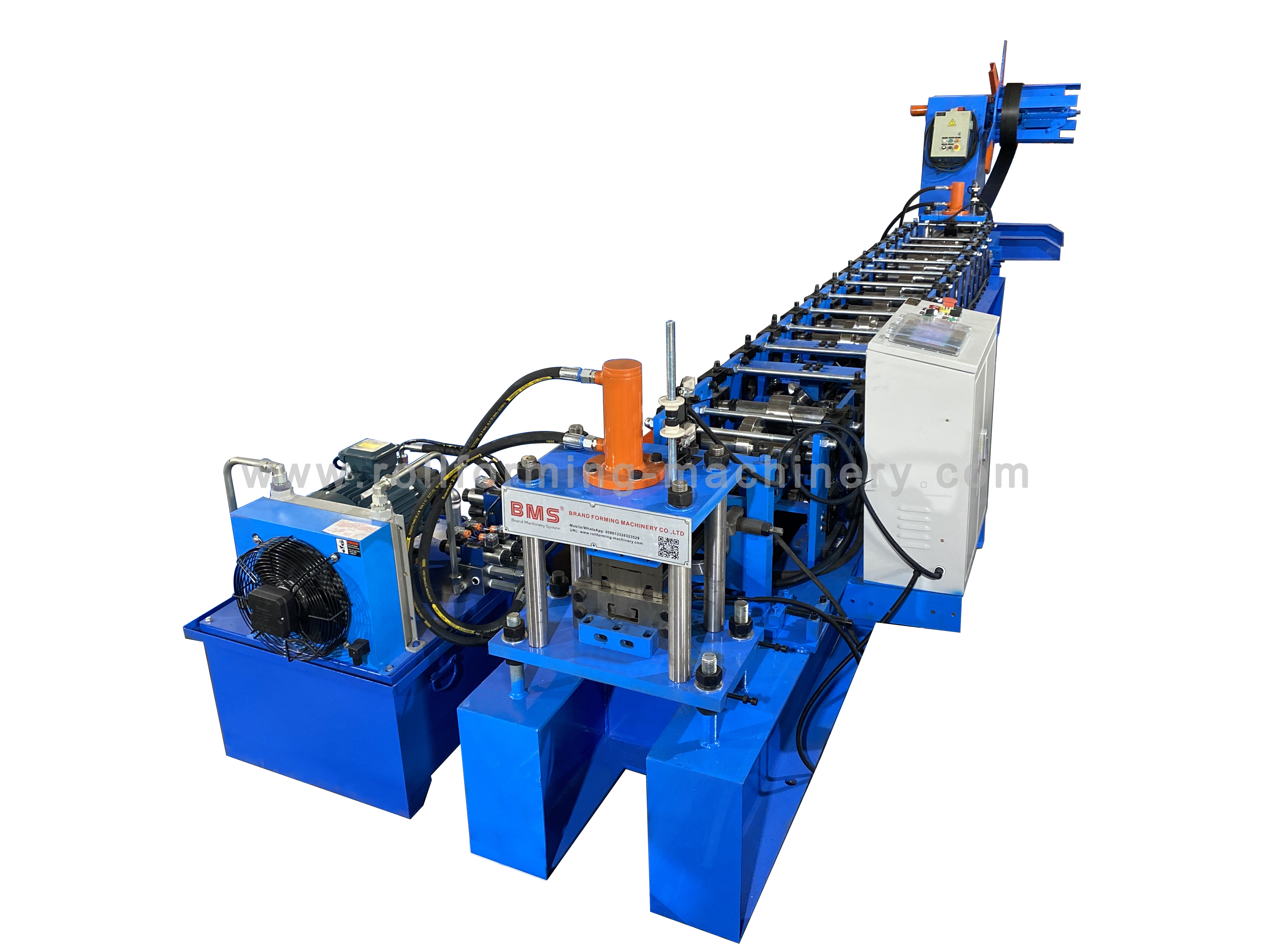

C Bracing Roll Forming Machine

（For Ecuador）

C Bracing Roll Forming Machine

I. Machine Features

1.The rollers are quenched after fine machining with Cr12 steel and heat treatment HRC58_ 62, for long working life more than 10years.

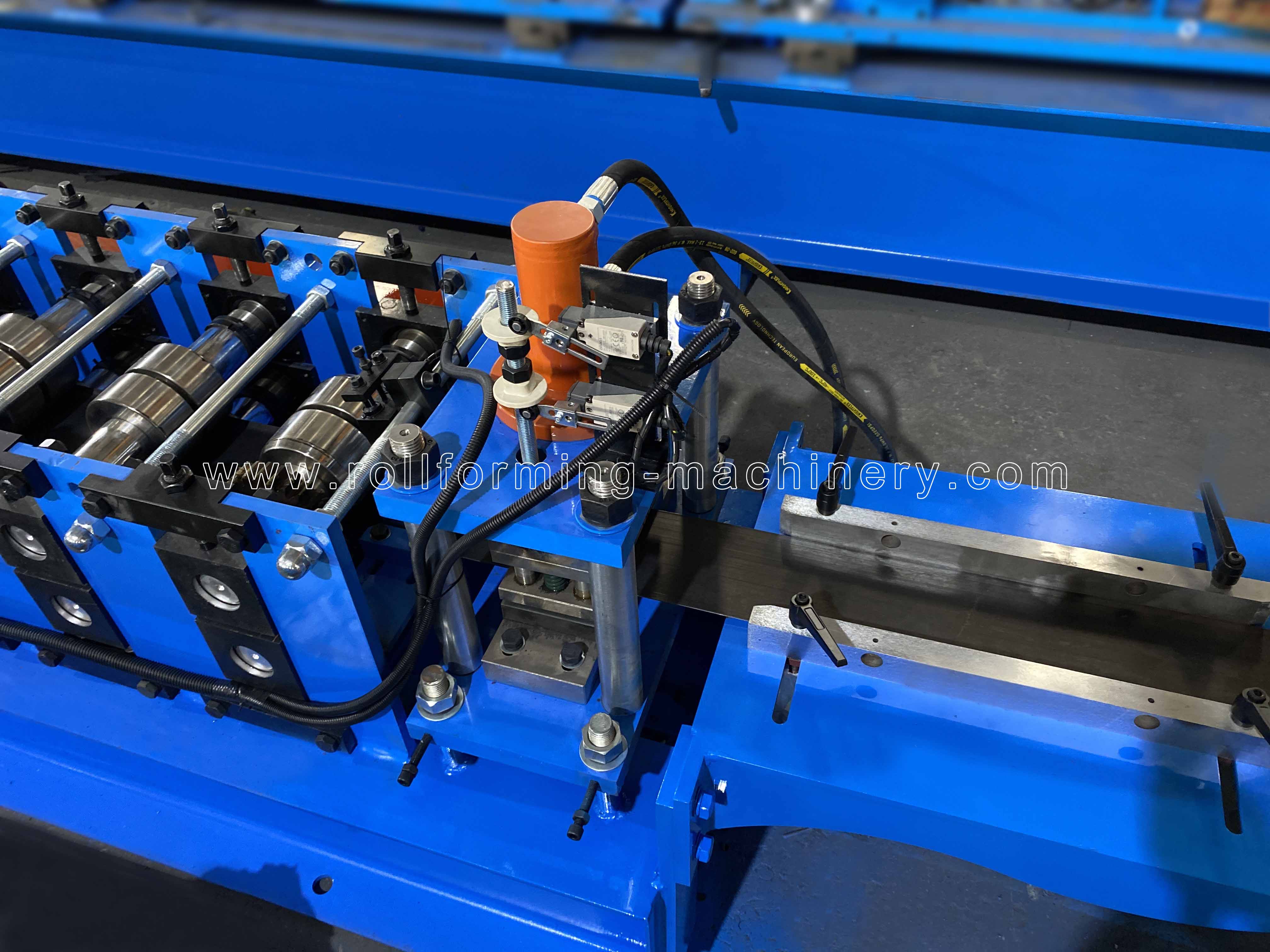

2. Integrated online punching function for convenient installation.

3. Hot Sales in Central America

II. Machine Description

Material	Applicable material	GI(Galvanized Steel Sheet)
	Material thickness	1.0-1.5mm
	With yield strength	235-345MPa
Machine	Base Frame	H400 type steel
	Roller Material	mold steel Cr12(=D3 steel
	Roller station	14-steps
	Shaft diameter	ф60mm
	Working speed	About 18-20m/min
Cutter	Cutting tolerance	≤±1mm
Cutter	Material	Cr12MoV(= SKD11 Steel)
Power	Main motor	7.5KW
	Pump motor for cutter	5.5KW
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System	Inverter:	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch Screen:	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
