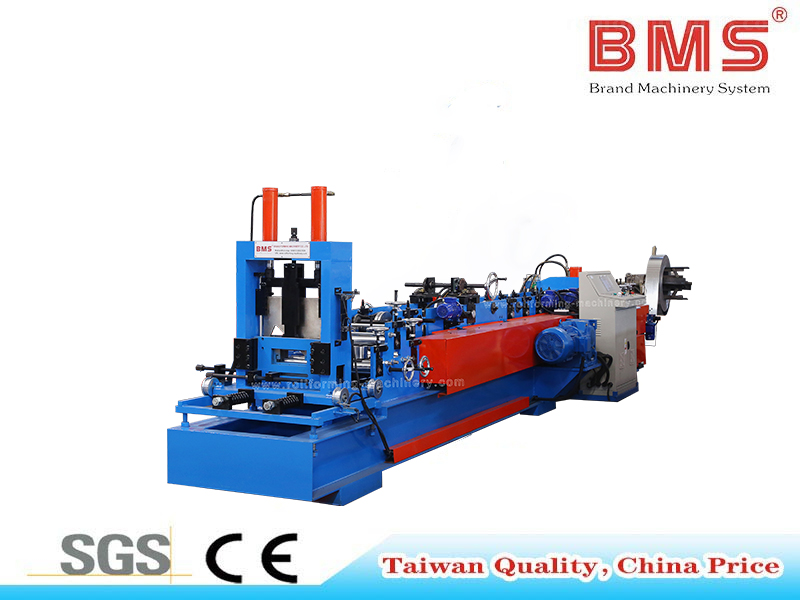

Automatic Changeover C Purlin Making Machine for Multi Profile

Automatic C75-300 purlin machine can produce different purlin size without changing rollers or spacers.

Availability:

Quantity:



Inquire Add to Basket

Brand:
BMS

Quick Details

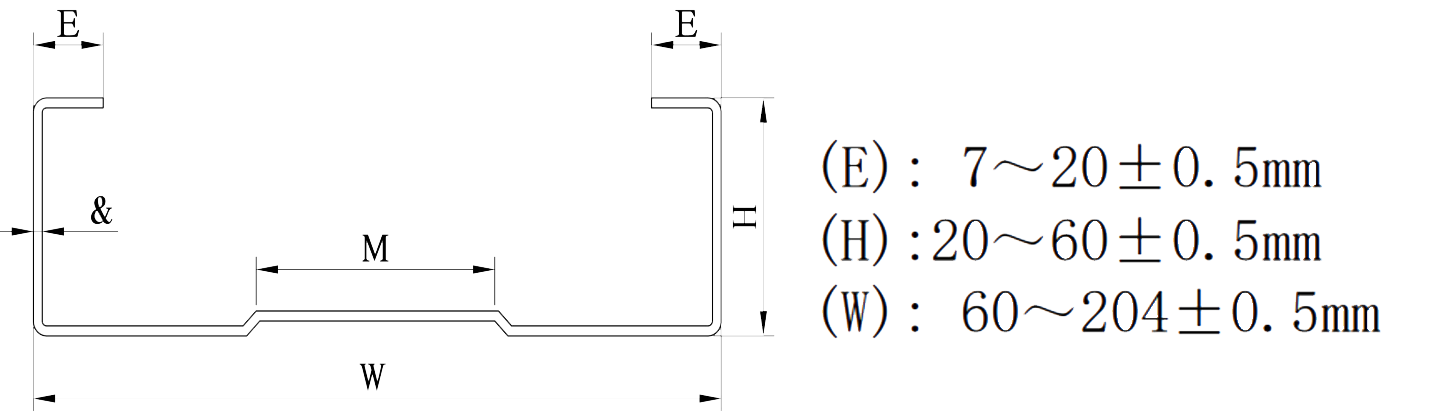

Profile

$YM}2LTNF$3L9_E][{HPNFVB$

No.	Main Parameters		Roll Forming Mill Parameters
1.	Material Thickness	0.8-2.0mm	Forming Stations	14-steps
2.	Feeding Width	According to the drawing	Body Frame	H400
3.	Application Material	Galvanized sheet/Cold rolled sheet	Side Wall Thickness	22mm
4.	Electrical Standard	220V60Hz/3Ph	Shaft Diameter	45# Steel, φ55/70mm
5.	Manual Decoiler Diameter	5T-600MM	Main Motor Power	11KW
6.	Yield Strength	235-345Mpa	Screw Bolts	Grade 8.8
7.	Forming Speed	20-25m/min	Effective Width	According to the drawing

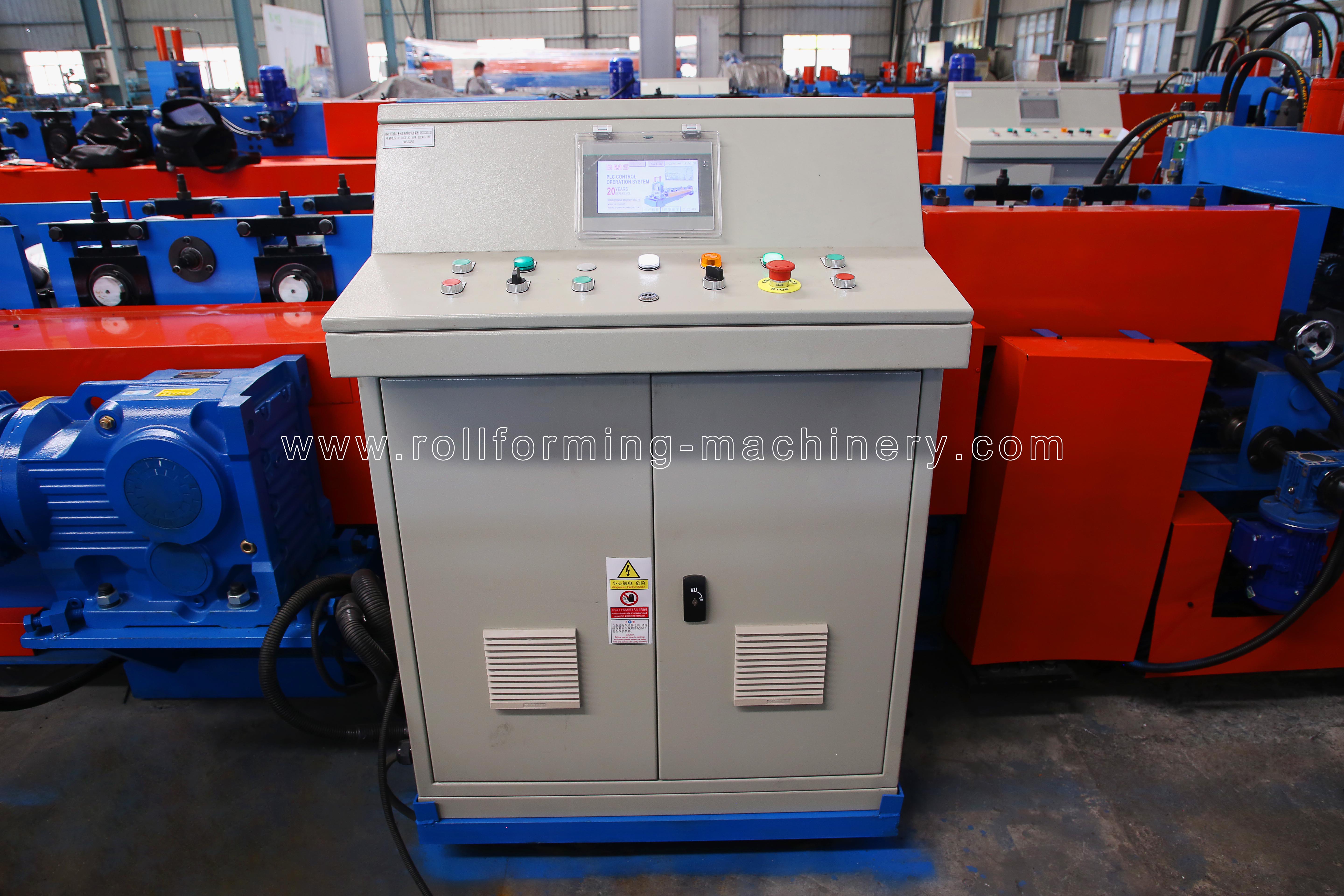

8.	Control System	PLC Control System	Roller	Gcr15,precision machined
9.	Hydraulic Motor	3.75KW	Machine Color	Blue+Black+Orange
10.	Testing Material	BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing

Work Flow

Hydraulic Uncoiler (Double head 3Tons x 2)→ Leveling Device→ Main Roll Forming Mill → Hydraulic Post Cutting Device → PLC Control System → Hydraulic Station→Exit Rack*2

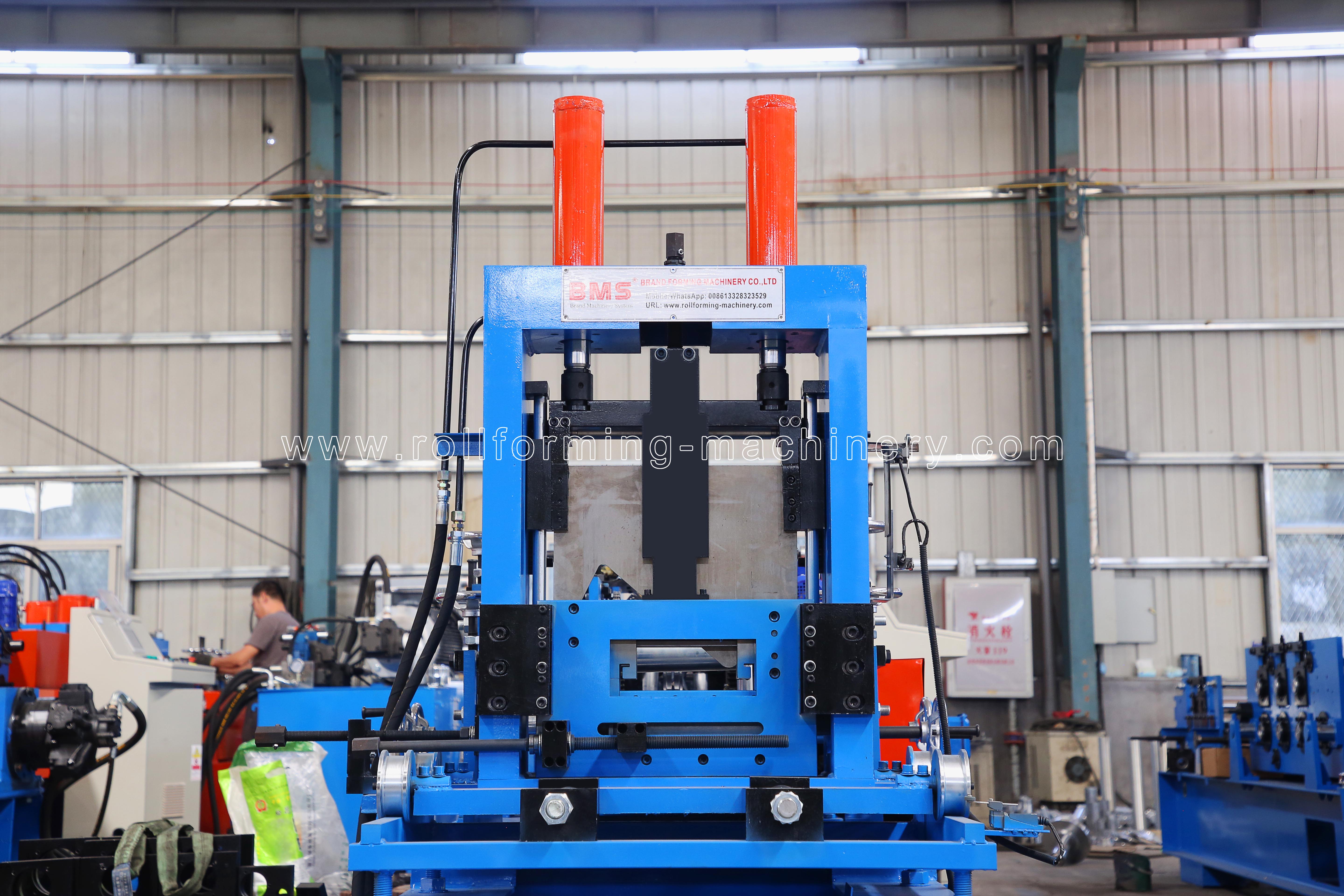

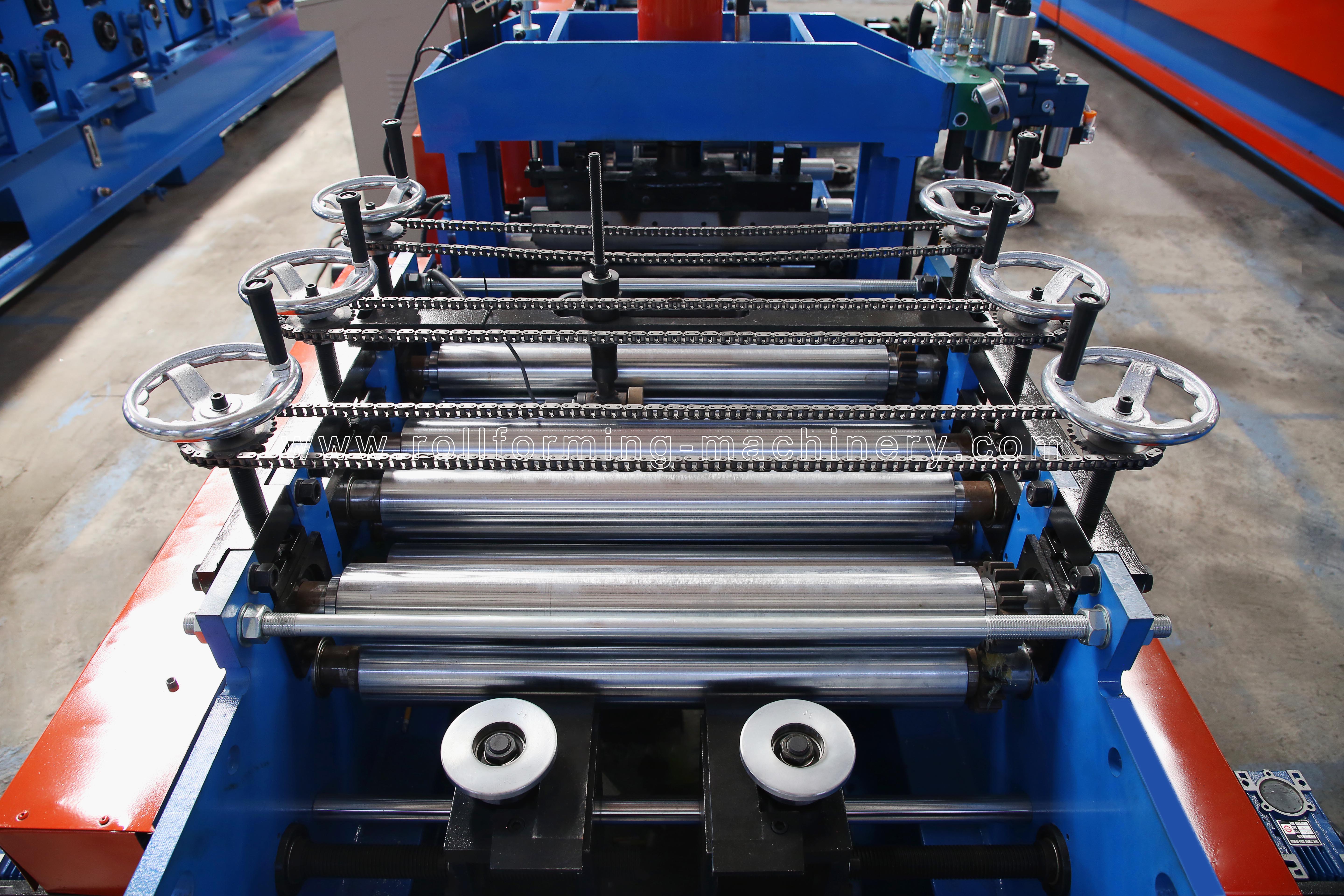

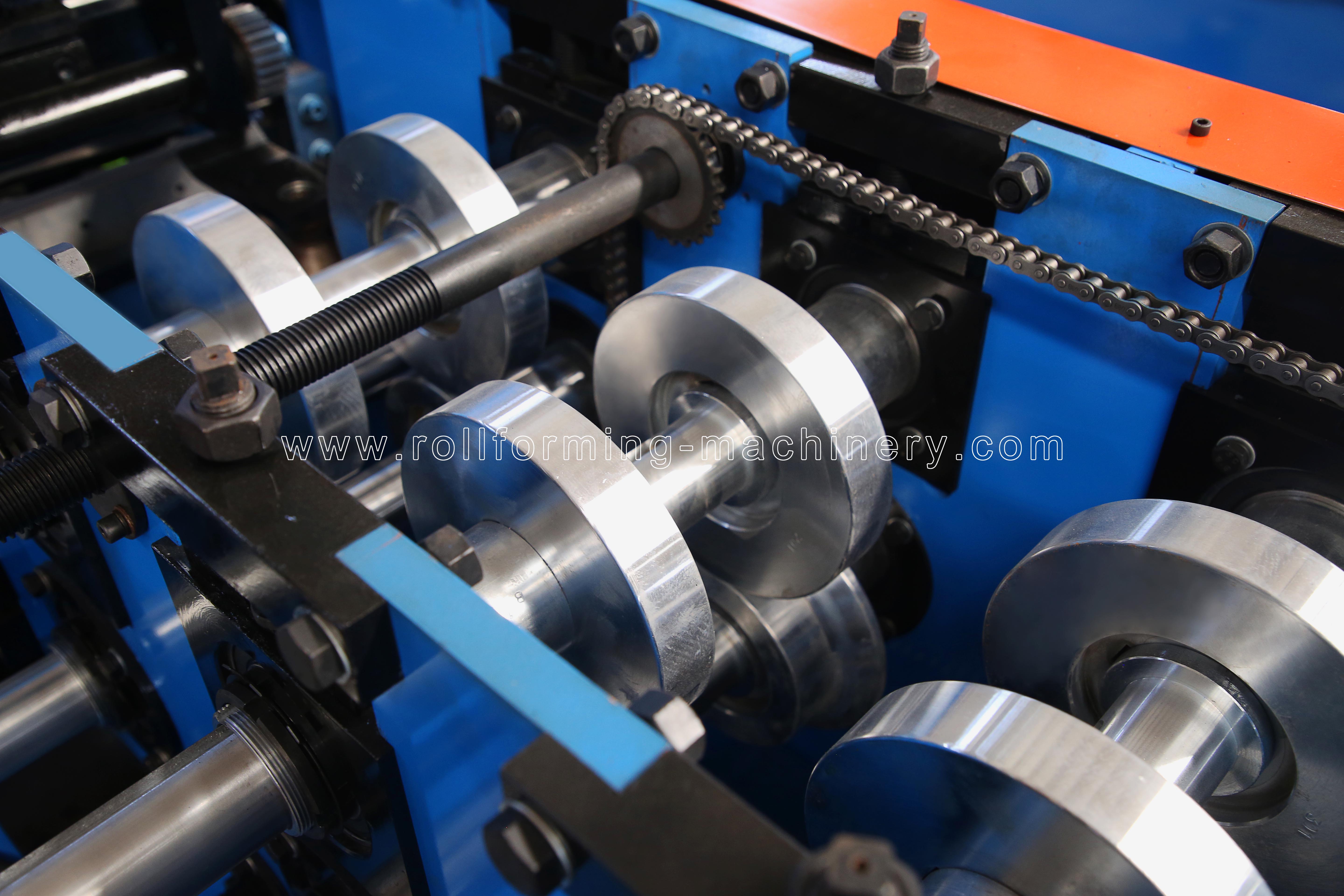

Machine Components Display
