A box gutter machine helps you make gutters without seams. These gutters keep buildings safe from water damage. You use the machine to bend metal into tough gutters that do not leak. You can make these gutters right where you need them. New machines are easy to move and work for many jobs. If you understand how a box gutter machine works, you can pick the best one for your house or business.
Key Takeaways
A box gutter machine makes gutters with no seams. These gutters stop leaks and keep buildings safe from water damage. These machines are easy to move, so you can make gutters right where you need them. This saves time and helps you spend less money. Knowing the parts of the machine helps you use it safely and well. This also helps you get good results. Pick the best box gutter machine for your job. Think about what materials it works with and how easy it is to move. Take care of your machine often to keep it working well. This will help it last longer and work better.
Box Gutter Machine Overview
Definition & Purpose
A box gutter machine helps you make strong gutters for many buildings. You use the machine to shape metal into box gutters. These gutters move water away from roofs. They work well for homes and big buildings. You can pick the size you need, like 6 inches or 10 inches. This helps you handle different amounts of rain.
Box gutters hold lots of water. They are good for commercial buildings and places with heavy rain.
Some machines, like the 6/7 Combo True Box Gutter Machine, let you make more than one size.
These machines last a long time and give you good results.
Homes usually use 5-inch K-style gutters. Commercial buildings need at least 6-inch K-style gutters. Warehouses and big roofs may need even bigger gutters, like 7-inch or 8-inch, or custom box gutters for good drainage.
You can use a box gutter machine to make seamless gutters. Seamless gutters do not have joints that leak. This gives better protection from water damage. You also save time because you make gutters where you need them.
Feature | Description |
Material Compatibility | Works with aluminum or steel |
Length Control | Lets you set the gutter length you want |
Drive Mechanism | Uses hydraulic drive and shear to shape gutters |
Safety Feature | Has a safety system to recognize gutters |
Power Options | Runs on gas or electric (220V or more) |
Gutter Styles | Makes box gutters with a hook or straight back |
Types & Applications
You can pick from different types of box gutter machines. Each type has features for different jobs.
Machine Name | Features | Price |
Englert MetalMan 770 | Polyurethane drive roller, chromed rollers, 1.5HP motor, 45’/min speed, forms steel, aluminum, copper | $59,000 |
Jobsite JS7 | Central forming rollers, optional hydraulic shear, 1HP motor, 35’/min speed, forms steel, aluminum | $28,000 |
KWM European 7” Box Gutter Machine | Polyurethane drive train, hard chrome rollers, 1.5HP motor, 35’/min speed, forms steel, aluminum, copper | $49,700 |
You see these machines mostly in commercial and light industrial places. They help you build gutter systems that handle lots of water. You can use them for big homes or buildings with large roofs.
Box gutters are part of the roof structure.
They give seamless and high-capacity drainage.
You find them on big buildings that need strong water management.
A box gutter machine lets you make gutters that fit your project. You can meet the needs of small homes and big warehouses. This makes the machine a smart choice for many construction jobs.
Operation
Main Components
You need to know the main parts of a box gutter machine before you use it. Each part has a special job. The table below shows the key components and what they do:
Component | Function |
Decoiler | Holds and feeds the metal coil into the machine for smooth operation. |
Forming Rollers | Bend and shape the metal sheet into the gutter profile you want. |
Cutting Mechanism | Cuts the gutter to the length you set, using a hydraulic or manual tool. |
Control System | Lets you adjust settings and control the machine easily. |
Drive System | Powers the rollers and feeding parts, usually with electric motors. |
Exit Table | Supports the finished gutter as it comes out, keeping it safe from harm. |
Tip: When you understand each part, you can use the machine safely and fix problems faster.
How It Shapes Metal
A box gutter machine turns a flat metal coil into a strong gutter. You can follow these steps to see how the shaping works:
Feed a flat sheet of metal into the decoiler.
Guide the metal through a set of forming rollers. These rollers bend the metal step by step.
Watch as the metal changes shape with each roller. The flat sheet becomes a box-shaped gutter.
Set the length you need. The cutting mechanism slices the gutter to the right size.
The finished gutter slides onto the exit table, ready for use.
You control the whole process with the control system. This lets you make gutters that fit your project exactly.
Seamless Gutter Production
You get many benefits when you use a portable box gutter machine on the job site. You do not have to wait for factory-made gutters. You can make gutters right where you need them. This saves time and money.
You cut out delivery delays and middleman costs.
You can fix mistakes on the spot, which keeps your project moving.
You make gutters to the exact size, so you waste less material.
Seamless gutters last longer and leak less than traditional gutters.
You spend less time on maintenance because there are no seams to break.
Note: Seamless gutters work best in places with heavy rain. They protect buildings from leaks and water damage.
A box gutter machine gives you the power to make custom gutters for any building. You can work faster and get better results with on-site production.
Features & Benefits
Efficiency & Speed

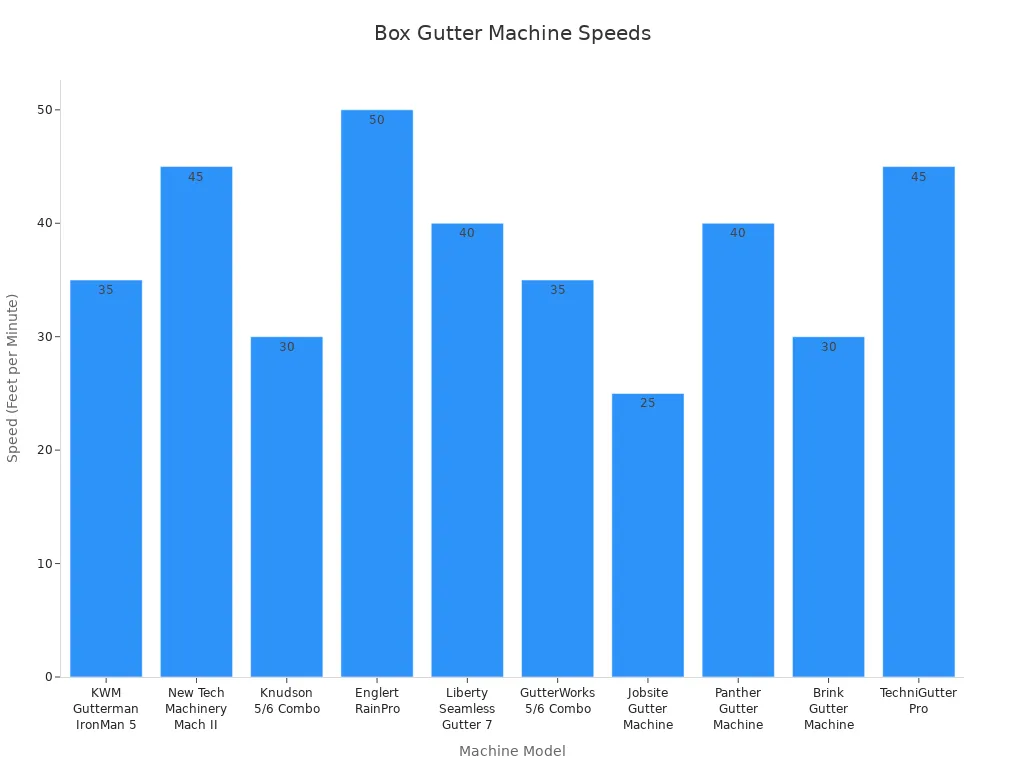

You want to finish gutter jobs fast. A box gutter machine helps you work quickly. Many machines can make gutters at 50 feet per minute. This speed helps you do big jobs with no long waits. Faster machines let you do more work and finish jobs sooner.
Machine Model | Speed (Feet per Minute) | Efficiency Rating |
KWM Gutterman IronMan 5 | 35 | High |
New Tech Machinery Mach II | 45 | Very High |
Englert RainPro | 50 | Very High |
Panther Gutter Machine | 40 | High |
Tip: Fast machines help you save time and grow your business.
Precision & Consistency
You need gutters that fit right every time. Box gutter machines use special rollers and controls to keep sizes exact. Free-floating forming rollers make gutters even with less force. Hard chrome plated steel rollers shape metal with little change needed. This means your gutters look nice and work well for each job.
Feature | Benefit |
Free-floating forming rollers | More even gutters |
Hard Chrome Plated Steel Rollers | Less change needed |
Material Compatibility
You can use many metals with your machine. Aluminum is good for homes and small shops. Copper looks fancy and is used for old buildings. Galvalume and stainless steel are best for big or fancy projects. You choose the metal that fits your job best.
Material | Machine Needed | Best For |
Aluminum | Most machines | Homes, small businesses |
Copper | Specialized machines | High-end, historic |
Galvalume | Heavy-duty machines | Commercial, industrial |
Stainless Steel | Advanced machines | Commercial, luxury |
Portability
You can take your machine to any job site. Portable machines let you make gutters where you need them. You save money because you do not need a middleman. You keep making gutters yourself and check the quality. You can change gutter sizes right at the job. This helps you do more jobs and give custom choices.
Benefit | Description |
Easy Transport | Move machine to new job sites easily |
Enhanced Flexibility | Change for different jobs and places |
In-house Production | Do not depend on factory-made gutters |
Quick Adaptation | Change gutter sizes at the job site |
Note: Being able to move your machine gives you more jobs and helps you help customers fast.
Practical Considerations
Maintenance
You need to take care of your box gutter machine. Make a schedule to check it often. If you check and oil parts, the machine works better. You stop problems before they happen. The table shows what to do and how often:
Maintenance Task | Frequency | Description |
Check chain tension | Twice a year | Adjust chains on Mach II and BG7 machines. |
Lubricate drive gears | Every 30 hours | Use Open Gear Spray Lubricant on BG7 machines. |
Lubricate chains | Every 40 hours | Use dry motorcycle lube or similar on all machines. |
Lubricate shear blades and dies | Every 30 cuts | Spray lube or lubricate when cutting surfaces look dry. |
Clean shear assembly | Daily/Weekly | Clean blades and dies for best performance. |
Check hydraulic fluid levels | Weekly | Keep fluid about 5” below the filler neck. |
Change hydraulic fluid/filter | Yearly | Replace oil to prevent problems. |
Lubricate entry guides | Yearly | Spray lube and adjust guides as needed. |
Tip: If you keep your machine clean and oiled, you make gutters faster and safer.
Safety
You must follow safety rules every time you use the machine. Always read the manual before you start. Keep guards and covers on the machine. Watch for warning signs. Wear tight clothes and take off jewelry. Use lifting tools for heavy coils. Stop and unplug the machine before you fix or clean it.
Safety Protocols | Description |
Read the manual | Learn safe operation and maintenance. |
Keep guards and covers mounted | Prevent contact with moving parts. |
Obey safety signs | Stay aware of hazards. |
Use proper lifting devices | Avoid injuries when handling coils. |
Avoid loose clothing and jewelry | Reduce risk of entanglement. |
Disconnect power before maintenance | Stay safe during repairs. |
Do not use solvents on drive rollers | Protect machine and yourself. |
Note: If you follow these steps, you lower the risk of injury and keep your machine in good shape.
Choosing a Machine
You need to think about your needs before picking a box gutter machine. Look at the table to help you decide:
Factor | Description |
Material Compatibility | Make sure the machine works with aluminum, copper, or steel. |
Portability and Weight | Choose a portable machine for job sites or a heavy one for workshops. |
Output Shapes | Check if the machine makes the gutter shapes you need, like box or K-style. |
Manufacturer's Reputation | Pick a trusted brand for quality and support. |
If you work at many places, pick a portable machine.
If you use special metals, check if the machine can handle them.
If you want custom shapes, make sure the machine can make them.
Tip: You get better results if you match the machine to your project and trust the manufacturer.
Box gutter machines make wide gutters that fit into your building’s style. These machines bend metal to make strong gutters. The gutters do not have seams, so they last a long time. Seamless gutters stop leaks and make cleaning easier. You can make custom gutters right at the job site. This saves you time and money.
Aspect | Description |
Definition | Box gutters are wide and flat. They are part of the building’s design and look nice. |
Operation | These machines build gutter systems that move water away well. |
Benefits | They look modern and work well. Builders like them for these reasons. |
Think about what your project needs and how on-site gutter making helps.
Ask about training, care, and support before you buy a machine.
If you need more help, check resources from trusted machine companies.
Picking the right box gutter machine keeps your building safe and makes it look better.
FAQ
What metals can you use in a box gutter machine?
You can use aluminum, steel, copper, or galvalume. Each metal works for different jobs. Aluminum is light and easy to shape. Steel is strong. Copper looks nice and lasts long. Galvalume resists rust.
How do you keep your box gutter machine working well?
Tip: Clean and oil your machine often. Check moving parts for wear. Follow the maintenance schedule in your manual. This helps your machine last longer and work better.
Can you make custom gutter sizes with one machine?
Yes, most machines let you adjust the size. You can set the width and depth for each job. This helps you match gutters to any building.
Is it safe to use a box gutter machine by yourself?
You should always follow safety rules. Wear gloves and safety glasses. Keep loose clothing away from moving parts. If you are new, ask for help or training before you start.
