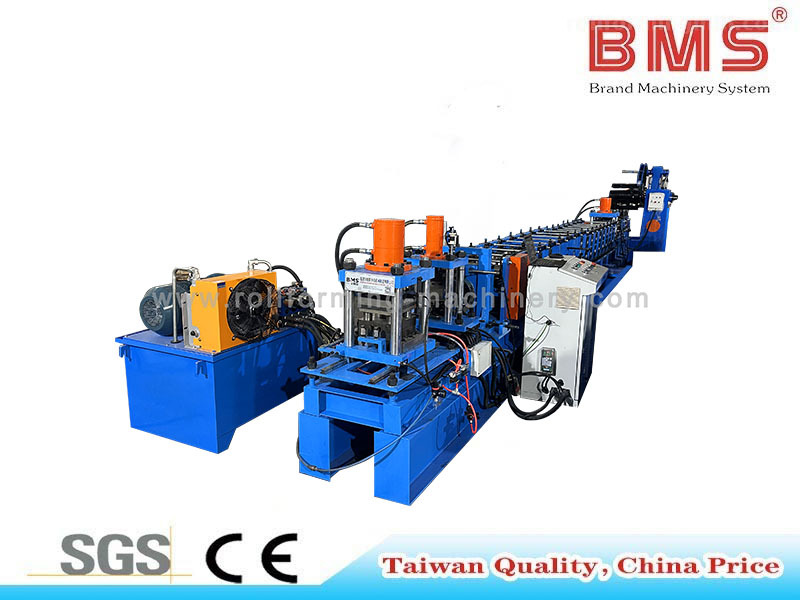

U Channel Forming Machine for Security Door Frame Rubber Seal

Availability:
Quantity:
Inquire Add to Basket

  • YX23-40

  • BMS


U Channel Forming Machine for Security Door Frame Rubber Seal


I. Machine Features

  • The machine is custom developed for U shaped rubber strip grooves on security door frames (such as steel fireproof doors and anti-theft doors)‌, ensuring precise groove dimensions and smooth edges, compatible with various sealing strips , enhancing door airtightness.

  • Equipped with PLC programmable controller and a touch-screen interface‌, it enables parameter setting, automatic length measurement, and fixed-length cutting, reducing manual intervention and improving production efficiency.


II. Machine Description


Material Applicable material

Stainless steel
Material thickness 3mm
With yield strength 235-345MPa
 Machine Base Frame H type steel
Roller Material

Cr12Mov (=D2=SKD11)
Roller station 16-steps
Shaft diameter ф75mm
Working speed About 15-20m/min
 Cutter Cutting tolerance ≤±1mm
Material Cr12MoV(= SKD11 Steel)
Power Main motor 22KW
Pump motor for cutter 7.5KW
Voltage 220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System Inverter:   Schneider Electric/Siemens/DELTA (Taiwan brand)
Touch Screen:       Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
Encoder OMRON (Japan brand) or KOYO (Japan brand)


III. Machine Components Display


IMG_8280

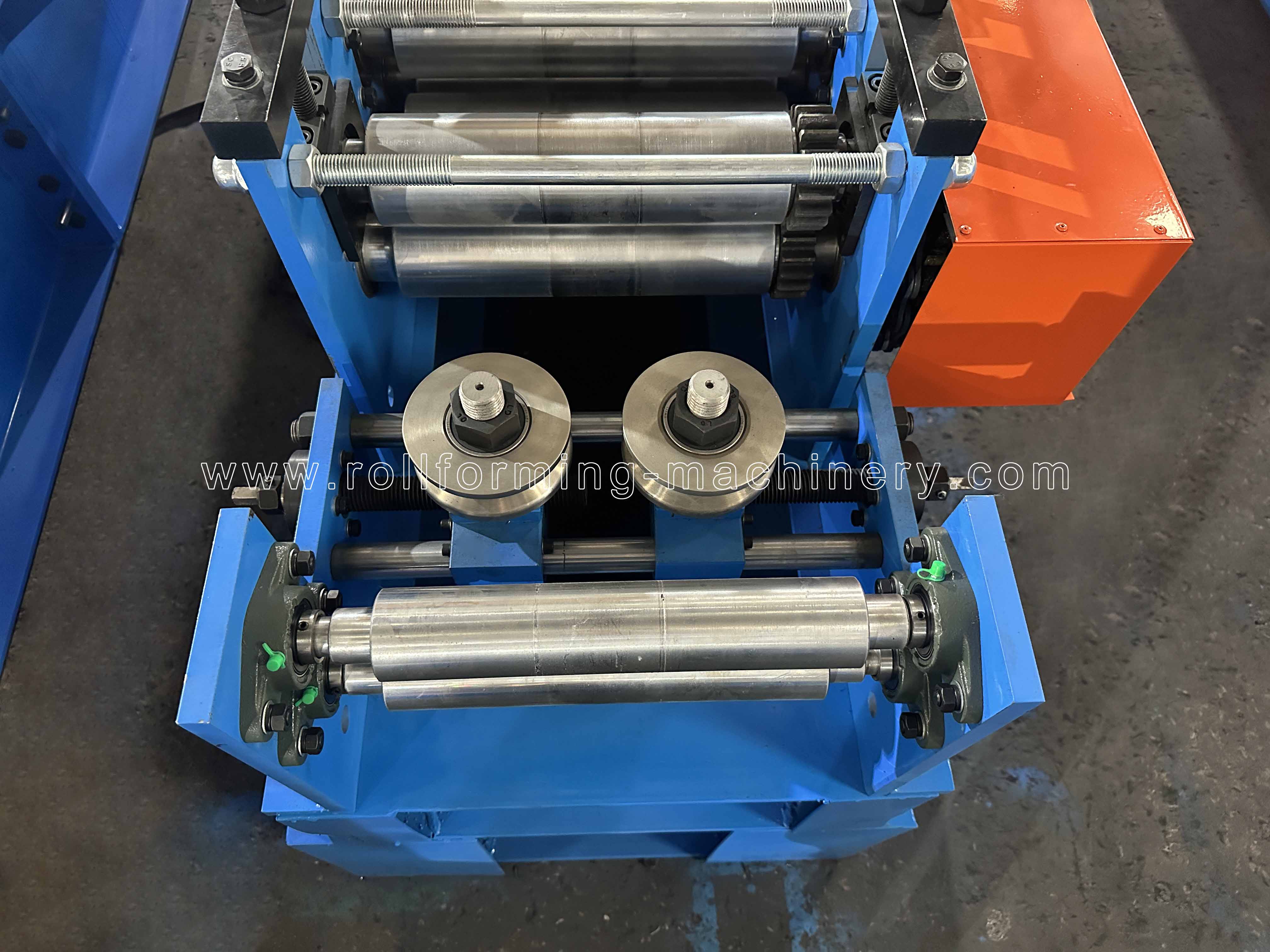

Feeding Guide Device

IMG_8288

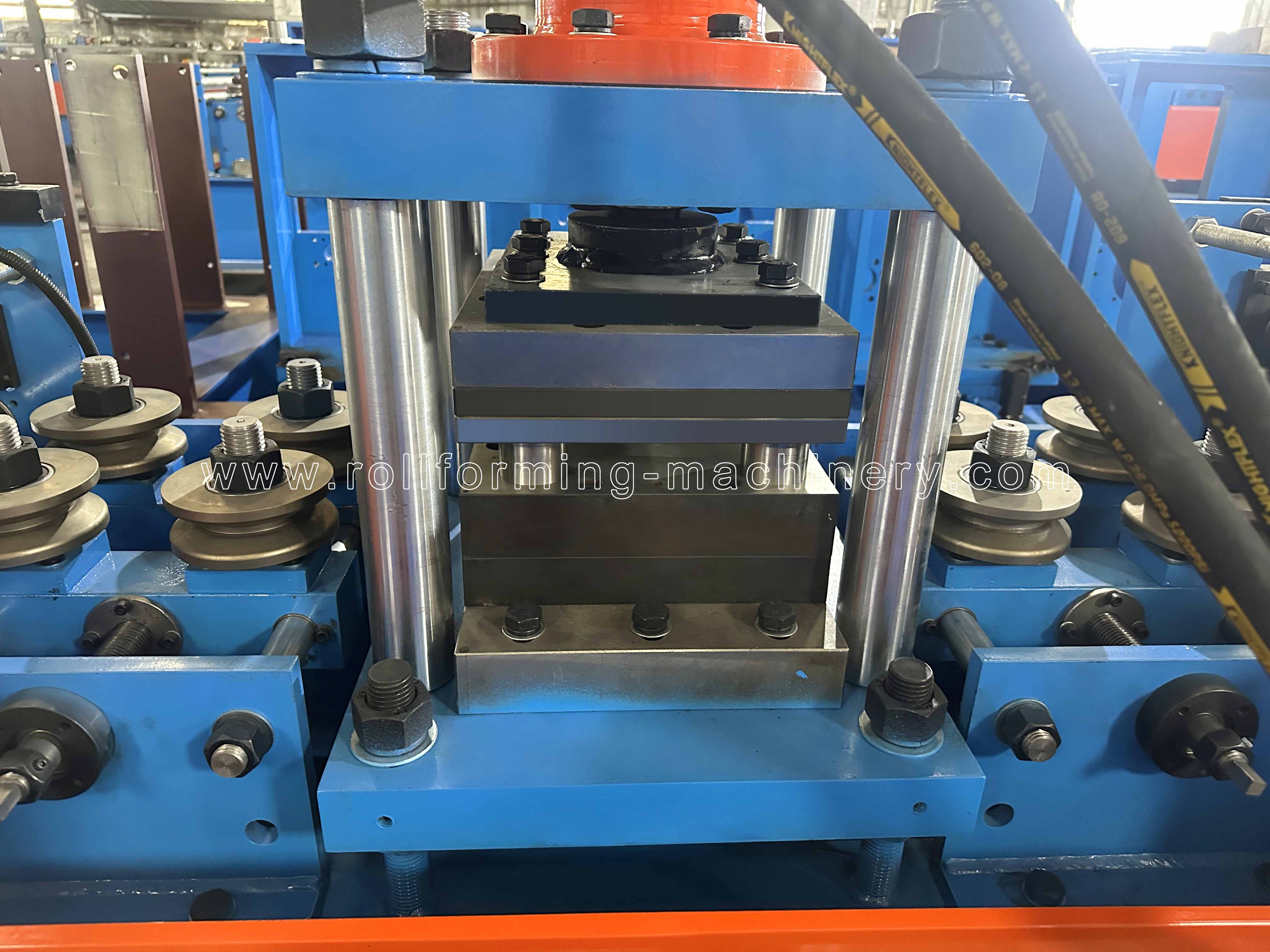

Punching Device



IMG_8251

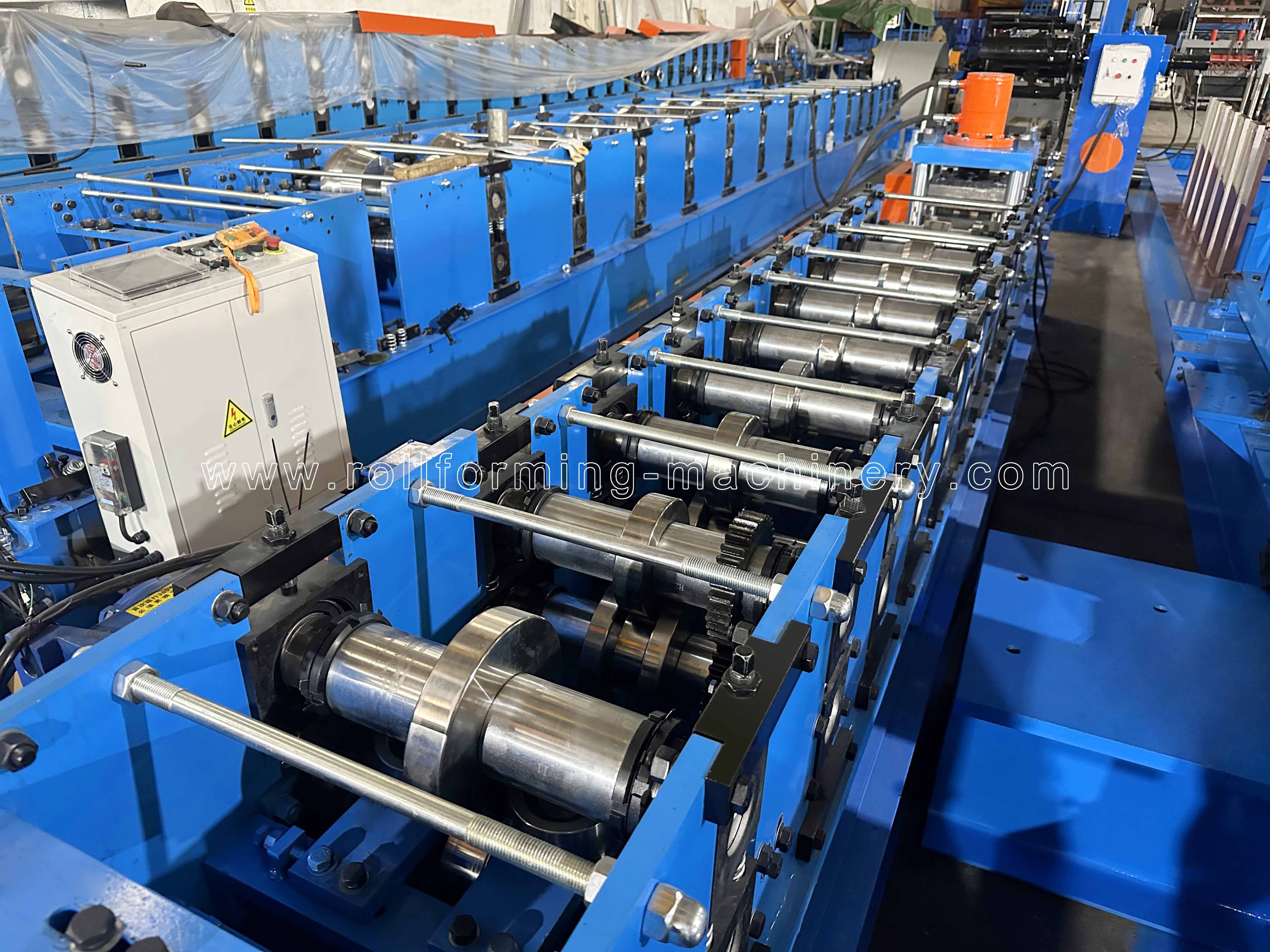

Main Roll Forming Machine

IMG_8223

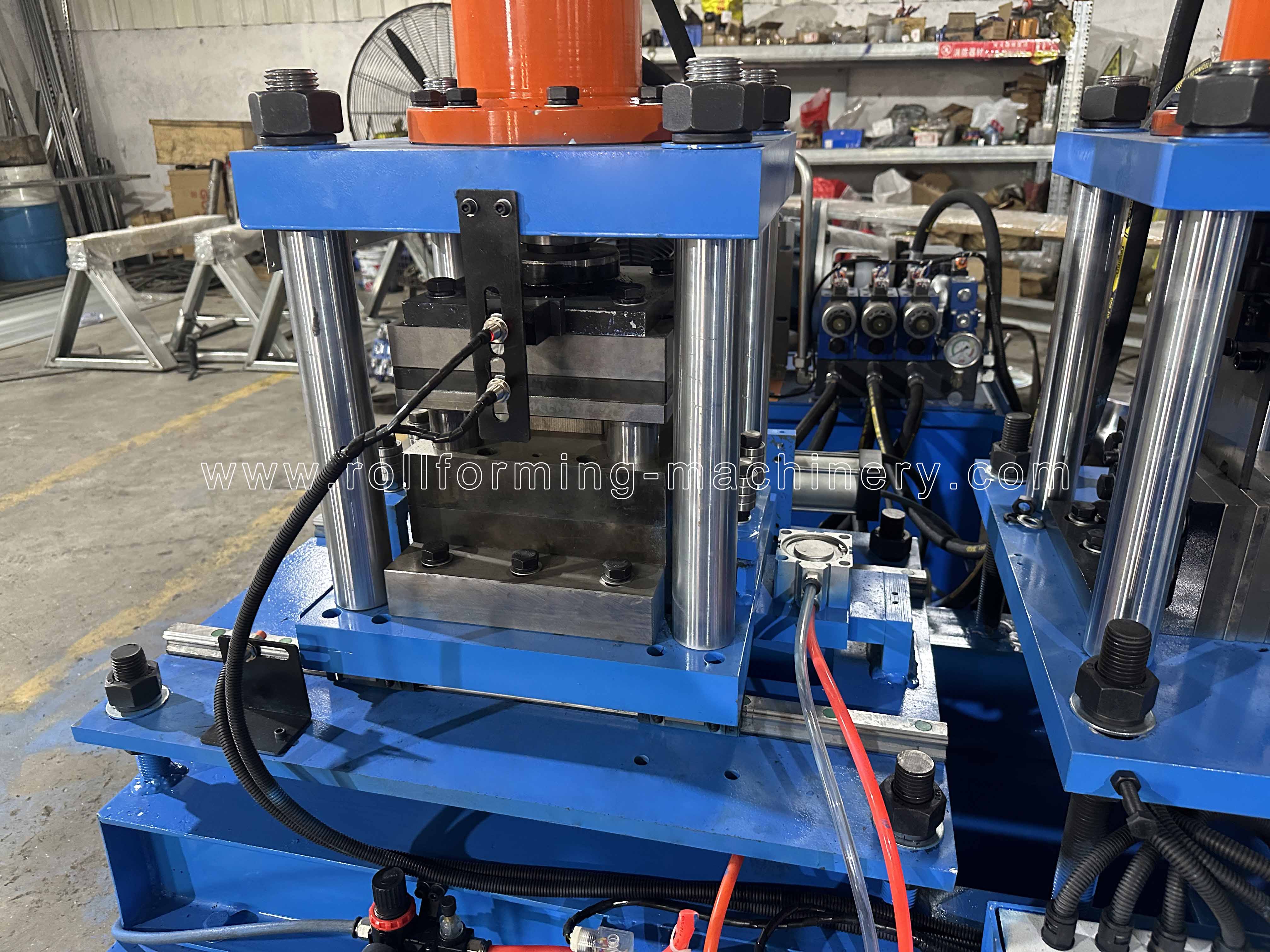

Post Cutter

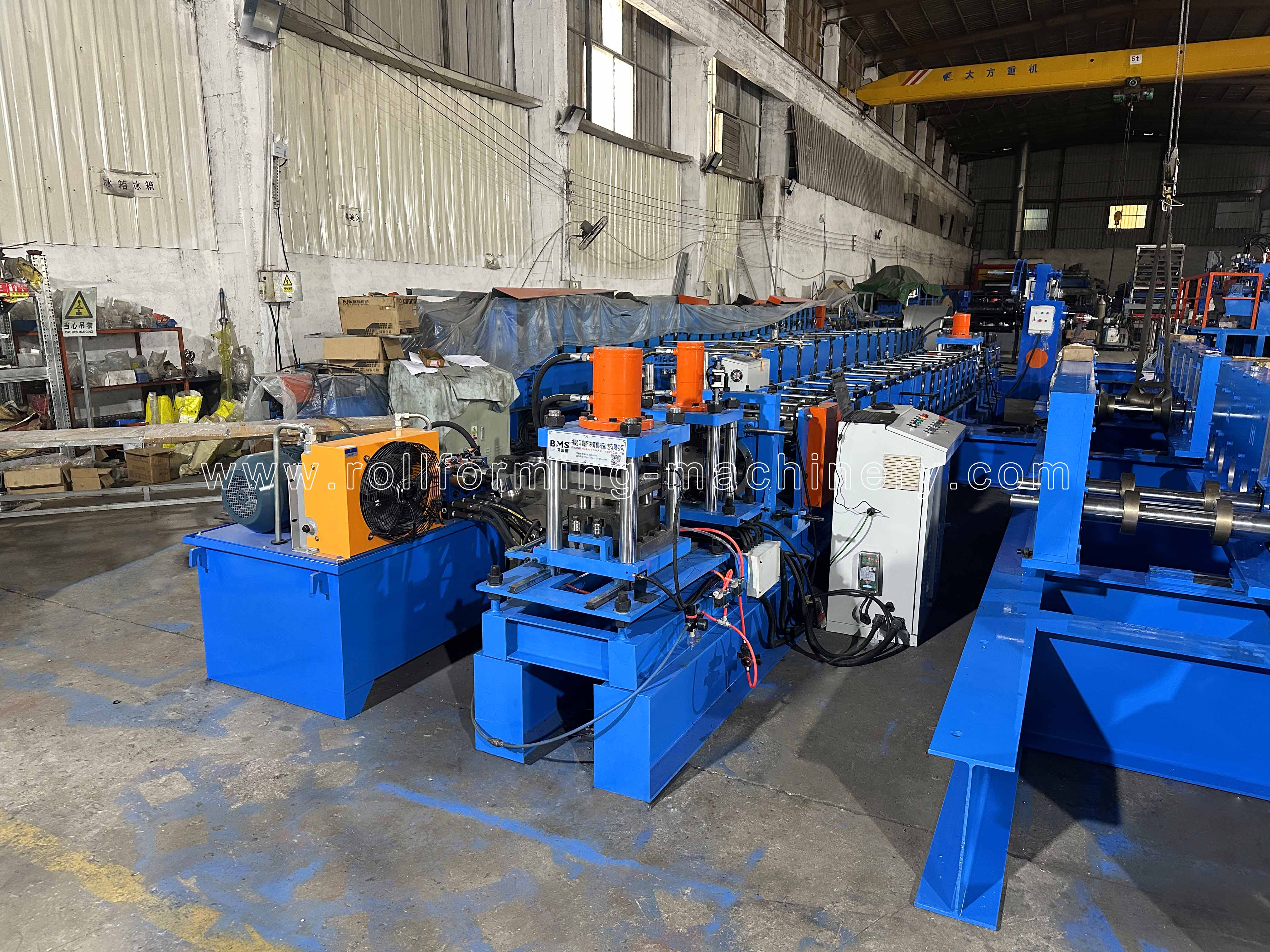

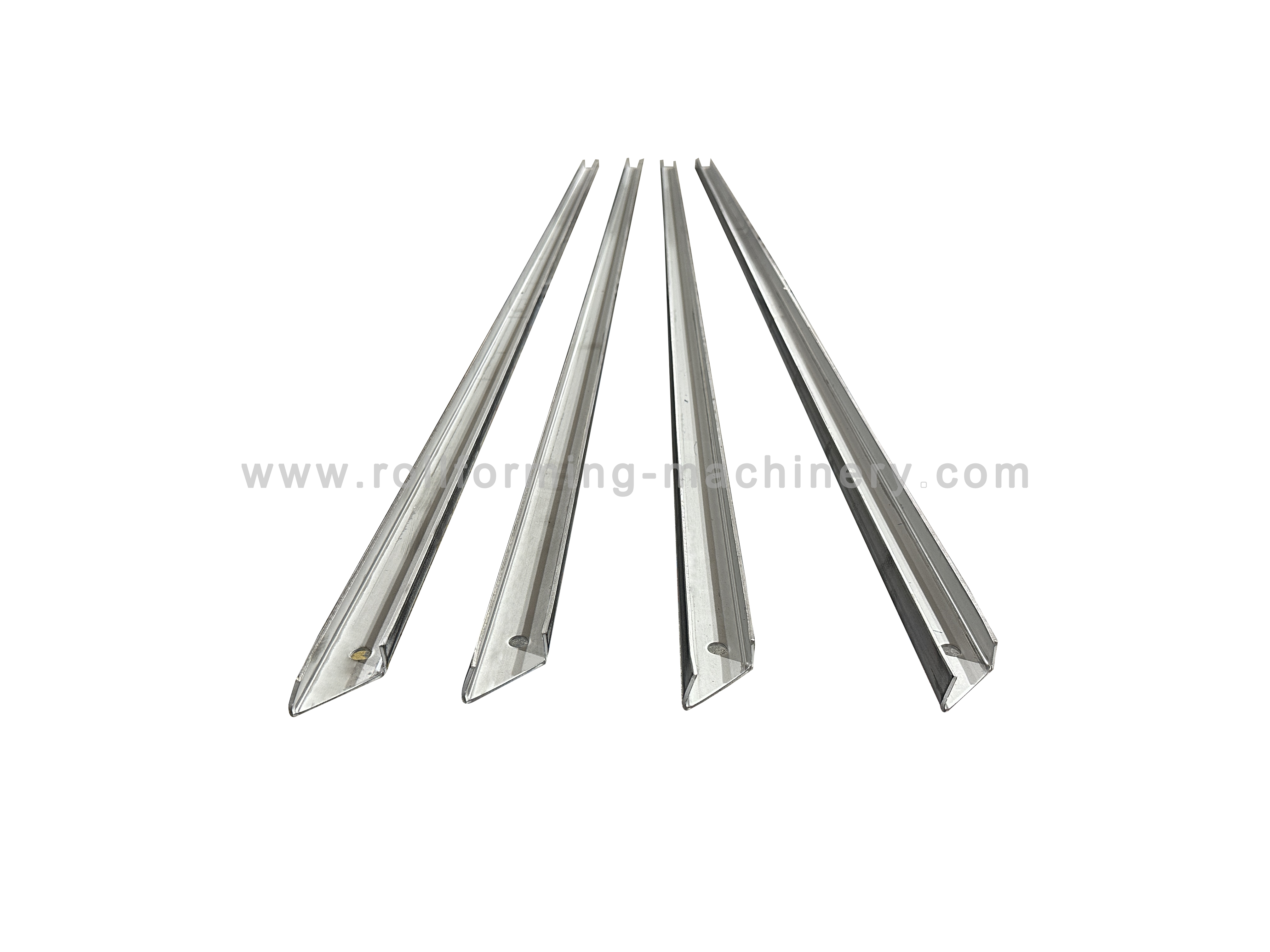

IV. Machine Produced Products

IMG_8205IMG_8364


key parts suppliers












Previous:
Next:
U Channel Forming Machine for Security Door Frame Rubber Seal U Channel Forming Machine U Forming Machine for Security Door Frame Rubber Seal U Forming Machine Channel Forming Machine for Security Door Frame Rubber Seal Channel Forming Machine

RELATED PRODUCTS

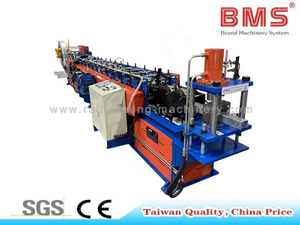

Stainless Steel U Frame Roll Forming Machine
