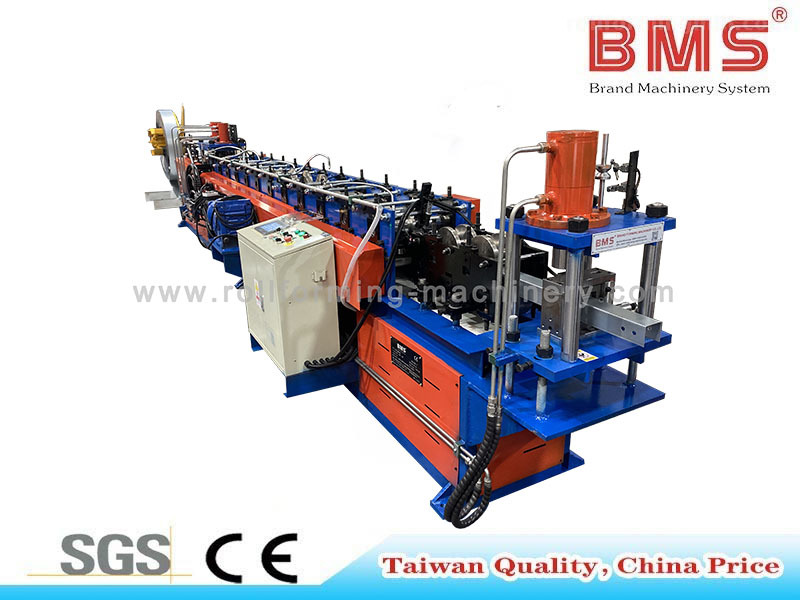

Stainless Steel U Frame Roll Forming Machine

for Taiwan Floating Photovoltaics-FPV Project

Availability:

Quantity:



Inquire Add to Basket

Brand:
BMS

Product Description

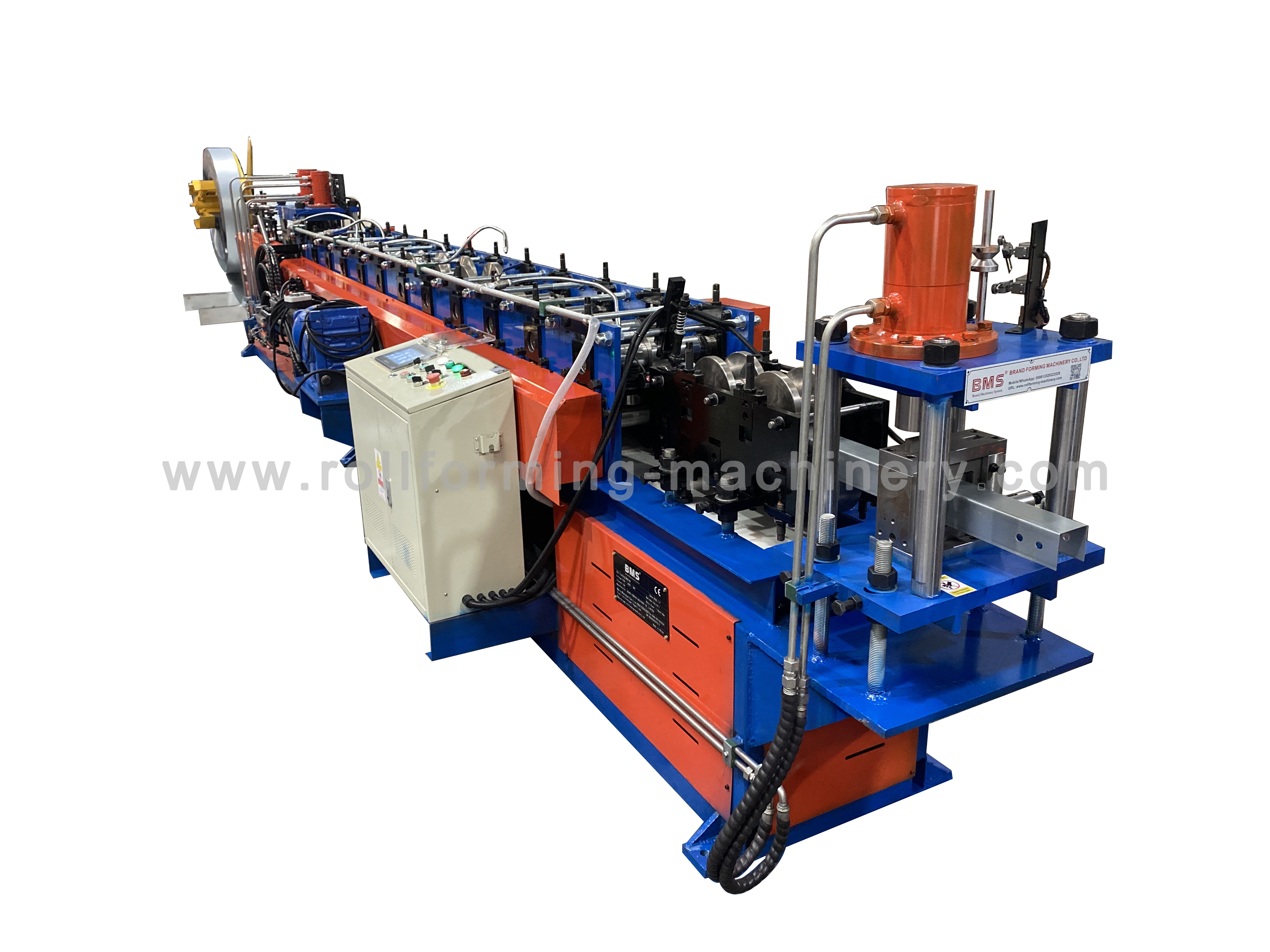

Stainless Steel U Frame Roll Forming Machine

I. Machine Features

1. Designed for Floating Photovoltaics（Fpv) frame manufacturers to make their production as easy and efficient

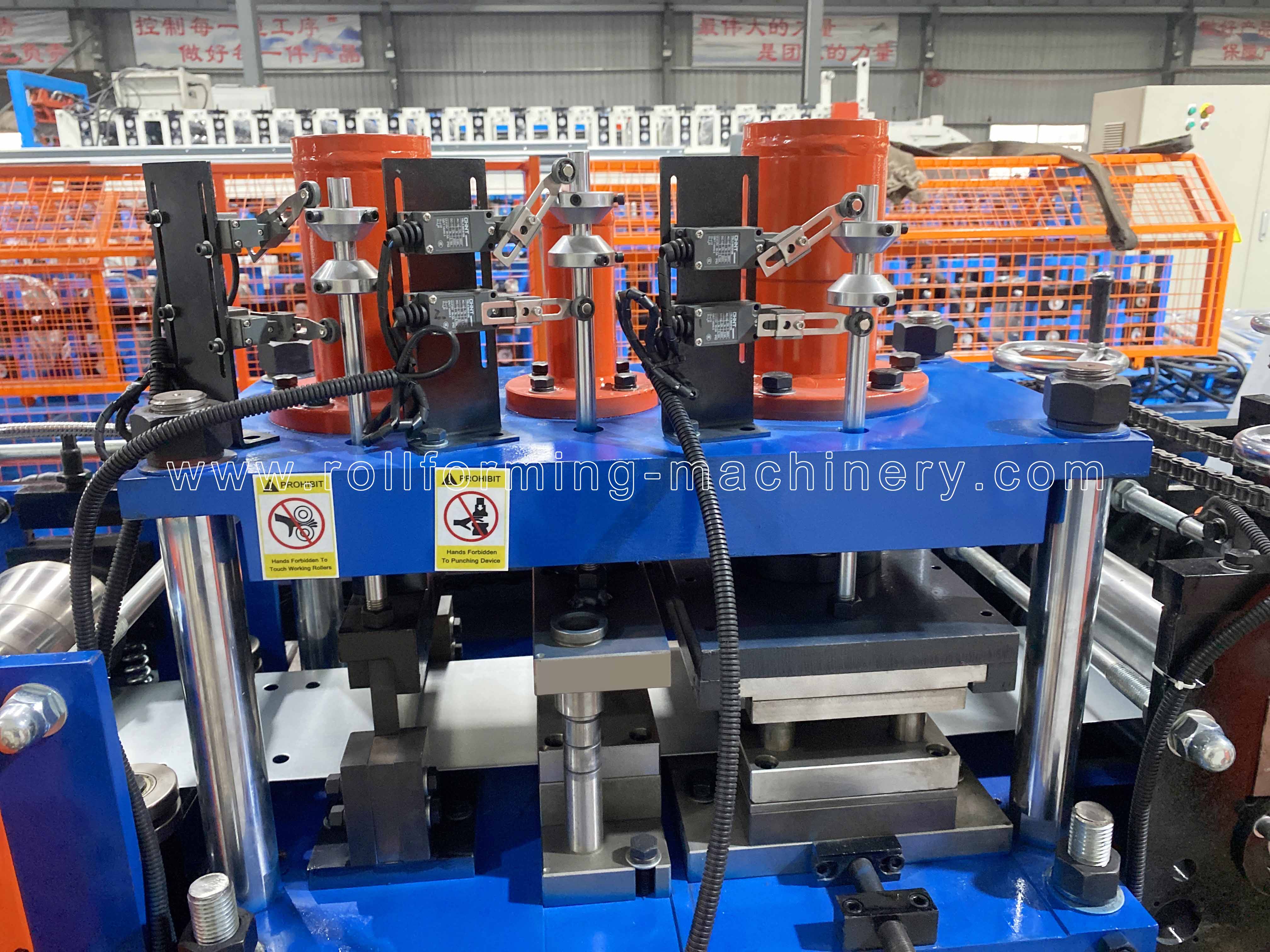

as possible. The machine is computer controlled and fully processed with holes punched, ready for assembly.

2. The force-bearing rollers are quenched after fine machining with Cr12Mov mold steel(=D2 steel) for long

working life more than 10 years.

3. The main motor adopts a servo motor, which has the advantages of high motion accuracy, high speed, strong overload resistance, low heat generation, low energy consumption and low noise, thereby improving the whole machine production speed and finished profiles accuracy.

4. One machine can roll form both stainless steel and galvanized steel (GI/PPGI/PPGL), meet different

project material requirements .

II. Machine Description

Material	Applicable material	Stainless steel and galvanized steel (GI/PPGI/PPGL)
	Material thickness	1.6mm
	With yield strength	450-550MPa
Machine	Base Frame	H200 type steel

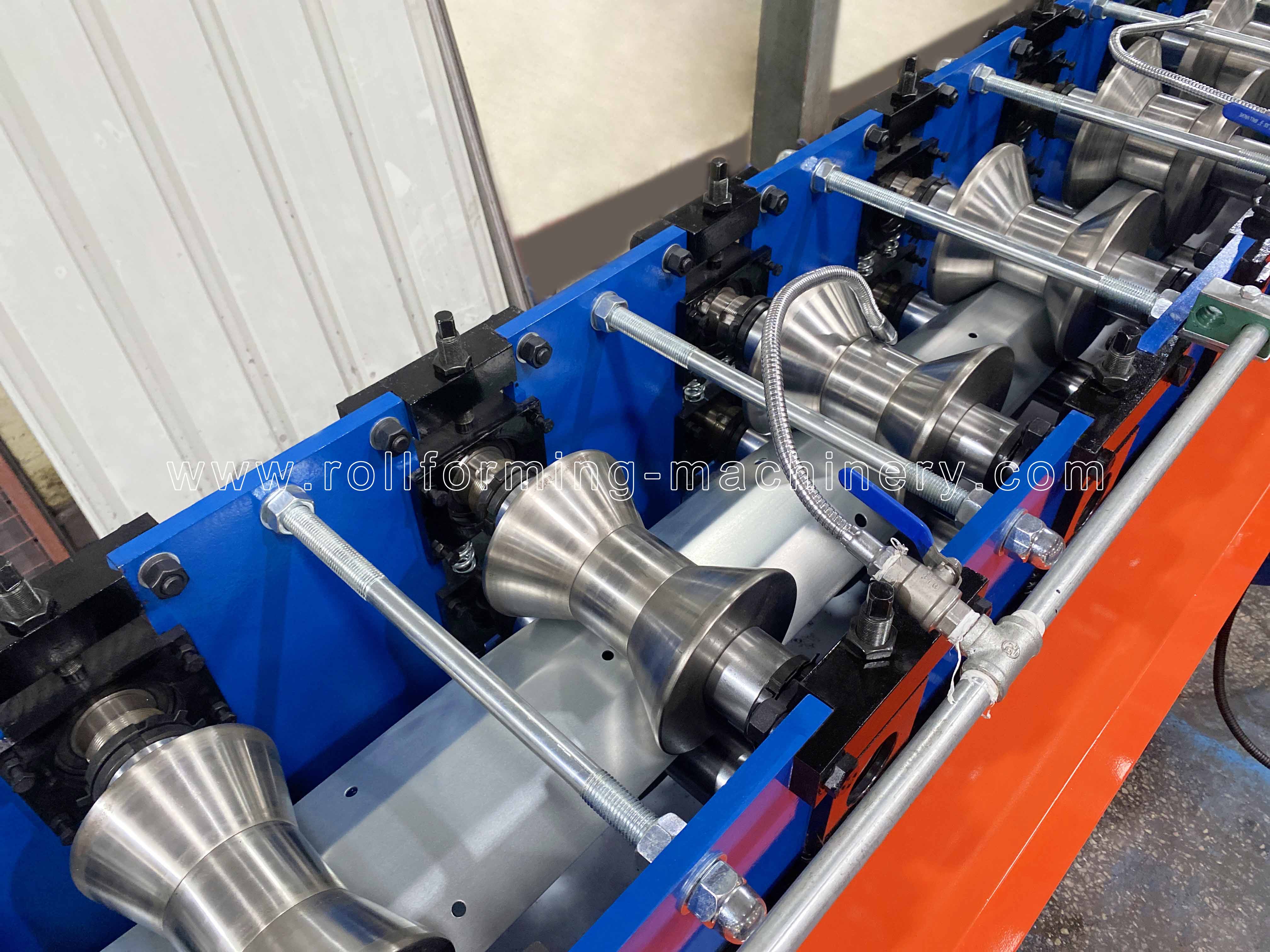

	Roller Material	mold steel Cr12(=D3 steel)
	Roller station	12-steps
	Shaft diameter	ф60mm
	Working speed	About 18-20m/min

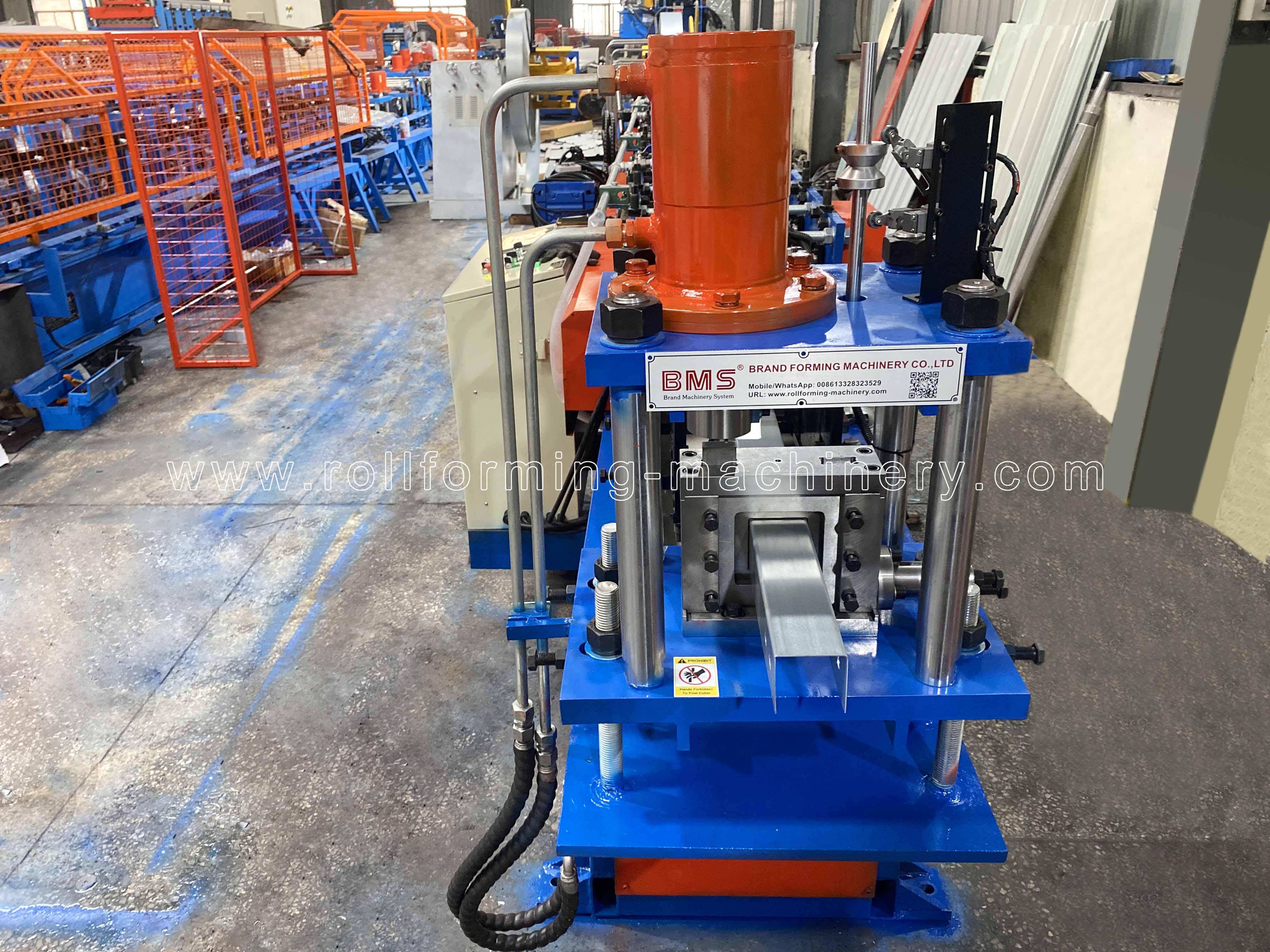

Cutter	Cutting tolerance	≤±1mm
Cutter	Material	Cr12MoV(= SKD11 Steel)
Power	Main motor	7.5KW
	Pump motor for cutter	5.5KW
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System	Inverter:	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch Screen:	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
