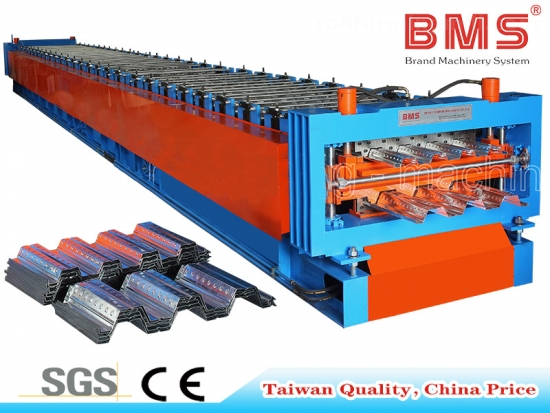

AUTO Double Layer Floor Decking Roll Forming Machine

Share to:

Double Layer Floor Decking Roll Forming Machine

New Product AUTO Double Layer Floor Decking Roll Forming Machine

Availability:

Quantity:



Inquire Add to Basket

Model:
YX45-982/YX50-955
Brand:
BMS

Profile

20200317101431_50642 20200317101442_33376

Product Description

Material	Applicable material	Galvanized Steel(GI)
	Material thickness	0.8-1.5mm
	With yield strength	550Mpa
Coil	Feeding width	1220mm
	Coil ID range	508mm±30mm
	Capacity	Max. 5 Ton.
Machine	Base Frame	H450 type steel by welding.
	Side wall thickness	Q235 t20mm
	Roller Material	45# Steel,Hard Chrome Coated
	Roller station	26/27-steps to form
	Shaft diameter	ф80/95mm,High Frequency Processing
Cutter	Hardness	Heat treatment to HRC58-62 degree
Cutter	Cutting tolerance	≤±1mm
Power	Driving way	Gear/Sprocket transmission
	Main motor	22*2KW,Frequency Speed Control
	Pump motor for cutter	11KW
PLC Control System	Inverter	Schneider Electric/DELTA (Taiwan brand)
	Touch Screen	WEINVIEW(Taiwan brand)
	Encoder	KOYO (Japan brand) or OMRON (Japan brand)
	Control Voltage	24V

Work Flow

5T Hydraulic Decoiler→Manual Pre-Cutter Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Cutter Device→AUTO Exit Rack

056T6YSR%8K1K)FZVY

Technical specifications

1) 5T Hydraulic Decoiler:one set

Hydraulic Control Steel Coil Inner Bore Shrinkage And Stop

Auto Feeding Power And Self-Stop Device

Outside Diameter:1600mm

motor:3KW,Oil pump motor:2.2KW

Capacity:Max.5 Ton,With Coil Car

20200316170128_57875

2) Hydraulic Pre-Cutter Device

Shearing Cutter Material Use Cr12MoV Steel(=SKD11 Steel)

20200316170238_72966

3) Main machine

Rollers Manufactured From 45# Steel,Hard Chrome Coated

20200313170707_71394

Embossing Rollers Manufactured From GCr15 Steel(=EN31 Steel)

Heat Treatment,HRC 58-62 Degree

20200316170838_20642 (1)

Roll forming Speed:18-25m/min

20200316170537_10936

4) Post Hydraulic Cutting Device

Post To Cut,Stop To Cutting,Two Pieces Type Of Cutting Blade Design
Hydraulic Motor:11KW;Cutting Pressure:0-16Mpa
Cutting Tool Material:Cr12MoV(= SKD11 Steel),Heat treatment to HRC58-62

With At Least One Million Times Of Cutting Life
The Cutting Power Is Provided By The Main Engine Hydraulic Station

5) PLC Control System

Control The Quantity And Cutting Length Automatically.

Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

20200316170935_99067

6) Exit Rack:Three Units

20200316171137_19269

7) Product Show
