Rolling Shutter Profile D63 Roll Forming Line for Italy

1) 0.5T Hydraulic Decoiler:one set

Hydraulic Control Steel Coil Inner Bore Shrinkage And Stop

Auto Feeding Power And Self-Stop Device

Max Feeding Width: 500mm

Coil ID Range:508+/-30mm

Capacity:Max.0.5 Tons

2)  Feeding Guide Device

      A left and right guiding device at the main entrance of the machine. During work,Raw materials on both sides of the plate the enter into the machine by the left and right guiding device,make the raw materials and roll forming system to maintain the correct position. The guiding position can be adjusted by the manual screw mechanism,and the left and right can be adjusted independently.

3) Main Machine

Rollers manufactured from Cr12 steel, precision machined,hard Chrome Coated

Shafts manufactured from 45# steel,Quenching and tempering , hard chrome

Real forming speed:15-20m/min（including punching and cutting）

4) Servo Controlled Flying Saw Cutting

Cutting Tool Material:Cr12MoV(= SKD11 Steel),Heat treatment to HRC58-62

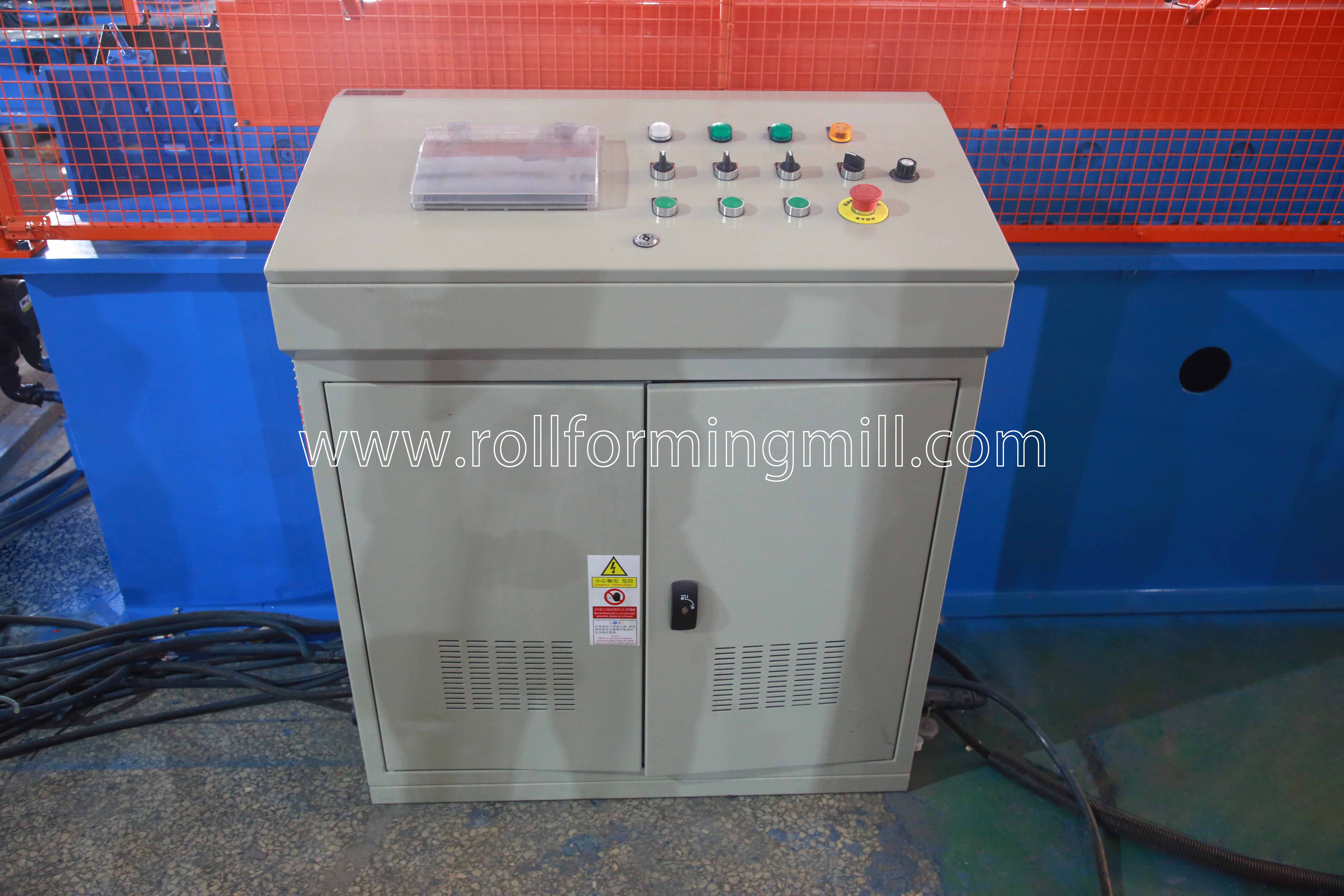

5) PLC Control System

Control The Quantity And Cutting Length Automatically.

Input The Production Data(Production Batch,pcs,Length,etc.) On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

6)  Exit Rack:Three Units

7) Product Show

Packing method:Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
