Buying a rock bolt or anchor rod production line isn't like buying a delivery truck. You can't take it for a quick test drive and return it if it disappoints you. Once it's installed, wired in, and running your first full shift, you're committed for years. And if the thread pitch drifts out of tolerance, or the machine can't hold rated output once it's actually under load, you'll feel that mistake in every batch you ship.

This complete buyer checklist is built for those who are close to a purchase decision and want to know exactly what to check before ordering a machine.

What a Rock Bolts and Anchors Making Machine Actually Does

The rock bolt or anchor-making machine starts with the bar stock and transforms it into a load-bearing fastener through various steps of cold forming, including straightening the bar, cutting it to the desired length, rolling/cutting the threads, pointing the tip, and, depending on the machine configuration, bending and coating. It is important because depending on the end product, either a general anchor rod or mining rock bolts, it uses different specifications from different industries.

It means that if you have the clientele, which includes both industries, you must ensure that your machinery will process the parts according to all types of specification sheets.

Step 1 — Define Your Product Range Before You Talk to Any Supplier

The single most common buying mistake is choosing a machine based on price before locking down exactly what it needs to produce. Suppliers will happily quote you a machine that fits a narrow range if you let them, and you won't find out it's too narrow until you're turning down orders.

Before you request a single quote, nail down:

• Diameter range: Be clear about what your total range requirement is, such as 16mm to 32mm, and consider what future direction your product line will take in the coming few years. It will always be more economical to acquire more range than required initially rather than installing another machine later on.

• Length and tolerance: Be clear about what your length range requirement is and how tight the tolerance requirement would be, particularly if you are catering to the mining and construction sectors, which have different tolerance requirements.

• Thread type:  Whether you require a fully threaded machine, a left- or right-hand threaded machine, and whether you want a continuous thread bar machine or a rebar deformed thread machine.

• Material grade: list the steel grades the machine has to run. This directly affects the torque rating of the motor and the hardness needed in the forming rollers.

Step 2—Check the Core Machine Specifications

This is where a good machine and a mediocre one actually separate. Specs on paper rarely tell the whole story, so pair each one with a direct question to the supplier.

• Production capacity: you should inquire about the amount in units per hour or tons per day and then find out what that is like for eight straight hours of continuous operation, and not what happens during the first five minutes in your presentation.

• Thread rolling accuracy and pitch tolerance: it influences the load-carrying capacity of the finished anchor; therefore, you should inquire about what kind of tolerance your machine keeps when working at maximum speed and not when idle.

• Motor power and drive type: servo, hydraulic, and mechanical drives have different characteristics regarding precision, energy efficiency, and servicing. The servo drive maintains better tolerance for a longer time; the hydraulic drive allows working with difficult materials but requires more servicing.

• Automation level: determine if the machine is manual feeding, semi-automation, or full automation with robotic loading/unloading.

• Footprint and weight: confirm the machine fits your floor plan and floor-load rating before it ships, not after.

• Noise and vibration levels: easy to overlook, but important if your factory is located near any residential area or operates under certain workplace noise limitations.

Step 3—Evaluate Build Quality and Materials

Specs tell you what the machine can do on day one. Build quality tells you what it can still do on day 1,500.

• Frame material: Cast iron frames maintain their shape and accuracy much longer than the lighter and cheaper welded steel frame alternatives.

• Roller and tooling steel grade: Directly ask how many production hours you will get out of a set of rollers before needing to replace them.

• Bearing quality: There are reputable names in bearings that make for an acceptable substitute for quality, and any company that is able to tell you immediately what brand their bearings come from is likely reputable.

• Corrosion protection: Determine what surface treatments/finish the machine has, especially if your factory environment is humid or coastal.

Step 4—Confirm Compliance and Certification

Mining buyers in particular treat this section as non-negotiable, and for good reason: a rock bolt that fails a load test underground isn't just a warranty claim; it's a safety incident.

• ISO 9001: verifies the manufacturer utilizes a certified quality management system and is not just talking the talk.

• CE marking: required if the machine is heading into the EU market.

• Mining-specific certification: research specific regional requirements, for instance, MSHA certification, in case your customer uses the machinery in mining operations in the United States.

• Third-party test reports: request load test certificates for anchors manufactured by your machine, rather than a mere certificate of the machine itself.

• Batch traceability: learn if the machine's control system can track batch history for quality control audits. This requirement becomes more stringent every year and sooner or later will lead to losing the customer's order.

A supplier who can't produce documentation on request, or who only offers self-certified paperwork, is a red flag worth taking seriously. Push for third-party verification before you commit.

Step 5—Assess Automation, Controls, and Integration

A machine's control system is where day-to-day frustration either shows up or doesn't.

• PLC and HMI quality:  An intuitive system that you can troubleshoot yourself is better than having to make a transatlantic phone call each time you get a trouble code.

• Remote diagnostics: Something that is becoming more common in high-end lines and a good reason to pay extra if you are running several shifts.

• Changeover time: How long does it take to change from one size to another? A system that takes four hours to change over loses whatever speed advantage it may have.

• System integration: If you are using ERP or MES software, make sure the system integrates with it.

Step 6—Look Past the Machine: Supplier Track Record and Support

This is the section most first-time buyers skip, and it's usually the one experienced buyers check first.

• Track record with this specific machine type: find out how many units of this particular model they have shipped, not just how long they have been around.

• Reference clients: request to speak with one of their current customers, who does business in the same area as you or is in your industry.

• Spare parts availability: having to leave a machine idle for six weeks because of a missing roller will not be cost-effective regardless of how cheap it originally was.

• Warranty terms: find out what the coverage period is, what is covered by the warranty, and under what circumstances the warranty can be voided.

• Installation and training: see if on-site installation and operator training is included in the price or offered as an additional service.

• After-sale support: inquire as to what kind of response time you can expect from them, in which languages, and if the tech support staff is local.

• Financing options: may apply if you want to increase capacity but are unable to invest a lot of capital at once.

Step 7 — Run the Total Cost of Ownership Numbers, Not Just the Sticker Price

The purchase price is the number that gets quoted first. It's rarely the number that matters most over five years.

• Shipping, customs, and commissioning: these can add a meaningful percentage on top of the quoted machine price, so get a full landed cost before comparing suppliers.

• Energy consumption: although servo-based machines cost more initially, they consume considerably less energy within a year of operation, thus making the machines cheaper than expected.

• Tooling replacement: think about how often rollers and dies require replacement.

• Expected downtime: request the mean time between failures (MTBF) from the manufacturer if available; otherwise, take it with a grain of salt if the manufacturer cannot provide one.

• Resale value: worth taking into account when changing equipment every five to seven years rather than keeping it until its end of life.

A simple way to frame it: add the purchase price, five years of estimated energy and tooling costs, and expected downtime losses, then compare that total across suppliers. The cheapest machine on day one is sometimes the most expensive machine by year three.

Step 8 — Request a Trial Run or Factory Acceptance Test (FAT) Before You Commit

Watching a demo reel tells you what the machine can do under ideal conditions. Watching it run your actual bar stock and your actual thread specs tells you what it can do for you.

• Bring your own materials: bring your own samples of bar stock and QC gauges wherever feasible, instead of depending upon test materials from the vendor.

• Test at full speed: don't be content with observing a machine in slow motion; insist that the machine be demonstrated at full speed.

• Watch the changeover: ask for a demonstration of changing over from one diameter to another.

• Check the emergency stop:  test the reaction time and behavior of the safety mechanisms at full load.

If a supplier resists a factory acceptance test or trial run, treat that hesitation as information. A confident manufacturer will want you to see the machine work before you sign.

Quick-Reference Buyer Checklist

Use this condensed version to compare suppliers side by side or keep on hand during a factory visit:

• Product range: diameter, length, thread type, and material grade all confirmed against your actual product lineup

• Specifications: sustained production capacity, thread tolerance, drive type, and automation level all verified, not just quoted

• Build quality: frame material, tooling steel grade, bearing brand, and corrosion protection are all documented.

• Compliance: ISO 9001, relevant regional certifications, and third-party load test reports are all on file.

• Automation: PLC/HMI usability, remote diagnostics, and changeover time all tested, not assumed

• Supplier support: reference clients contacted, spare parts lead time confirmed, warranty terms in writing

• Total cost: landed cost, energy use, tooling replacement, and expected downtime all factored in

• Testing: trial run or factory acceptance test completed with your own material and gauges

Conclusion

A rock bolt or anchor-making machine is a long-term production commitment, and the difference between a good purchase and a costly one usually comes down to how thoroughly you vet the machine and the manufacturer behind it before you sign anything. Work through this checklist to save yourself costly downtime.

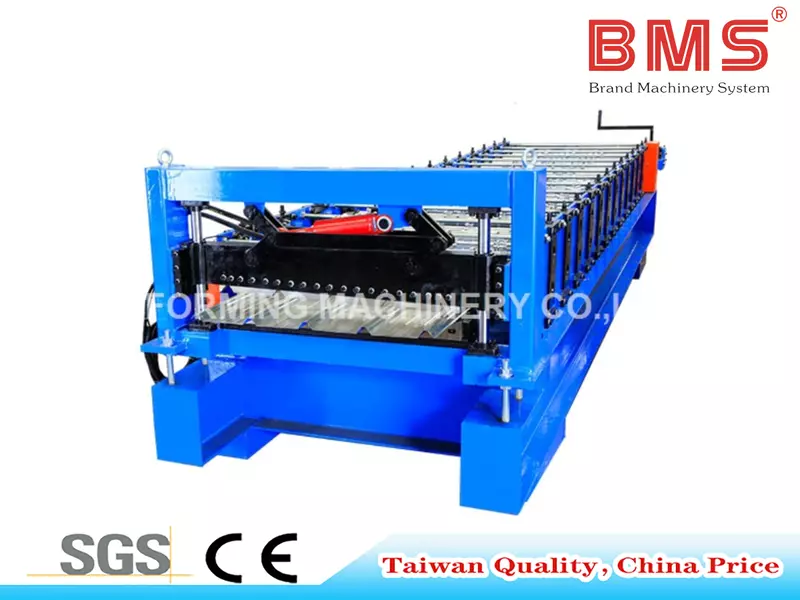

If you're evaluating metal forming equipment more broadly, BMS Group has spent decades building precision roll forming machinery for construction, energy, and industrial applications and understands what serious buyers look for in a manufacturing partner. Get in touch with us today with questions about metal forming equipment.

FAQs

What's the difference between a rock bolt machine and a general threading machine?

A rock bolt machine is equipment utilized underground for drilling and installing support rods in the walls of rocks, whereas a general threading machine is equipment utilized in a workshop for threading metallic rods.

How long does installation and commissioning usually take?

The time required to install and commission a rock bolt machine and an anchor making machine is 1 to 3 weeks combined.

Can one machine produce multiple bolt diameters, or do I need separate lines?

Yes, the production of a rock bolt machine can cater to several bolts of different diameters; therefore, it means that we do not require separate production lines for producing bolts of different sizes.

What maintenance does a rock bolt production line need?

A rock bolt production line requires routine mechanical, electrical, and tooling maintenance to prevent costly downtime and ensure uniform fastener quality.
