Greenhouse C Profile Roll Forming Machine

1 machine for both C Profile and SegmentedU Profile, by Quick-change cassette design

Availability:

Quantity:



Inquire Add to Basket

Model:
YX14.3-30.25 &YX18.5-21.4
Brand:
BMS

Profile

Profil e1

Profile 2

Product Description

Material	Applicable material	Magnelis DX51
	Material thickness	0.9&1.9mm
	With yield strength	Q235-345Mpa
Machine	Base Frame	H300+H200 type steel by welding.
	Side wall thickness	Q235 t28mm
	Roller Material	Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated
	Roller station	22-steps & 16-steps to form
	Shaft diameter	ф50mm,High Frequency Processing
Power	Driving way	Gear/Sprocket transmission
Power	Main motor	11KW, Frequency Speed Control
PLC Control System	Inverter	Delta / Taiwan Shilin/Schneider
	Touch Screen	WEINVIEW / Siemens / Schneider
	Encoder	KOYO (Japan brand) or OMRON (Japan brand)
	Control Voltage	24V

Work Flow

Decoiler → Feeding and Leveling Device → Hydrualic Pre-Cutting&Punching Device→Rolling Forming System(Cassette Type)→Hydraulic Post Cutting →Product Support Frame

working flow

Technical Specifications

1) Hydraulic Decoiler:one set

Automatically control steel coil inner bore shrinkage and stop,

With electric control cabinet

Max. feeding width: 600mm, Coil ID Range : 470 – 560 mm.

Max capacity: 5Tons, No feeding power, hydraulic motor : 2.2KW

Hydraulic Decoiler

2) Main Machine

With feeding material guide and 7 rollers(3 upper rollers and 4 down rollers)for straightening and levelling

Feeding Guide Device

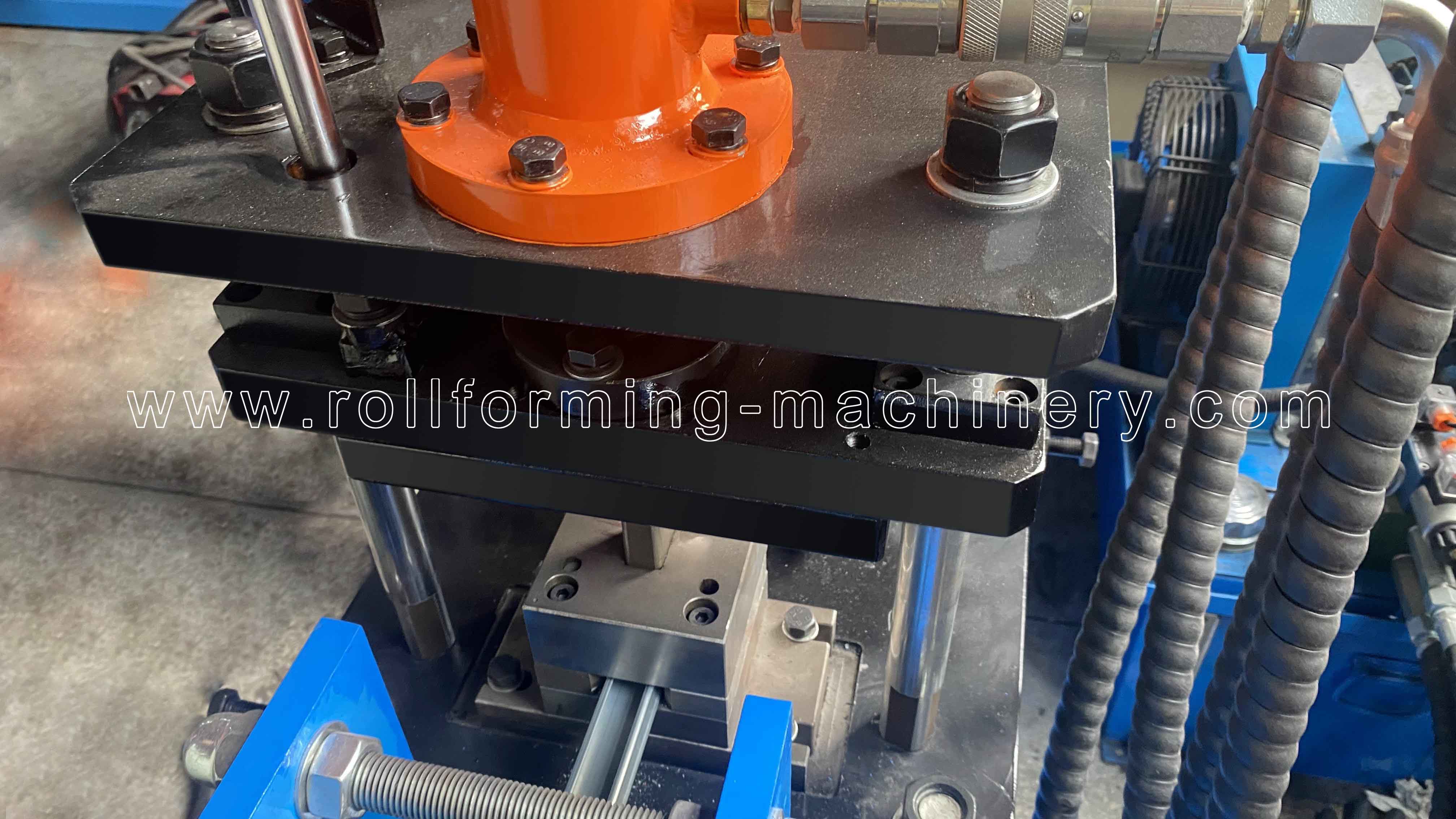

With Punching Device, Die material: D2 steel, Heat treatment

Punching Device

Body frame made from H300# type steel by welding;

Cassette body frame made from 200# H type steel by welding

Side wall thickness: 18mm

Rollers manufactured from Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated

Motor Driving,Gear chain transmission,about 22 +16 steps to forming

Main Motor=11KW, Frequency speed control

Production speed approx. 11m/min ( including punching and cutting time)

roller

3) Hydraulic Post Cutting device

Pre-punching and pre-cutting, use the same hydraulic system

Hydraulic motor: 4KW, Hydraulic pressure range: 16Mpa

Post cutter

4) PLC Control System

Control The Quantity And Cutting Length Automatically.

Input The Production Data(Production Batch,pcs,Length,etc.) On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

PLC Control Cabinet

5) Exit Rack

6) Products Show

Application Case

Packaging & Shipping

Packing method:Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

20190812102601_56964

After-sale Service

1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
