No. | Main Parameters | Roll Forming Mill Parameters | ||
1. | Material Thickness | 2.0-3.0mm | Forming Stations | 16 Steps |
2. | Feeding Width | According to the drawings | Body Frame | H450 |
3. | Application Material | Galvanized sheet | Side Wall Thickness | European free standing structure |
4. | Electrical Standard | 380V50Hz/3Ph | Shaft Diameter | 40Cr, φ90/75mm |
5. | Cutter material | Cr12MoV | Main Motor Power | 11KW*2 |
6. | Yield Strength | 355Mpa | Screw Bolts | Grade 8.8 |
7. | Forming Speed | 25m/min | Effective Width | According to the drawing |
8. | Control System | PLC Control System | Roller | Gcr15, Heat treatment HRC58—62 |
9. | Hydraulic Motor | 7.5KW | Machine Color | Blue+Black+Orange |
10. | Testing Material | BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing |
Work Flow
Decoiler → Feeding Device/Leveling Device/Pre-Punching Device→ Main Roll Forming Mill → Hydraulic Post Cutting Device → PLC Control System → Hydraulic Station→Exit Rack*3

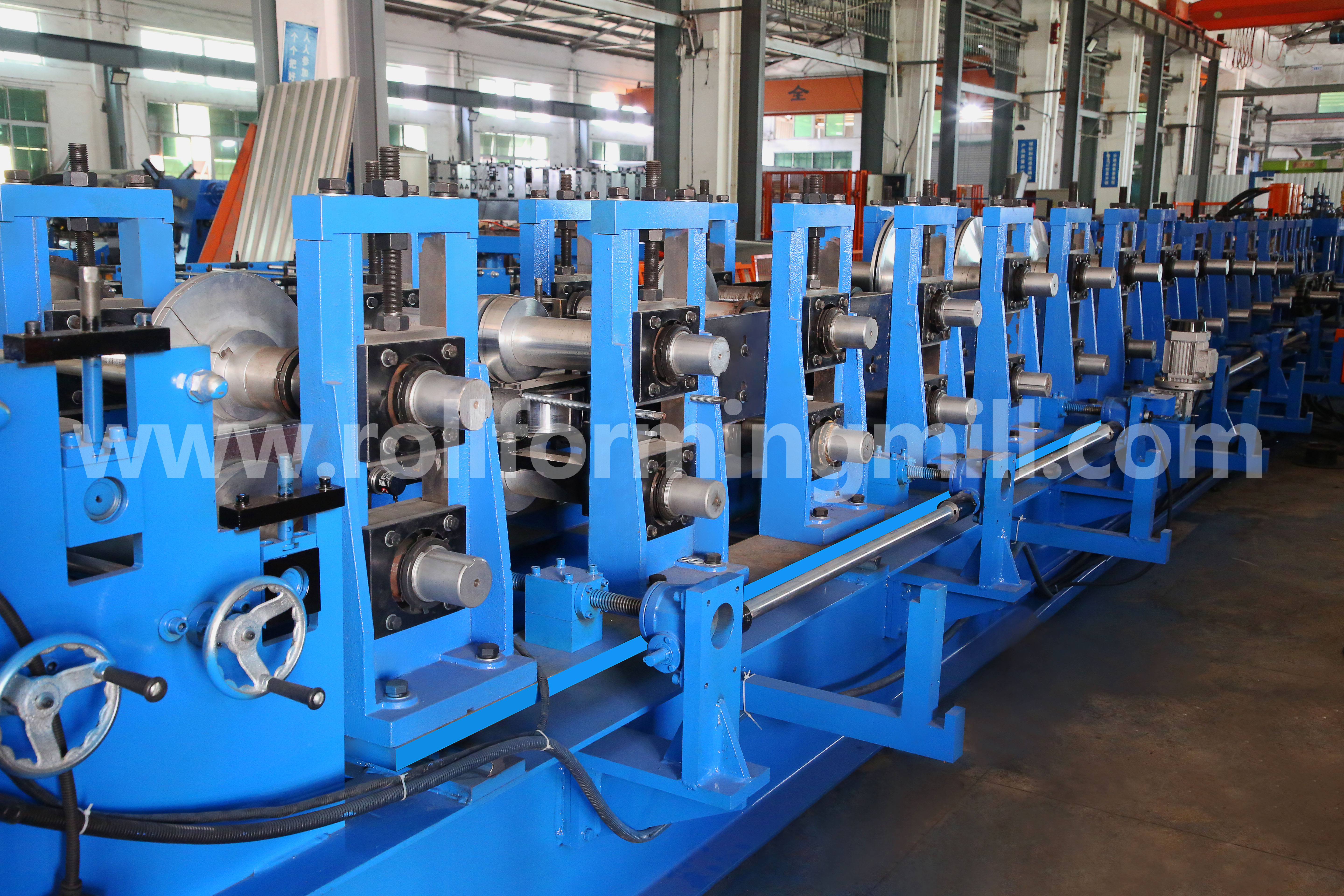

Machine Components Display

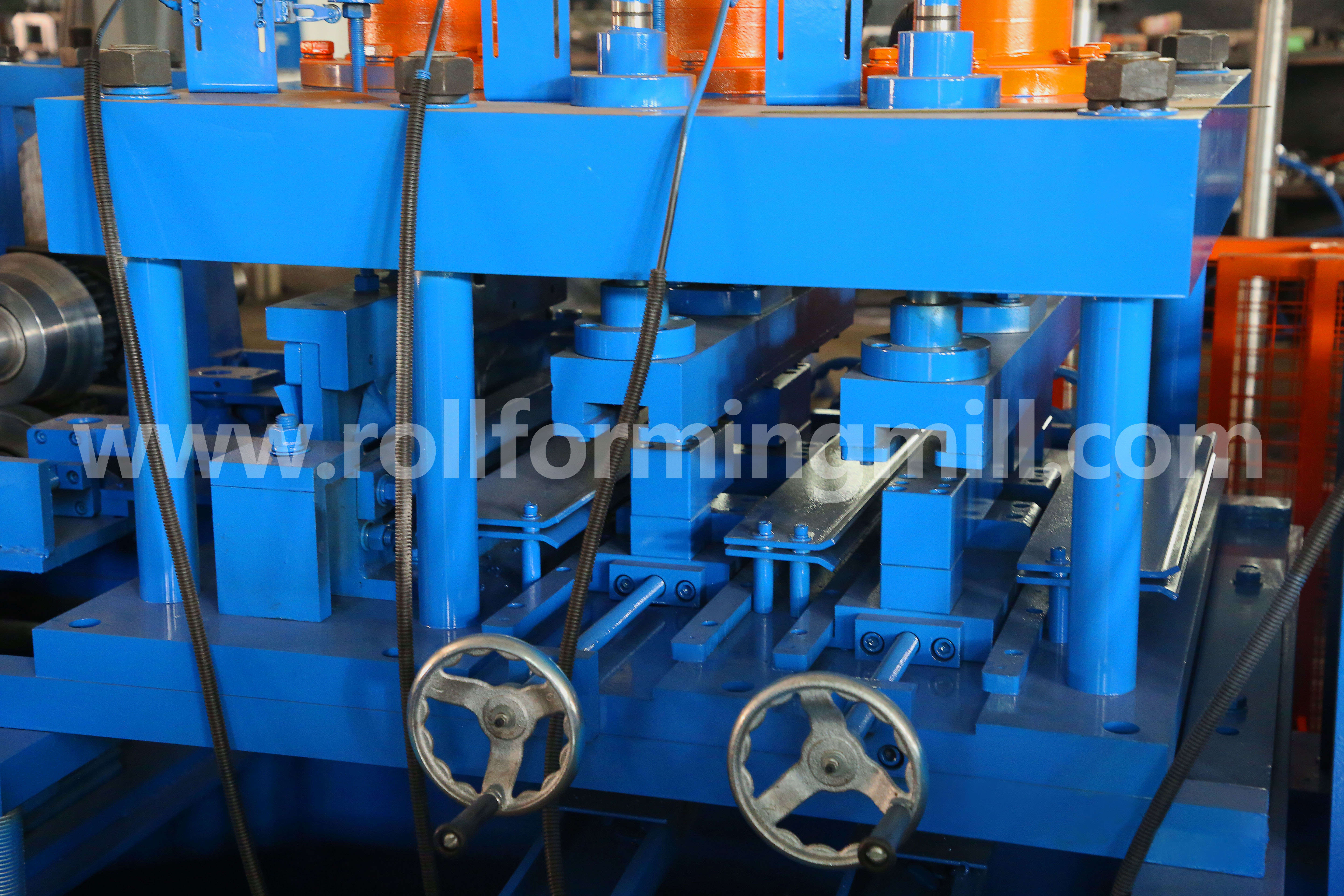

Punching Device
Hydraulic Pre-Cutting
Arch Structure
Straightening Roller

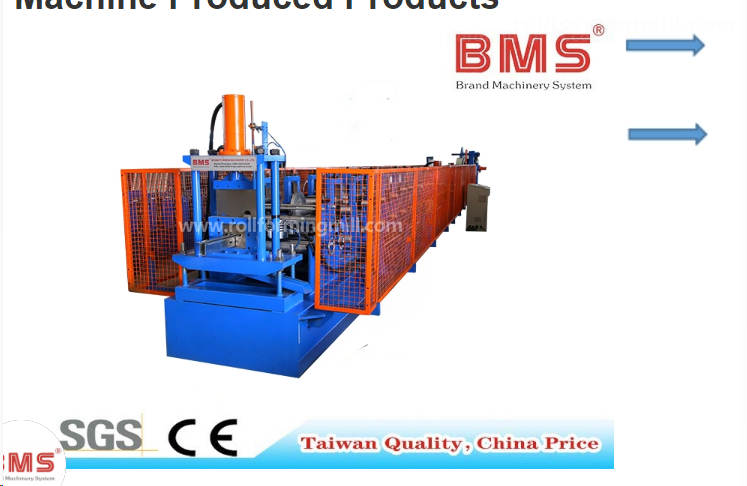

Machine Produced Products
Profile
No. | Main Parameters | Roll Forming Mill Parameters | ||
1. | Material Thickness | 2.0-3.0mm | Forming Stations | 16 Steps |
2. | Feeding Width | According to the drawings | Body Frame | H450 |
3. | Application Material | Galvanized sheet | Side Wall Thickness | European free standing structure |
4. | Electrical Standard | 380V50Hz/3Ph | Shaft Diameter | 40Cr, φ90/75mm |
5. | Cutter material | Cr12MoV | Main Motor Power | 11KW*2 |
6. | Yield Strength | 355Mpa | Screw Bolts | Grade 8.8 |
7. | Forming Speed | 25m/min | Effective Width | According to the drawing |
8. | Control System | PLC Control System | Roller | Gcr15, Heat treatment HRC58—62 |
9. | Hydraulic Motor | 7.5KW | Machine Color | Blue+Black+Orange |
10. | Testing Material | BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing |
Work Flow
Decoiler → Feeding Device/Leveling Device/Pre-Punching Device→ Main Roll Forming Mill → Hydraulic Post Cutting Device → PLC Control System → Hydraulic Station→Exit Rack*3
Machine Components Display
Punching Device
Hydraulic Pre-Cutting
Arch Structure
Straightening Roller

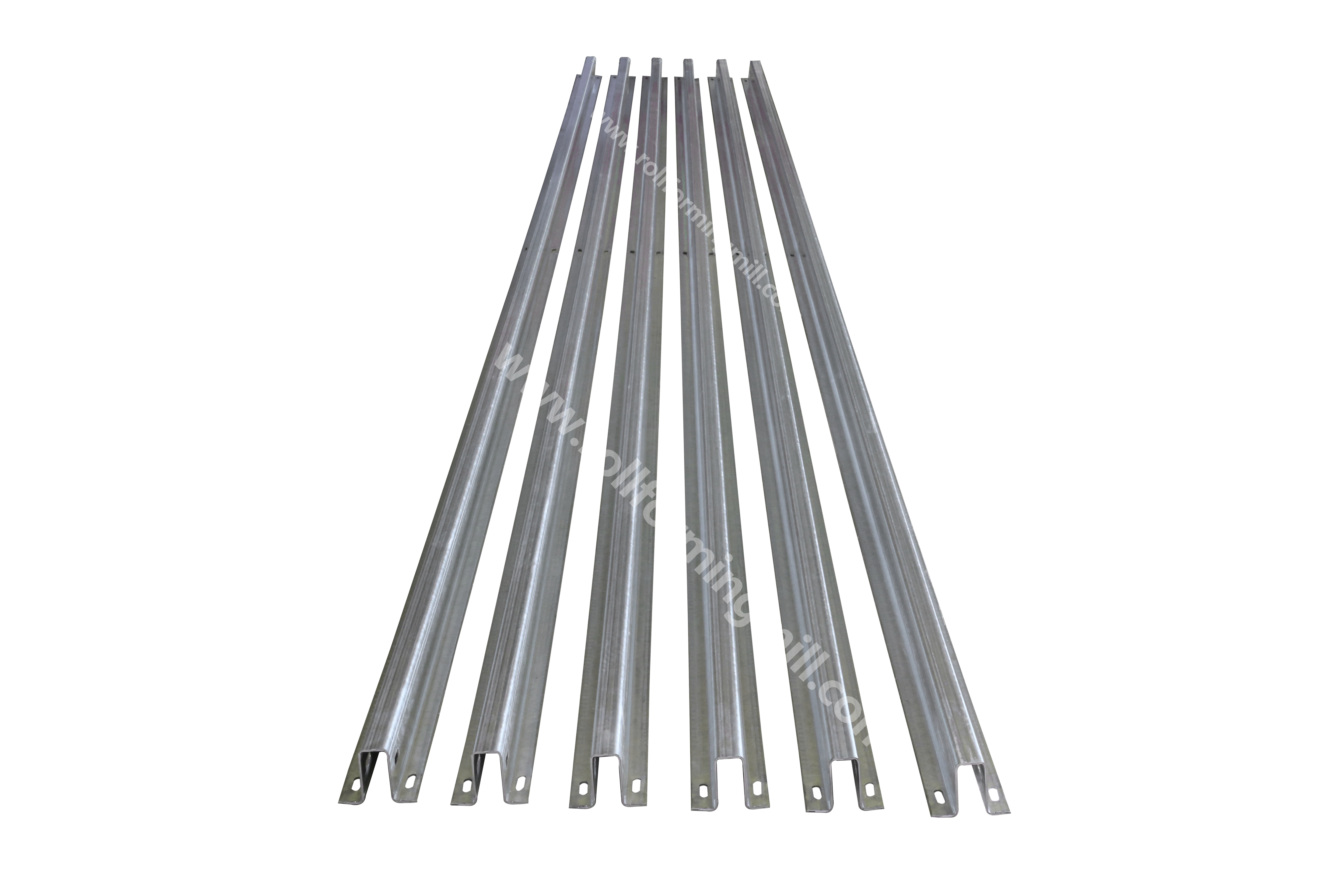

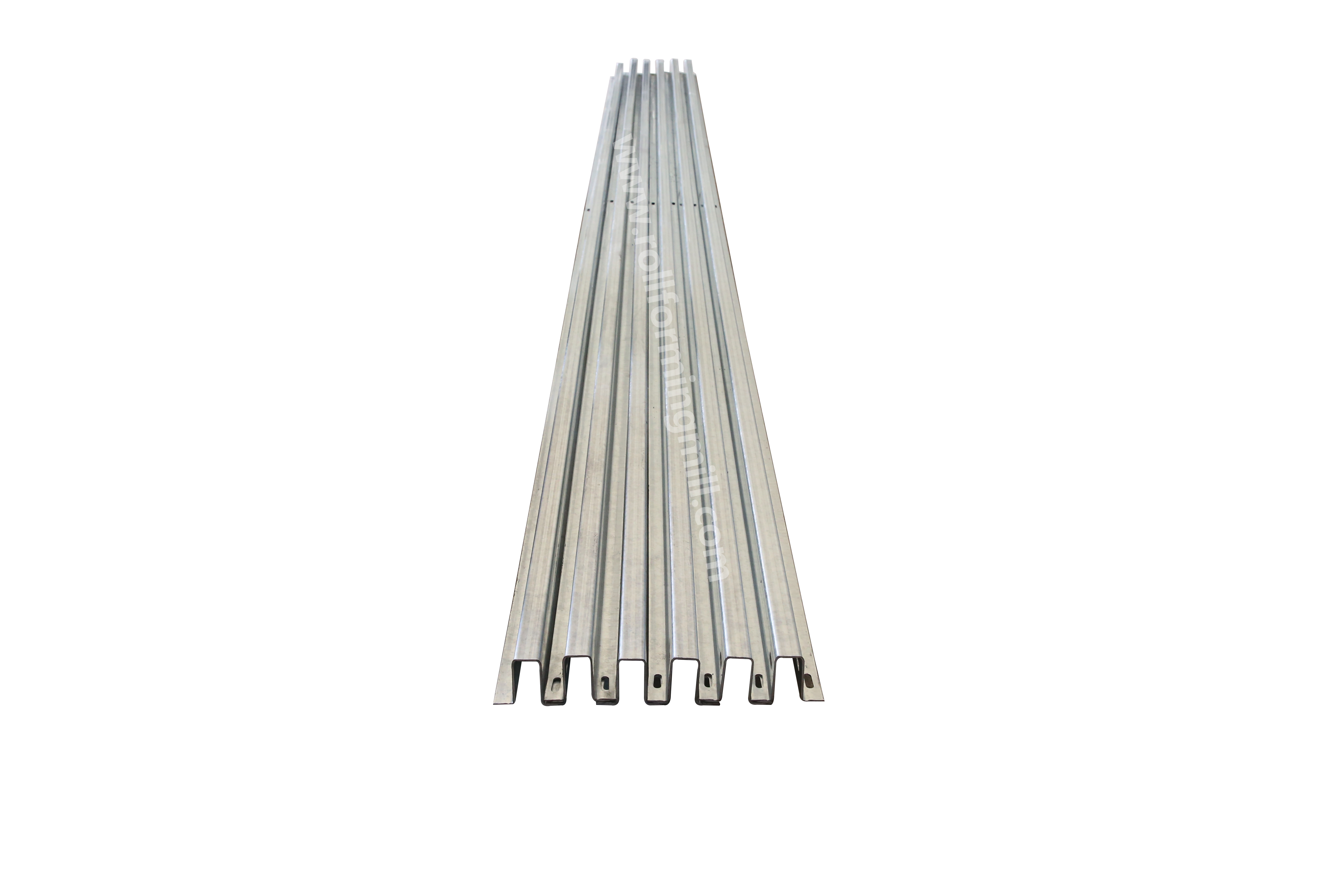

Machine Produced Products

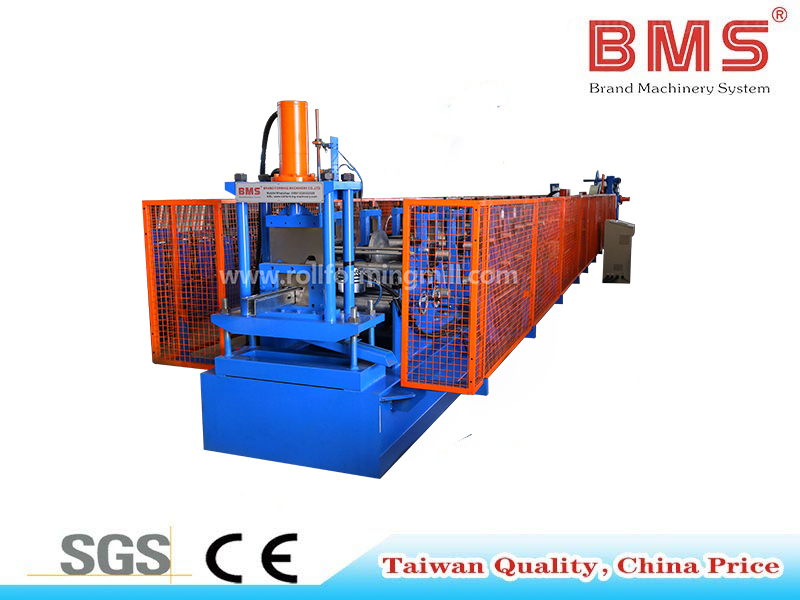

Auto Changed Omega Purlin Roll Forming Machine Finished Product

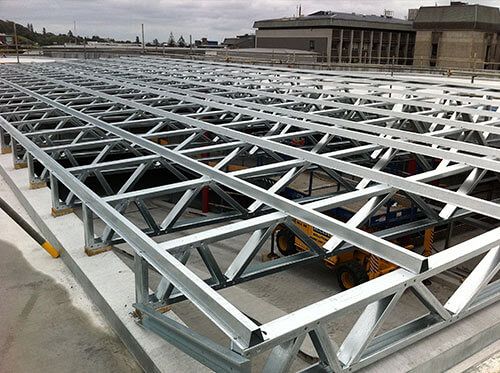

Application case
Application case
Auto Changed Omega Purlin Roll Forming Machine Finished Product

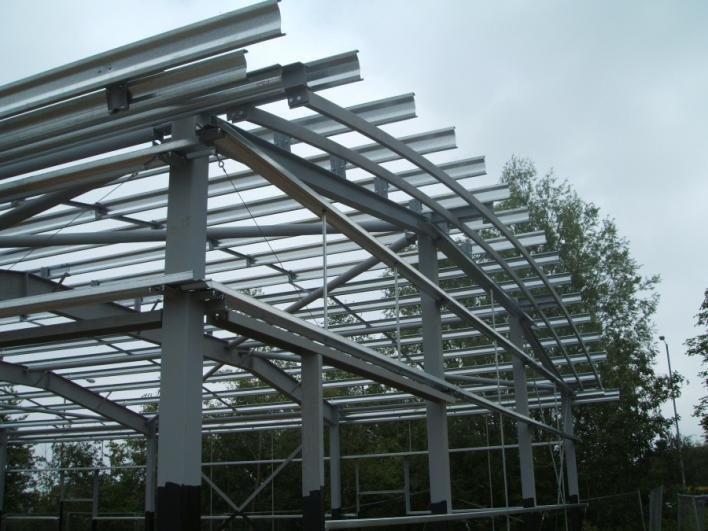

Application case
