YX40-200
BMS
Profile
Material | Applicable material | Galvanized sheet |
Material thickness | 1.5-2.5mm | |
With yield strength | Q235 | |
Coil | Feeding width | 312mm |
Coil ID range | 508mm±30mm | |
Capacity | Max. 5 Ton. | |
Machine | Base Frame | H350 type steel by welding. |
Side wall thickness | Q235 t18mm | |
Roller Material | Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated | |
Roller station | 16-steps to form | |
Shaft diameter | ф75mm,High Frequency Processing | |
Cutter | Hardness | Heat treatment to HRC58-62 degree |
Cutting tolerance | ≤±1mm | |
Power | Driving way | Gear/Sprocket transmission |
Main motor | 15KW,Frequency Speed Control | |
Pump motor for cutter | 4KW | |
PLC Control System | Inverter | Shihlin |
Touch Screen | WEINVIEW(Taiwan brand) | |
Encoder | KOYO (Japan brand) or OMRON (Japan brand) | |
Control Voltage | 24V |
1.Produced thin steel deck(0.4-1.2mm) can consume less concrete and shoring support thus saves on construction material, underside design is aesthetically pleasing and saves on costly materials for decoration. If upgrade the machine to work for thick material 1.5-3mm,the produced steel deck can be used as logistics steel platforms with high flatness requirements (no more than 3mm to meet the working scene of intelligent mobile robot AGV/IGV).
2. Optional vertical ribs or web overall embossing to increase strength.
3. The roller is quenched after fine machining with GCr15 bearing steel, and Hard-Chromed for long working life more than 10years.
4.Optional automatic stacker,improve working efficiency, save labor cost, and help you improve competitive advantage.
5T Hydraulic Decoiler→Manual Pre-Cutter Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Cutter Device→Exit Rack
Technical specifications
1) 5T Hydraulic Decoiler:one set
Hydraulic Control Steel Coil Inner Bore Shrinkage And Stop
Auto Feeding Power And Self-Stop Device
Max Feeding Width: 650mm
Oil pump motor:2.2KW
Capacity:Max.5 Tons
2) Pre-cutter
Brand: BMS Original: China
With feeding material guide,avoid wasting material

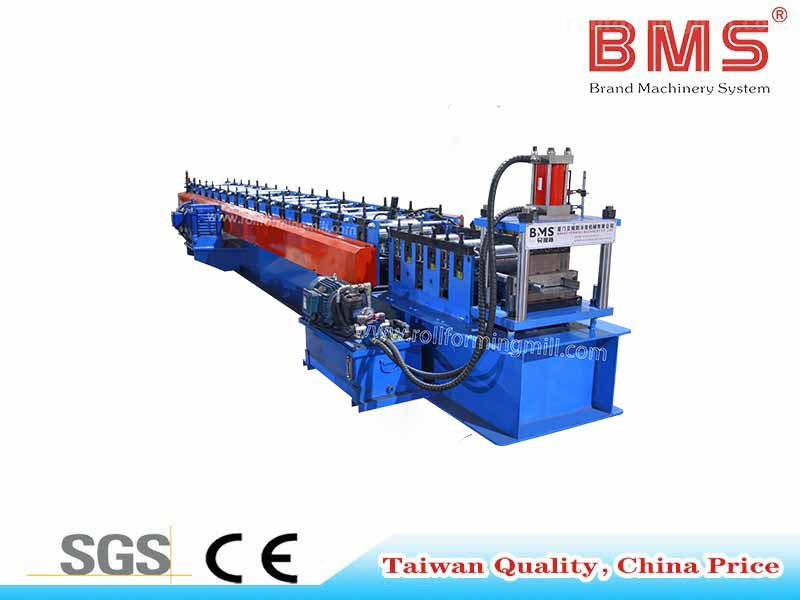

3) Main Machine

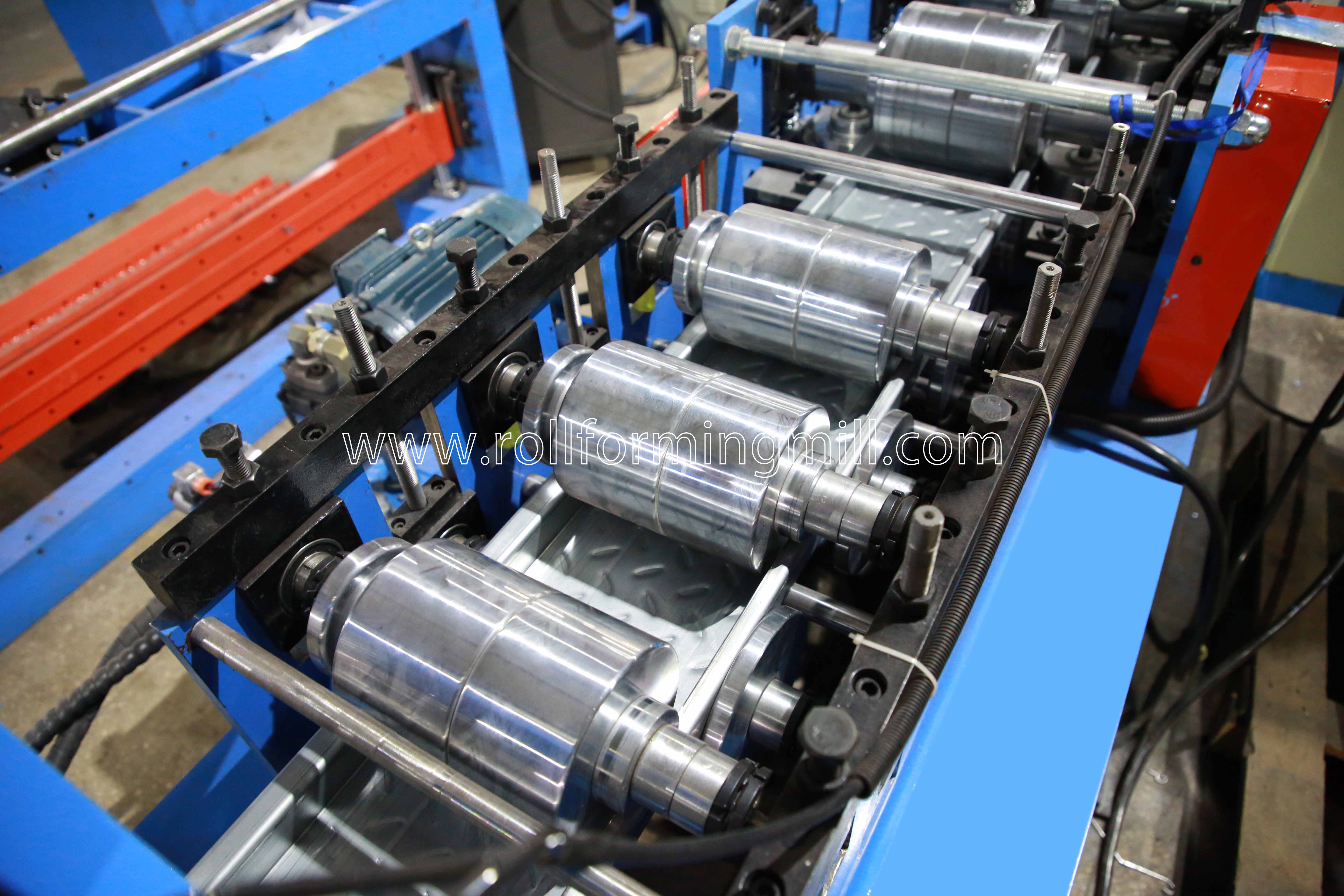

Rollers manufactured from high quality Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated.
Shafts manufactured from 45# steel,Quenching and tempering , hard chrome
Body frame made from 350# H type steel by welding
Real forming speed:15-20m/min
4) Hydraulic Post Cutter
Post To Cut,Stop To Cutting,Two Pieces Type Of Cutting Blade Design
Hydraulic Motor:4KW;Cutting Pressure:0-16Mpa
Cutting Tool Material:Cr12MoV(= SKD11 Steel),Heat treatment to HRC58-62
With At Least One Million Times Of Cutting Life
The Cutting Power Is Provided By The Main Engine Hydraulic Station
5) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.) On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.
6) Exit Rack:Three Units
7) Product Show
Packing method:Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-sale Service
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
