Product Description
The BMS 0.5-1.2mm Metal Sheet Oblique Slitting Machine is engineered to deliver high-precision processing for a diverse range of metal coils, including galvanized steel and PPGI. Designed with versatility in mind, this precision slitting line can handle various material thicknesses (ranging from 0.5mm to 1.2mm) and widths up to 1250mm, making it a highly adaptable solution for manufacturing facilities with multi-purpose production requirements. Whether you are processing standard coils or specialized raw materials, this machine provides consistent, reliable performance.
At the core of this machine is an advanced electrical control system that significantly minimizes slitting errors while ensuring user-friendly operation. The equipment features a comprehensive control setup, including a main console, an unwinding deputy console, and a winder station. This centralized control architecture allows operators to manage the entire production line seamlessly. The master console is equipped with a clear digital display and supports essential functions such as high and low-speed adjustment, manual feeding, continuous cutting, and real-time fault alarms. This comprehensive monitoring ensures that any production anomalies are detected and addressed immediately, preventing material waste.
To guarantee operational stability, the speed control systems and Programmable Logic Controller (PLC) are sourced from reputable industry-leading manufacturers. Additionally, all core electrical components, sensing elements, cables, and wires meet stringent industrial standards. Through the intuitive touch screen interface, operators can easily modify production process parameters, such as line speed, and effortlessly switch between manual, single-action, and fully automatic modes. This level of monitoring and control ensures safe, efficient, and continuous operation, ultimately boosting productivity and reducing labor costs.
One of the standout features of this metal slitting line is its innovative double-knife seat design. This mechanism allows the machine to automatically adjust and replace the knife group based on the pre-set slitting width. By eliminating the need for manual blade repositioning, this design drastically reduces setup time, enhances overall work efficiency, and provides substantial cost savings for high-volume processing tasks. The integration of high-quality cutting tool materials (Cr12 Mov with heat treatment) further ensures long-lasting sharpness and durability, minimizing maintenance frequency and ensuring smooth, burr-free edges on every slit.
| No. | Main Parameters | Roll Forming Mill Parameters |
| 1. | Material Thickness | 0.5-1.2mm | Forming Stations | 3-step feeding |
| 2. | Feeding Width | 1250mm | Body Frame | H400*199 |
| 3. | Application Material | Galvanized Coil, PPGI | Reducer | R series |
| 4. | Electrical Standard | 380V/50Hz/3ph | Shaft Diameter | 45# Steel, φ115mm |
| 5. | Manual Decoiler Diameter | 508±30 mm | Main Motor Power | 4.0 KW |
| 6. | Yield Strength | 235-355Mpa | Screw Bolts | Grade 8.8 |
| 7. | Slitting Speed | 12m/min | Effective Width | As Customer Design |
| 8. | Control System | PLC Control System | Cutting Tool Material | Cr12 Mov, CNC Lathes, Heat Treatment, HRC58-62 |
| 9. | Hydraulic Motor | 4.0KW | Machine Color | Blue+Black+Orange |
| 10. | Testing Material | BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing |

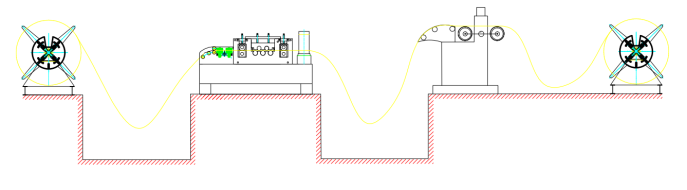

Work Flow
Manual Uncoiler (5Ton) → Feeding Device → Leveling Device → Slitting Device → Cutting Device → PLC Control System → Hydraulic Station
Machine Components Display

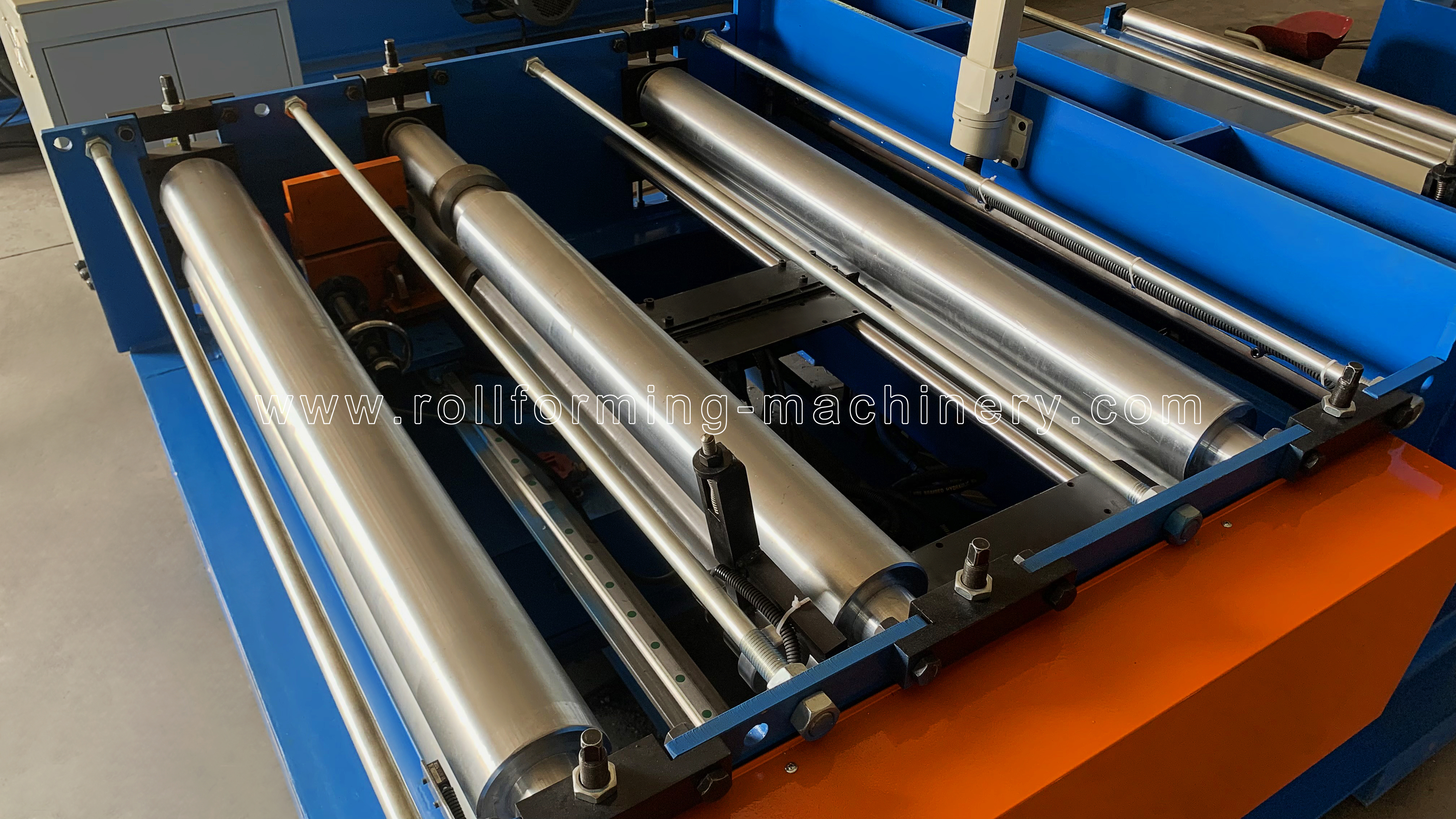

Guide Shaft

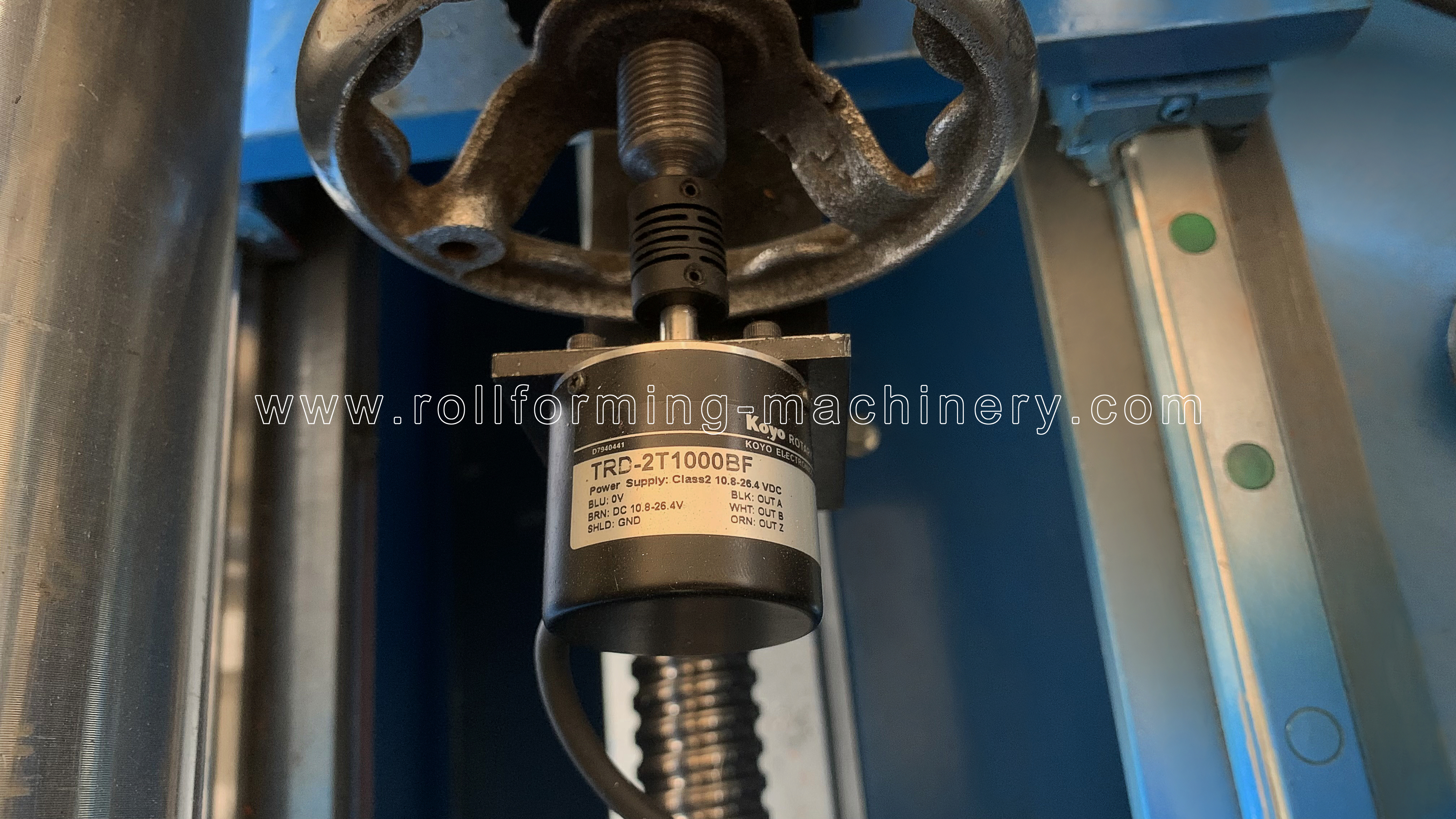

Encoder

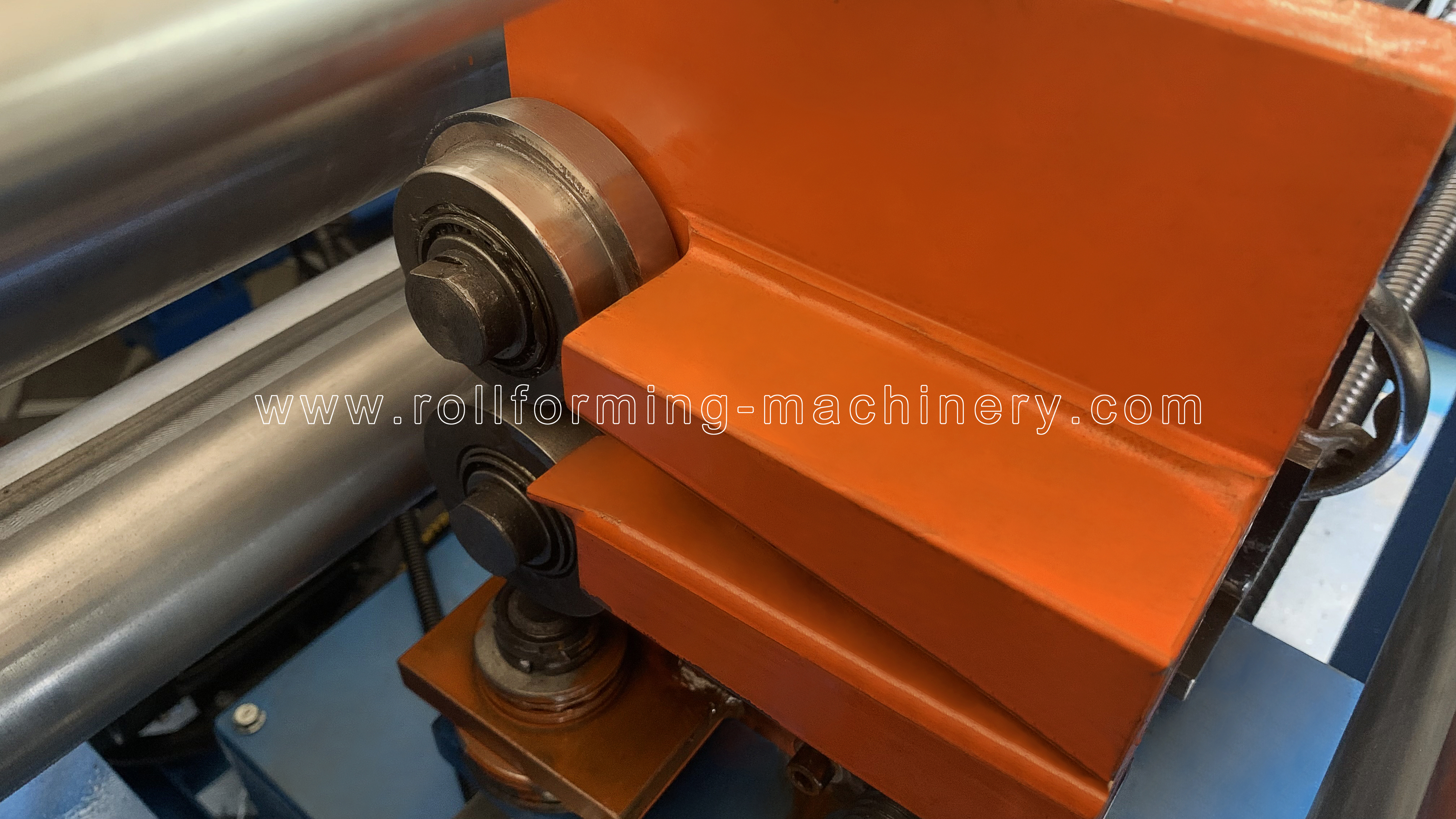

Slitting Cutter

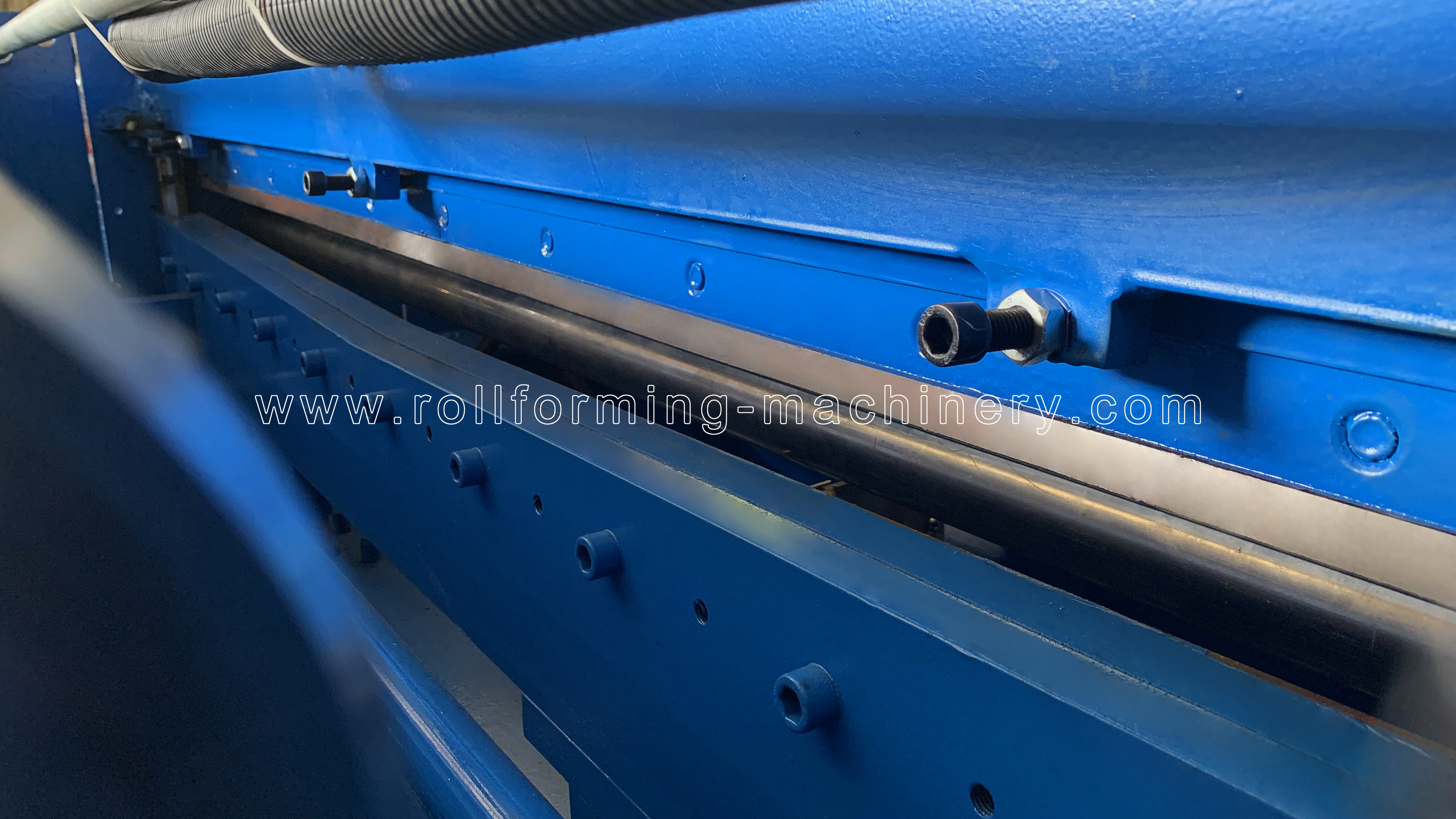

Hydraulic Pre-Cutter
Processing Capability Demonstration
Application Case
The 0.5-1.2mm metal sheet oblique slitting machine is engineered to deliver precise and clean cuts, ensuring that the processed metal sheets are perfectly prepared for subsequent manufacturing stages. As demonstrated in the trim roll forming operations and the resulting finished products, the equipment guarantees smooth edges and accurate dimensions. This high level of processing precision significantly reduces material waste, enhances the structural integrity of the final metal profiles, and provides reliable output for demanding industrial production lines.

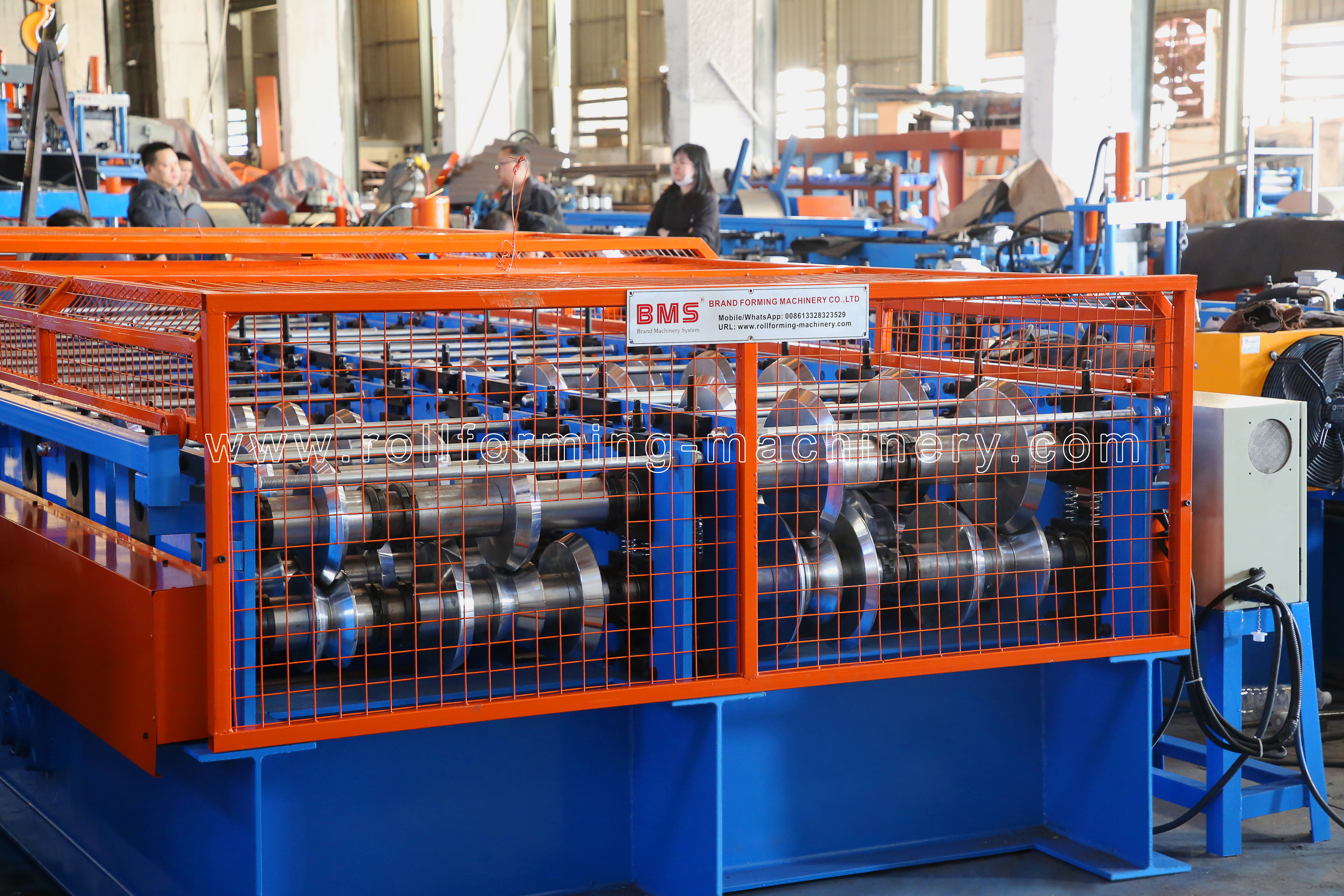

Trim Roll Forming Machine | Finished Product
The finished metal sheets processed by our oblique slitting equipment are widely utilized across various sectors, particularly in building construction, roofing systems, and architectural cladding. The application case below illustrates how these precisely slit and formed metal components contribute to durable, weather-resistant, and aesthetically pleasing building structures. By ensuring consistent output quality and precise material preparation, this machine helps manufacturers meet strict project requirements, lower on-site installation risks, and improve overall construction efficiency for end-users.

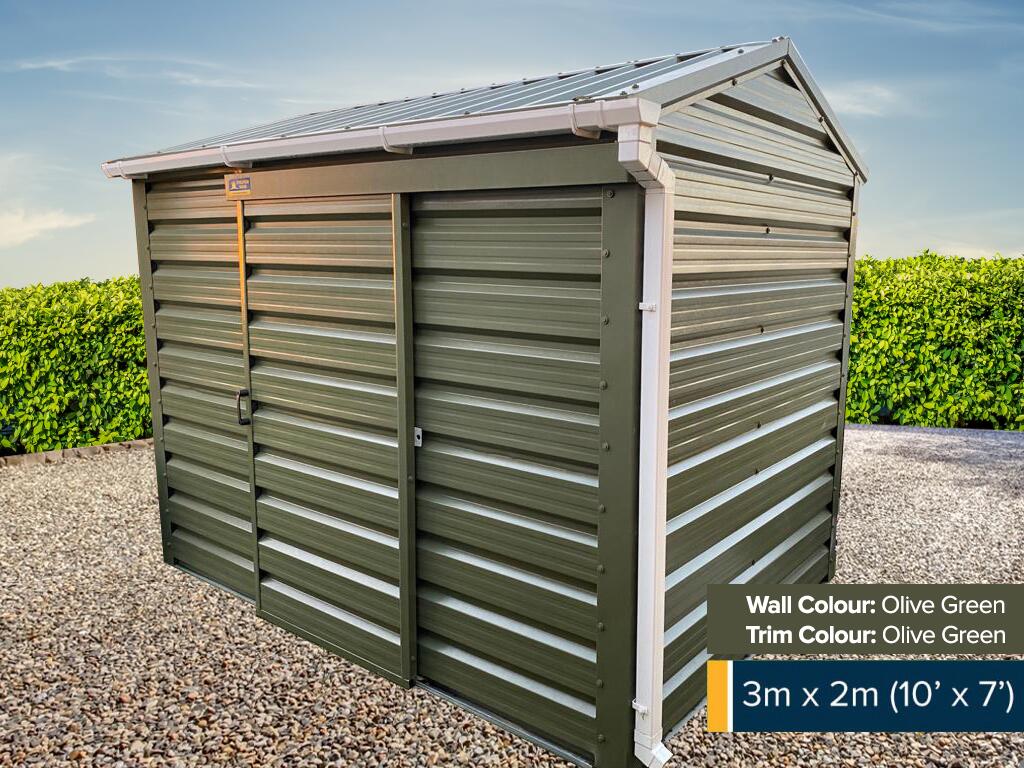

Practical Application Case
Video Show
Watch the video below to see the 0.5-1.2mm Metal Sheet Oblique Slitting Machine in actual operation, demonstrating its working status and slitting performance.
