Using a roof seamer correctly starts before you switch the machine on. The standing seam panels need to be properly joined, the starting section needs to be prepared, and the machine must be positioned correctly for the roof system you are working with.

The overall process is similar with many powered seamers, but the exact starter length, locking sequence, machine direction, and settings can vary considerably. That is why the installation instructions for your roof system and the operating instructions for your seamer should always take priority over a generic procedure.

This guide walks you through the main steps, from checking the panels and preparing the starting seam to running the machine, inspecting the finished joint, and working safely on the roof.

What Should You Check Before Using a Roof Seamer?

A few checks before you start can prevent problems that are much harder to correct after the seam has already been formed.

Confirm the Roof Seamer Matches the Panel

Before you start, make sure you are using the right machine and tooling for the roof. Different electric roof seamers are designed around different panel profiles, finished seams, materials, and forming sequences.

Check:

• Panel profile

• Required finished seam

• Seamer and roller configuration

• Material type

• Material thickness

• Required travel direction, where specified

Do not assume that a seamer adjusted for one standing seam profile will also work with another profile simply because they look similar.

The rollers have to follow the actual shape of the male and female panel legs as the seam closes. If that geometry does not match, the machine can produce an incomplete seam or damage the panels.

Inspect the Standing Seam and Work Area

Before placing the machine on the joint, inspect the installed panels.

Make sure:

• The male and female panel legs are fully engaged.

• Panels are correctly aligned.

• Clips are properly installed.

• The seam is not crushed, bent, or damaged.

• Excess sealant is not blocking the joint.

• Tools, screws, metal scraps, and other debris are clear of the machine path.

• The roof surface is suitable for safe work.

A powered seamer is designed to close a correctly assembled joint. It should not be used to force badly positioned panels together.

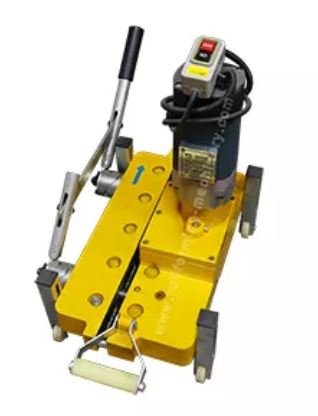

Inspect the Roof Seamer

Check the machine itself before connecting it to power.

Look at:

• Forming rollers

• Guides

• Loose fasteners or damaged parts

• Dirt and metal particles

• Dried sealant around the tooling

• Power cord and plug

• Controls

• Lubrication points where specified

• Machine tether or retention point where provided

Clean or inspect the rollers with the machine disconnected from power.

Even small pieces of debris trapped around the forming rollers can mark a painted panel or affect how smoothly the machine moves along the seam.

How Do You Prepare and Lock the Starting Roof Seam?

Most powered seamers cannot simply be placed onto an untouched panel joint and expected to begin forming correctly.

You normally need to prepare a short starter section first so the machine's different rollers can enter the seam at the correct stage.

The exact length and sequence depend on the panel system and seamer. Do not use one generic crimp measurement for every roof.

Start With the Required Hand Crimp

Use the hand seamer, crimper, or starter tool specified for the roofing system.

Depending on the panel and machine, hand forming may be needed to:

• Fully seat the panel legs

• Create the first-stage lock

• Prepare the seam around clips

• Form the starting section at the eave

• Prepare an end lap

• Close details the powered machine cannot initially reach

For a mechanically locked roof, this first stage may form part of the seam to approximately 90 degrees before the powered machine continues the process.

How much of the seam you prepare by hand varies. Use the instructions supplied for the exact machine and roof system rather than copying a starter length from another seamer.

Complete the Second Lock Where Required

Some 180-degree double-lock systems need part of the starter section to be formed farther before the powered seamer is installed.

This creates a progression along the starter:

• One part is at the first forming stage.

• Another part is more fully closed.

• The machine's later forming rollers can engage the more advanced section.

This allows each set of rollers to enter the seam at the stage it is designed to form.

Not every roof seamer uses this arrangement, however. Some machines use different forming sequences, so follow the instructions for your equipment rather than assuming every double-lock roof is started the same way.

Check the Starter Before Installing the Machine

Before putting the powered seamer onto the joint, check that:

• The starter follows the intended seam shape.

• The panel legs remain properly engaged.

• The seam has not been flattened or over-crimped.

• There is enough prepared seam for the machine to engage as required.

If the starter looks wrong, correct it first.

Installing a powered machine onto a badly prepared starter can cause the rollers to enter the seam incorrectly from the beginning.

How Do You Set Up a Roof Seamer on the Standing Seam?

Once the starter is ready, position the machine carefully rather than simply dropping it onto the joint.

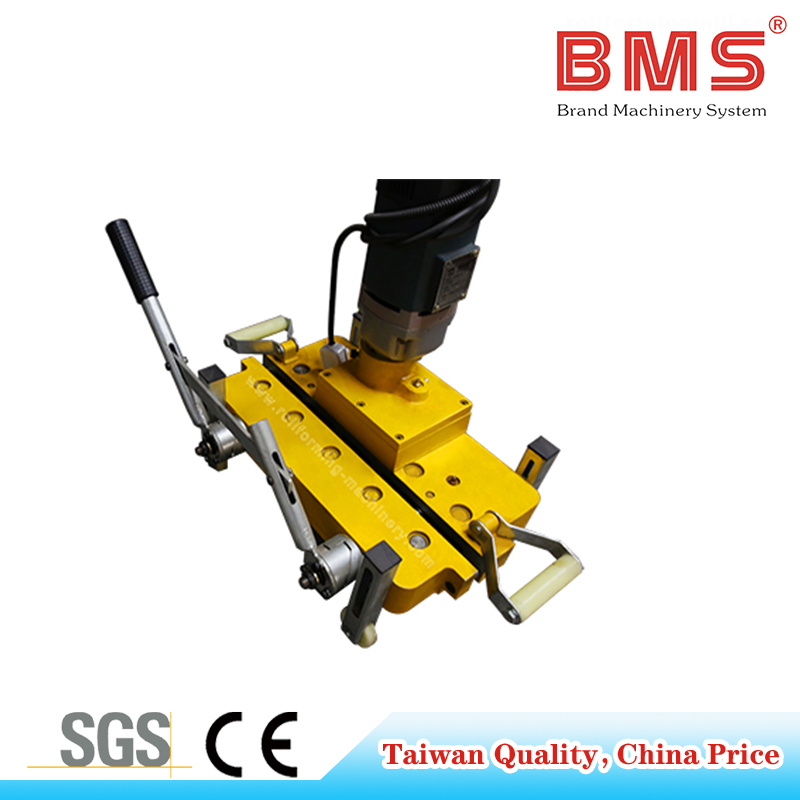

Position the Roof Seamer

Place the seamer over the prepared starting section.

Check that:

• Each forming station sits over the correct stage of the starter seam.

• Rollers and guides sit squarely on the joint.

• The machine faces the required direction of travel.

• The electrical cord remains clear of the rollers.

• Any machine tether is positioned so it will not interfere with travel.

• The seam ahead is free from obstacles.

The machine should sit naturally over the joint. If you have to force it into position, stop and check the seam and tooling again.

Engage the Seamer

Different machines use different handles, levers, guides, or locking mechanisms to close the rollers around the seam.

Follow the procedure supplied with your machine.

Once it is engaged, confirm that:

• The machine is seated fully.

• Rollers remain aligned with the seam.

• The panel has not shifted.

• Nothing is being pinched incorrectly.

• The machine can begin moving without hitting another roof detail.

Check Power and Direction

Before starting, confirm:

• Correct voltage

• Correct electrical frequency

• Suitable power source

• Extension-cord requirements

• Forward or reverse setting where applicable

• Speed setting where adjustable

Do not copy an electrical specification from another roof seamer. Motor requirements differ between machines, particularly when equipment is purchased for use in another country.

How Do You Start and Test a Roof Seamer?

Do not immediately send the machine along the full panel.

Your first powered movement should be a short test.

Run a Short Test Section

Start the machine and allow it to travel only the short distance required by the manufacturer's instructions. Then stop.

Different machines call for different test distances, so there is no useful universal measurement here.

You want to see what the machine is doing to the seam before it travels the full length of the roof panel.

Check the Finished Seam

Inspect the section behind the machine.

Look for:

• Complete closure

• Correct final seam shape

• Even forming on both panel legs

• No rolled-over or crushed seam

• No panel distortion

• No heavy roller marks

• No scratches or coating damage

• No unusual sealant displacement

If anything looks wrong, do not continue.

A short test run is your best opportunity to catch incorrect setup while the affected area is still small.

How Do You Run a Roof Seamer Along the Panel?

Once the test seam looks correct, you can continue along the panel. The key is to monitor the machine rather than simply switching it on and ignoring it.

Let the Machine Do the Seaming

A self-propelled seamer is designed to move itself along the joint.

You generally should not push or pull it to make it travel faster.

Instead:

• Stay near enough to monitor the machine safely.

• Watch its position on the seam.

• Inspect the finished joint behind it.

• Manage the power cord.

• Keep tools and materials out of its path.

• Watch for roof edges, penetrations, and other approaching details.

Do not ride on the machine or interfere with its movement unless the operating instructions specifically require some form of operator control.

Watch the Seamer Throughout the Run

A good starter seam does not guarantee that nothing can go wrong later.

Watch for:

• The machine wandering sideways

• Rollers beginning to climb off the seam

• Unusual vibration

• Binding

• Incomplete closure

• A sudden change in seam appearance

• Scratching or coating damage

• Abnormal motor noise or behavior

The moment the seam starts looking different, stop and check why. Continuing for another 20 metres because you hope the problem will correct itself can turn a small setup issue into damage along a large section of roof.

Where Do You Need to Finish the Roof Seam by Hand?

Powered seamers rarely complete every centimetre of a mechanically locked roof.

You may still need hand seamers or crimpers in some areas and these sections still need to reach the finished seam required by the roof system.

Installation order matters too.

If a penetration, ridge detail, flashing, or another component will later block access to the standing seam, complete the required mechanical seaming before that detail prevents you from reaching the joint.

When Should You Stop the Roof Seamer?

You should stop immediately if the machine or finished seam begins behaving differently from the successful test section.

Stop if:

• The seam does not close fully.

• One panel leg begins rolling over.

• The machine starts riding up or walking off the seam.

• The panel begins buckling.

• The coating is being scratched or removed.

• Sealant is being pushed out abnormally.

• The machine starts binding.

• Rollers or guides appear misaligned.

• The motor behaves unusually.

• The electrical cord enters the machine's path.

• An obstacle or roof detail prevents safe travel.

Once stopped:

1. Disconnect the machine from power before making adjustments.

2. Check panel engagement.

3. Check the starter and finished seam.

4. Inspect the rollers and guides.

5. Correct the setup according to the machine instructions.

6. Make another short test before returning to full production.

Do not keep running a seamer that is visibly damaging the joint.

What Roof Seamer Safety Rules Matter Most?

Roof seaming combines powered machinery, electricity, sheet-metal edges, and work at height. Safety needs to be part of the operating process rather than something considered only after the machine is running.

Use the Required Fall Protection

A roof seamer does not change the fact that you are working at height.

Follow the project's fall-protection plan and the rules that apply to the jobsite.

Pay particular attention to:

• Roof edges

• Skylights

• Openings

• Steep slopes

• Changes in roof level

• Approved anchor points

Never treat the roof seamer itself as your fall-protection anchor unless the equipment is specifically designed and approved for that purpose.

Secure the Machine Correctly

Some roof seamers provide a tether or retention point to help prevent the machine from sliding or falling from the roof.

Use it according to the manufacturer's instructions.

However:

A machine tether and a worker's fall-protection system are two different things.

The machine's retention line is intended for the equipment. It should not be treated as your personal fall-arrest system.

Follow Electrical Safety Requirements

Inspect the cord and plug before use.

Keep electrical cables:

• Away from forming rollers

• Away from sharp sheet edges

• Away from water

• Clear of walkways where they can be damaged

• Clear of the machine's travel path

Use extension cords suitable for the machine and the jobsite. OSHA requires flexible cords used with portable construction tools to be suitable for the conditions of use and protected from damage, including sharp edges and pinch points.

Disconnect the machine before cleaning, adjusting, or working around its tooling.

Keep Hands Away From Forming Rollers

Never reach into the rollers, guides, locking mechanism, and other moving parts while the machine is powered.

If debris becomes trapped or the seam jams, stop and disconnect the seamer before trying to clear it.

Do Not Operate in Unsafe Roof Conditions

Do not continue roof seaming when conditions make the work unsafe.

That can include wet or slippery panels, strong winds, poor visibility, electrical hazards, unstable footing.

Weather can change both worker safety and how easily equipment can be controlled on the roof.

Follow the project's safety requirements and suspend work when the conditions no longer allow the machine to be used safely.

What Should You Do After Roof Seaming?

The job is not finished when the machine reaches the end of the final powered run.

Inspect the Completed Seam

Before leaving the area, look over the finished roof joints.

Check for:

• Consistent closure

• Sections that were missed

• Incomplete hand-seamed details

• Damaged panels

• Coating scratches

• Problems around clips

• End laps

• Penetrations

It is much easier to correct a problem while the area is still accessible than after the crew has moved on and later roof details have been installed.

Clean and Store the Roof Seamer

After use:

• Disconnect the machine.

• Clean the rollers and guides.

• Remove metal particles and dirt.

• Remove sealant residue.

• Inspect tooling for wear.

• Lubricate only where the manufacturer specifies.

• Inspect the power cord and controls.

• Store the machine somewhere clean and dry.

Clean rollers do more than extend machine life. They also reduce the risk of marking or incorrectly forming the panels on the next project.

Conclusion

Using a roof seamer correctly is a sequence.

You first confirm that the machine matches the panel. Then you inspect the joint, prepare the starter seam, position the machine, and make a short test. Only after that test looks correct should you continue along the full panel.

During the run, keep watching the machine and the finished seam. Complete inaccessible sections by hand, stop when something looks wrong, and inspect the finished roof before packing the machine away.

If you need an electric roof seamer configured for a particular standing seam panel, contact BMS for your appropriate roof seamer.

Frequently Asked Questions

Do you have to hand crimp a standing seam before using a roof seamer?

Often, yes. Many powered roof seamers need a short starter section to be formed by hand before their rollers can engage the joint correctly. Hand crimping may also be required around clips, eaves, ridges, penetrations, and other areas the powered machine cannot reach. Follow the instructions for your particular roof system.

How much of the roof seam should you hand crimp before starting the machine?

There is no single correct length for every roof seamer. The required starter length depends on the panel profile, finished seam, and machine design. Use the dimensions provided by the roof-system or seamer manufacturer rather than applying a measurement from another machine.

Can you stop a roof seamer in the middle of a panel?

Yes, if necessary. Stop the machine if the seam begins forming incorrectly, the machine binds or wanders, the cord enters its path, or another unsafe condition develops. Follow the machine instructions for stopping and restarting so the seam remains correctly formed.

Why is my roof seamer not closing the seam correctly?

Possible causes include incorrect panel engagement, the wrong machine or tooling, a badly prepared starter seam, roller misalignment, incorrect adjustment, damaged tooling, excess sealant, or a material/profile combination outside the machine's intended setup. Stop the machine and identify the cause before continuing.

Can you use a roof seamer on a wet roof?

You should not operate the machine when the roof surface or weather creates unsafe footing, electrical risk, or difficulty controlling the equipment. Follow the roof-system instructions, machine manual, and jobsite safety requirements before resuming work.
