Metal Poultry Feeding Trough Roll Forming Machine YX154-86

Supply Automatic Terminal Crimping Machine, Wire Stripping and Crimping Machine. Supply Automatic Wire Crimping Machine, Wire Stripping and Crimping Machine. Factory Direct Pricing.
Availability:
Quantity:
Inquire Add to Basket

  • YX154-86

  • BMS

Quick Details

Profile

 Metal Poultry Feeding Trough Roll Forming Machine YX154-86



No.               Main Parameters                  Roll Forming Mill Parameters
1. Version Size Tolerance

Shape Factory ±0.5mm

Straightness 6m± 2mm

 Forming Step 29-step
2. Length Tolerance ±0.5mm（6M） Base H450
3. Inspection Thickness 1.0 mm Side Wall Thickness 18mm
4. Product Speed

12-15m/min

Shaft

 45# steel, φ75mm
5. Application Material

Galvanized Sheet(Gi),


Cold Rolled Sheet

Roller

 45# steel, Rough turning, CNC lathes, Heat Treatment, Brushed and Polished
6. Yield Strength 235-345Mpa Main Motor 11KW
7. Machine Size

Tolerance ±1mm (6m)

 Reduce Speed K Series
8. Material Thickness 1.0 mm Chain  ZIQIANG
9. Control System PLC Control System   Forming Speed

12-15m/min
10. Testing Material

BMS Will Provide The Size of Feeding Material to Purchase That 2 Weeks Before Machine Testing



Work Flow


Feeding Guide Device → Main Roll Forming Mill→ PLC System  → Finished Rollforming and Profile Outlet


→ Hydraulic Post-cutter → Exit Rack


Machine Components Display

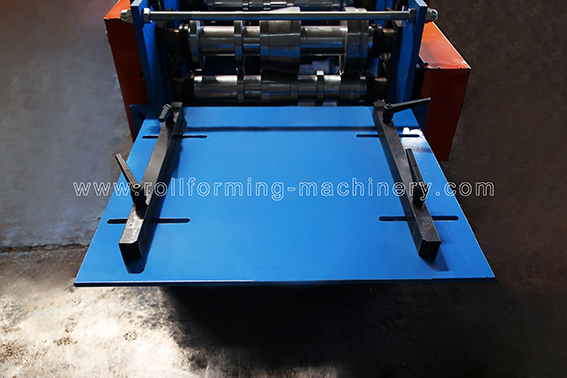

Feeding Device             Metal Poultry Feeding Trough Roll Forming Machine YX154-86


      Feeding Guide Device                        Roll Forming Mill


Metal Poultry Feeding Trough Roll Forming Machine YX154-86                  Metal Poultry Feeding Trough Roll Forming Machine YX154-86



         Finished Rollforming and Profile Outlet                                        Product Application Case



Machine Produced Products


Metal Poultry Feeding Trough Roll Forming Machine YX154-86微信图片_20210726144513Metal Poultry Feeding Trough Roll Forming Machine YX154-86


详情页_03

详情页_04

详情页_05图片1
