Customized U Channel Roll Forming Machine With Taiwan Quality

This machine exports to many countries, the most important is that all you need can be customized.
Availability:
Quantity:
Inquire Add to Basket

  • YX40-75/YX32-90/YX40-100

  • BMS

Quick Details

Profile

                         F2E0CFDB-AE2F-EE23-4D62-43F0AE3AA6EF


No.               Main Parameters                  Roll Forming Mill Parameters
1. Material Thickness

1.5mm

 Forming Stations

10-step
2. Version Size Tolerance

 ±0.5mm

(Shape Tolerance)

Hydraulic motor

3W
3. Application Material

 Galvanized Coil

 Side Wall Thickness

 Q235 t18mm
4.

Body Frame

300# H

Electric standard

380V/50Hz/3PH
5.

Manual Decoiler

4Tons Manual Decoiler

 Main Motor Power

7.5 KW
6. Yield Strength

G235-390Mpa

 Screw Bolts Grade 8.8
7.

Main Shafts Diameter

ф65mm

Chain

ZIQIANG
8. Effective Width As Customer Design Product Speed

15m/min
9. Control System PLC Control System   Roller

bearing steel EN31(=GCr15

for long working life)
10. Length Tolerance ±1mm（6M） Reducer

K Series
11. Color

Blue(RAL5015)+Orange(RAL2004)



Work Flow

Decoiler  → Feeding Guide Device →  Roll Forming → Hydraulic Post Cutting Device (Non-stop) →

Hydraulic System → PLC Control System → Exit Rack

1


Machine Components Display


016A8667 拷贝             016A8715 拷贝


         Feeding Device                                       PLC Control Cabinet



  016A8673 拷贝             92A052764F25EF057B7BD2E08861D871



            Hydraulic Post Cutter                                                                 Product Application Case

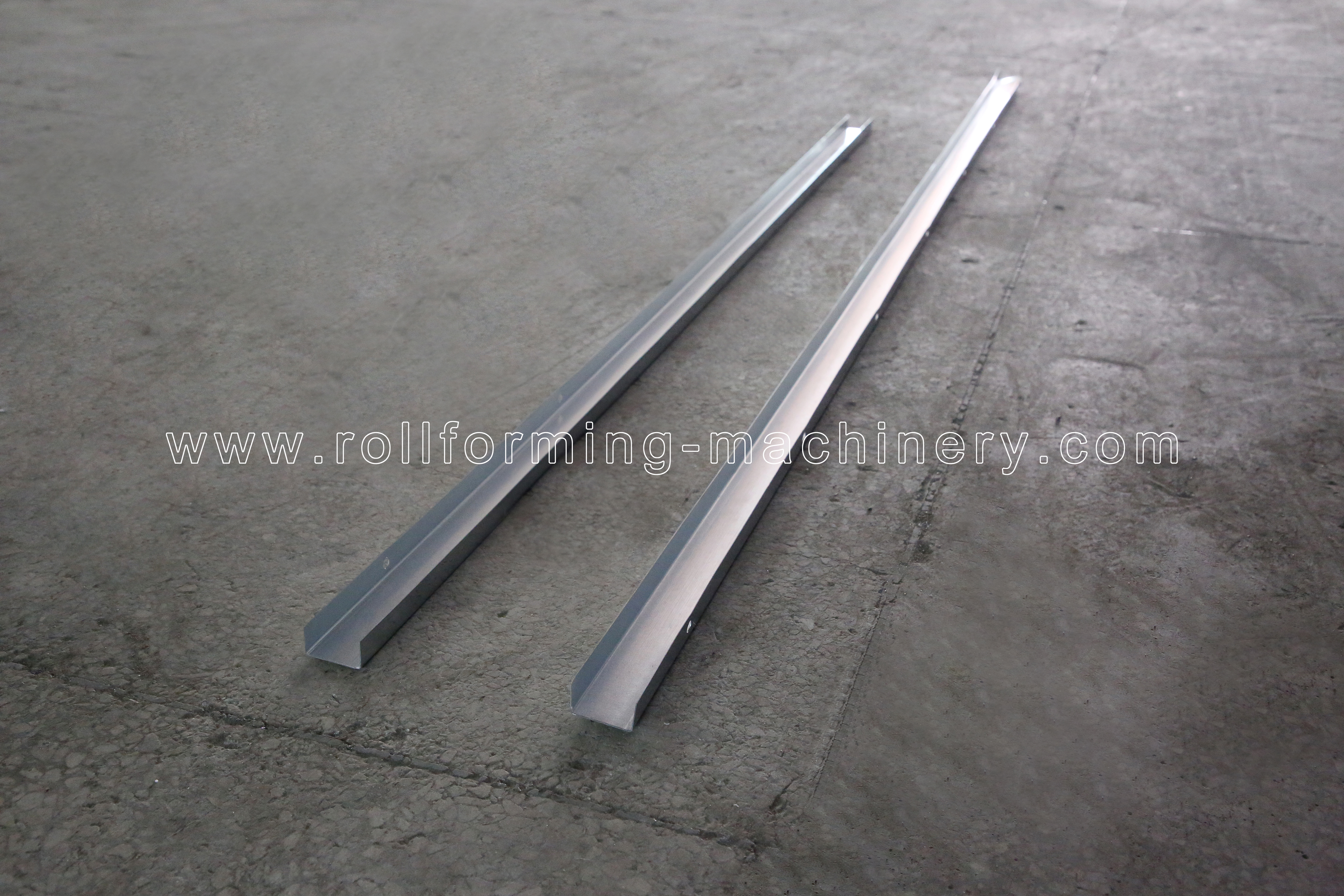

Machine Produced Products

016A8749箭头016A8797 拷贝


详情页_03

详情页_04

详情页_05图片1
