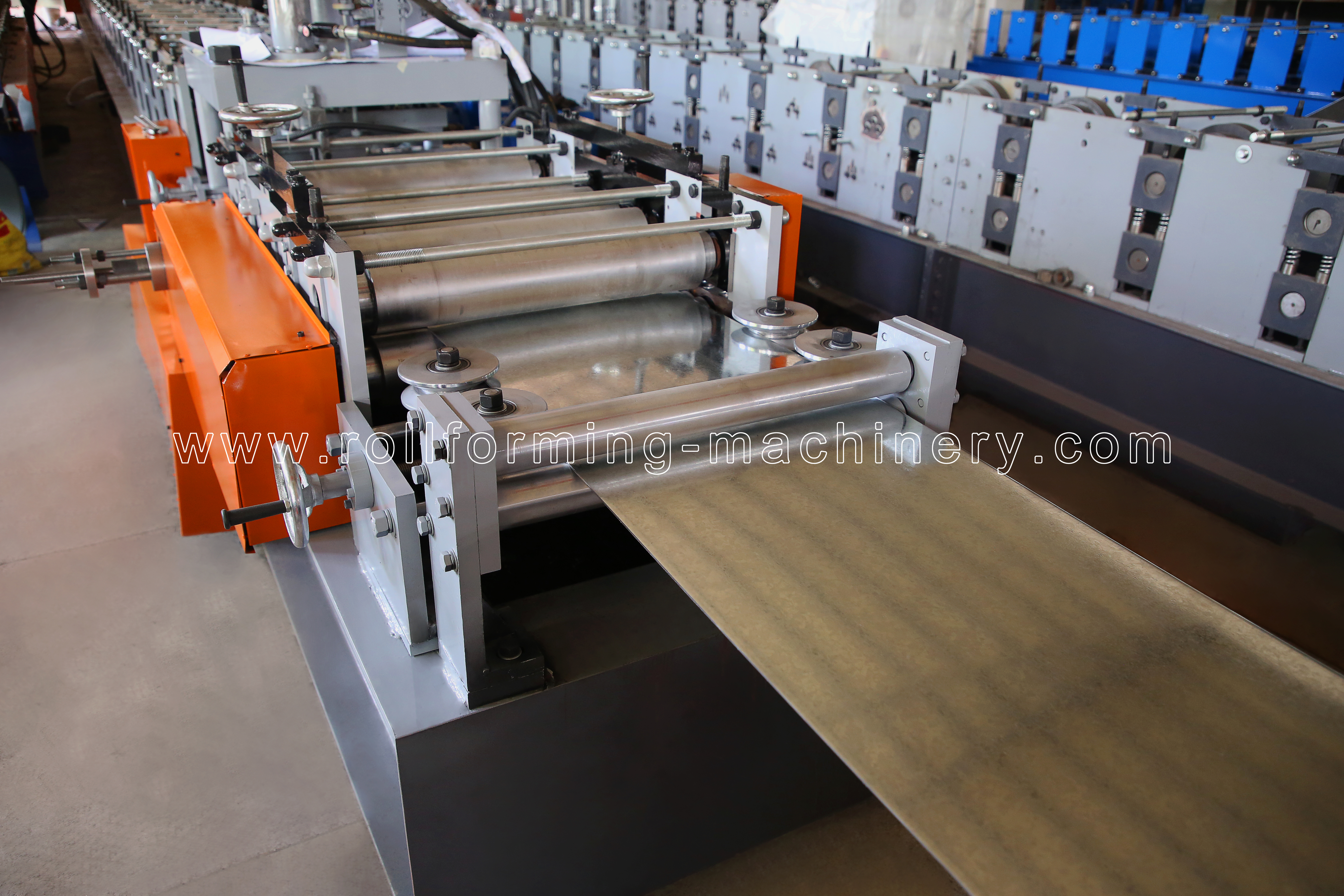

Prime Container House Frame Roll Forming Machine with ISO Certification

A Wide Variety Of Roll Forming Line With World-Class Profile Bending Quality Standards. Need Help Choosing The Right Roll Forming Machine? Contact our experts for free consult. Hight Quality Low Price.

Availability:

Quantity:



Inquire Add to Basket

Model:
YX128-200
Brand:
BMS

Product Description

Profile

Quick Details

No.	Main Parameters		Roll Forming Mill Parameters
1.	Decoiler	Manual/Hydraulic for Options	Forming Station	23 Steps
2.	Cutter Material	Cr12MOV	Base	H450
3.	Material thickness	2.0-3.5mm	Side Wall Thickness	Q235 t22mm
4.	Drive Way	Chain transmission	Shafts	45#,φ90mm
5.	Application Material	Galvanized Sheet	Main Motor Power	18.5*2 KW
6.	Yield Strength	235-345Mpa	Screw Bolts	Grade 8.8
7.	Key Selling Points	Easy to Operate	Forming Speed	0-12M/Min
8.	Effective Size	As Customer Design	Roller	Gcr15, precision machined, hard Chrome Coated
9.	Control System	PLC Control System	Processing Mode	CNC lathes, Hear Treatment, hard Chrome Coated, with thickness 0.04mm
10.	Type	Steel Frame & Purlin Machine
