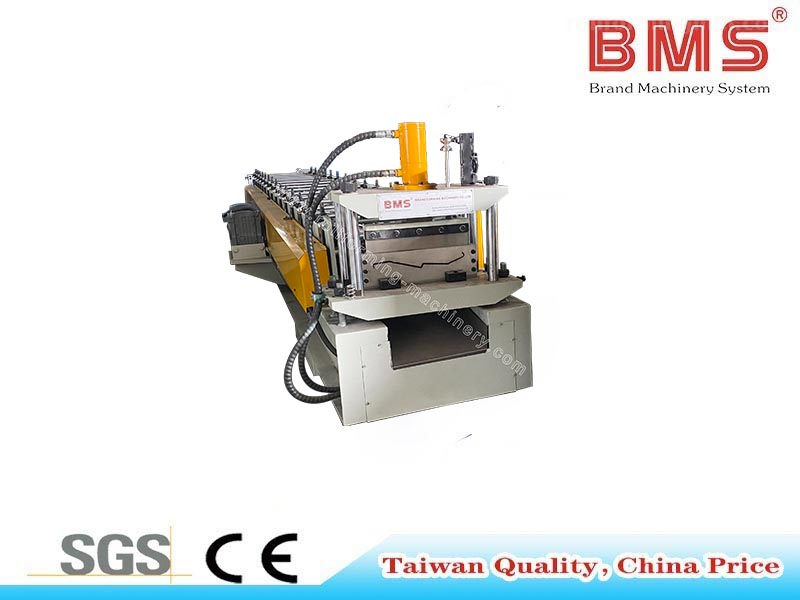

Metal Architectural Louver Roll Forming Machine

This machine produced louver to ventilate and prevent rainwater into the building

Availability:

Quantity:



Inquire Add to Basket

Model:
YX457-100
Brand:
BMS
Code:
8455221000

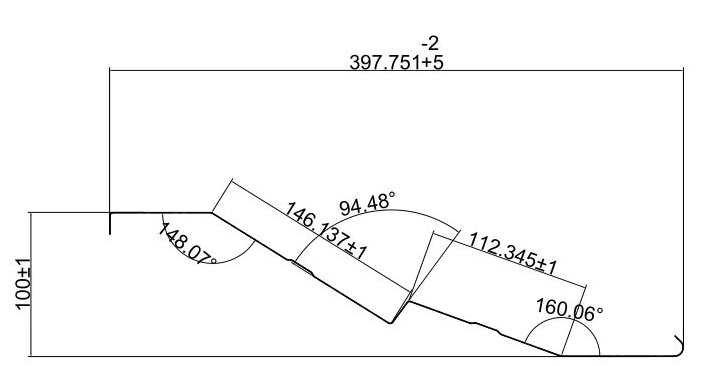

Profile

drawing

Product Description

Material	Applicable material	PPGI
	Material thickness	0.3-0.6mm
	With yield strength	550Mpa
Coil	Feeding width	650mm
	Coil ID range	508mm±30mm
	Capacity	Max. 5 Tons.
Machine	Base Frame	H400 type steel by welding.
	Side wall thickness	Q235 t18mm
	Roller Material	45# Steel,Hard Chrome Coated
	Roller station	14-steps to form
	Shaft diameter	ф65mm,High Frequency Processing
Cutter	Hardness	Heat treatment to HRC58-62 degree
Cutter	Cutting tolerance	≤±1mm
Power	Driving way	Gear/Sprocket transmission
	Main motor	7.5KW, Frequency Speed Control
	Pump motor for cutter	3.0KW
PLC Control System	Inverter	Schneider Electric/DELTA (Taiwan brand)
	Touch Screen	WEINVIEW(Taiwan brand)
	Encoder	KOYO (Japan brand) or OMRON (Japan brand)
	Control Voltage	24V

Features

1. This machine produced louver to ventilate and prevent rainwater into the building

2. Optional film coating device to protect the profiles surface and advertise on the film.

3. Hard-Chromed Tooling can roll forming high tension 550mpa material for long working life.

4. Hot Sales in Thailand.

5. Chinese, English, and Thai PLC operation interface

Chinese, English, and Thai PLC operation interface

Work Flow

5T Hydraulic Decoiler→Manual Pre-Cutter Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Cutter Device→Exit Rack

056T6YSR%8K1K)FZVY

Technical specifications

1) 5T Hydraulic Decoiler:one set

Hydraulic Control Steel Coil Inner Bore Shrinkage And Stop

Max Feeding Width: 650mm

Coil ID Range:470±30mm,Outside Diameter:1500mm

Oil pump motor:3.0KW

Capacity:Max.5 Tons

Add Automatic Feeding Power And Self-Stop Device

Decoiler

2) Pre-cutter

With feeding material guide,avoid wasting material

Pre-cutter

3) Main Machine

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

Body frame made from 400# H type steel by welding

Real forming speed:12-15m/min

roll forming mill

4) Hydraulic Post Cutter

Post To Cut,Stop To Cutting,Two Pieces Type Of Cutting Blade Design
Hydraulic Motor:3.0KW;Cutting Pressure:0-16Mpa
Cutting Tool Material:Cr12MoV(= SKD11 Steel),Heat treatment to HRC58-62

With At Least One Million Times Of Cutting Life
The Cutting Power Is Provided By The Main Engine Hydraulic Station

5) PLC Control System

Control The Quantity And Cutting Length Automatically.

Input The Production Data(Production Batch,pcs,Length,etc.) On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

PLC Control Cabinet

6) Exit Rack:Three Units

20200316171137_19269

7) Product Show

Application Case

Architectural Louver Roll Forming Machine application case

Packaging & Shipping

Packing method:Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

20190812102601_56964

After-sale Service

1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
