KOMET 840 Solar Roof Roll Forming Machine

High Productivity & best after-sale service. High-end equipment. Experienced Team. State-of-the-art process. Excellent quality,

Availability:

Quantity:



Inquire Add to Basket

Brand:
BMS

Profile

780

Product Description

No.	Main Parameters		Roll Forming Mill Parameters
1.	Material Thickness	0.6mm	Forming Stations	24 Stands
2.	Feeding Width	1000mm	Body Frame	H350
3.	Application Material	Aluminized zinc sheet	Side Wall Thickness	Q235 t 18mm
4.	Electrical Standard	380V/50HZ/3PH	Shaft Diameter	45#Steel, φ70mm
5.	Cutter material	Cr12 with quenching	Main Motor Power	11KW
6.	Yield Strength	350Mpa	Screw Bolts	Grade 8.8
7.	Forming Speed	15-20m/min	Effective Width	740mm
8.	Control System	PLC Control System	Roller	45#Steel, precision machined, hard Chrome Coated
9.	Hydraulic Motor	5.5kw	Machine Color	Blue+Black+Orange
10.	Testing Material	BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing

Overview

Features: 1.For Risen Energy BIPV Project( Patented Product). 2. It Can Also Be Applied To Large-Span Self-Supporting Roof System.The Installation Clip Of This System Is Hidden Under The Roof Panel.The Roof Is Beautiful Without Perforation, Which Can Effectively Prevent Leakage. 3. It Effectively Solves The Problem Of Temperature Deformation That ls Difficult To Overcome For Other Roofing Panels, And Ensures The Reliability Of Roof Performance.

Características: 1. para el proyecto BIPV de energía resucitada (producto patentado). 2. También se puede aplicar al sistema de techo auto-soporte de gran nivel. El clip de instalación de este sistema está oculto debajo del panel del techo. El techo es hermoso sin perforación, lo que puede evitar efectivamente las fugas. 3. Resuelve efectivamente el problema de la deformación de la temperatura que es difícil de superar para otros paneles de techado, y garantiza la confiabilidad del rendimiento del techo.

Technical specifications

Body frame made from H350 type steel by welding

Side wall thickness: Q235 t18mm; Tie rod:ф22 Galvanized

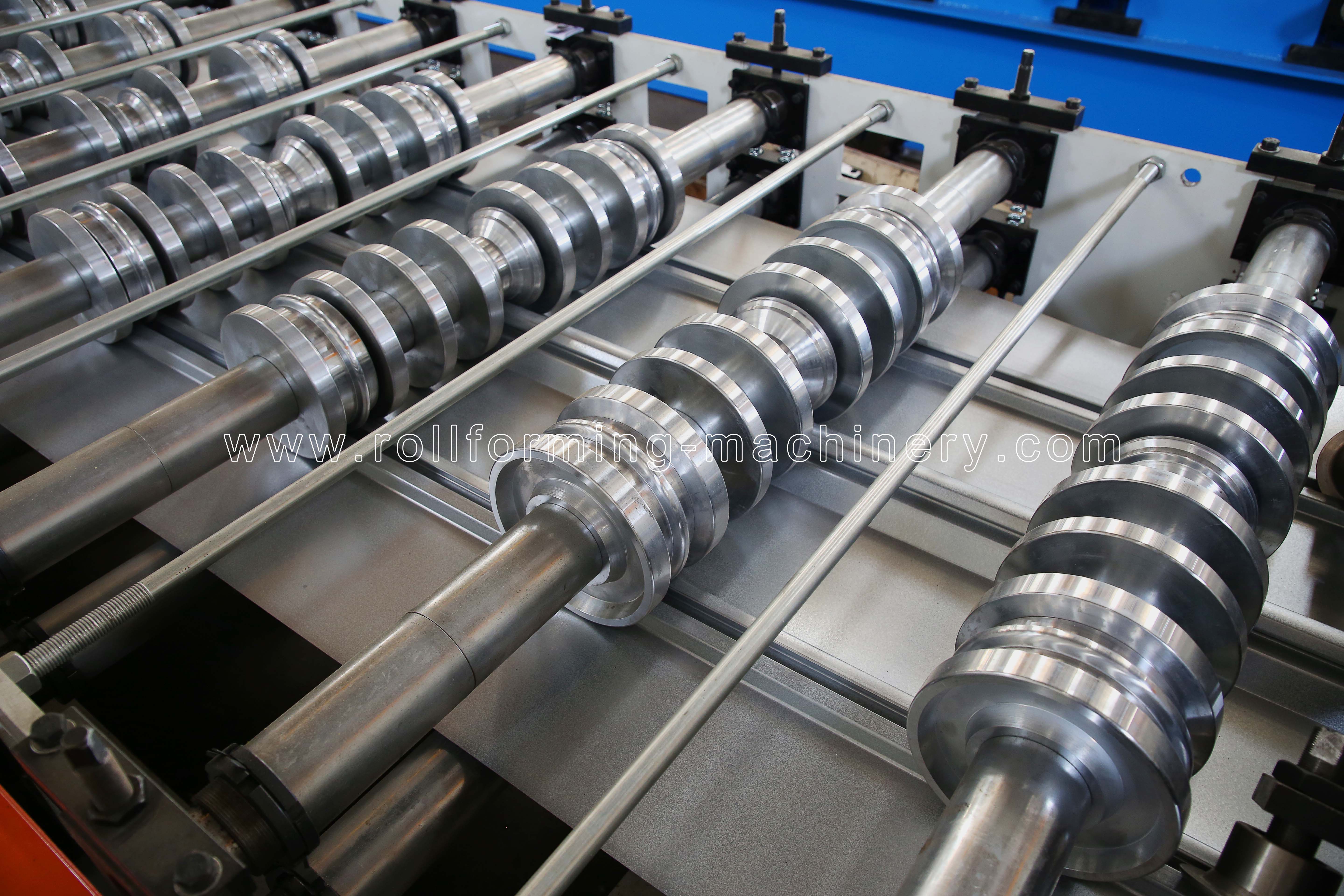

Rollers manufactured from 45# precision machined, hard Chrome Coated; with thickness 0.5mm, surface with mirror treatment (for longer life and anti-rust);

Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating. Diameter=φ70mm, precision machined
Gear & chain drive about 24 -step to form
Main Motor= 11KW, Frequency speed control
Speed reducer motor: R series
All the screw bolts with grade 8.8 (cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.

Forming Speed:15-20m/min

Work Flow

Uncoiler → Manual Pre-cutter → Roll Forming System → Hydraulic Post-cutter→ PLC Control System → Exit Rack

Packaging & Shipping

Packing method:Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

20190812102601_56964

Terms of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
