Roll forming is a highly efficient and versatile metal forming process that transforms large coils of sheet metal into precise, uniform profiles. This continuous bending operation is integral to various industries, including construction, automotive, and aerospace. By passing metal strips through consecutive sets of rolls, each making incremental changes, roll forming achieves complex cross-sectional shapes with remarkable consistency.

Understanding the intricacies of the roll forming process is essential for engineers and manufacturers aiming to optimize production efficiency and product quality. This comprehensive guide delves into the technical aspects of roll forming, exploring its processes, benefits, and advancements. For those interested in specialized machinery, consider exploring our Metal Deck Roll Forming Machines that exemplify the cutting-edge technology in this field.

The Fundamentals of Roll Forming

Roll forming is a continuous bending process where a long strip of metal, typically coiled steel, is passed through sets of rolls mounted on consecutive stands. Each set performs incremental portions of the bend until achieving the desired cross-section. This method is ideal for producing constant-profile parts with long lengths and in large quantities, offering significant advantages over traditional manufacturing processes.

The Flower Pattern Design

Central to roll forming is the "flower pattern"—a sequence of profile cross-sections representing each stage of deformation. Each profile corresponds to a particular roll set, and the cumulative effect results in the final complex shape. Designing the flower pattern requires meticulous planning to ensure minimal material stress and precise dimensions throughout the forming process.

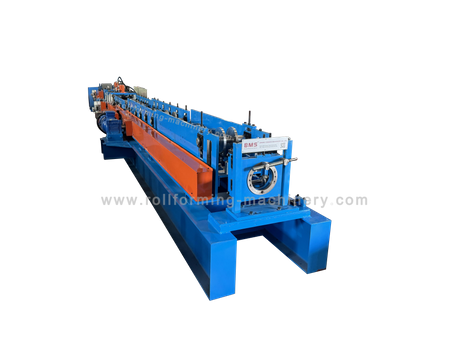

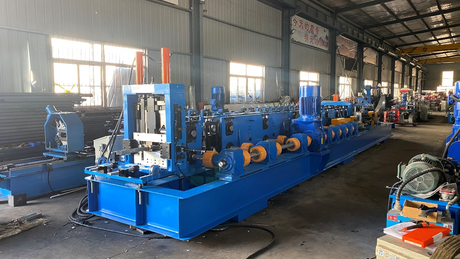

Equipment and Machinery

Roll forming lines consist of several key components:

• Uncoiler: Holds and feeds the metal coil into the line.

• Leveler: Ensures the strip is flat and free of residual stress.

• Roll Stands: Houses the rolls that shape the metal strip incrementally.

• Cut-off Press: Cuts the formed profile to the desired length.

• Run-out Table: Supports and guides the product as it exits the line.

Advanced machinery may include pre-punching or notching stations, in-line welding heads, and computer-controlled adjustments for precise operation. Industries requiring customized profiles can benefit from our Metal Roofing Roll Forming Machines, designed for flexibility and accuracy.

Roll Forming Processes

Several roll forming processes cater to different production needs, each with unique characteristics and applications.

Flat Rolling

Flat rolling reduces the thickness of a metal strip by passing it between two rolls that rotate in opposite directions. The gap between the rolls is less than the starting thickness, causing the material to elongate. This foundational process is crucial for preparing metal strips for further shaping.

Shape Rolling

Also known as profile rolling, this method forms metals into various shapes without altering material thickness. It's used to produce items like I-beams, U-channels, and rail tracks. Shape rolling requires precise roll design to maintain consistent cross-sections throughout production.

Ring Rolling

Ring rolling expands a ring's diameter by reducing its thickness using two rolls: a drive roll and an idle roll. This process produces seamless rings used in bearings, flanges, and gears. The technique ensures uniformity and strength in the final product.

Roll Bending

Roll bending forms large metal plates into curved shapes using three rollers. Adjusting the rollers' positions achieves different bend radii and angles. This process is essential for producing components like cylindrical shells and curved panels.

Technical Advances in Roll Forming

Technological innovations have significantly enhanced roll forming capabilities, improving precision and efficiency.

Computer Numerical Control (CNC)

CNC systems revolutionize roll forming by automating adjustments and ensuring repeatability. These controllers allow instant changes to roll positions and operations, facilitating quick transitions between product profiles. CNC technology enhances accuracy and reduces setup times, boosting overall productivity.

Computer-Aided Design and Manufacturing (CAD/CAM)

CAD/CAM software enables engineers to design complex profiles and simulate the roll forming process digitally. This virtual modeling identifies potential issues before production begins, saving time and resources. By optimizing roll designs and material flow, CAD/CAM integration ensures high-quality outcomes.

Programmable Logic Controllers (PLCs)

PLCs automate machine functions, monitoring operations in real-time and adjusting parameters as needed. They synchronize various components of the roll forming line, enhancing coordination and reducing errors. PLCs contribute to consistent product quality and operational safety.

Advanced Materials and Coatings

The development of high-strength alloys and specialized coatings expands the possibilities of roll forming. Materials like advanced high-strength steel (AHSS) and aluminum alloys require precise handling but offer superior performance characteristics. Protective coatings applied during forming can enhance corrosion resistance and aesthetic appeal.

Benefits of Roll Forming

Roll forming offers numerous advantages over other metal forming methods, making it a preferred choice for many manufacturers.

Efficiency and Cost-Effectiveness

The continuous nature of roll forming allows for high production speeds and minimal downtime. By reducing manual intervention and utilizing automation, manufacturers can lower labor costs and increase output. Additionally, roll forming minimizes material waste, contributing to cost savings.

Consistency and Precision

Each product passes through the same series of rolls, ensuring uniformity across large production runs. Tight tolerances are achievable, and variations are minimized. This consistency is crucial for applications where exact specifications are mandatory.

Versatility in Design

Roll forming accommodates a wide range of profiles and materials. Complex cross-sections and intricate designs are possible without sacrificing structural integrity. This versatility enables customization to meet specific application requirements.

Material Benefits

The process can enhance certain material properties, such as yield strength, through work hardening. Furthermore, pre-coated or pre-painted metals can be formed without damaging the finish, eliminating the need for additional finishing processes.

Materials Used in Roll Forming

A variety of metals are suitable for roll forming, each offering distinct advantages based on the intended application.

Ferrous Metals

Steel and its alloys are common in roll forming due to their strength and versatility.

• Carbon Steel: Offers a balance of strength and ductility, suitable for structural components.

• Stainless Steel: Provides corrosion resistance and is ideal for applications requiring hygiene and durability.

• Galvanized Steel: Coated with zinc for enhanced corrosion protection, often used in outdoor structures.

Non-Ferrous Metals

Non-ferrous metals offer specific properties for specialized applications.

• Aluminum: Lightweight and corrosion-resistant, suitable for aerospace and transportation.

• Copper: Excellent electrical conductivity, used in electrical components.

• Brass and Bronze: Offer aesthetic appeal and corrosion resistance, used in architectural applications.

Selecting the appropriate material is crucial for ensuring product performance and longevity. Material properties influence roll design, machine settings, and lubrication requirements.

Applications of Roll Forming

Roll-formed products are integral to various industries due to their precision and adaptability.

Construction Industry

In construction, roll-formed components include steel framing, roofing panels, gutters, and siding. These elements benefit from the strength and consistency provided by the roll forming process. For high-quality roofing solutions, our Metal Roofing Roll Forming Machines produce reliable and durable panels.

Automotive Industry

Automotive manufacturers use roll-formed profiles for structural components, bumpers, and trim. The ability to produce lightweight yet strong parts contributes to vehicle efficiency and safety.

Aerospace Industry

In aerospace, precision and performance are paramount. Roll forming produces components like stringers and frames using advanced alloys, meeting stringent industry standards.

Energy Sector

The energy sector utilizes roll-formed products in solar panel frames, wind turbine components, and transmission towers. The process's efficiency supports renewable energy initiatives by reducing manufacturing costs.

Quality Control in Roll Forming

Maintaining high quality is essential for roll-formed products, necessitating rigorous control measures.

Material Inspection

Incoming materials are inspected for defects, chemical composition, and mechanical properties. Ensuring material consistency prevents issues during forming and in the final product.

Process Monitoring

Sensors and monitoring devices track parameters like roll pressure, alignment, and temperature. Real-time data allows for immediate adjustments, maintaining product specifications.

Dimensional Verification

Finished products undergo dimensional checks using tools like calipers, laser scanners, and coordinate measuring machines (CMMs). These inspections verify compliance with design tolerances.

Surface Quality Assessment

Surface finishes are evaluated for imperfections such as scratches or corrosion. Proper lubrication and handling minimize surface defects, ensuring aesthetic and functional quality.

Future Trends in Roll Forming

The roll forming industry continues to evolve, embracing new technologies and methodologies.

Integration of Artificial Intelligence (AI)

AI and machine learning algorithms can optimize roll forming operations by predicting equipment maintenance needs and adjusting processes for efficiency. These technologies enhance decision-making and reduce downtime.

Sustainable Manufacturing Practices

Environmental concerns drive the adoption of sustainable practices, such as recycling scrap material and reducing energy consumption. Advances in lubrication and coatings also aim to minimize environmental impact.

Advanced Materials Development

Research into new alloys and composite materials expands roll forming applications. Materials with enhanced properties allow for lighter, stronger products, meeting the demands of modern engineering challenges.

Conclusion

Roll forming stands as a cornerstone of modern metal fabrication, offering unmatched efficiency, precision, and versatility. Its ability to produce consistent, high-quality profiles makes it indispensable across numerous industries. By embracing technological advancements and sustainable practices, roll forming continues to evolve, meeting the complex demands of contemporary manufacturing.

For industries seeking innovative solutions in metal forming, understanding and leveraging the capabilities of roll forming is essential. Explore our range of specialized equipment, such as the Metal Deck Roll Forming Machines, to enhance your production capabilities and stay ahead in a competitive market.

Frequently Asked Questions (FAQ)

1. What is roll forming, and how does it differ from other metal forming processes?

Roll forming is a continuous bending process where a long strip of metal is passed through consecutive sets of rolls to achieve a desired cross-section. Unlike stamping or extrusion, roll forming is ideal for producing consistent profiles over long lengths with tight tolerances and minimal waste.

2. Which materials are suitable for roll forming?

Various metals can be roll formed, including ferrous metals like carbon steel, stainless steel, and galvanized steel, as well as non-ferrous metals like aluminum, copper, brass, and bronze. Material selection depends on the application's specific requirements for strength, corrosion resistance, and weight.

3. What are the advantages of using roll forming in manufacturing?

Roll forming offers efficiency, cost-effectiveness, consistency, and versatility. It allows for high-speed production of complex profiles with minimal material waste. The process also ensures uniformity across large production runs and can handle a wide range of materials and designs.

4. How does technology enhance the roll forming process?

Technological advancements like CNC controls, CAD/CAM software, and PLCs improve precision, automate adjustments, and allow for complex designs. These technologies reduce setup times, enhance product quality, and increase overall production efficiency.

5. Can roll forming accommodate custom profiles and designs?

Yes, roll forming is highly adaptable and can produce custom profiles to meet specific application needs. By designing custom roll sets and utilizing advanced software, manufacturers can create intricate cross-sections and unique shapes with high precision.

6. What industries benefit most from roll forming?

Industries such as construction, automotive, aerospace, and energy extensively use roll-formed products. The process's ability to produce strong, lightweight, and precise components makes it valuable for applications ranging from structural beams to intricate aerospace parts.

7. How does roll forming contribute to sustainable manufacturing?

Roll forming minimizes material waste through efficient use of raw materials and reduces energy consumption by utilizing a continuous process. Advances in lubrication and coatings further lessen environmental impact, aligning with sustainability goals in modern manufacturing.
