Klip Lock Roofing Panel Fixing Clip Punching Line

Share to:

Fixing Clip Punching Line

Used for Klip Lock Roofing Panel

Availability:

Quantity:



Inquire Add to Basket

Model:
YX42-330-990
Brand:
BMS

Profile

drawing YX42-330-990

Features

The produced fixing clip can be laid in place and fixed simpler and faster than ever before. Because the KL99 clip is fixed with hex. head screws, which are easier to drive. The clip gives roofers the ability to accommodate up to 50mm of insulation.

Hot Sales in India, Indonesia,etc.

Detailed Pictures

Manual Decoiler

Leveling Device

Punching Device

Finished Rollforming and Profile Outlet

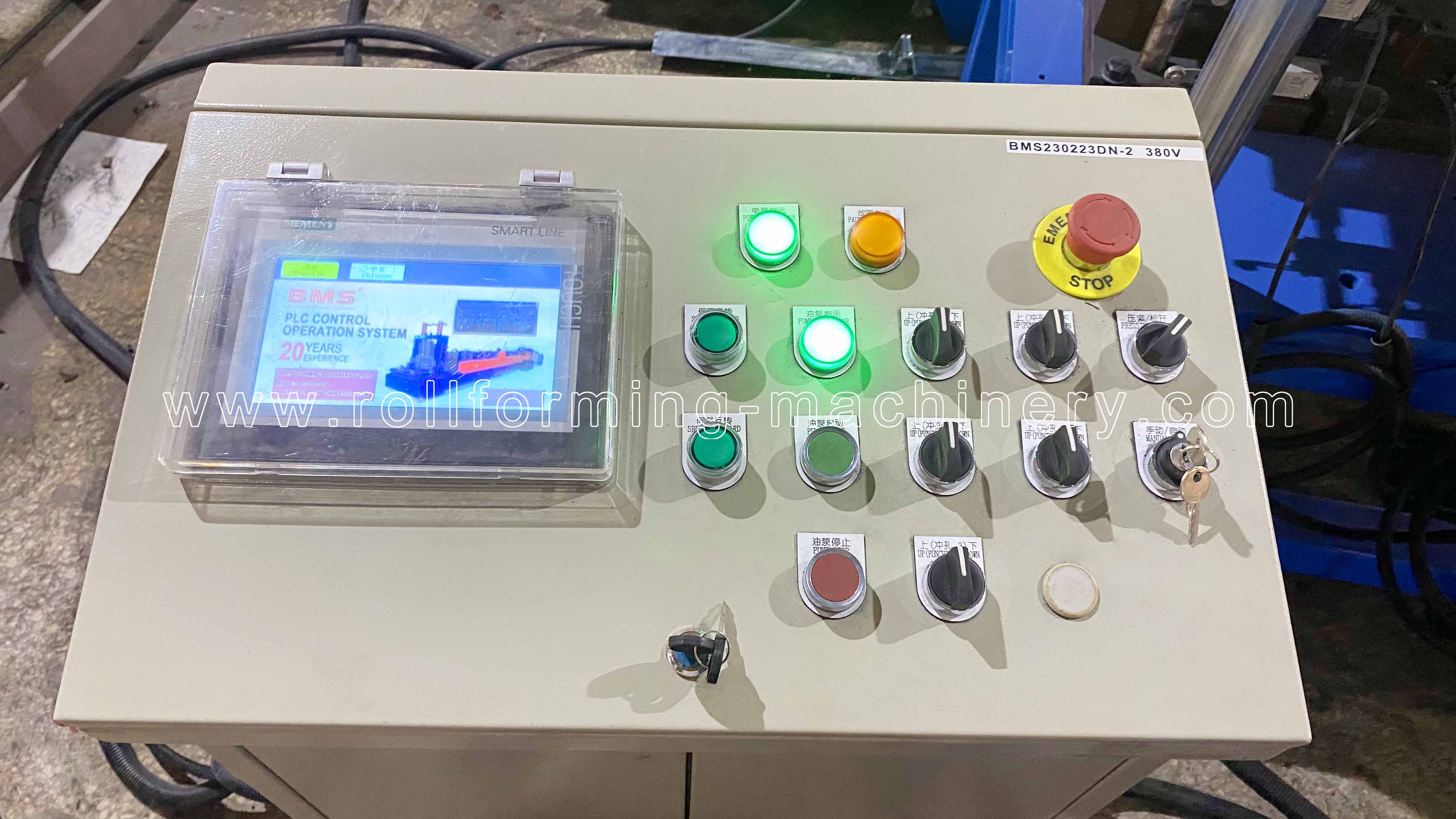

PLC Control Interface

Product Sample

Machine Details

2 T Manual Decoiler
Manual control steel coil inner bore shrinkage and stop
Max feeding width: 400mm, Coil ID Range: 508±30 mm
Max Capacity:2 Tons

PLC Control System

PLC: Siemens (German brand) /Schneider Electric(French brand)
Inverter: Siemens (German brand) /Schneider Electric(French brand)
Touch Screen: Siemens (German brand) /Schneider Electric(French brand)
Encoder: Omron brand (Japan)
Cut-to-length tolerance≤±1 mm
Control Voltage 24V

Application Case

Application Case

Packaging & Shipping

Packing method:Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

20190812102601_56964

After-sale Service

1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
